GX81-ATMQF (1988)

Toyota Mark 2

Production Aug 1988 - Oct 1992
Engine 1GGE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )GX81,JZX81,MX83

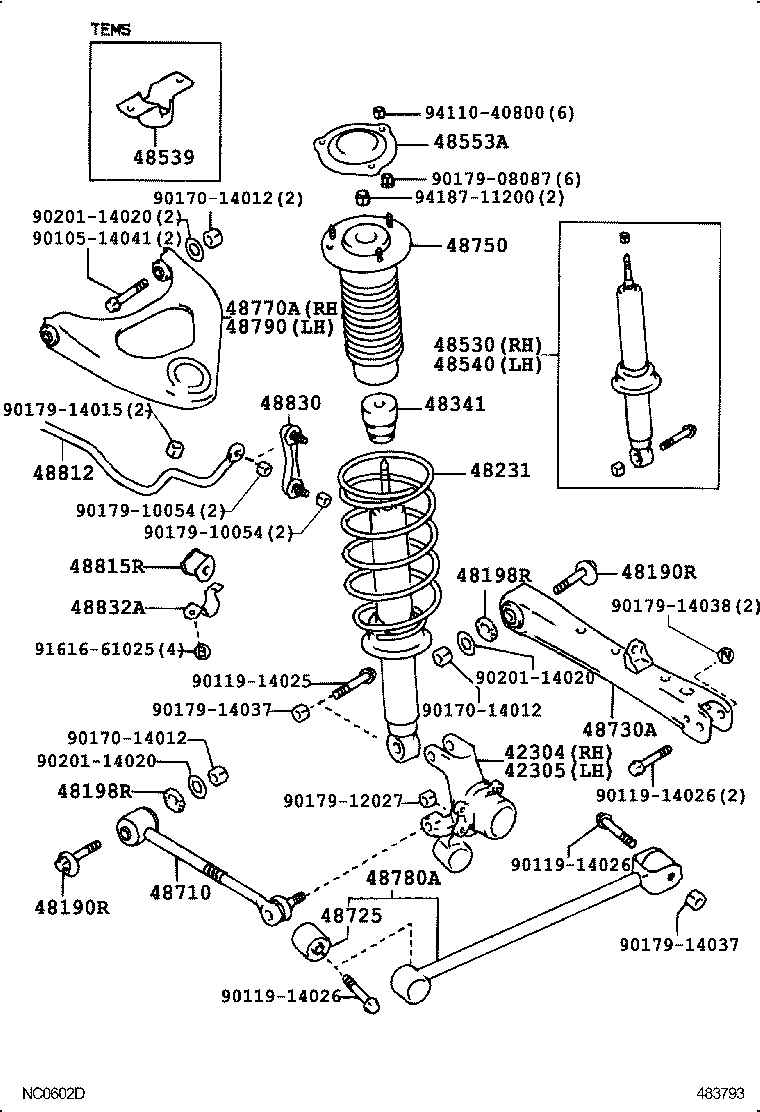

Click highlighted areas on diagram

diagram 42304 42305 48190R 48190R 48198R 48198R 48231 48341 48530 48539 48540 48553A 48710 48725 48730A 48750 48770A 48780A 48790 48812 48815R 48830 48832A 9010514041 9011914025 9011914026 9011914026 9011914026 9017014012 9017014012 9017014012 9017908087 9017910054 9017910054 9017912027 9017914015 9017914037 9017914037 9017914038 9020114020 9020114020 9020114020 9161661025 9411040800 9418711200
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-22010

GX81,JZX81,MX83

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-22010

GX81,JZX81,MX83

 1
48190R - CAM ASSY, CAMBER ADJUST
48190-22020

GX81,MX83

 4
48190R - CAM ASSY, CAMBER ADJUST
48190-22020

GX81,MX83

 4
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-14010

GX81,JZX81,MX83

 4
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-14010

GX81,JZX81,MX83

 4
48231 - SPRING, COIL, REAR
48231-2A190

GX81..TWC

 2
48231-2A191

GX81..TWC

 2
48341 - BUMPER, REAR SPRING
48341-22130

GX81,JZX81,LX80,MX83,SX80,YX80

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-29096

GX81..SPC,TWC

ﾏｰｸ 48530−22110

 1
48530-29097

GX81,MX83..SPC,TWC

ﾏｰｸ 48530−22120

 1
48539 - BRACKET, ACTUATOR SUPPORT, RR
48539-22020

GX81,JZX81,MX83..SPC,TWC

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48530-29097

GX81,MX83..SPC,TWC

ﾏｰｸ 48530−22120

 1
48530-29096

GX81..SPC,TWC

ﾏｰｸ 48530−22110

 1
48553A - CAP, SHOCK ABSORBER
48553-22020

GX81,JZX81,MX83..SPC,TWC

 2
48710 - ARM ASSY, UPPER CONTROL
48710-22240

GX81,JZX81,MX83

 2
48725 - BUSH, LOWER CONTROL ARM
48725-22110

GX81

 2
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-22020

GX81..SPC,TWC,TWT

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-22050

GX81,JZX81,MX83

 2
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-22010

GX81

 1
48780A - ROD ASSY, STRUT, REAR
48780-22010

GX81

 2
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-22010

GX81

 1
48812 - BAR, STABILIZER, REAR
48812-22190

GX81..SPC,TWC

 1
48815R - BUSH, STABILIZER(FOR REAR)
48815-22090

GX81..SPC,TWC

 2
48830 - LINK ASSY, REAR STABILIZER
48830-30010

GX81,JZX81,MX83..SPC,TWC,TWT

 2
48832A - BRACKET, REAR STABILIZER BAR, NO.1
48832-22040

GX81,JZX81,MX83..SPC,TWC,TWT

 2
Common parts
90105-14041
90119-14025
90119-14026
90170-14012
90179-08087
90179-10054
90179-12027
90179-14015
90179-14037
90179-14038
90201-14020
91616-61025
94110-40800
94187-11200
