GX81-ATMQF (1988)
Toyota Mark 2

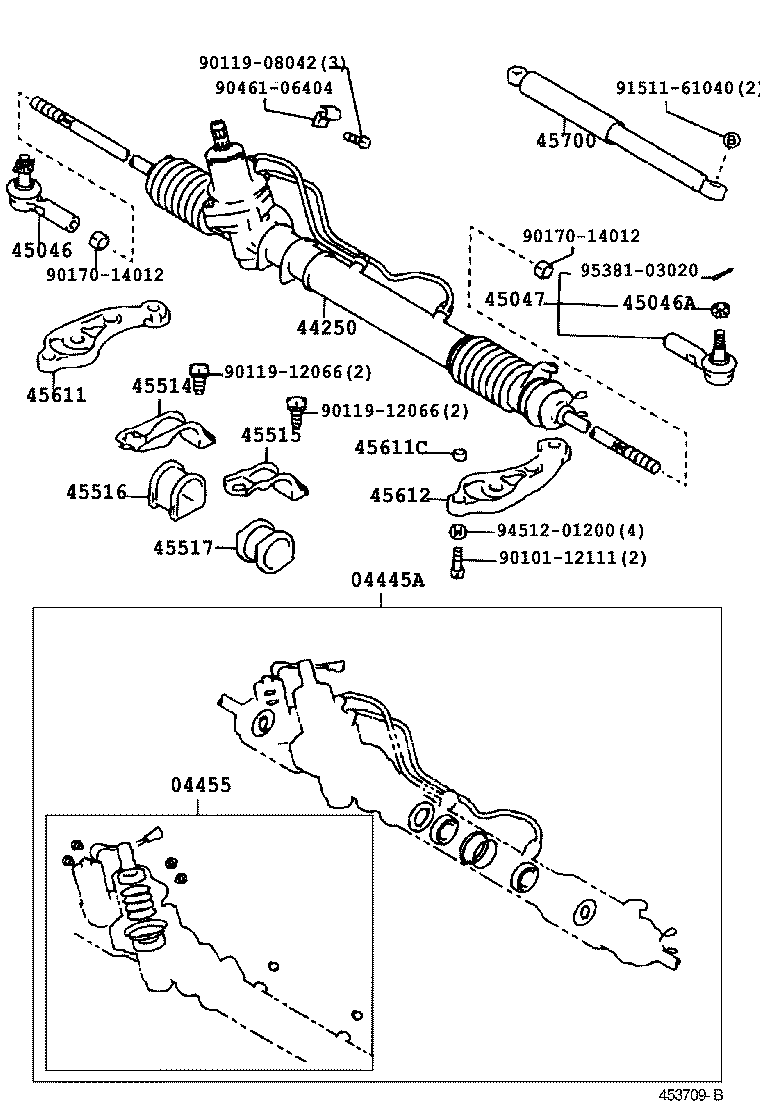

ILLUST NO. 1 OF 2(8808- )GX81..SPC,TWC,TWT ; (8908- )MX83 ;(9008- )JZX81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-22110 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-22080 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-22211 |
GX81..TWC |
1 | ||
| 44250-22212 |
GX81..TWC |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29205 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-12028 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29205 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-22090 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-22090 |
GX81,MX83,SX80,YX80 |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-22010 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-22030 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45611-22110 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-15016 |
GX81,LX80,MX83,SX80,YX80 |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-22110 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45612-22110 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-22010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90101-12111 | ||||
| 90119-08042 | ||||
| 90119-12066 | ||||
| 90170-14012 | ||||
| 90461-06404 | ||||
| 91511-61040 | ||||
| 94512-01200 | ||||
| 95381-03020 | ||||

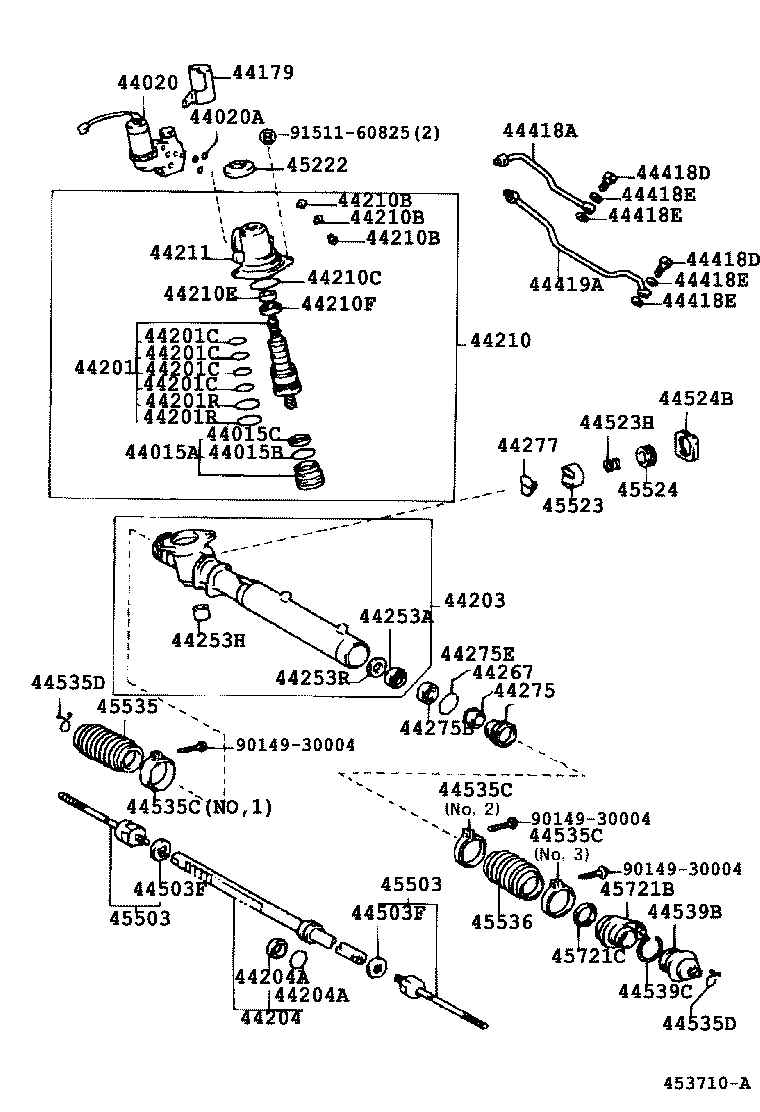

ILLUST NO. 2 OF 2(8808- )GX81..SPC,TWC,TWT ; (8908- )MX83 ;(9008- )JZX81
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22030 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-53181 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-30007 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-22020 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
GX81,JZX81,MX83..SPC,TWC,TWT |
3 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-22080 |
GX81..SPC,TWC |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GX81,LX80,SX80,YX80 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GX81,LX80,SX80,YX80 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GX81,LX80,SX80,YX80 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
GX81,LX80,SX80,YX80 |
4 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
GX81,JZX81,MX83..SPC,TWC,TWT |
2 | ||
| 44201R - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-49002 |
GX81,JZX81,MX83..SPC,TWC,TWT |
2 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-22070 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
GX81,JZX81,LX80,MX83,SX80,YX80 外側 |
1 | ||
| 90301-37007 |
GX81,JZX81,LX80,MX83,SX80,YX80 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
GX81,JZX81,LX80,MX83,SX80,YX80 外側 |
1 | ||
| 90301-37007 |
GX81,JZX81,LX80,MX83,SX80,YX80 内側 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-22120 |
GX81..SPC,TWC |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04004 |
GX81,JZX81,MX83..SPC,TWC,TWT RETURN SIDE |
2 | ||
| 90410-06005 |
GX81,JZX81,LX80,MX83,SX80,YX80 PRESSURE SIDE |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04004 |
GX81,JZX81,MX83..SPC,TWC,TWT RETURN SIDE |
2 | ||
| 90410-06005 |
GX81,JZX81,LX80,MX83,SX80,YX80 PRESSURE SIDE |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-04004 |
GX81,JZX81,MX83..SPC,TWC,TWT RETURN SIDE |
2 | ||
| 90410-06005 |
GX81,JZX81,LX80,MX83,SX80,YX80 PRESSURE SIDE |
1 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-62005 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90363-19003 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-22060 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-26008 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44253H - BEARING, NO.1(FOR POWER STEERING RACK HOUSING) | ||||
| 90364-13003 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44253R - SPACER(FOR POWER STEERING RACK HOUSING) | ||||
| 90560-27013 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44275B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90310-26008 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-22090 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX81,JZX81,MX83..SPC,TWC,TWT |
2 | ||
| 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90401-10021 |
GX81,JZX81,MX83..SPC,TWC,TWT |
2 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX81,JZX81,MX83..SPC,TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX81,JZX81,MX83..SPC,TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX81,JZX81,MX83..SPC,TWC,TWT |
4 | ||
| 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90430-10008 |
GX81,JZX81,MX83..SPC,TWC,TWT |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-22090 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14007 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-49002 |
GX81,MX83..SPC,TWC,TWT NO.1 |
1 | ||
| 90460-52001 |
GX81,MX83..SPC,TWC,TWT NO.2 |
1 | ||
| 90460-73002 |
GX81,MX83..SPC,TWC,TWT NO.3 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-49002 |
GX81,MX83..SPC,TWC,TWT NO.1 |
1 | ||
| 90460-52001 |
GX81,MX83..SPC,TWC,TWT NO.2 |
1 | ||
| 90460-73002 |
GX81,MX83..SPC,TWC,TWT NO.3 |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90460-49002 |
GX81,MX83..SPC,TWC,TWT NO.1 |
1 | ||
| 90460-52001 |
GX81,MX83..SPC,TWC,TWT NO.2 |
1 | ||
| 90460-73002 |
GX81,MX83..SPC,TWC,TWT NO.3 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
GX81,MX83..SPC,TWC,TWT 右側 |
1 | ||
| 90467-18003 |
GX81,MX83..SPC,TWC,TWT 左側 |
1 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-19012 |
GX81,MX83..SPC,TWC,TWT 右側 |
1 | ||
| 90467-18003 |
GX81,MX83..SPC,TWC,TWT 左側 |
1 | ||
| 44539B - SEAL, RACK END DUST(FOR POWER STEERING) | ||||
| 45539-22010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL) | ||||
| 90522-57001 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-22040 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29195 |
GX81,MX83..SPC,TWC,TWT 右側 |
1 | ||
| 45503-29205 |
GX81,MX83..SPC,TWC,TWT 左側 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29195 |
GX81,MX83..SPC,TWC,TWT 右側 |
1 | ||
| 45503-29205 |
GX81,MX83..SPC,TWC,TWT 左側 |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22030 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22080 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-22090 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 45721B - BRACKET, STEERING DAMPER, NO.3 | ||||
| 45721-22030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 45721C - NUT(FOR STEERING DAMPER BRACKET) | ||||
| 90179-40003 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| Common parts | ||||
| 90149-30004 | ||||
| 91511-60825 | ||||
