GX81-AEPZR (1988)

Toyota Mark 2

Production Aug 1988 - Aug 1990
Engine 1GGZE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9008)1GGZE

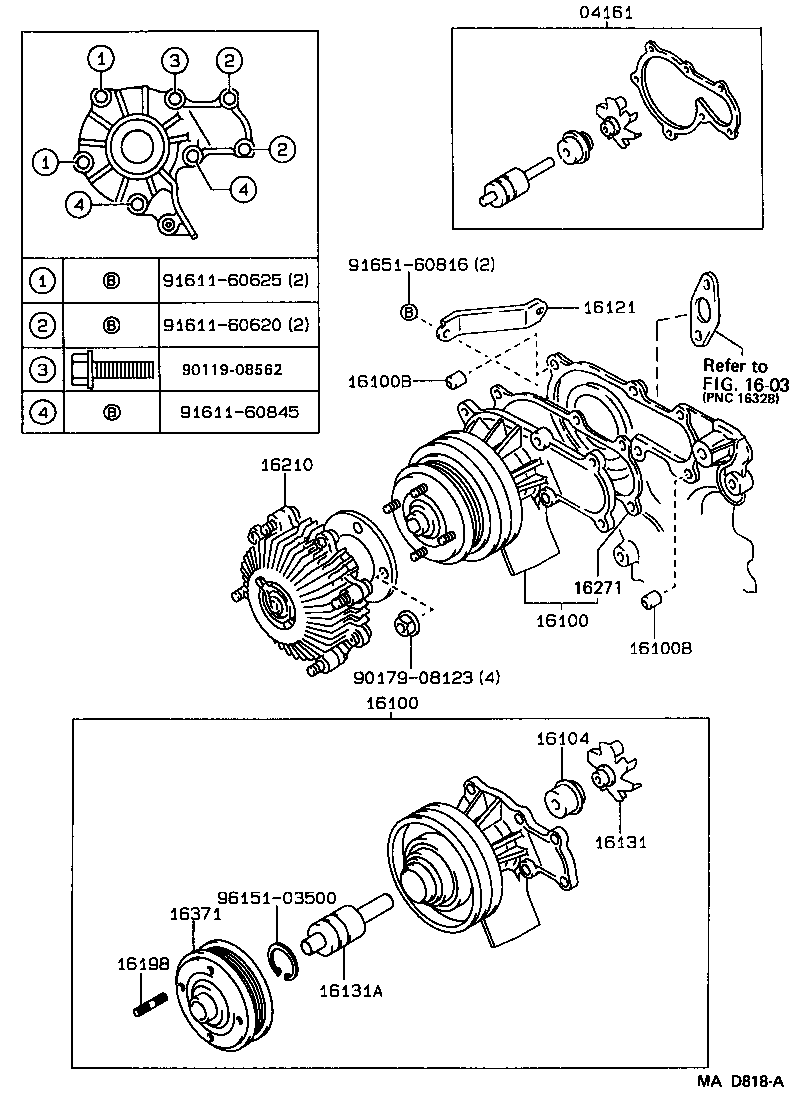

Click highlighted areas on diagram

diagram 04161 1603 16100 16100 16100B 16100B 16104 16121 16131 16131A 16198 16210 16271 16371 9011908562 9017908123 9161160620 9161160625 9161160845 9165160816 9615103500
Part # Description Qty Price
04161 - PUMP KIT, WATER
04161-70010

1GGZE..GX81

 1
16100 - PUMP ASSY, ENGINE WATER
16100-79055

1GGZE..GX81

 1
16100 - PUMP ASSY, ENGINE WATER
16100-79055

1GGZE..GX81

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16159-71010

1GGZE..GX81

 2
16100B - PIN, RING(FOR WATER PUMP SET)
16159-71010

1GGZE..GX81

 2
16104 - SEAL SET, WATER PUMP
16104-70020

1GGZE..GX81

 1
16121 - STAY, WATER PUMP
16121-70010

1GGZE..GX81

 1
16131 - ROTOR, WATER PUMP
16131-70021

1GGZE..GX81

 1
16131A - BEARING, WATER PUMP
90369-35033

1GGZE..GX81

 1
16198 - BOLT, STUD(FOR WATER PUMP PULLEY SEAT)
90029-01506

1GGZE..GX81

 4
16210 - COUPLING ASSY, FLUID
16210-70070

1GGZE..GX81

 1
16271 - GASKET, WATER PUMP
16124-70030

1GGZE..GX81

 1
16371 - PULLEY, FAN
16371-70040

1GGZE..GX81

 1
Common parts
90119-08562
90179-08123
91611-60620
91611-60625
91611-60845
91651-60816
96151-03500
Linked diagrams
1603
