GX81-AEPQK (1988)
Toyota Mark 2
(8808-9008)TWT ; (8808- )GX81..TWC

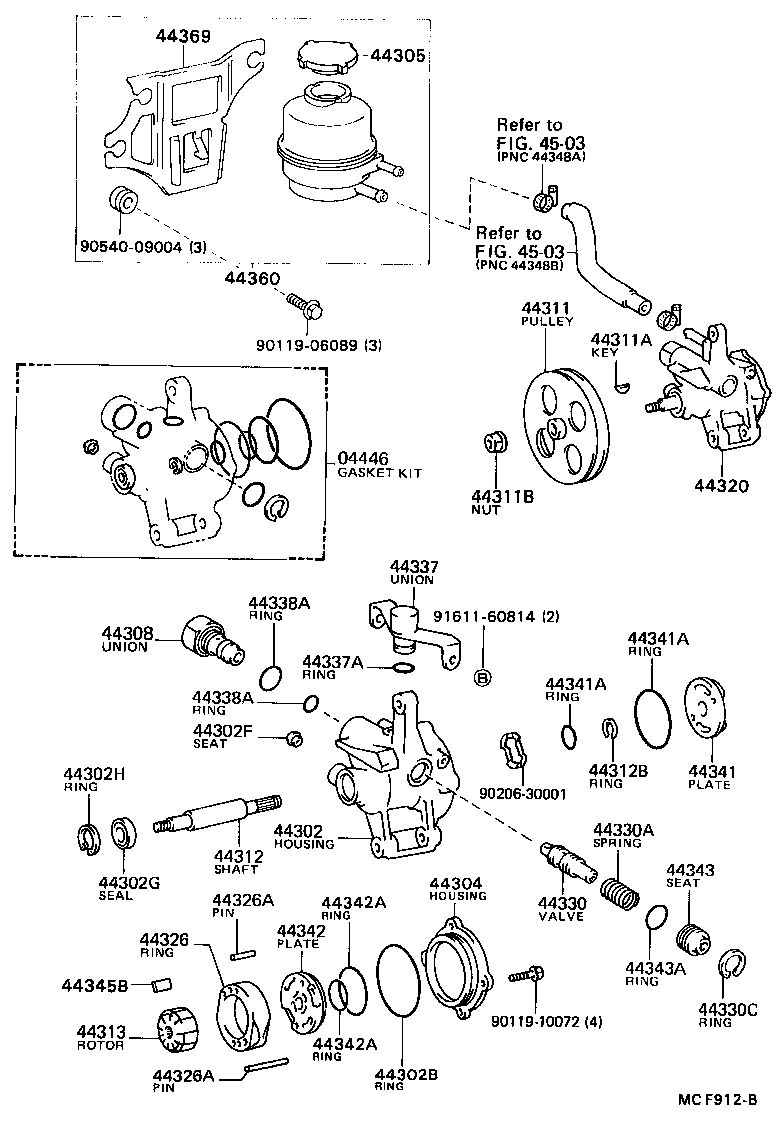

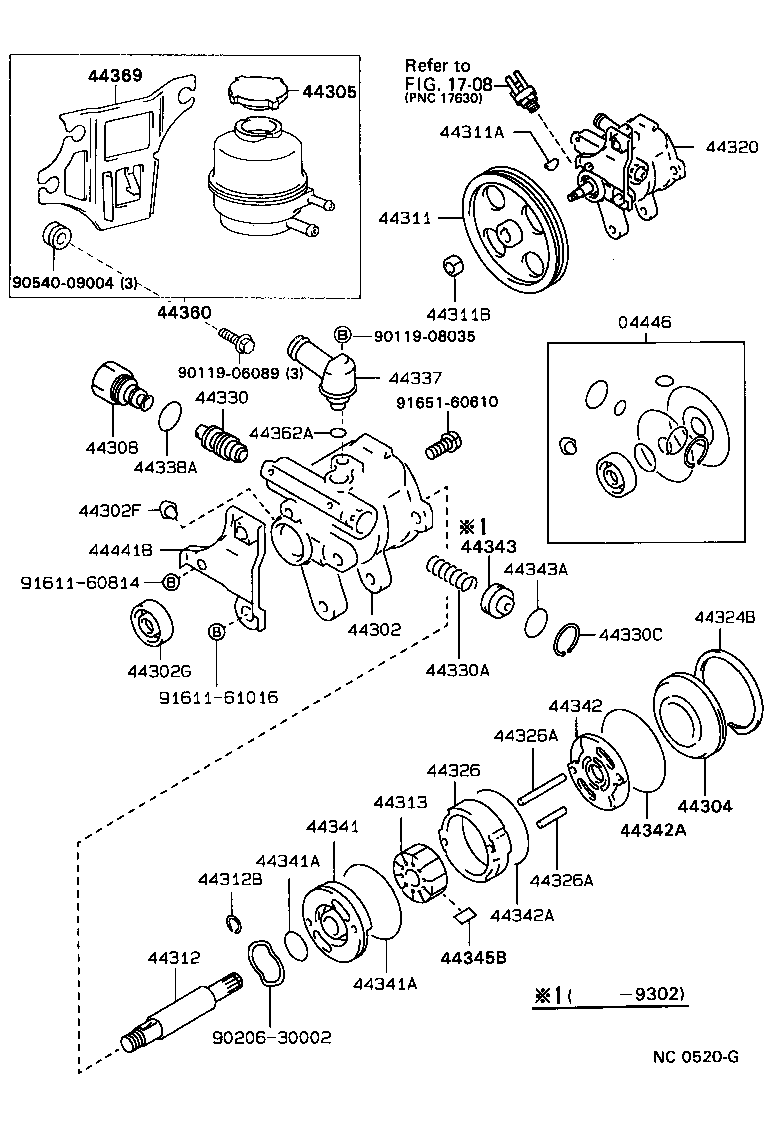

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30091 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 04446-20030 |
GX81..HTWC |
1 | ||
| 04446-30090 |
GX81..SPC,TWC,TWT |
1 | ||
| 04446-20120 |
GX81 |
1 | ||
| 04446-20030 |
GX81 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22050 |
GX81..HTWC |
1 | ||
| 44302-22040 |
GX81..TWC,TWT |
1 | ||
| 44302-22070 |
GX81 |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX81,MX83,YX80 |
1 | ||
| 90410-05035 |
GX81,YX80 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 90311-18007 |
GX81..HTWC |
1 | ||
| 90311-18007 |
GX81 |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-32001 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-12031 |
GX81..HTWC |
1 | ||
| 44324-22031 |
GX81..TWC,TWT |
1 | ||
| 44324-12031 |
GX81 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32030 |
JZX81..TWT;GX81,LX80,SX80 |
1 | ||
| 44305-28020 |
GX81,SX80 |
1 | ||
| 44305-22030 |
GX81,LX80,SX80..CI,DSL,HTWC,TD,TWC,TWT |
1 | ||
| 44305-32030 |
GX81,LX80,SX80 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-22040 |
GX81..TWC |
1 | ||
| 44308-22050 |
GX81 |
1 | ||
| 44308-22050 |
GX81..HTWC |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30100 |
GX81..SPC,TWC |
1 | ||
| 44311-22050 |
GX81..HTWC |
1 | ||
| 44311-22050 |
GX81 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GX81,LX80,MX83,SX80 |
1 | ||
| 90280-05008 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 90280-05008 |
GX81 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GX81,LX80,SX80,YX80 |
1 | ||
| 90179-12022 |
GX81,JZX81,MX83 |
1 | ||
| 90179-12022 |
GX81,LX80,SX80,YX80 |
1 | ||
| 90179-12022 |
GX81,JZX81,MX83,YX80 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GX81 |
1 | ||
| 44312-12030 |
GX81..HTWC |
1 | ||
| 44312-12020 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GX81,MX83 |
1 | ||
| 90520-10003 |
GX81 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
GX81..HTWC ﾏｰｸ無し |
1 | ||
| 44313-22050 |
GX81..HTWC ﾏｰｸ 1 |
1 | ||
| 44313-32030 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81..HTWC ﾏｰｸ 4 |
1 | ||
| 44313-32020 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
GX81..HTWC ﾏｰｸ 2 |
1 | ||
| 44313-32010 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ無し |
1 | ||
| 44313-32050 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
GX81..HTWC ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 1 |
1 | ||
| 44313-32040 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
GX81,LX80,SX80,YX80 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ無し |
1 | ||
| 44313-22060 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
GX81,LX80,SX80,YX80 ﾏｰｸ 3 |
1 | ||
| 44313-22070 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 3 |
1 | ||
| 44313-22060 |
GX81,LX80,SX80,YX80 ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81,LX80,SX80,YX80 ﾏｰｸ 4 |
1 | ||
| 44313-22040 |
GX81,LX80,SX80,YX80 ﾏｰｸ無し |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-22340 |
GX81..HTWC |
1 | ||
| 44320-22361 |
GX81..TWC |
1 | ||
| 44320-22480 |
GX81 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-22020 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ無し |
1 | ||
| 44325-22040 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 2 |
1 | ||
| 44325-22050 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 3 |
1 | ||
| 44325-30110 |
GX81..HTWC ﾏｰｸ 1 |
1 | ||
| 44325-22060 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 4 |
1 | ||
| 44325-30140 |
GX81..HTWC ﾏｰｸ 4 |
1 | ||
| 44325-30100 |
GX81..HTWC ﾏｰｸ無し |
1 | ||
| 44325-30110 |
GX81 ﾏｰｸ 1 |
1 | ||
| 44325-22030 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 1 |
1 | ||
| 44325-30100 |
GX81 ﾏｰｸ無し |
1 | ||
| 44325-30130 |
GX81..HTWC ﾏｰｸ 3 |
1 | ||
| 44325-30130 |
GX81 ﾏｰｸ 3 |
1 | ||
| 44325-30140 |
GX81 ﾏｰｸ 4 |
1 | ||
| 44325-30120 |
GX81..HTWC ﾏｰｸ 2 |
1 | ||
| 44325-30120 |
GX81 ﾏｰｸ 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX81,MX83..SPC,TWC,TWT 長さ=25,外径=5.0 |
1 | ||
| 90250-04049 |
GX81 長さ=43,外径=4.0 |
1 | ||
| 90250-05017 |
GX81,MX83..SPC,TWC,TWT 長さ=43.5,外径=5.0 |
1 | ||
| 90250-04049 |
GX81..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GX81 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
GX81..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX81,MX83..SPC,TWC,TWT 長さ=25,外径=5.0 |
1 | ||
| 90250-04049 |
GX81 長さ=43,外径=4.0 |
1 | ||
| 90250-05017 |
GX81,MX83..SPC,TWC,TWT 長さ=43.5,外径=5.0 |
1 | ||
| 90250-04049 |
GX81..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GX81 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
GX81..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14030 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ C |
1 | ||
| 44330-14040 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ D |
1 | ||
| 44330-14010 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ A |
1 | ||
| 44330-14050 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ E |
1 | ||
| 44330-14060 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ F |
1 | ||
| 44330-22060 |
GX81..TWC ﾏｰｸ C |
1 | ||
| 44330-14020 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ B |
1 | ||
| 44330-22080 |
GX81..TWC ﾏｰｸ E |
1 | ||
| 44330-22040 |
GX81..TWC ﾏｰｸ A |
1 | ||
| 44330-22050 |
GX81..TWC ﾏｰｸ B |
1 | ||
| 44330-22090 |
GX81..TWC ﾏｰｸ F |
1 | ||
| 44330-22070 |
GX81..TWC ﾏｰｸ D |
1 | ||
| 44330-20020 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ B |
1 | ||
| 44330-20060 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ F |
1 | ||
| 44330-20050 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ E |
1 | ||
| 44330-20010 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ A |
1 | ||
| 44330-20040 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ D |
1 | ||
| 44330-20030 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ C |
1 | ||
| 44330-22081 |
GX81..TWC ﾏｰｸ E |
1 | ||
| 44330-22091 |
GX81..TWC ﾏｰｸ F |
1 | ||
| 44330-22071 |
GX81..TWC ﾏｰｸ D |
1 | ||
| 44330-22051 |
GX81..TWC ﾏｰｸ B |
1 | ||
| 44330-22061 |
GX81..TWC ﾏｰｸ C |
1 | ||
| 44330-20010 |
GX81,YX80 ﾏｰｸ A |
1 | ||
| 44330-22041 |
GX81..TWC ﾏｰｸ A |
1 | ||
| 44330-20040 |
GX81,YX80 ﾏｰｸ D |
1 | ||
| 44330-20020 |
GX81,YX80 ﾏｰｸ B |
1 | ||
| 44330-20030 |
GX81,YX80 ﾏｰｸ C |
1 | ||
| 44330-20010 |
GX81,YX80 ﾏｰｸ A |
1 | ||
| 44330-20060 |
GX81,YX80 ﾏｰｸ F |
1 | ||
| 44330-20020 |
GX81,YX80 ﾏｰｸ B |
1 | ||
| 44330-20050 |
GX81,YX80 ﾏｰｸ E |
1 | ||
| 44330-20040 |
GX81,YX80 ﾏｰｸ D |
1 | ||
| 44330-20030 |
GX81,YX80 ﾏｰｸ C |
1 | ||
| 44330-20060 |
GX81,YX80 ﾏｰｸ F |
1 | ||
| 44330-20050 |
GX81,YX80 ﾏｰｸ E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 90501-12103 |
GX81,LX80,SX80,YX80 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GX81,LX80,SX80,YX80 |
1 | ||
| 96151-02200 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 96151-01700 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22060 |
GX81..HTWC |
1 | ||
| 44337-22030 |
GX81..TWC,TWT |
1 | ||
| 44337-22060 |
GX81 |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
SX80;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
SX80..HTWC;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
SX80;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=25.5,内径=22.5 |
1 | ||
| 90301-19003 |
JZX81;GX81..HTWC 内径=19.5,外径=22.5 |
1 | ||
| 90301-19003 |
GX81 内径=19.5,外径=22.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
SX80..HTWC;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
SX80;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=25.5,内径=22.5 |
1 | ||
| 90301-19003 |
JZX81;GX81..HTWC 内径=19.5,外径=22.5 |
1 | ||
| 90301-19003 |
GX81 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44341-32010 |
GX81..HTWC |
1 | ||
| 44341-32010 |
GX81 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GX81 外側 |
1 | ||
| 90301-56002 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-52001 |
GX81..HTWC 外側 |
1 | ||
| 90301-25001 |
GX81 内側 |
1 | ||
| 90301-21001 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-25001 |
GX81..HTWC 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GX81 外側 |
1 | ||
| 90301-56002 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-52001 |
GX81..HTWC 外側 |
1 | ||
| 90301-25001 |
GX81 内側 |
1 | ||
| 90301-21001 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-25001 |
GX81..HTWC 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-30020 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44342-32010 |
GX81..HTWC |
1 | ||
| 44342-32010 |
GX81 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GX81 |
1 | ||
| 90301-52001 |
GX81..HTWC |
2 | ||
| 90301-52001 |
GX81 |
2 | ||
| 90301-13004 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-30004 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-53006 |
GX81 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GX81 |
1 | ||
| 90301-52001 |
GX81..HTWC |
2 | ||
| 90301-52001 |
GX81 |
2 | ||
| 90301-13004 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-30004 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-53006 |
GX81 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44343-12040 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 96711-19014 |
GX81,LX80,SX80,YX80 |
1 | ||
| 96711-19014 |
GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12040 |
GX81,LX80,MX83,SX80,YX80 長さ=14.991 |
10 | ||
| 44345-12010 |
GX81,LX80,MX83,SX80,YX80 長さ=14.997 |
10 | ||
| 44345-12020 |
GX81,LX80,MX83,SX80,YX80 長さ=14.995 |
10 | ||
| 44345-12050 |
GX81,LX80,MX83,SX80,YX80 長さ=14.989 |
10 | ||
| 44345-12030 |
GX81,LX80,SX80,YX80 長さ=14.993 |
10 | ||
| 44345-12030 |
GX81,LX80,MX83,SX80,YX80 長さ=14.993 |
10 | ||
| 44345-12020 |
GX81,LX80,SX80,YX80 長さ=14.995 |
10 | ||
| 44345-12040 |
GX81,LX80,SX80,YX80 長さ=14.991 |
10 | ||
| 44345-12050 |
GX81,LX80,SX80,YX80 長さ=14.989 |
10 | ||
| 44345-12010 |
GX81,LX80,SX80,YX80 長さ=14.997 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-22140 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 44360-22140 |
GX81,SX80 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-22100 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 44369-22100 |
GX81,SX80 |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-10072 | ||||
| 90206-30001 | ||||
| 90540-09004 | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 4503 | ||||
(8808- )GX81..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04446 - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-30091 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 04446-20030 |
GX81..HTWC |
1 | ||
| 04446-30090 |
GX81..SPC,TWC,TWT |
1 | ||
| 04446-20120 |
GX81 |
1 | ||
| 04446-20030 |
GX81 |
1 | ||
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22050 |
GX81..HTWC |
1 | ||
| 44302-22040 |
GX81..TWC,TWT |
1 | ||
| 44302-22070 |
GX81 |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX81,MX83,YX80 |
1 | ||
| 90410-05035 |
GX81,YX80 |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-18008 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 90311-18007 |
GX81..HTWC |
1 | ||
| 90311-18007 |
GX81 |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-12031 |
GX81..HTWC |
1 | ||
| 44324-22031 |
GX81..TWC,TWT |
1 | ||
| 44324-12031 |
GX81 |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-32030 |
JZX81..TWT;GX81,LX80,SX80 |
1 | ||
| 44305-28020 |
GX81,SX80 |
1 | ||
| 44305-22030 |
GX81,LX80,SX80..CI,DSL,HTWC,TD,TWC,TWT |
1 | ||
| 44305-32030 |
GX81,LX80,SX80 |
1 | ||
| 44308 - UNION SUB-ASSY, PRESSURE PORT | ||||
| 44308-22040 |
GX81..TWC |
1 | ||
| 44308-22050 |
GX81 |
1 | ||
| 44308-22050 |
GX81..HTWC |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-30100 |
GX81..SPC,TWC |
1 | ||
| 44311-22050 |
GX81..HTWC |
1 | ||
| 44311-22050 |
GX81 |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GX81,LX80,MX83,SX80 |
1 | ||
| 90280-05008 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 90280-05008 |
GX81 |
1 | ||
| 44311B - NUT(FOR VANE PUMP PULLEY) | ||||
| 90179-12022 |
GX81,LX80,SX80,YX80 |
1 | ||
| 90179-12022 |
GX81,JZX81,MX83 |
1 | ||
| 90179-12022 |
GX81,LX80,SX80,YX80 |
1 | ||
| 90179-12022 |
GX81,JZX81,MX83,YX80 |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12030 |
GX81 |
1 | ||
| 44312-12030 |
GX81..HTWC |
1 | ||
| 44312-12020 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GX81,MX83 |
1 | ||
| 90520-10003 |
GX81 |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-22040 |
GX81..HTWC ﾏｰｸ無し |
1 | ||
| 44313-22050 |
GX81..HTWC ﾏｰｸ 1 |
1 | ||
| 44313-32030 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81..HTWC ﾏｰｸ 4 |
1 | ||
| 44313-32020 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 1 |
1 | ||
| 44313-22060 |
GX81..HTWC ﾏｰｸ 2 |
1 | ||
| 44313-32010 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ無し |
1 | ||
| 44313-32050 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
GX81..HTWC ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 1 |
1 | ||
| 44313-32040 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 3 |
1 | ||
| 44313-22050 |
GX81,LX80,SX80,YX80 ﾏｰｸ 1 |
1 | ||
| 44313-22040 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ無し |
1 | ||
| 44313-22060 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 4 |
1 | ||
| 44313-22070 |
GX81,LX80,SX80,YX80 ﾏｰｸ 3 |
1 | ||
| 44313-22070 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD ﾏｰｸ 3 |
1 | ||
| 44313-22060 |
GX81,LX80,SX80,YX80 ﾏｰｸ 2 |
1 | ||
| 44313-22080 |
GX81,LX80,SX80,YX80 ﾏｰｸ 4 |
1 | ||
| 44313-22040 |
GX81,LX80,SX80,YX80 ﾏｰｸ無し |
1 | ||
| 44320 - PUMP ASSY, VANE | ||||
| 44320-22340 |
GX81..HTWC |
1 | ||
| 44320-22361 |
GX81..TWC |
1 | ||
| 44320-22480 |
GX81 |
1 | ||
| 44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR) | ||||
| 90521-62002 |
GX81 |
1 | ||
| 90521-62002 |
GX81..HTWC |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-22020 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ無し |
1 | ||
| 44325-22040 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 2 |
1 | ||
| 44325-22050 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 3 |
1 | ||
| 44325-30110 |
GX81..HTWC ﾏｰｸ 1 |
1 | ||
| 44325-22060 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 4 |
1 | ||
| 44325-30140 |
GX81..HTWC ﾏｰｸ 4 |
1 | ||
| 44325-30100 |
GX81..HTWC ﾏｰｸ無し |
1 | ||
| 44325-30110 |
GX81 ﾏｰｸ 1 |
1 | ||
| 44325-22030 |
GX81,MX83..SPC,TWC,TWT ﾏｰｸ 1 |
1 | ||
| 44325-30100 |
GX81 ﾏｰｸ無し |
1 | ||
| 44325-30130 |
GX81..HTWC ﾏｰｸ 3 |
1 | ||
| 44325-30130 |
GX81 ﾏｰｸ 3 |
1 | ||
| 44325-30140 |
GX81 ﾏｰｸ 4 |
1 | ||
| 44325-30120 |
GX81..HTWC ﾏｰｸ 2 |
1 | ||
| 44325-30120 |
GX81 ﾏｰｸ 2 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX81,MX83..SPC,TWC,TWT 長さ=25,外径=5.0 |
1 | ||
| 90250-04049 |
GX81 長さ=43,外径=4.0 |
1 | ||
| 90250-05017 |
GX81,MX83..SPC,TWC,TWT 長さ=43.5,外径=5.0 |
1 | ||
| 90250-04049 |
GX81..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GX81 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
GX81..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX81,MX83..SPC,TWC,TWT 長さ=25,外径=5.0 |
1 | ||
| 90250-04049 |
GX81 長さ=43,外径=4.0 |
1 | ||
| 90250-05017 |
GX81,MX83..SPC,TWC,TWT 長さ=43.5,外径=5.0 |
1 | ||
| 90250-04049 |
GX81..HTWC 長さ=43,外径=4.0 |
1 | ||
| 90250-04047 |
GX81 長さ=28,外径=4.0 |
1 | ||
| 90250-04047 |
GX81..HTWC 長さ=28,外径=4.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-14030 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ C |
1 | ||
| 44330-14040 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ D |
1 | ||
| 44330-14010 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ A |
1 | ||
| 44330-14050 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ E |
1 | ||
| 44330-14060 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ F |
1 | ||
| 44330-22060 |
GX81..TWC ﾏｰｸ C |
1 | ||
| 44330-14020 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ B |
1 | ||
| 44330-22080 |
GX81..TWC ﾏｰｸ E |
1 | ||
| 44330-22040 |
GX81..TWC ﾏｰｸ A |
1 | ||
| 44330-22050 |
GX81..TWC ﾏｰｸ B |
1 | ||
| 44330-22090 |
GX81..TWC ﾏｰｸ F |
1 | ||
| 44330-22070 |
GX81..TWC ﾏｰｸ D |
1 | ||
| 44330-20020 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ B |
1 | ||
| 44330-20060 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ F |
1 | ||
| 44330-20050 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ E |
1 | ||
| 44330-20010 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ A |
1 | ||
| 44330-20040 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ D |
1 | ||
| 44330-20030 |
GX81,LX80,YX80..DSL,HTWC,LPG,TD ﾏｰｸ C |
1 | ||
| 44330-22081 |
GX81..TWC ﾏｰｸ E |
1 | ||
| 44330-22091 |
GX81..TWC ﾏｰｸ F |
1 | ||
| 44330-22071 |
GX81..TWC ﾏｰｸ D |
1 | ||
| 44330-22051 |
GX81..TWC ﾏｰｸ B |
1 | ||
| 44330-22061 |
GX81..TWC ﾏｰｸ C |
1 | ||
| 44330-20010 |
GX81,YX80 ﾏｰｸ A |
1 | ||
| 44330-22041 |
GX81..TWC ﾏｰｸ A |
1 | ||
| 44330-20040 |
GX81,YX80 ﾏｰｸ D |
1 | ||
| 44330-20020 |
GX81,YX80 ﾏｰｸ B |
1 | ||
| 44330-20030 |
GX81,YX80 ﾏｰｸ C |
1 | ||
| 44330-20010 |
GX81,YX80 ﾏｰｸ A |
1 | ||
| 44330-20060 |
GX81,YX80 ﾏｰｸ F |
1 | ||
| 44330-20020 |
GX81,YX80 ﾏｰｸ B |
1 | ||
| 44330-20050 |
GX81,YX80 ﾏｰｸ E |
1 | ||
| 44330-20040 |
GX81,YX80 ﾏｰｸ D |
1 | ||
| 44330-20030 |
GX81,YX80 ﾏｰｸ C |
1 | ||
| 44330-20060 |
GX81,YX80 ﾏｰｸ F |
1 | ||
| 44330-20050 |
GX81,YX80 ﾏｰｸ E |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 90501-12103 |
GX81,LX80,SX80,YX80 |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GX81,LX80,SX80,YX80 |
1 | ||
| 96151-02200 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 96151-01700 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22060 |
GX81..HTWC |
1 | ||
| 44337-22030 |
GX81..TWC,TWT |
1 | ||
| 44337-22060 |
GX81 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 96711-19014 |
SX80..HTWC;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=17.0,内径=13.0 |
1 | ||
| 90301-22001 |
SX80;GX81,LX80,MX83,YX80..DSL,LPG,SPC,TD,TWC,TWT 外径=25.5,内径=22.5 |
1 | ||
| 90301-19003 |
JZX81;GX81..HTWC 内径=19.5,外径=22.5 |
1 | ||
| 90301-19003 |
GX81 内径=19.5,外径=22.5 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-30030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44341-32010 |
GX81..HTWC |
1 | ||
| 44341-32010 |
GX81 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GX81 外側 |
1 | ||
| 90301-56002 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-52001 |
GX81..HTWC 外側 |
1 | ||
| 90301-25001 |
GX81 内側 |
1 | ||
| 90301-21001 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-25001 |
GX81..HTWC 内側 |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-52001 |
GX81 外側 |
1 | ||
| 90301-56002 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-52001 |
GX81..HTWC 外側 |
1 | ||
| 90301-25001 |
GX81 内側 |
1 | ||
| 90301-21001 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-25001 |
GX81..HTWC 内側 |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-30020 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44342-32010 |
GX81..HTWC |
1 | ||
| 44342-32010 |
GX81 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GX81 |
1 | ||
| 90301-52001 |
GX81..HTWC |
2 | ||
| 90301-52001 |
GX81 |
2 | ||
| 90301-13004 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-30004 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-53006 |
GX81 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-52001 |
GX81 |
1 | ||
| 90301-52001 |
GX81..HTWC |
2 | ||
| 90301-52001 |
GX81 |
2 | ||
| 90301-13004 |
GX81,MX83..SPC,TWC,TWT 内側 |
1 | ||
| 90301-30004 |
GX81,MX83..SPC,TWC,TWT 外側 |
1 | ||
| 90301-53006 |
GX81 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 44343-12040 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96711-19019 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 96711-19014 |
GX81,LX80,SX80,YX80 |
1 | ||
| 96711-19014 |
GX81,LX80,SX80,YX80..DSL,HTWC,LPG,TD |
1 | ||
| 44345B - PLATE, VANE PUMP | ||||
| 44345-12040 |
GX81,LX80,MX83,SX80,YX80 長さ=14.991 |
10 | ||
| 44345-12010 |
GX81,LX80,MX83,SX80,YX80 長さ=14.997 |
10 | ||
| 44345-12020 |
GX81,LX80,MX83,SX80,YX80 長さ=14.995 |
10 | ||
| 44345-12050 |
GX81,LX80,MX83,SX80,YX80 長さ=14.989 |
10 | ||
| 44345-12030 |
GX81,LX80,SX80,YX80 長さ=14.993 |
10 | ||
| 44345-12030 |
GX81,LX80,MX83,SX80,YX80 長さ=14.993 |
10 | ||
| 44345-12020 |
GX81,LX80,SX80,YX80 長さ=14.995 |
10 | ||
| 44345-12040 |
GX81,LX80,SX80,YX80 長さ=14.991 |
10 | ||
| 44345-12050 |
GX81,LX80,SX80,YX80 長さ=14.989 |
10 | ||
| 44345-12010 |
GX81,LX80,SX80,YX80 長さ=14.997 |
10 | ||
| 44360 - RESERVOIR ASSY, VANE PUMP OIL | ||||
| 44360-22140 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 44360-22140 |
GX81,SX80 |
1 | ||
| 44362A - RING, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90301-12003 |
GX81..HTWC |
1 | ||
| 90301-12003 |
GX81 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44369-22100 |
GX81,SX80..CI,HTWC,TWC,TWT |
1 | ||
| 44369-22100 |
GX81,SX80 |
1 | ||
| 44441B - BRACKET, PUMP, FRONT | ||||
| 44441-22030 |
GX81 |
1 | ||
| 44441-22030 |
GX81..HTWC |
1 | ||
| Common parts | ||||
| 90119-06089 | ||||
| 90119-08035 | ||||
| 90206-30002 | ||||
| 90540-09004 | ||||
| 91611-60814 | ||||
| 91611-61016 | ||||
| 91651-60610 | ||||
| Linked diagrams | ||||
| 1708 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
