GX81-AEPQK (1988)
Toyota Mark 2

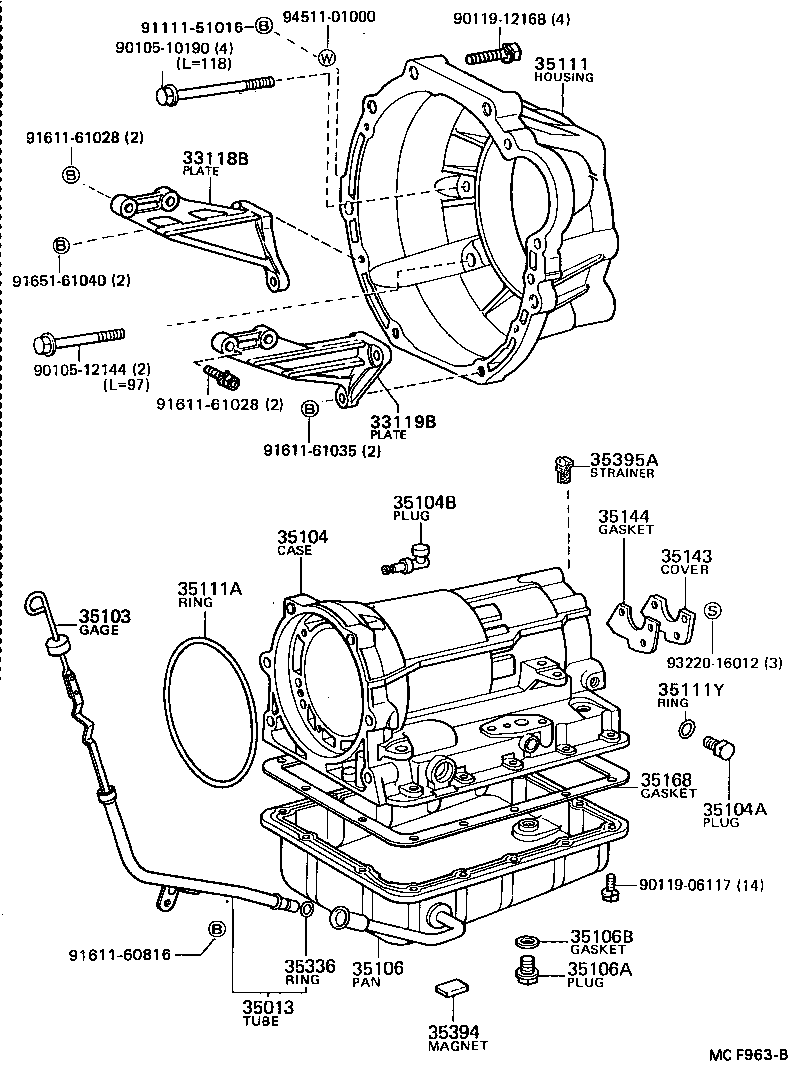

(8808- )GX81..4FC..HTWC
A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-22051 |
GX81..4FC |
1 | ||
| 33118-22051 |
GX81 |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-22042 |
GX81..4FC |
1 | ||
| 33119-22042 |
GX81 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22260 |
GX81..4FC..HTWC |
1 | ||
| 35013-22260 |
GX81 |
1 | ||
| 35013-22240 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35013-22470 |
GX81 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22120 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35103-22230 |
GX81 |
1 | ||
| 35103-22330 |
GX81 |
1 | ||
| 35103-30240 |
GX81..4FC..HTWC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26021 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35104-30133 |
JZX81,MX83..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
2 | ||
| 90341-08001 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-22052 |
GX81..4FC..TWC |
1 | ||
| 35106-22051 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35106-30061 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35106-30060 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35106-22090 |
GX81,SX80..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-24031 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35111-24010 |
GX81..4FC..HTWC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
GX81,LX80,SX80,YX80..4FC..(CI,HTWC,LPG,TD) |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
2 | ||
| 90301-06196 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35144-28010 |
GX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD) |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
YX80..3FC;GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
YX80..3FC;GX81,SX80..4FC |
1 | ||
| 90301-09173 |
GX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 90301-09173 |
GX81,SX80,YX80..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
4 | ||
| 35394-30011 |
GX81..4FC..HTWC |
2 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-40010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| 35395-40010 |
GX81,LX80,SX80,YX80..ATM..(HTWC,LPG,TD) |
1 | ||
| Common parts | ||||
| 90105-10190 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 90119-12168 | ||||
| 91111-51016 | ||||
| 91611-60816 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-61040 | ||||
| 93220-16012 | ||||
| 94511-01000 | ||||

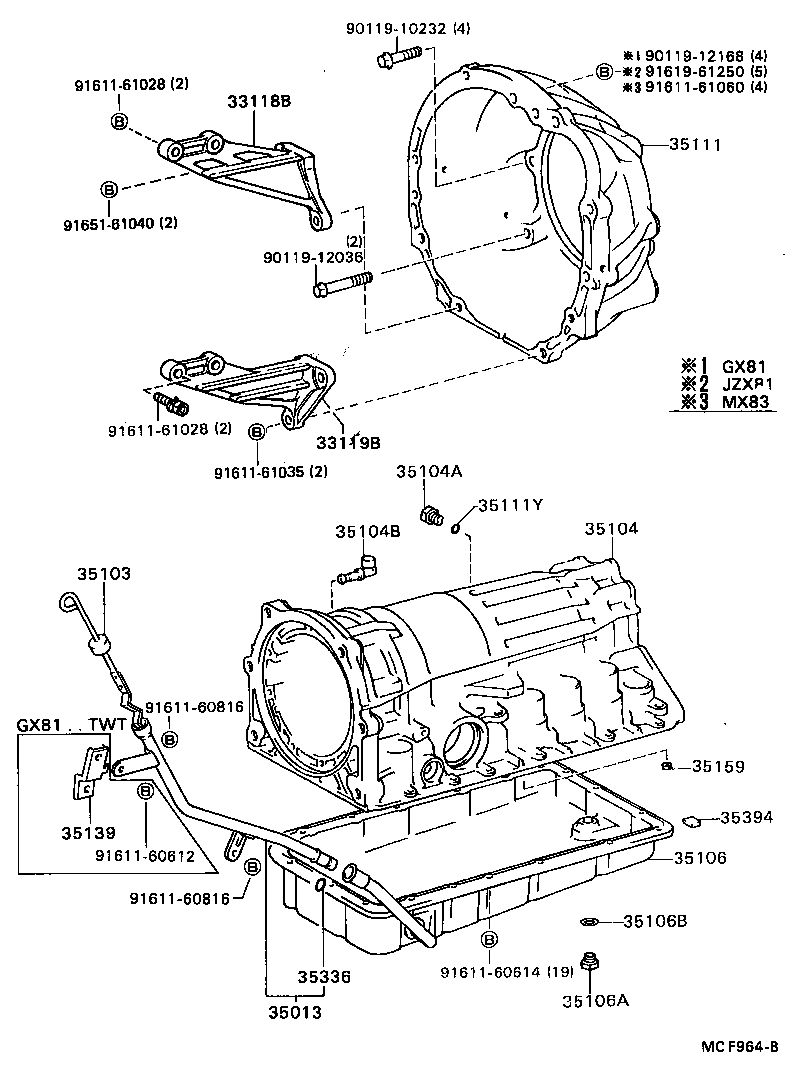

(8808- )GX81..4FC..SPC,TWC,TWT ; (8908- )MX83 ; (9008- )JZX81
A340E,A341E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-22051 |
GX81..4FC |
1 | ||
| 33118-22051 |
GX81 |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-22042 |
GX81..4FC |
1 | ||
| 33119-22042 |
GX81 |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22260 |
GX81..4FC..HTWC |
1 | ||
| 35013-22260 |
GX81 |
1 | ||
| 35013-22240 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35013-22470 |
GX81 |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22120 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35103-22230 |
GX81 |
1 | ||
| 35103-22330 |
GX81 |
1 | ||
| 35103-30240 |
GX81..4FC..HTWC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26021 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35104-30133 |
JZX81,MX83..TWC;GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
2 | ||
| 90341-08001 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-22052 |
GX81..4FC..TWC |
1 | ||
| 35106-22051 |
GX81..4FC..(SPC,TWC) |
1 | ||
| 35106-30061 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35106-30060 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35106-22090 |
GX81,SX80..4FC |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-24031 |
GX81..4FC..(SPC,TWC,TWT) |
1 | ||
| 35111-24010 |
GX81..4FC..HTWC |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
2 | ||
| 90301-06196 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35159 - GASKET, BRAKE DRUM | ||||
| 35159-30010 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
YX80..3FC;GX81,SX80..4FC |
1 | ||
| 90301-09173 |
GX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 90301-09173 |
GX81,SX80,YX80..4FC |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
GX81,JZX81,MX83..4FC..(SPC,TWC,TWT) |
4 | ||
| 35394-30011 |
GX81..4FC..HTWC |
2 | ||
| Common parts | ||||
| 90119-10232 | ||||
| 90119-12036 | ||||
| 90119-12168 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91611-61060 | ||||
| 91619-61250 | ||||
| 91651-61040 | ||||
