GX81-AEPQF (1988)

Toyota Mark 2

Production Aug 1988 - Feb 1993
Engine 1GGE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )SED

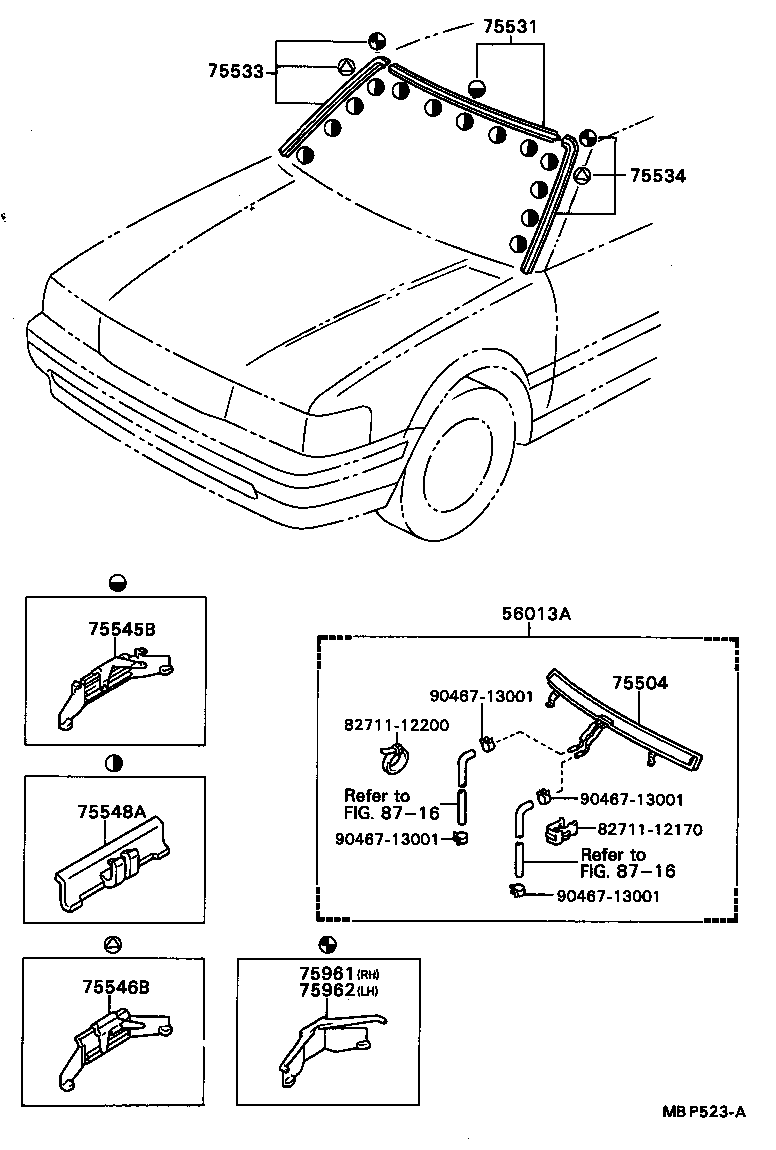

Click highlighted areas on diagram

diagram 56013A 75504 75531 75533 75534 75545B 75546B 75548A 75961 75962 8271112170 8271112200 8716 8716 9046713001 9046713001 9046713001 9046713001
Part # Description Qty Price
56013A - MOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER
56013-22051

GX81,LX80,MX83,SX80,YX80

***

 1
56013-22050

GX81,LX80,SX80,YX80

***

 1
56013-22052

GX81,LX80,MX83,SX80,YX80

***

 1
75504 - MOULDING SUB-ASSY, WINDSHILD, OUTSIDE LOWER
75504-22070

GX81,LX80,MX83,SX80,YX80

 1
75504-22071

GX81,LX80,MX83,SX80,YX80

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22080

GX81,LX80,MX83,SX80,YX80..SED

 1
75531-22081

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
75531-22141

GX81,LX80,MX83,SX80,YX80..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75531-22140

GX81,LX80,MX83,SX80,YX80..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75531-22141

GX81,JZX81,LX80,MX83,SX80,YX80..SED

ｶｺﾞｼﾏ ｼﾖｳ

 1
75531-22081

GX81,LX80,MX83,SX80,YX80..SED

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22190

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
75533-22210

GX81,LX80,MX83,SX80,YX80..SED

ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ

 1
75533-22210

GX81,LX80,SX80,YX80..SED

ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22170

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-22070

GX81,LX80,MX83,SX80,YX80..SED

 5
75546B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.2
75546-22060

GX81,LX80,SX80,YX80..SED

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ｻﾌﾞ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 4
75546-22060

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 8
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-22150

GX81,LX80,SX80,YX80..SED

ｱﾘ(ｳｲﾝﾄﾞｼ-ﾙﾄﾞ ｻﾌﾞ ﾓ-ﾙﾃﾞｲﾝｸﾞ)

 4
75548-22150

GX81,LX80,MX83,SX80,YX80..SED

 26
75961 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4
75961-22030

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
75962 - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5
75962-22040

GX81,JZX81,LX80,MX83,SX80,YX80..SED

 1
Common parts
82711-12170
82711-12200
90467-13001
Linked diagrams
8716
