GX81-AEMQK (1988)
Toyota Mark 2
(8808- )CI,DSL,HTWC,LPG,TD

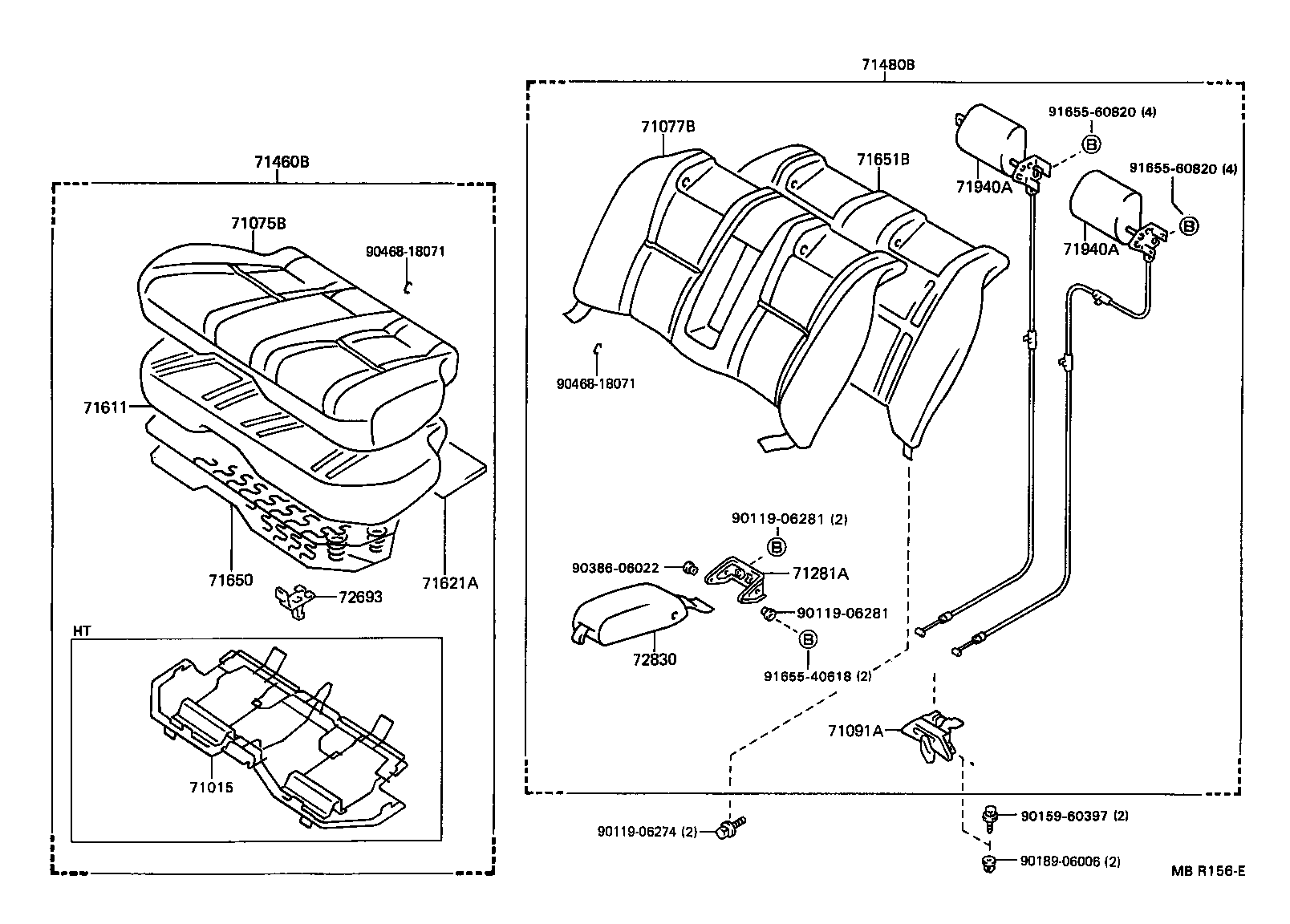

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-22150 |
GX81,LX80,SX80..HT..(HTWC,TD) |
1 | ||
| 71015-22150 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71015-22150 |
GX81..HT..GD..HTWC |
1 | ||
| 71015-22160 |
GX81..HT..GD..HTWC ﾏｰｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71015-22160 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2217006 |
GX81..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2213002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2213006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71065-2217016 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71065-2213004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71065-2214002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71065-2216004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71065-2216002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2217004 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71065-2217002 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71065-2216006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2217016 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2217102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2216106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2217106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71065-2216102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2217106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 71065-2217103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2216103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2A36006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A40016 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71077-2A40006 |
GX81..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A35002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71077-2A40002 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71077-2A39002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A36004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71077-2A35006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A36002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71077-2A40004 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71077-2A39004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71077-2A39006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A36016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A40106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71077-2A39103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A40103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A40016 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A39106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A39102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A40106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 71077-2A40102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A35103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A36102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A36103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A36106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-22060 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2224006 |
GX81..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227006 |
GX81..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2223002 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224002 |
GX81,MX83..SED..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2226002 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2223004 |
GX81..SED..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2224004 |
GX81,MX83..SED..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226006 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227002 |
GX81,MX83..HT..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224016 |
GX81,MX83..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227004 |
GX81,MX83..HT..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226004 |
GX81..HT..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226102 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2223006 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227106 |
GX81..HT..GD..HTWC ***,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71560-2226103 |
GX81..HT..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2226106 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227016 |
GX81,MX83..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227102 |
GX81,JZX81..HT..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2227103 |
GX81,JZX81..HT..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2223102 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2227106 |
GX81,JZX81..HT..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2223103 |
GX81..SED..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2224102 |
GX81,JZX81..SED..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224106 |
GX81,JZX81..SED..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2224103 |
GX81,JZX81..SED..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2223106 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2A42006 |
GX81..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41006 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46006 |
GX81..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41004 |
GX81..SED..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A45002 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A41002 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A46004 |
GX81,MX83..HT..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A42004 |
GX81,MX83..SED..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A45004 |
GX81..HT..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A42002 |
GX81,MX83..SED..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A45006 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46002 |
GX81,MX83..HT..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A42016 |
GX81,MX83..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46016 |
GX81,MX83..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46106 |
GX81..HT..GD..HTWC ***,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71480-2A46106 |
GX81,JZX81..HT..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A45102 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A45106 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A45103 |
GX81..HT..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A46103 |
GX81,JZX81..HT..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A41102 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A46102 |
GX81,JZX81..HT..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A41106 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41103 |
GX81..SED..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A42106 |
GX81,JZX81..SED..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A42102 |
GX81,JZX81..SED..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A42103 |
GX81,JZX81..SED..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22350 |
GX81,MX83..HT..(SPC,TWC) |
1 | ||
| 71611-22351 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71611-22270 |
GX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71611-22320 |
GX81..HT..GD..HTWC |
1 | ||
| 71611-22351 |
GX81,JZX81..HT..GD..TWC |
1 | ||
| 71611-22321 |
GX81..HT..GD..HTWC |
1 | ||
| 71611-22290 |
GX81..SED..GD..HTWC |
1 | ||
| 71611-22270 |
GX81,JZX81..SED..GD..TWC |
1 | ||
| 71611-22351 |
GX81..HT..GD..HTWC ﾏｰｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED 150 X 300,T=6 |
1 | ||
| 71621-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 71621-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED 20 X 70,T=10 |
2 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-22170 |
GX81..SED..GD..HTWC |
1 | ||
| 71650-22170 |
GX81,LX80,SX80..SED..(GD,GL,GR,LG,STD)..(DSL,HTWC,TD) |
1 | ||
| 71650-22180 |
GX81,JZX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22270 |
GX81,MX83..HT..(SPC,TWC) |
1 | ||
| 71507-22270 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71507-22230 |
GX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71507-22250 |
GX81..HT..GD..HTWC |
1 | ||
| 71507-22270 |
GX81,JZX81..HT..GD..TWC |
1 | ||
| 71507-22230 |
GX81,JZX81..SED..GD..TWC |
1 | ||
| 71507-22300 |
GX81..SED..GD..HTWC |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-2204002 |
GX81..GD..HTWC ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201002 |
GX81..GD..HTWC ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204003 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-2201003 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-2204002 |
GX81..GD..HTWC ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201002 |
GX81..GD..HTWC ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204004 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71930-2204002 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71931-2201002 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204003 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ付,MEDIUM GRAY,TRIM1# |
2 | ||
| 71931-2201003 |
GX81,YX80..(GD,GL)..(HTWC,LPG) ﾛｯｸ無,MEDIUM GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2238006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160406 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2213006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161316 |
GX81..HT..GD..HTWC 10ｼﾕｳﾈﾝ ｷﾈﾝ ｴｸｼ-ﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71940-2232002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2232006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160416 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161306 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2233004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2233002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2238004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71940-9161304 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71950-2213004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71940-9161302 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2213002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-9160402 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2233006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160404 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160416 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-2233103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71940-9161316 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71940-2233106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71940-2233102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71950-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2238106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71940-2238103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71950-2213102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2238102 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM3#,右側 |
1 | ||
| 71950-2213106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-24010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 72693-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-2220002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2220006 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 72830-2226002 |
GX81..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2226004 |
GX81..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 72830-2220004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 72830-2226006 |
GX81..GD..HTWC SABLE,TRIM4# |
1 | ||
| 72830-2220016 |
GX81,MX83..SPC,TWC SABLE,TRIM4# |
1 | ||
| 72830-2220106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 72830-2226102 |
GX81..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2220102 |
GX81,JZX81,MX83..TWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2226106 |
GX81..GD..HTWC SABLE,TRIM4# |
1 | ||
| 72830-2220103 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-2226103 |
GX81..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-2220106 |
GX81,JZX81,MX83..TWC SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90386-06022 | ||||
| 90468-18071 | ||||
| 91655-40618 | ||||
(8808- )SPC,TWC,TWT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-22150 |
GX81,LX80,SX80..HT..(HTWC,TD) |
1 | ||
| 71015-22150 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71015-22150 |
GX81..HT..GD..HTWC |
1 | ||
| 71015-22160 |
GX81..HT..GD..HTWC ﾏｰｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71015-22160 |
GX81,JZX81,MX83..HT..(SPC,TWC,TWT) |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-2217006 |
GX81..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2213002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2213006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71065-2217016 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71065-2213004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71065-2214002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71065-2216004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71065-2216002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2217004 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71065-2217002 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71065-2216006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2217016 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71065-2217102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2216106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2217106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71065-2216102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2217106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 71065-2217103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2216103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71065-2214103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71065-2213106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71065-2214106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4# |
1 | ||
| 71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE) | ||||
| 71077-2A36006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A40016 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71077-2A40006 |
GX81..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A35002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71077-2A40002 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71077-2A39002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A36004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71077-2A35006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A36002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3# |
1 | ||
| 71077-2A40004 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8# |
1 | ||
| 71077-2A39004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 71077-2A39006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A36016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A40106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71077-2A39103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A40103 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A40016 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4# |
1 | ||
| 71077-2A39106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A39102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A40106 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4# |
1 | ||
| 71077-2A40102 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A35106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
1 | ||
| 71077-2A35103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A36102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71077-2A36103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71077-2A36106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4# |
1 | ||
| 71091A - HANDLE SUB-ASSY, REAR SEAT HEADREST | ||||
| 71091-9160106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71091-9160103 |
GX81,JZX81,MX83..TWC,TWT MEDIUM GRAY,TRIM1# |
1 | ||
| 71091-9160104 |
GX81,MX83..SPC,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71091-9160106 |
GX81..HT..GD..HTWC ﾏｰｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71091-9160106 |
GX81,JZX81,MX83..SPC,TWC,TWT SABLE,TRIM4# |
1 | ||
| 71091-9160102 |
GX81,JZX81,MX83..SPC,TWC,TWT NEW MAROON,TRIM3# |
1 | ||
| 71281A - HINGE, REAR SEAT CENTER ARMREST | ||||
| 71281-22060 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-2224006 |
GX81..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227006 |
GX81..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2223002 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224002 |
GX81,MX83..SED..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2226002 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2223004 |
GX81..SED..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2224004 |
GX81,MX83..SED..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226006 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227002 |
GX81,MX83..HT..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224016 |
GX81,MX83..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227004 |
GX81,MX83..HT..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226004 |
GX81..HT..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71560-2226102 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2223006 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227106 |
GX81..HT..GD..HTWC ***,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71560-2226103 |
GX81..HT..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2226106 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2227016 |
GX81,MX83..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71560-2227102 |
GX81,JZX81..HT..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2227103 |
GX81,JZX81..HT..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2223102 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2227106 |
GX81,JZX81..HT..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2223103 |
GX81..SED..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2224102 |
GX81,JZX81..SED..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71560-2224106 |
GX81,JZX81..SED..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71560-2224103 |
GX81,JZX81..SED..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71560-2223106 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71480-2A42006 |
GX81..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41006 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46006 |
GX81..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41004 |
GX81..SED..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A45002 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A41002 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A46004 |
GX81,MX83..HT..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A42004 |
GX81,MX83..SED..(SPC,TWC) ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A45004 |
GX81..HT..GD..HTWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71480-2A42002 |
GX81,MX83..SED..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A45006 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46002 |
GX81,MX83..HT..(SPC,TWC) ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A42016 |
GX81,MX83..SED..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46016 |
GX81,MX83..HT..(SPC,TWC) ***,SABLE,TRIM4# |
1 | ||
| 71480-2A46106 |
GX81..HT..GD..HTWC ***,ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 71480-2A46106 |
GX81,JZX81..HT..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A45102 |
GX81..HT..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A45106 |
GX81..HT..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A45103 |
GX81..HT..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A46103 |
GX81,JZX81..HT..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A41102 |
GX81..SED..GD..HTWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A46102 |
GX81,JZX81..HT..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A41106 |
GX81..SED..GD..HTWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A41103 |
GX81..SED..GD..HTWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71480-2A42106 |
GX81,JZX81..SED..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71480-2A42102 |
GX81,JZX81..SED..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71480-2A42103 |
GX81,JZX81..SED..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-22350 |
GX81,MX83..HT..(SPC,TWC) |
1 | ||
| 71611-22351 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71611-22270 |
GX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71611-22320 |
GX81..HT..GD..HTWC |
1 | ||
| 71611-22351 |
GX81,JZX81..HT..GD..TWC |
1 | ||
| 71611-22321 |
GX81..HT..GD..HTWC |
1 | ||
| 71611-22290 |
GX81..SED..GD..HTWC |
1 | ||
| 71611-22270 |
GX81,JZX81..SED..GD..TWC |
1 | ||
| 71611-22351 |
GX81..HT..GD..HTWC ﾏｰｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED 150 X 300,T=6 |
1 | ||
| 71621-22070 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 71621-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED 20 X 70,T=10 |
2 | ||
| 71650 - SPRING ASSY, REAR SEAT CUSHION | ||||
| 71650-22170 |
GX81..SED..GD..HTWC |
1 | ||
| 71650-22170 |
GX81,LX80,SX80..SED..(GD,GL,GR,LG,STD)..(DSL,HTWC,TD) |
1 | ||
| 71650-22180 |
GX81,JZX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE) | ||||
| 71507-22270 |
GX81,MX83..HT..(SPC,TWC) |
1 | ||
| 71507-22270 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ |
1 | ||
| 71507-22230 |
GX81,MX83..SED..(SPC,TWC) |
1 | ||
| 71507-22250 |
GX81..HT..GD..HTWC |
1 | ||
| 71507-22270 |
GX81,JZX81..HT..GD..TWC |
1 | ||
| 71507-22230 |
GX81,JZX81..SED..GD..TWC |
1 | ||
| 71507-22300 |
GX81..SED..GD..HTWC |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2238006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160406 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2213006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161316 |
GX81..HT..GD..HTWC 10ｼﾕｳﾈﾝ ｷﾈﾝ ｴｸｼ-ﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71940-2232002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2232006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160416 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161306 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2233004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2233002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2238004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71940-9161304 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71950-2213004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71940-9161302 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2213002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-9160402 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2233006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160404 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160416 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-2233103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71940-9161316 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71940-2233106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71940-2233102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71950-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2238106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71940-2238103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71950-2213102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2238102 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM3#,右側 |
1 | ||
| 71950-2213106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-2238006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160406 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2213006 |
GX81..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161316 |
GX81..HT..GD..HTWC 10ｼﾕｳﾈﾝ ｷﾈﾝ ｴｸｼ-ﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71940-2232002 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232004 |
GX81..SED..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2232006 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160416 |
GX81..HT..GD..HTWC ﾏ-ｸ 2 ｼﾝ ｸﾞﾗﾝﾃﾞ ﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-9161306 |
GX81..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2233004 |
GX81..HT..GD..HTWC DARK BLUE,TRIM8# |
2 | ||
| 71940-2233002 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2238004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71940-9161304 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,右側 |
1 | ||
| 71950-2213004 |
GX81,MX83..SED..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71940-9161302 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2213002 |
GX81,MX83..SED..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-9160402 |
GX81,MX83..HT..(SPC,TWC) NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2233006 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71950-9160404 |
GX81,MX83..HT..(SPC,TWC) DARK BLUE,TRIM8#,左側 |
1 | ||
| 71940-2238016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71950-9160416 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71950-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,左側 |
1 | ||
| 71940-2301006 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213016 |
GX81,MX83..SED..(SPC,TWC) SABLE,TRIM4#,左側 |
1 | ||
| 71940-2233103 |
GX81..HT..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71940-9161316 |
GX81,MX83..HT..(SPC,TWC) SABLE,TRIM4#,右側 |
1 | ||
| 71940-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71940-2233106 |
GX81..HT..GD..HTWC SABLE,TRIM4# |
2 | ||
| 71940-2233102 |
GX81..HT..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 71950-2301002 |
GX81,JZX81..HT..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71950-2301003 |
GX81,JZX81..HT..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71950-2301006 |
GX81,JZX81..HT..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232102 |
GX81..SED..GD..HTWC NEW MAROON,TRIM3# |
2 | ||
| 71940-2232103 |
GX81..SED..GD..HTWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71940-2238106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,右側 |
1 | ||
| 71950-2213103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,左側 |
1 | ||
| 71940-2238103 |
GX81,JZX81..SED..GD..TWC MEDIUM GRAY,TRIM1#,右側 |
1 | ||
| 71950-2213102 |
GX81,JZX81..SED..GD..TWC NEW MAROON,TRIM3#,左側 |
1 | ||
| 71940-2238102 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM3#,右側 |
1 | ||
| 71950-2213106 |
GX81,JZX81..SED..GD..TWC SABLE,TRIM4#,左側 |
1 | ||
| 71940-2232106 |
GX81..SED..GD..HTWC SABLE,TRIM4# |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-24010 |
GX81,JZX81,LX80,MX83,SX80..HT |
2 | ||
| 72693-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-2220002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2220006 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 72830-2226002 |
GX81..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2226004 |
GX81..GD..HTWC DARK BLUE,TRIM8# |
1 | ||
| 72830-2220004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 72830-2226006 |
GX81..GD..HTWC SABLE,TRIM4# |
1 | ||
| 72830-2220016 |
GX81,MX83..SPC,TWC SABLE,TRIM4# |
1 | ||
| 72830-2220106 |
GX81..HT..GD..HTWC ｸﾞﾗﾝﾃﾞﾘﾐﾃﾂﾄﾞ,SABLE,TRIM4# |
1 | ||
| 72830-2226102 |
GX81..GD..HTWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2220102 |
GX81,JZX81,MX83..TWC NEW MAROON,TRIM3# |
1 | ||
| 72830-2226106 |
GX81..GD..HTWC SABLE,TRIM4# |
1 | ||
| 72830-2220103 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-2226103 |
GX81..GD..HTWC MEDIUM GRAY,TRIM1# |
1 | ||
| 72830-2220106 |
GX81,JZX81,MX83..TWC SABLE,TRIM4# |
1 | ||
| Common parts | ||||
| 90119-06274 | ||||
| 90119-06281 | ||||
| 90159-60397 | ||||
| 90189-06006 | ||||
| 90386-06022 | ||||
| 90468-18071 | ||||
| 91655-40618 | ||||
| 91655-60820 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
