GX81-AEMQF (1988)
Toyota Mark 2
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

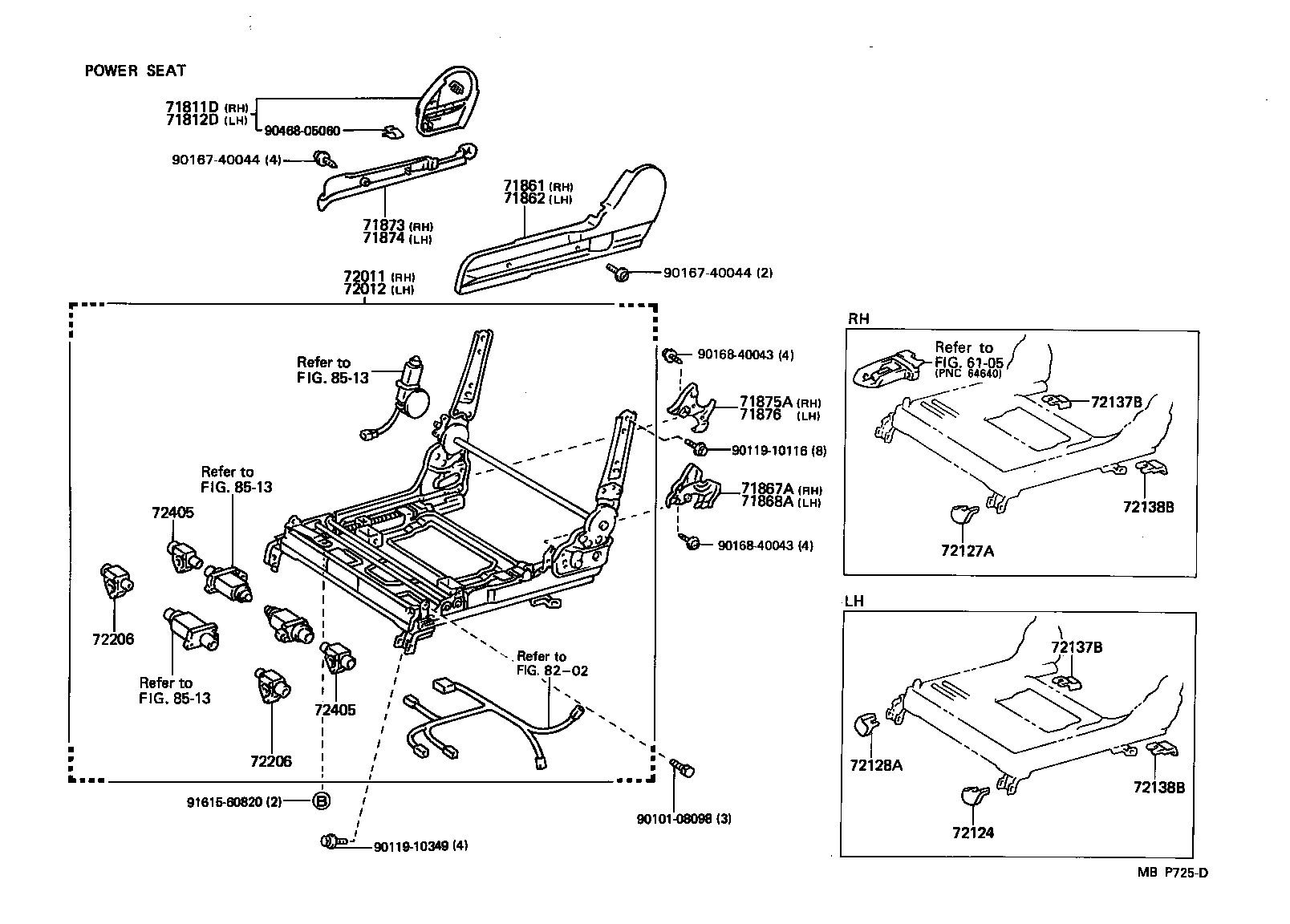

| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71811-2223002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71811-2223006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71811-2220006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71811-2220002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-2220004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71811-2223002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71811-2223006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71811-2220006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71811-2220002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-2220004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2215004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 71812-2215002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71812-2215002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71812-2215006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2209004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71861-2206004 |
GX81,LX80,SX80,YX80..GD,GT,KYO DARK BLUE,TRIM8# |
1 | ||
| 71861-2206002 |
GX81,JZX81..GD,GT NEW MAROON,TRIM3# |
1 | ||
| 71861-2209002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71861-2209006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71861-2206006 |
GX81,JZX81..GD,GT SABLE,TRIM4# |
1 | ||
| 71861-2209003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-2206003 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-2206002 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2207004 |
GX81..GD,GDG,GT DARK BLUE,TRIM8# |
1 | ||
| 71862-2207006 |
GX81,JZX81..GD,GDG,GT SABLE,TRIM4# |
1 | ||
| 71862-2207002 |
GX81,JZX81..GD,GDG,GT NEW MAROON,TRIM3# |
1 | ||
| 71862-2207003 |
GX81,JZX81..GD,GDG,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-2207002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2203004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71873-2201004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2201002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2203003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71873-2203006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71873-2203002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2203004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71873-2201004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2201002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2203003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71873-2203006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71873-2203002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71874-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71874-2201004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 71874-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22170 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22150 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22200 |
GX81,JZX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72010-22230 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22130 |
GX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22170 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22150 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22200 |
GX81,JZX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72010-22230 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22130 |
GX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 72011A - SPRING, TENSION (FOR FRONT SEAT ADJUSTER OUTER) | ||||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 90506-20045 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22090 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72124-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72124-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72124-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127-22051E0 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72127-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-22051D4 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127-22051E0 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72127-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-22051D4 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22051E0 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72128-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72128-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72128-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 72128-22051D4 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22290 |
GX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 72130-22340 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-22290 |
GX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 72130-22340 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GT SABLE,TRIM4# |
2 | ||
| 72137-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GT SABLE,TRIM4# |
2 | ||
| 72137-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GT SABLE,TRIM4# |
2 | ||
| 72137-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-22220 |
YX80..KYO;GX81,LX80,SX80 |
1 | ||
| 72140-22250 |
YX80..KYO;GX81,JZX81,LX80,SX80 |
1 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GD,GT,KYO DARK BLUE,TRIM8# |
2 | ||
| 72457-2202006 |
GX81,JZX81..GD,GT SABLE,TRIM4# |
2 | ||
| 72457-2202003 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020B0 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020E1 |
GX81,JZX81..GD SABLE,TRIM4# |
2 | ||
| 72457-2202002 |
GX81,JZX81..GD,GT NEW MAROON,TRIM3# |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GD,GT,KYO DARK BLUE,TRIM8# |
2 | ||
| 72457-2202006 |
GX81,JZX81..GD,GT SABLE,TRIM4# |
2 | ||
| 72457-2202003 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020B0 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020E1 |
GX81,JZX81..GD SABLE,TRIM4# |
2 | ||
| 72457-2202002 |
GX81,JZX81..GD,GT NEW MAROON,TRIM3# |
2 | ||
| 72457 - KNOB, VERTICAL SEAT ADJUSTER | ||||
| 72457-2202004 |
GX81,LX80,SX80,YX80..GD,GT,KYO DARK BLUE,TRIM8# |
2 | ||
| 72457-2202006 |
GX81,JZX81..GD,GT SABLE,TRIM4# |
2 | ||
| 72457-2202003 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020B0 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
2 | ||
| 72457-22020E1 |
GX81,JZX81..GD SABLE,TRIM4# |
2 | ||
| 72457-2202002 |
GX81,JZX81..GD,GT NEW MAROON,TRIM3# |
2 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-22020 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
2 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-22020 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
2 | ||
| 72477 - SPACER, VERTICAL ADJUSTER | ||||
| 72477-22020 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
2 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2202002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72525-2202002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-2202002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72525-2202002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72525-2202004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-2202006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72526-2202004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72526-2202002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72526-2202002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 72301-22140 | ||||
| 90101-08098 | ||||
| 90119-10116 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91615-60820 | ||||
| 96160-00800 | ||||
| 96160-01200 | ||||
(8808- )SPC,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

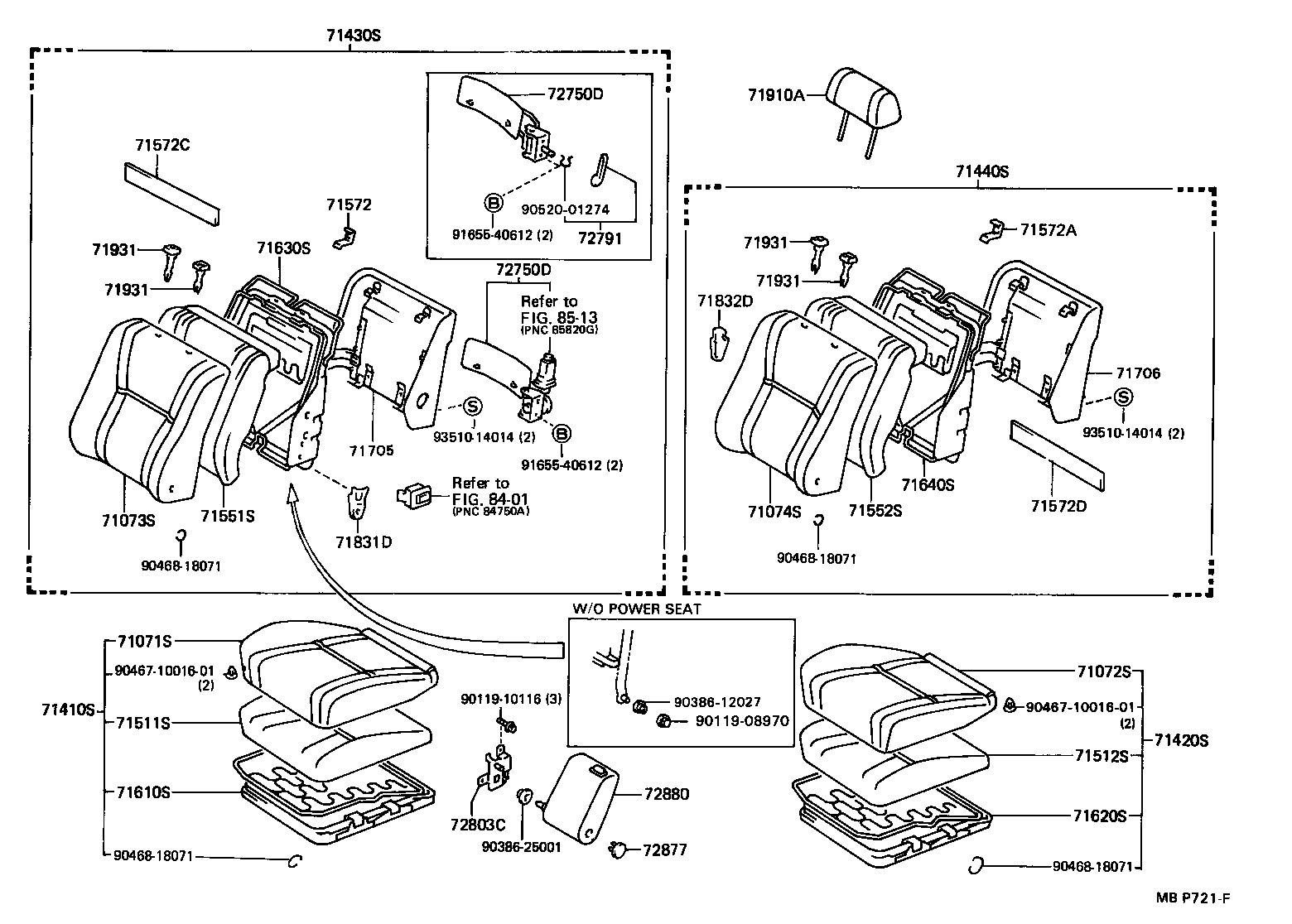

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2A36006 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71071-2A37006 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71071-2A36002 |
GX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71071-2A37002 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71071-2A37004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71071-2A36016 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71071-2A36004 |
GX81..TWC DARK BLUE,TRIM8# |
1 | ||
| 71071-2A37016 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71071-2A36103 |
GX81,JZX81..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-2A37103 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71071-2A36102 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71071-2A37102 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71071-2A36106 |
GX81,JZX81..GD..TWC SABLE,TRIM4# |
1 | ||
| 71071-2A37106 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2283006 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71072-2283004 |
GX81..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71072-2283002 |
GX81..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 71072-2283016 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71072-2283106 |
GX81,JZX81..GD..TWC SABLE,TRIM4# |
1 | ||
| 71072-2283102 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71072-2283103 |
GX81,JZX81..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A69006 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71073-2A79006 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71073-2A69004 |
GX81..TWC DARK BLUE,TRIM8# |
1 | ||
| 71073-2A69002 |
GX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71073-2A79004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71073-2A79002 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71073-2A69016 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71073-2A79016 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71073-2A79102 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71073-2A69103 |
GX81..5F..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-2A79103 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71073-2A69106 |
GX81..5F..TWC SABLE,TRIM4# |
1 | ||
| 71073-2A69102 |
GX81..5F..TWC NEW MAROON,TRIM3# |
1 | ||
| 71073-2A79106 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-2A18016 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71073-2A79002 |
GX81..SED..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71073-2A79004 |
GX81..SED..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71073-2A79006 |
GX81..SED..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71074-2A18006 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71074-2A18002 |
GX81..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 71074-2A18004 |
GX81..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71073-2A79016 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71074-2A18102 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71074-2A18103 |
GX81,JZX81..GD..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71074-2A18106 |
GX81,JZX81..GD..TWC SABLE,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2A54006 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71410-2A53006 |
GX81..TWC ***,SABLE,TRIM4# |
1 | ||
| 71410-2A53004 |
GX81..TWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71410-2A54002 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71410-2A54004 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71410-2A53002 |
GX81..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71410-2A53016 |
GX81..TWC ***,SABLE,TRIM4# |
1 | ||
| 71410-2A54016 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71410-2A54102 |
GX81,JZX81..GD..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71410-2A54103 |
GX81,JZX81..GD..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-2A54106 |
GX81,JZX81..GD..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71410-2A53103 |
GX81,JZX81..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71410-2A53102 |
GX81,JZX81..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71410-2A53106 |
GX81,JZX81..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2A12006 |
GX81..SPC,TWC ***,SABLE,TRIM4# |
1 | ||
| 71420-2A12004 |
GX81..SPC,TWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71420-2A12016 |
GX81..SPC,TWC ***,SABLE,TRIM4# |
1 | ||
| 71420-2A12002 |
GX81..SPC,TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71420-2A12103 |
GX81,JZX81..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71420-2A12102 |
GX81,JZX81..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71420-2A12106 |
GX81,JZX81..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2C05006 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71430-2C04006 |
GX81..TWC ***,SABLE,TRIM4# |
1 | ||
| 71430-2C04004 |
GX81..TWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71430-2C04002 |
GX81..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71430-2C05004 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71430-2C05002 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71430-2C05016 |
GX81..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71430-2C04016 |
GX81..TWC ***,SABLE,TRIM4# |
1 | ||
| 71430-2C04102 |
GX81..5F..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71430-2C04103 |
GX81..5F..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-2C04106 |
GX81..5F..TWC ***,SABLE,TRIM4# |
1 | ||
| 71430-2C05103 |
GX81..5F..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71430-2C05102 |
GX81..5F..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71430-2C05106 |
GX81..5F..TWC ***,ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2A85006 |
GX81..SPC,TWC ***,SABLE,TRIM4# |
1 | ||
| 71440-2A85002 |
GX81..SPC,TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71440-2A85004 |
GX81..SPC,TWC ***,DARK BLUE,TRIM8# |
1 | ||
| 71440-2A85016 |
GX81..SPC,TWC ***,SABLE,TRIM4# |
1 | ||
| 71440-2A85103 |
GX81,JZX81..GD..TWC ***,MEDIUM GRAY,TRIM1# |
1 | ||
| 71440-2A85106 |
GX81,JZX81..GD..TWC ***,SABLE,TRIM4# |
1 | ||
| 71440-2A85102 |
GX81,JZX81..GD..TWC ***,NEW MAROON,TRIM3# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22240 |
GX81,JZX81..GD..TWC |
1 | ||
| 71511-22240 |
GX81,MX83..SPC,TWC |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22370 |
GX81,MX83..SPC,TWC |
1 | ||
| 71511-22450 |
GX81,JZX81..GD..TWC |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22320 |
GX81,MX83..SPC,TWC |
1 | ||
| 71551-22370 |
GX81,JZX81..GD..TWC |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22320 |
GX81,MX83..SPC,TWC |
1 | ||
| 71551-22370 |
GX81,JZX81..GD..TWC |
1 | ||
| 71572 - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 71572A - PAD, FRONT SEAT BACK SILENCER, B | ||||
| 71572-30040 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 71572C - PAD, FRONT SEAT BACK SILENCER, RH | ||||
| 71572-22040 |
GX81,MX83..SPC,TWC |
2 | ||
| 71572-22040 |
GX81,JZX81,MX83..TWC |
1 | ||
| 71572D - PAD, FRONT SEAT BACK SILENCER, LH | ||||
| 71572-22040 |
GX81,JZX81,MX83..TWC |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-22340 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO |
1 | ||
| 71610-22350 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-22130 |
GX81,JZX81,LX80,SX80,YX80 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22460 |
GX81..TWC |
1 | ||
| 71630-22470 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 71630-22461 |
GX81..TWC |
1 | ||
| 71630-22462 |
GX81..5F..TWC |
1 | ||
| 71630-22471 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22360 |
GX81..SPC,TWC |
1 | ||
| 71640-22361 |
GX81..SPC,TWC |
1 | ||
| 71640-22362 |
GX81,JZX81..TWC |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-2227002 |
GX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71705-2228006 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71705-2227006 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71705-2228002 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71705-2228004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71705-2227004 |
GX81..TWC DARK BLUE,TRIM8# |
1 | ||
| 71705-2227104 |
GX81..TWC DARK BLUE,TRIM8# |
1 | ||
| 71705-2227102 |
GX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71705-2227106 |
GX81..TWC SABLE,TRIM4# |
1 | ||
| 71705-2228016 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71705-2227203 |
GX81..5F..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-2227202 |
GX81..5F..TWC NEW MAROON,TRIM3# |
1 | ||
| 71705-2228102 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71705-2227206 |
GX81..5F..TWC SABLE,TRIM4# |
1 | ||
| 71705-2228103 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71705-2228106 |
GX81..5F..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-2206004 |
GX81..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71706-2206006 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71706-2206002 |
GX81..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 71706-2206102 |
GX81..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 71706-2206104 |
GX81..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71706-2206106 |
GX81..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71706-2206202 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71706-2206206 |
GX81,JZX81..TWC SABLE,TRIM4# |
1 | ||
| 71706-2206203 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71831D - COVER, FRONT SEAT HINGE, RH | ||||
| 71831-2204002 |
GX81,LX80,SX80..GD,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC DARK BLUE,TRIM8# |
1 | ||
| 71831-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,LG SABLE,TRIM4# |
1 | ||
| 71832D - COVER, FRONT SEAT HINGE, LH | ||||
| 71831-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC DARK BLUE,TRIM8# |
1 | ||
| 71831-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,LG NEW MAROON,TRIM3# |
1 | ||
| 71831-2204006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,LG SABLE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2271006 |
GX81..SPC,TWC SABLE,TRIM4# |
2 | ||
| 71910-2271002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3# |
2 | ||
| 71910-2271016 |
GX81,MX83..SPC,TWC SABLE,TRIM4# |
2 | ||
| 71910-2271004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8# |
2 | ||
| 71910-2271106 |
GX81,JZX81..GD..TWC SABLE,TRIM4# |
2 | ||
| 71910-2271102 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
2 | ||
| 71910-2271103 |
GX81,JZX81..GD..TWC MEDIUM GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-2201002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ付,SABLE,TRIM4# |
2 | ||
| 71930-2204002 |
GX81,LX80,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 71931-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,LG ﾛｯｸ無,SABLE,TRIM4# |
2 | ||
| 71930-2204004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ付,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201004 |
GX81,LX80,MX83,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC ﾛｯｸ無,DARK BLUE,TRIM8# |
2 | ||
| 71931-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ無,NEW MAROON,TRIM3# |
2 | ||
| 71930-2204002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,LG ﾛｯｸ付,NEW MAROON,TRIM3# |
2 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22080 |
GX81..GD |
1 | ||
| 72750-22070 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72750-22100 |
GX81,JZX81..GD |
1 | ||
| 72750-22071 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-22080 |
GX81..GD |
1 | ||
| 72750-22070 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72750-22100 |
GX81,JZX81..GD |
1 | ||
| 72750-22071 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-2003016 |
GX81..GD SABLE,TRIM4# |
1 | ||
| 72791-2003032 |
GX81..GD NEW MAROON,TRIM3# |
1 | ||
| 72791-2003024 |
GX81,LX80,SX80,YX80..GD,KYO DARK BLUE,TRIM8# |
1 | ||
| Common parts | ||||
| 90119-08970 | ||||
| 90119-10116 | ||||
| 90386-12027 | ||||
| 90386-25001 | ||||
| 90467-1001601 | ||||
| 90468-18071 | ||||
| 90520-01274 | ||||
| 91655-40612 | ||||
| 93510-14014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8513 | ||||
(8808- )SPC,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-2220002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71811-2223002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71811-2223006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71811-2220006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71811-2220002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71811-2223003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71811-2220004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-2215004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 71812-2215002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71812-2215002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71812-2215006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-2209004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71861-2206004 |
GX81,LX80,SX80,YX80..GD,GT,KYO DARK BLUE,TRIM8# |
1 | ||
| 71861-2206002 |
GX81,JZX81..GD,GT NEW MAROON,TRIM3# |
1 | ||
| 71861-2209002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71861-2209006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71861-2206006 |
GX81,JZX81..GD,GT SABLE,TRIM4# |
1 | ||
| 71861-2209003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-2206003 |
GX81,JZX81,LX80,SX80,YX80..GD,GT,KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 71861-2206002 |
GX81,JZX81..GD..TWC NEW MAROON,TRIM3# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-2207004 |
GX81..GD,GDG,GT DARK BLUE,TRIM8# |
1 | ||
| 71862-2207006 |
GX81,JZX81..GD,GDG,GT SABLE,TRIM4# |
1 | ||
| 71862-2207002 |
GX81,JZX81..GD,GDG,GT NEW MAROON,TRIM3# |
1 | ||
| 71862-2207003 |
GX81,JZX81..GD,GDG,GT MEDIUM GRAY,TRIM1# |
1 | ||
| 71862-2207002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-2203004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71867-2203002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 71867-2203003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71867-2203006 |
GX81,JZX81,MX83..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-2203004 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),DARK BLUE,TRIM8# |
1 | ||
| 71873-2201004 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT DARK BLUE,TRIM8# |
1 | ||
| 71873-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71873-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2201002 |
GX81,LX80,SX80..GD,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71873-2203003 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),MEDIUM GRAY,TRIM1# |
1 | ||
| 71873-2203006 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),SABLE,TRIM4# |
1 | ||
| 71873-2203002 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ),NEW MAROON,TRIM3# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71874-2201006 |
GX81,JZX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 71874-2201004 |
GX81,LX80,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 71874-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-2203003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 71875-2203004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8# |
1 | ||
| 71875-2203006 |
GX81,JZX81,MX83..SPC,TWC SABLE,TRIM4# |
1 | ||
| 71875-2203002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3# |
1 | ||
| 72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH | ||||
| 72010-22170 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22150 |
GX81..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22200 |
GX81,JZX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72010-22230 |
GX81,JZX81..GD..TWC ｱﾘ(ﾊﾟﾜ- ｼ-ﾄ) |
1 | ||
| 72010-22130 |
GX81,LX80,SX80,YX80..GD,KYO |
1 | ||
| 72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH | ||||
| 72020-22090 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,SPC,TD,TWC |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-2201002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72124-2201006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72124-2201004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72124-2201002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72127-22051E0 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72127-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 72127-22051D4 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72127-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-22051E0 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
1 | ||
| 72128-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
1 | ||
| 72128-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72128-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72128-2205003 |
GX81,JZX81,LX80,MX83,SX80,YX80 MEDIUM GRAY,TRIM1# |
1 | ||
| 72128-22051D4 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GT SABLE,TRIM4# |
2 | ||
| 72137-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-2205006 |
GX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72137-2205006 |
GX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GT SABLE,TRIM4# |
2 | ||
| 72137-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72137-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72137-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-2205006 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG SABLE,TRIM4# |
2 | ||
| 72138-2205004 |
GX81,LX80,MX83,SX80,YX80 DARK BLUE,TRIM8# |
2 | ||
| 72138-2205002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72138-2205002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NEW MAROON,TRIM3# |
2 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30030 |
GX81..SPC,TWC |
2 | ||
| 72206-22020 |
GX81,JZX81,MX83..SPC,TWC |
4 | ||
| 72206 - HOUSING SUB-ASSY, POWER SEAT, NO.2 | ||||
| 72206-30030 |
GX81..SPC,TWC |
2 | ||
| 72206-22020 |
GX81,JZX81,MX83..SPC,TWC |
4 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
GX81,JZX81,MX83..TWC |
4 | ||
| 72405-24020 |
GX81,MX83..SPC,TWC |
2 | ||
| 72405 - HOUSING SUB-ASSY, FRONT SEAT VERTICAL | ||||
| 72405-24020 |
GX81,JZX81,MX83..TWC |
4 | ||
| 72405-24020 |
GX81,MX83..SPC,TWC |
2 | ||
| Common parts | ||||
| 90101-08098 | ||||
| 90119-10116 | ||||
| 90119-10349 | ||||
| 90167-40044 | ||||
| 90168-40043 | ||||
| 90468-05060 | ||||
| 91615-60820 | ||||
| Linked diagrams | ||||
| 6105 | ||||
| 8202 | ||||
| 8513 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
