GX81-AEMGK (1988)
Toyota Mark 2

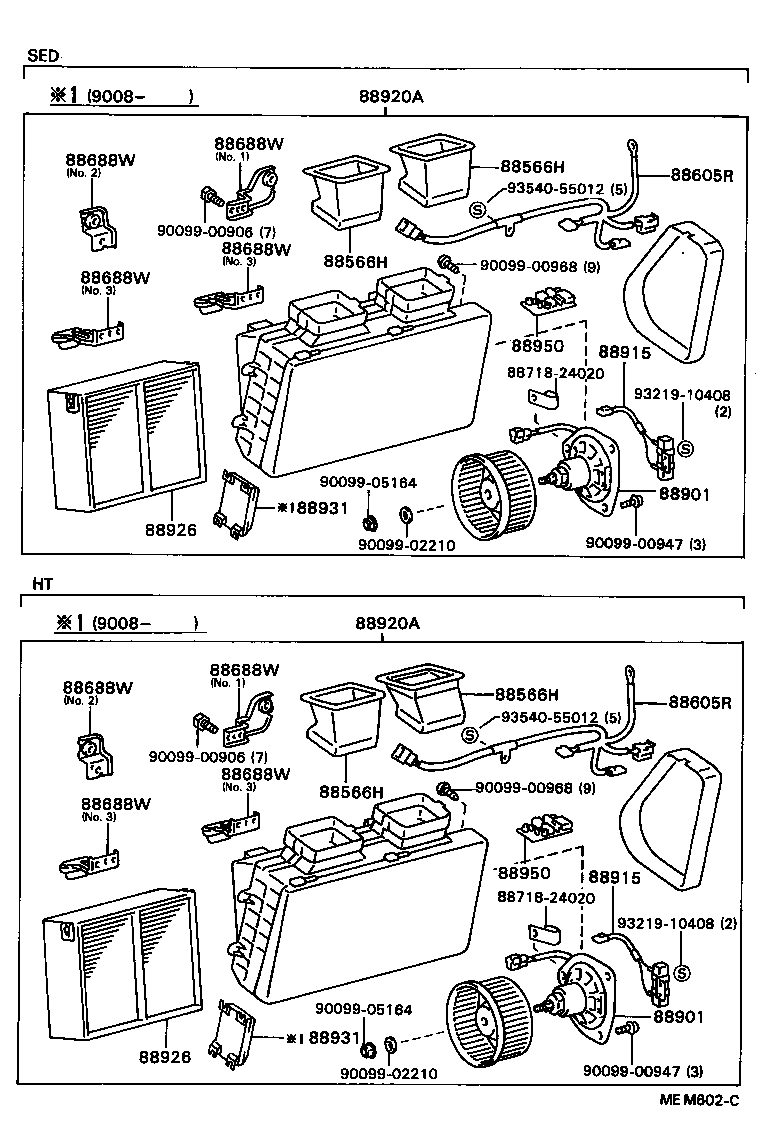

ILLUST NO. 1 OF 2(8808- )GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22070 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 88566-22090 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 88566-22080 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
2 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22070 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 88566-22090 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 88566-22080 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
2 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22070 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 88566-22090 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 88566-22080 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
2 | ||
| 88566H - DUCT, AIR, NO.1 | ||||
| 88566-22070 |
GX81,JZX81,LX80,MX83,SX80..HT 右側 |
1 | ||
| 88566-22090 |
GX81,JZX81,LX80,MX83,SX80..HT 左側 |
1 | ||
| 88566-22080 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) |
2 | ||
| 88605R - HARNESS SUB-ASSY, AIR PURIFIER | ||||
| 88605-22600 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88605-22600 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88605R - HARNESS SUB-ASSY, AIR PURIFIER | ||||
| 88605-22600 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88605-22600 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22610 |
GX81,JZX81,LX80,MX83,SX80..HT NO.1 |
1 | ||
| 88688-22620 |
GX81,JZX81,LX80,MX83,SX80..HT NO.2 |
1 | ||
| 88688-22580 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.1 |
1 | ||
| 88688-22630 |
GX81,JZX81,LX80,MX83,SX80..HT NO.3 |
2 | ||
| 88688-22600 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.3 |
2 | ||
| 88688-22590 |
GX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GL,GR,LG) NO.2 |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-22100 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88901-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-22100 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88901-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22100 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88915-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22100 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88915-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22110 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88920-22130 |
GX81,LX80..HT..(GR,LG) |
1 | ||
| 88920-22111 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88920-22131 |
GX81,LX80,SX80..HT..(GR,LG) |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22110 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88920-22130 |
GX81,LX80..HT..(GR,LG) |
1 | ||
| 88920-22111 |
GX81,LX80,SX80..SED..(GL,GR,LG) |
1 | ||
| 88920-22131 |
GX81,LX80,SX80..HT..(GR,LG) |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-22101 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88926-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-22101 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88926-22100 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-32010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-32010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| Common parts | ||||
| 88718-24020 | ||||
| 90099-00906 | ||||
| 90099-00947 | ||||
| 90099-00968 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 93219-10408 | ||||
| 93540-55012 | ||||

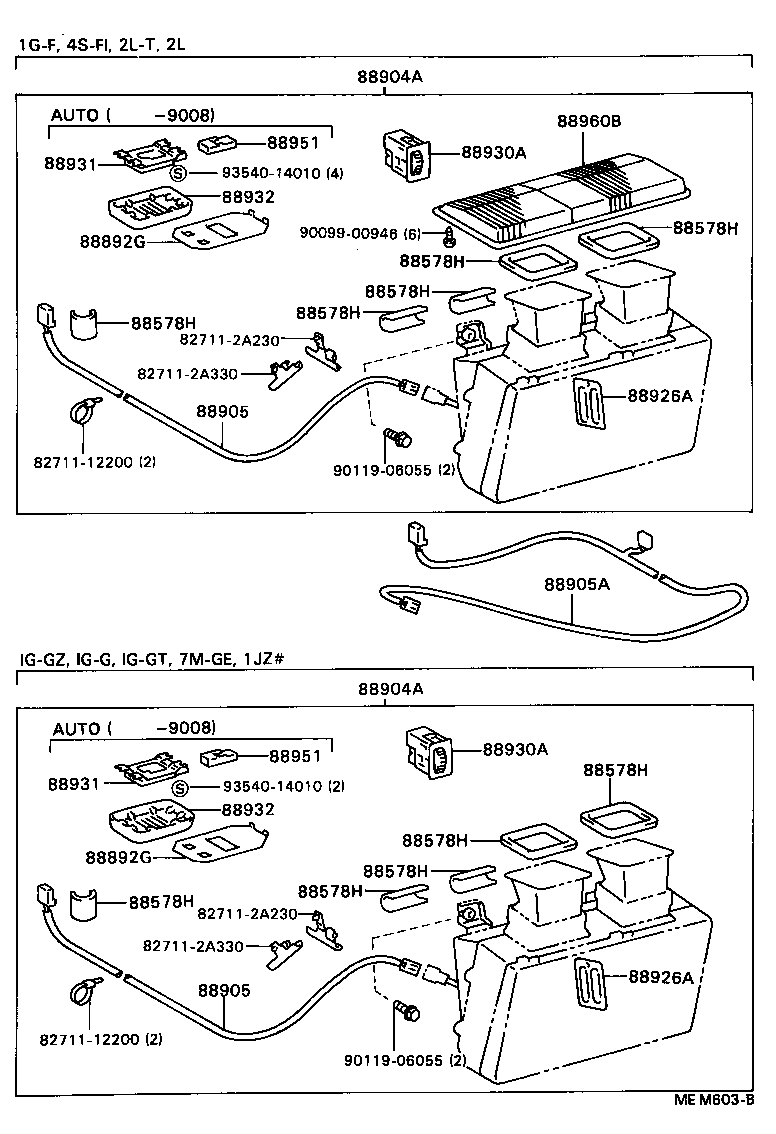

ILLUST NO. 2 OF 2(8808- )GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22150 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT LOWER |
2 | ||
| 88578-30370 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG WIRE SIDE |
1 | ||
| 88578-22160 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG DUCT UPPER |
2 | ||
| 88892G - PLATE SUB-ASSY | ||||
| 88892-22180 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88892G - PLATE SUB-ASSY | ||||
| 88892-22180 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-2219002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-2212006 |
GX81..SPC,TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),SABLE,TRIM3#,4# |
1 | ||
| 88904-22130 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88904-2212004 |
GX81,MX83..SPC,TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),BLUE,TRIM8# |
1 | ||
| 88904-2219006 |
GX81,LX80,SX80..SED..(GL,GR,LG) SABLE,TRIM8# |
1 | ||
| 88904-2219004 |
GX81,LX80,SX80..SED..(GL,GR,LG) BLUE,TRIM4# |
1 | ||
| 88904-2219004 |
GX81,LX80..HT..(GR,LG) BLUE,TRIM8# |
1 | ||
| 88904-2219002 |
LX80..GL..DSL;GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-2212006 |
GX81,MX83..SPC,TWC ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),SABLE,TRIM3# |
1 | ||
| 88904-22131 |
GX81,JZX81,MX83..TWC,TWT |
1 | ||
| 88904-2219006 |
GX81,LX80..HT..(GR,LG) SABLE,TRIM4# |
1 | ||
| 88904-2219103 |
GX81,LX80,SX80..GL,GR,LG GRAY,TRIM1# |
1 | ||
| 88904-2219106 |
GX81,LX80,SX80..GL,GR,LG SABLE,TRIM4# |
1 | ||
| 88904-2219102 |
LX80..GL..DSL;GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-22250 |
GX81,JZX81,MX83..TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ) |
1 | ||
| 88904A - ACCESSORY SUB-ASSY, AIR PURIFIRE | ||||
| 88904-2219002 |
GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-2212006 |
GX81..SPC,TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),SABLE,TRIM3#,4# |
1 | ||
| 88904-22130 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88904-2212004 |
GX81,MX83..SPC,TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),BLUE,TRIM8# |
1 | ||
| 88904-2219006 |
GX81,LX80,SX80..SED..(GL,GR,LG) SABLE,TRIM8# |
1 | ||
| 88904-2219004 |
GX81,LX80,SX80..SED..(GL,GR,LG) BLUE,TRIM4# |
1 | ||
| 88904-2219004 |
GX81,LX80..HT..(GR,LG) BLUE,TRIM8# |
1 | ||
| 88904-2219002 |
LX80..GL..DSL;GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-2212006 |
GX81,MX83..SPC,TWC ｱﾘ(ｽﾓ-ｸ ｾﾝｻ),SABLE,TRIM3# |
1 | ||
| 88904-22131 |
GX81,JZX81,MX83..TWC,TWT |
1 | ||
| 88904-2219006 |
GX81,LX80..HT..(GR,LG) SABLE,TRIM4# |
1 | ||
| 88904-2219103 |
GX81,LX80,SX80..GL,GR,LG GRAY,TRIM1# |
1 | ||
| 88904-2219106 |
GX81,LX80,SX80..GL,GR,LG SABLE,TRIM4# |
1 | ||
| 88904-2219102 |
LX80..GL..DSL;GX81,LX80,SX80..GR,LG NEW MAROON,TRIM3# |
1 | ||
| 88904-22250 |
GX81,JZX81,MX83..TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ) |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-22100 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88905-22100 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88905-22220 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-32020 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-32020 |
GX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22100 |
GX81,JZX81,MX83..TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ) |
1 | ||
| 88930-22110 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22100 |
GX81,JZX81,MX83..TWC,TWT ｱﾘ(ｽﾓ-ｸ ｾﾝｻ) |
1 | ||
| 88930-22110 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-32010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-32010 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 88932 - COVER, SMOKE SENSOR | ||||
| 88932-2210016 |
GX81..SPC,TWC SABLE,TRIM3# |
1 | ||
| 88932 - COVER, SMOKE SENSOR | ||||
| 88932-2210016 |
GX81..SPC,TWC SABLE,TRIM3# |
1 | ||
| 88960B - RESISTOR ASSY, AIR PURIFIRE | ||||
| 88960-2210004 |
GX81,LX80..HT..(HTWC,TD) BLUE,TRIM8# |
1 | ||
| 88960-2210006 |
GX81,LX80,SX80..(GD,GL,GR,LG)..(DSL,HTWC,TD) SABLE,TRIM4# |
1 | ||
| 88960-2210002 |
GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| 88960-2210006 |
GX81,LX80..HT..(HTWC,TD) SABLE,TRIM4# |
1 | ||
| 88960-2210003 |
GX81,LX80,SX80..(GD,GL,GR,LG)..(DSL,HTWC,TD) GRAY,TRIM1# |
1 | ||
| 88960-2210006 |
GX81,LX80,SX80..SED..(GD,GL,GR,LG)..(CI,DSL,HTWC,TD) SABLE,TRIM8# |
1 | ||
| 88960-2210004 |
GX81,LX80,SX80..SED..(GD,GL,GR,LG)..(CI,DSL,HTWC,TD) BLUE,TRIM4# |
1 | ||
| 88960-2210002 |
LX80..GL..DSL;GX81,LX80,SX80..(GD,GR,LG)..(CI,HTWC,TD) NEW MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 82711-2A230 | ||||
| 82711-2A330 | ||||
| 90099-00946 | ||||
| 90119-06055 | ||||
| 93540-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
