GX81-AEMGK (1988)
Toyota Mark 2

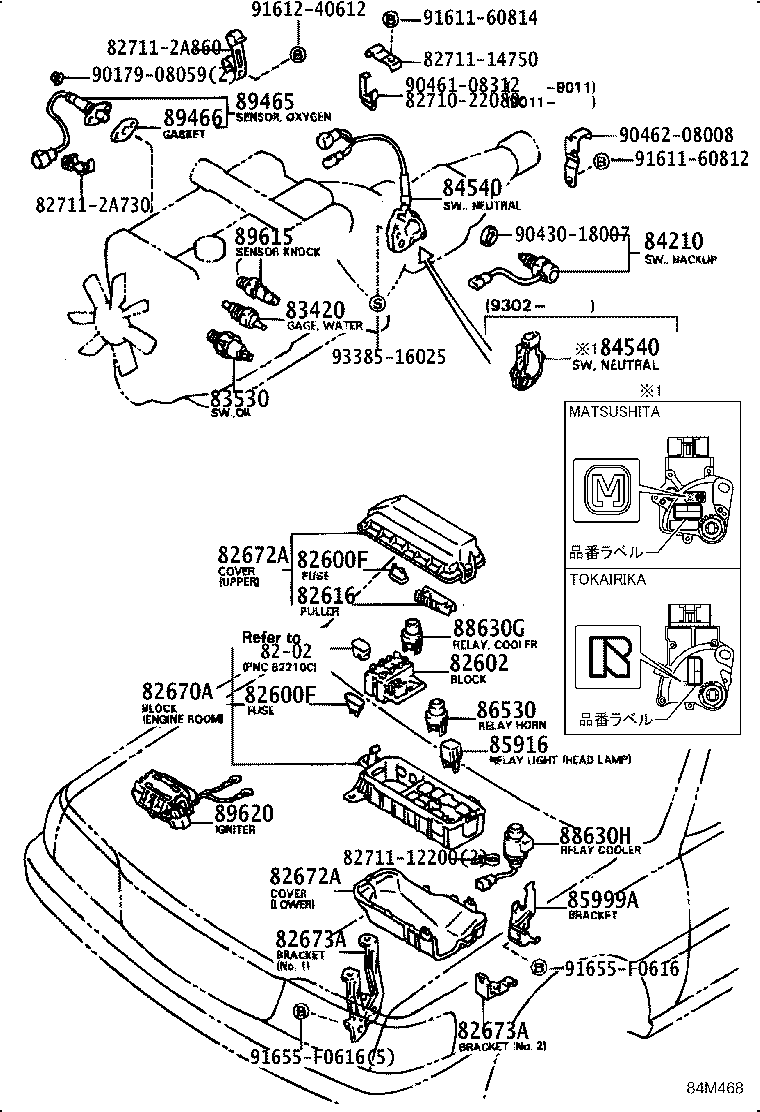

ILLUST NO. 1 OF 6(8808- )GX81..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22360 |
GX81..5F..(HTWC,TWC) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD NO.1 |
1 | ||
| 82670-22010 |
GX81,JZX81,MX83 ENGINE ROOM |
1 | ||
| 82671-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82670-22090 |
SX80..GL,GR,STD;GX81,JZX81,LX80,MX83,YX80 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22060 |
GX81 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22060 |
GX81 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX81,JZX81,LX80,MX83,YX80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
GX81,MX83 |
1 | ||
| 83530-30050 |
GX81,MX83 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX81,LX80,MX83,SX80,YX80 HEADLAMP |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 *ND,TAIL LAMP |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22360 |
JZX81..TWC;GX81,SX80,YX80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LX80..GR,KYO;LX80..GL..TD;GX81,SX80,YX80 |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 90987-02004 |
YX80;GX81,LX80,MX83,SX80..GD,GDG,GT,KYO,LG |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29175 |
GX81..HTWC,TWC |
1 | ||
| 89465-29176 |
GX81..HTWC,TWC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
GX81..HTWC,TWC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GX81,MX83..HTWC,TWC |
1 | ||
| 89615-33020 |
GX81..HTWC NIPPONDENSO |
1 | ||
| 89615-30020 |
GX81,MX83..TWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
GX81,MX83..TWC |
1 | ||
| 89620-22450 |
GX81..HTWC |
1 | ||
| Common parts | ||||
| 82710-22080 | ||||
| 82711-12200 | ||||
| 82711-14750 | ||||
| 82711-2A730 | ||||
| 82711-2A860 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91612-40612 | ||||
| 91655-F0616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

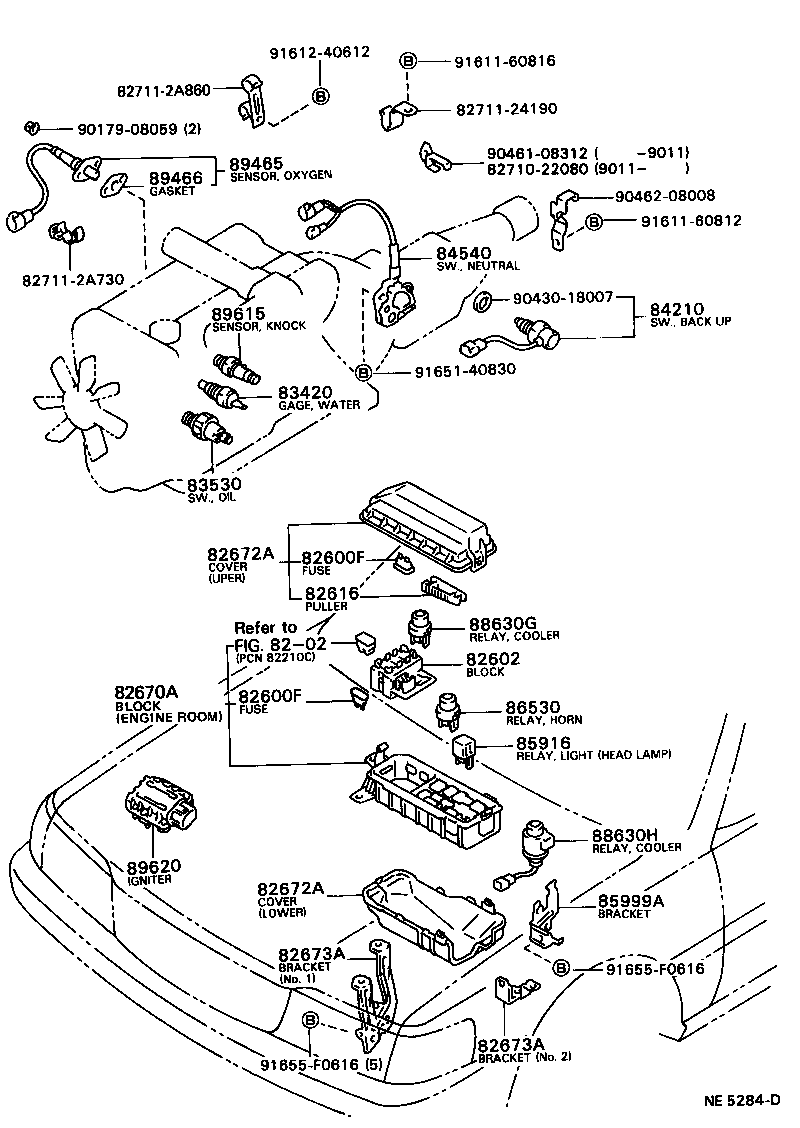

ILLUST NO. 1 OF 6(8808-9302)TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-22360 |
GX81..5F..(HTWC,TWC) |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD NO.1 |
1 | ||
| 82670-22010 |
GX81,JZX81,MX83 ENGINE ROOM |
1 | ||
| 82671-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82670-22090 |
SX80..GL,GR,STD;GX81,JZX81,LX80,MX83,YX80 NO.1 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22060 |
GX81 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-22060 |
GX81 UPPER |
1 | ||
| 82672-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 LOWER |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-22030 |
GX81,JZX81,MX83,SX80,YX80 NO.2 |
1 | ||
| 82673-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
GX81,JZX81,LX80,MX83,YX80 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30051 |
GX81,MX83 |
1 | ||
| 83530-30050 |
GX81,MX83 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-30060 |
GX81,LX80,SX80,YX80..5F |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX81,LX80,MX83,SX80,YX80 HEADLAMP |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 *ND,TAIL LAMP |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-22360 |
JZX81..TWC;GX81,SX80,YX80 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02004 |
LX80..GR,KYO;LX80..GL..TD;GX81,SX80,YX80 |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG |
1 | ||
| 90987-02004 |
YX80;GX81,LX80,MX83,SX80..GD,GDG,GT,KYO,LG |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29175 |
GX81..HTWC,TWC |
1 | ||
| 89465-29176 |
GX81..HTWC,TWC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-32010 |
GX81..HTWC,TWC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-30020 |
GX81,MX83..HTWC,TWC |
1 | ||
| 89615-33020 |
GX81..HTWC NIPPONDENSO |
1 | ||
| 89615-30020 |
GX81,MX83..TWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-12010 |
GX81,MX83..TWC |
1 | ||
| 89620-22450 |
GX81..HTWC |
1 | ||
| Common parts | ||||
| 82710-22080 | ||||
| 82711-24190 | ||||
| 82711-2A730 | ||||
| 82711-2A860 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90462-08008 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91612-40612 | ||||
| 91651-40830 | ||||
| 91655-F0616 | ||||
| Linked diagrams | ||||
| 8202 | ||||

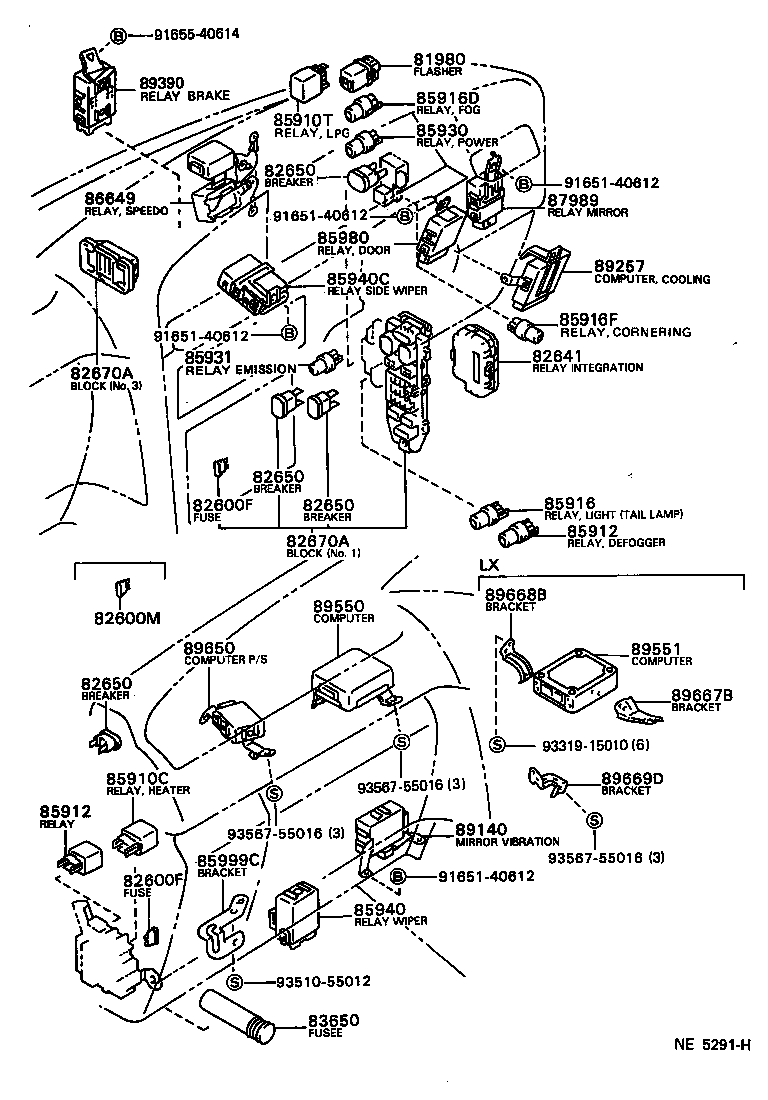

ILLUST NO. 2 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30110 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 81980-30110 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG,STD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 10A,COWL SIDE |
1 | ||
| 90982-09003 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 15A,COWL SIDE |
7 | ||
| 90982-09004 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 20A,黄,COWL SIDE |
1 | ||
| 90982-09003 |
GX81,MX83,SX80,YX80 15A,E/G ROOM J/B |
5 | ||
| 90982-09004 |
GX81,MX83,SX80,YX80 20A,黄,E/G ROOM J/B |
3 | ||
| 90982-09005 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 7.5A,COWL SIDE |
5 | ||
| 90982-09005 |
GX81,LX80,MX83,SX80,YX80 7.5A,COWL SIDE |
5 | ||
| 90982-09004 |
GX81,JZX81,LX80,MX83,YX80 20A,黄,E/G ROOM J/B |
2 | ||
| 90982-09003 |
GX81,JZX81,LX80,MX83,YX80 15A,E/G ROOM J/B |
4 | ||
| 90982-09003 |
GX81,LX80,SX80,YX80 15A,COWL SIDE |
7 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-22061 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82641-22071 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82641-22061 |
GX81,JZX81,LX80,MX83,SX80,YX80 TOYOTA |
1 | ||
| 82641-22050 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82641-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 40A |
1 | ||
| 82650-35010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG 20A |
1 | ||
| 82650-35010 |
GX81..LG;GX81,JZX81,LX80,MX83..(GD,GDG,GR,GT)..(TD,TWC,TWT) 20A |
1 | ||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 40A |
1 | ||
| 82650-35010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG 20A |
1 | ||
| 82650-35010 |
GX81..LG;GX81,JZX81,LX80,MX83..(GD,GDG,GR,GT)..(TD,TWC,TWT) 20A |
1 | ||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 40A |
1 | ||
| 82650-35010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG 20A |
1 | ||
| 82650-35010 |
GX81..LG;GX81,JZX81,LX80,MX83..(GD,GDG,GR,GT)..(TD,TWC,TWT) 20A |
1 | ||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 30A |
2 | ||
| 82650-20020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD 40A |
1 | ||
| 82650-35010 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG 20A |
1 | ||
| 82650-35010 |
GX81..LG;GX81,JZX81,LX80,MX83..(GD,GDG,GR,GT)..(TD,TWC,TWT) 20A |
1 | ||
| 82650-20011 |
GX81,LX80,MX83,SX80,YX80 30A |
2 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD NO.1 |
1 | ||
| 82670-22010 |
GX81,JZX81,MX83 ENGINE ROOM |
1 | ||
| 82671-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82670-22090 |
SX80..GL,GR,STD;GX81,JZX81,LX80,MX83,YX80 NO.1 |
1 | ||
| 82670A - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-22020 |
GX81,LX80,SX80,YX80 NO.1 |
1 | ||
| 82671-22030 |
GX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22020 |
GX81..TWC;GX81,LX80,SX80,YX80..GDG,GL,GR,GT,KYO,LG,STD NO.1 |
1 | ||
| 82670-22010 |
GX81,JZX81,MX83 ENGINE ROOM |
1 | ||
| 82671-22031 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.3 |
1 | ||
| 82670-22090 |
GX81,JZX81,LX80,MX83,SX80,YX80 NO.1 |
1 | ||
| 82670-22090 |
SX80..GL,GR,STD;GX81,JZX81,LX80,MX83,YX80 NO.1 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MARUKO |
2 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ),NIPPONDENSO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NIPPONDENSO |
2 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ),MARUKO |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MARUKO |
2 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ),NIPPONDENSO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NIPPONDENSO |
2 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 ｱﾘ(ﾌﾛﾝﾄﾃﾞﾌｵﾂｶﾞ),MARUKO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
GX81,LX80,MX83,SX80,YX80 HEADLAMP |
1 | ||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO,TAIL LAMP |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 *ND,TAIL LAMP |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02002 |
GX81,JZX81,LX80,MX83,SX80,YX80 MARUKO |
1 | ||
| 90987-02004 |
GX81,JZX81,LX80,MX83,SX80,YX80 NIPPONDENSO |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02002 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG MARUKO |
1 | ||
| 90987-02004 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG NIPPONDENSO |
1 | ||
| 90987-02004 |
YX80..GL;GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NIPPONDENSO |
1 | ||
| 90987-02002 |
YX80..GL;GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MARUKO |
1 | ||
| 90987-02004 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG NIPPONDENSO |
1 | ||
| 90987-02002 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG MARUKO |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22100 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 85980-22160 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-22390 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-22150 |
GX81,JZX81,MX83..TWC |
2 | ||
| 89650-22050 |
GX81,MX83..SPC,TWC |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91655-40614 | ||||
| 93319-15010 | ||||
| 93510-55012 | ||||
| 93567-55016 | ||||

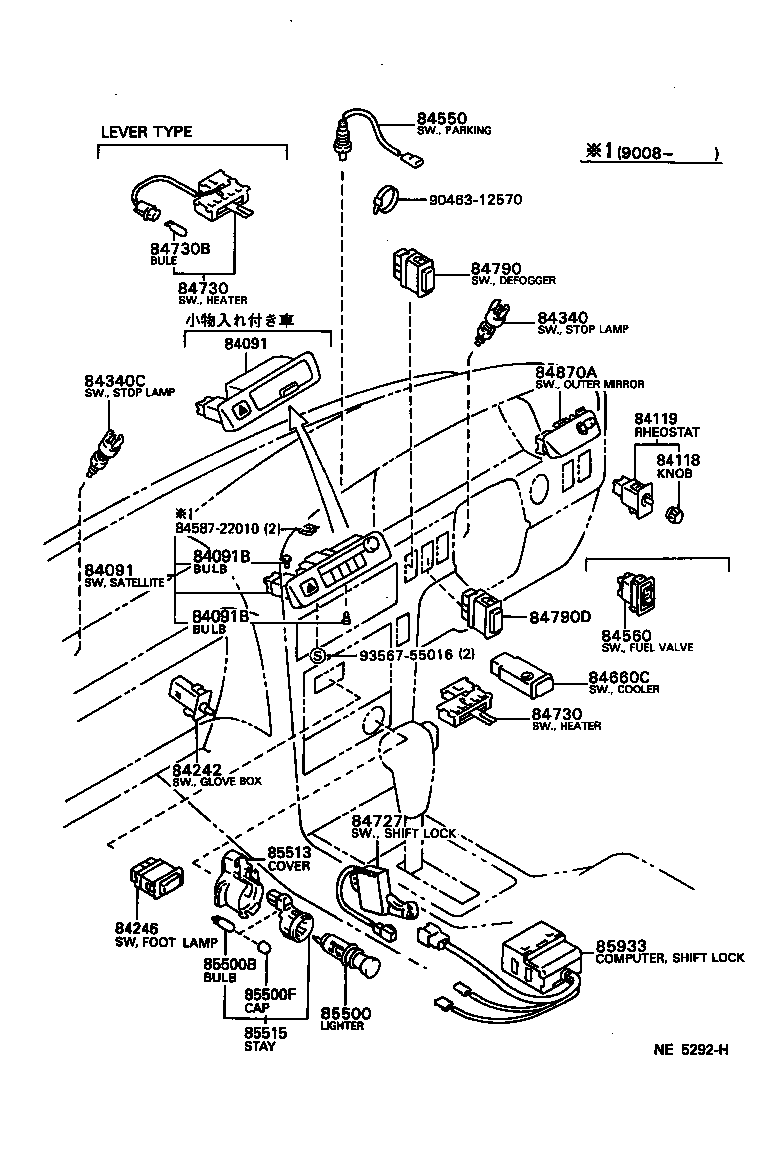

ILLUST NO. 3 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22300 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091-22371 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091-22370 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091 - SWITCH SET, SATELLITE | ||||
| 84091-22300 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091-22371 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091-22370 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10320 |
GX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84999-10420 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84999-10420 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84091B - BULB, SATELLITE SWITCH | ||||
| 84999-10320 |
GX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84999-10420 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾊｻﾞｰﾄﾞ |
1 | ||
| 84999-10420 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-30030 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT MATSUSHITA |
1 | ||
| 84340-22080 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT MATSUSHITA |
1 | ||
| 84340-28010 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT 東海理化 |
1 | ||
| 84340-30040 |
GX81,LX80,SX80,YX80..GD,GL,GR,GT,LG,STD 東海理化 |
1 | ||
| 84340-30030 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22120 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22120 |
GX81,LX80,SX80..GR,LG |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22130 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 84790D - SWITCH ASSY, WINDSHIELD DEFOGGER | ||||
| 84790-22170 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22080 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22120 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GX81,JZX81,LX80,MX83,SX80,YX80 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| Common parts | ||||
| 84587-22010 | ||||
| 90463-12570 | ||||
| 93567-55016 | ||||
ILLUST NO. 4 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-80011 |
GX81,JZX81,MX83..SPC,TWC,TWT |
1 | ||
| 84112-80012 |
GX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD |
1 | ||
| 84112-80132 |
GX81,JZX81,MX83..TWC,TWT |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-22060 |
GX81,MX83..SPC,TWC,TWT |
1 | ||
| 84140-22120 |
GX81,JZX81,MX83..TWC,TWT |
1 | ||
| 84140-22050 |
GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD |
1 | ||
| 84305 - SLIPRING, STEERING SENSOR | ||||
| 84305-22010 |
GX81,MX83..SPC,TWC |
1 | ||
| 84305-22020 |
GX81,JZX81,MX83..TWC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-22630 |
GX81..TWC ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-22600 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 84310-22620 |
GX81..TWC ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ) |
1 | ||
| 84310-22640 |
GX81..TWC |
1 | ||
| 84310-22610 |
GX81..TWC ｱﾘ(ｵ-ﾄ ﾄﾞﾗｲﾌﾞ & ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84310-2A020 |
GX81,LX80,SX80..GL,GR,LG |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-12040 |
GX81,JZX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWT |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22190 |
GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-22430 |
GX81,MX83..SPC,TWC ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-22420 |
GX81,LX80,SX80..(GD,GL,GR,LG)..(CI,DSL,HTWC,TD) |
1 | ||
| 84652-22650 |
GX81,JZX81,MX83..TWC ｱﾘ(ﾘﾔ ﾜｲﾊﾟ) |
1 | ||
| 84652-22600 |
GX81,JZX81,MX83..TWC ｱﾘ(ｴｱﾊﾞﾂｸﾞ ｼｽﾃﾑ) |
1 | ||
| 84652-22440 |
GX81,JZX81,MX83..SPC,TWC |
1 | ||
| Common parts | ||||
| 82711-2A540 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8408 | ||||
ILLUST NO. 5 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22040 |
GX81,LX80,SX80,YX80 |
2 | ||
| 84231-16060 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84231-12060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-22030 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84231-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-24010 |
YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-2202004 |
GX81,MX83..SPC,TWC BLUE,TRIM8#,右側 |
1 | ||
| 84656-2202002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 84656-2202006 |
GX81,MX83..SPC,TWC SABLE,TRIM4#,右側 |
1 | ||
| 84656-2202002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 84656-2202003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 84656-2202006 |
GX81,JZX81..TWC SABLE,TRIM4# |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-2202004 |
GX81,MX83..SPC,TWC BLUE,TRIM8#,右側 |
1 | ||
| 84656-2202002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 84656-2202006 |
GX81,MX83..SPC,TWC SABLE,TRIM4#,右側 |
1 | ||
| 84656-2202002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 84656-2202003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 84656-2202006 |
GX81,JZX81..TWC SABLE,TRIM4# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG REAR DOOR |
2 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG FRONT DOOR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG REAR DOOR |
2 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG FRONT DOOR |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
3 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG REAR DOOR |
2 | ||
| 84810-32070 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG FRONT DOOR |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-22310 |
LX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 84820-22310 |
GX81,LX80,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84922-2204002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 84922-2204006 |
GX81,MX83..SPC,TWC SABLE,TRIM4#,右側 |
1 | ||
| 84922-2204004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,右側 |
1 | ||
| 84922-2204003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 84922-2204006 |
GX81,JZX81..TWC SABLE,TRIM4# |
1 | ||
| 84922-2204002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84922-2204002 |
GX81,MX83..SPC,TWC NEW MAROON,TRIM3#,右側 |
1 | ||
| 84922-2204006 |
GX81,MX83..SPC,TWC SABLE,TRIM4#,右側 |
1 | ||
| 84922-2204004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,右側 |
1 | ||
| 84922-2204003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1# |
1 | ||
| 84922-2204006 |
GX81,JZX81..TWC SABLE,TRIM4# |
1 | ||
| 84922-2204002 |
GX81,JZX81..TWC NEW MAROON,TRIM3# |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-2202006 |
GX81..SPC,TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-2202004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,RH,NO.2 |
1 | ||
| 84921-2201004 |
GX81..SPC,TWC DARK BLUE,TRIM8#,RH,NO.1 |
1 | ||
| 84921-2201006 |
GX81,JZX81..SPC,TWC SABLE,TRIM4#,RH,NO.1 |
1 | ||
| 84921-2201003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-2202003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921-2201002 |
GX81,JZX81..SPC,TWC NEW MAROON,TRIM3#,RH,NO.1 |
1 | ||
| 84921-2202002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3#,RH,NO.2 |
1 | ||
| 84921-2202006 |
GX81,JZX81,MX83..TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-22010B2 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-22020S4 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-2202006 |
GX81..SPC,TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-2202004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,RH,NO.2 |
1 | ||
| 84921-2201004 |
GX81..SPC,TWC DARK BLUE,TRIM8#,RH,NO.1 |
1 | ||
| 84921-2201006 |
GX81,JZX81..SPC,TWC SABLE,TRIM4#,RH,NO.1 |
1 | ||
| 84921-2201003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-2202003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921-2201002 |
GX81,JZX81..SPC,TWC NEW MAROON,TRIM3#,RH,NO.1 |
1 | ||
| 84921-2202002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3#,RH,NO.2 |
1 | ||
| 84921-2202006 |
GX81,JZX81,MX83..TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-22010B2 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-22020S4 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-2202006 |
GX81..SPC,TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-2202004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,RH,NO.2 |
1 | ||
| 84921-2201004 |
GX81..SPC,TWC DARK BLUE,TRIM8#,RH,NO.1 |
1 | ||
| 84921-2201006 |
GX81,JZX81..SPC,TWC SABLE,TRIM4#,RH,NO.1 |
1 | ||
| 84921-2201003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-2202003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921-2201002 |
GX81,JZX81..SPC,TWC NEW MAROON,TRIM3#,RH,NO.1 |
1 | ||
| 84921-2202002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3#,RH,NO.2 |
1 | ||
| 84921-2202006 |
GX81,JZX81,MX83..TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-22010B2 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-22020S4 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-2202006 |
GX81..SPC,TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-2202004 |
GX81,MX83..SPC,TWC DARK BLUE,TRIM8#,RH,NO.2 |
1 | ||
| 84921-2201004 |
GX81..SPC,TWC DARK BLUE,TRIM8#,RH,NO.1 |
1 | ||
| 84921-2201006 |
GX81,JZX81..SPC,TWC SABLE,TRIM4#,RH,NO.1 |
1 | ||
| 84921-2201003 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-2202003 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84921-2201002 |
GX81,JZX81..SPC,TWC NEW MAROON,TRIM3#,RH,NO.1 |
1 | ||
| 84921-2202002 |
GX81,JZX81,MX83..SPC,TWC NEW MAROON,TRIM3#,RH,NO.2 |
1 | ||
| 84921-2202006 |
GX81,JZX81,MX83..TWC SABLE,TRIM4#,RH,NO.2 |
1 | ||
| 84921-22010B2 |
GX81,JZX81..TWC MEDIUM GRAY,TRIM1#,RH,NO.1 |
1 | ||
| 84921-22020S4 |
GX81,JZX81,MX83..TWC MEDIUM GRAY,TRIM1#,RH,NO.2 |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-22081 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| 84931-22081 |
GX81,JZX81,LX80,MX83,SX80..HT |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22070 |
YX80;GX81,LX80,SX80..5F;LX80,SX80..4FC..KYO |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29435 |
GX81,JZX81,MX83 |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06601 | ||||
| 90159-60219 | ||||
| 90430-08252 | ||||
| 90467-10012 | ||||
| 91656-60616 | ||||
| 93315-14014 | ||||
| 93319-15008 | ||||
| 93540-14012 | ||||
| 93567-55014 | ||||
ILLUST NO. 6 OF 6(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80108 |
GX81,SX80 GAGE MARK 22350 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-32020 |
GX81,JZX81,LX80,MX83,SX80 |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84231-22050 |
YX80..4FC..GL;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22230 |
GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG |
1 | ||
| Common parts | ||||
| 90159-50160 | ||||
| 90159-50219 | ||||
| 93315-15010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
