GX71-XTPZZ (1985)

Toyota Mark 2

Production Oct 1985 - Aug 1988
Engine 1GGTEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

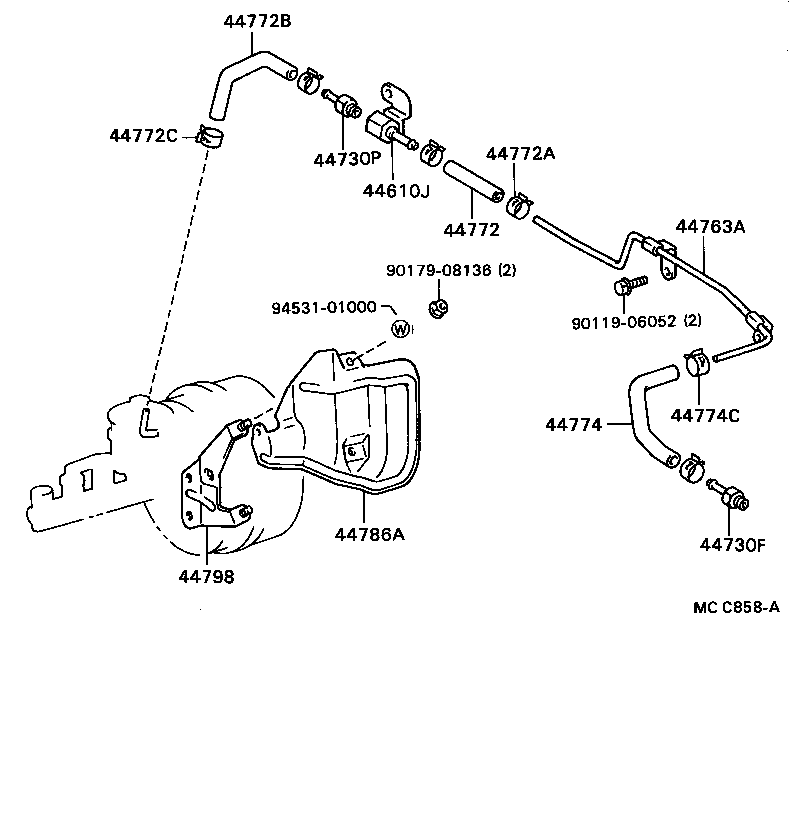

ILLUST NO. 4 OF 4(8510- )TWT

Click highlighted areas on diagram

diagram 44610J 44730F 44730P 44763A 44772 44772A 44772B 44772C 44774 44774C 44786A 44798 9011906052 9017908136 9453101000
Part # Description Qty Price
44610J - WAY, 2(FOR BRAKE BOOSTER)
90412-52005

GX71,MX71..TBO,TWT

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51319

GX71..TWT

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44580-22030

GX71..TWT

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-22080

GX71,MX71..TBO,TWC,TWT

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
95444-09110

GX71,MX71..TBO,TWT

 1
44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
90467-16002

GX71..TWC,TWT

 2
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-22110

GX71..GD,GT

 1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90467-16002

GX7#,LX7#,MX71,SX70,YX7#

 4
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-22110

GX71..TWT

 1
44774C - CLIP(FOR UNION TO CONNECTOR TUBE HOSE)
90467-16002

GX71..TWC,TWT

 2
44786A - INSULATOR, BRAKE BOOSTER HEAT
44786-22040

GX71..TWT

 1
44798 - BRACKET, HEAT INSULATOR, NO.3
44798-22040

GX71..TWT

 1
Common parts
90119-06052
90179-08136
94531-01000
