GX71-XTPGF (1984)
Toyota Mark 2
ILLUST NO. 1 OF 3(8408- )YX70,72..KYO ; (8408- )GX7#,LX70,MX71,SX70..GD,GL,GR,GT,KYO,LG,LS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850A - LAMP ASSY, INDICATOR | ||||
| 81850-22120 |
GX7#,LX70,MX71,SX70..4FC |
1 | ||
| 81850-22100 |
GX7#,LX70,SX70..4FC |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,WHITE,JEKO |
1 | ||
| 84999-50140 |
GX7#,LX70,SX70..4FC 12V 1.4W,12V 1.4W WHITE,JEKO |
7 | ||
| 84999-50150 |
GX7#,LX70,SX70..4FC 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W GREEN,JEKO |
1 | ||
| 84999-50150 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,GREEN,JEKO |
1 | ||
| 81850F - BULB, INDICATOR LAMP | ||||
| 84999-50140 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,12V 1.4W,WHITE,JEKO |
1 | ||
| 84999-50140 |
GX7#,LX70,SX70..4FC 12V 1.4W,12V 1.4W WHITE,JEKO |
7 | ||
| 84999-50150 |
GX7#,LX70,SX70..4FC 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W GREEN,JEKO |
1 | ||
| 84999-50150 |
GX7#,LX7#,SX70,YX7# 12V 1.4W,ｸﾞﾘｰﾝ ｷｬｯﾌﾟ,12V 1.4W,GREEN,JEKO |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 83119-24010 |
GX71,MX71..GD,GT 12V 1.4W ｿｹｯﾄ付き,12V 1.4W,WHITE,W/*DS |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX71..GD,GT 12V 1.4W,ｸﾞﾘｰﾝ,12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 83119-24010 |
GX71,MX71..GD,GT 12V 1.4W ｿｹｯﾄ付き,12V 1.4W,WHITE,W/*DS |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX71..GD,GT 12V 1.4W,ｸﾞﾘｰﾝ,12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-22590 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 83134-22920 |
GX7#,MX71,SX70..GD,GL,GR,GT,LG,LS W/*AS |
1 | ||
| 83133-22690 |
GX71..GD,GT W/*DS |
1 | ||
| 83134-2A440 |
GX7#,SX70..GD,GL,GR,GT,LG,LS W/*AS |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX7#,LX7#,MX71,SX70,YX7# |
4 | ||
| 83101-20070 |
GX7#,LX7#,MX71,SX70,YX7# GREEN |
4 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
GX7#,LX7#,MX71,SX70,YX7# |
4 | ||
| 83101-20070 |
GX7#,LX7#,MX71,SX70,YX7# GREEN |
4 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-22660 |
GX71,LX70,MX71..DSL,TBO,TD,TWC,TWT W/TACHOMETER |
1 | ||
| 83247-22780 |
GX71..TWC |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A121 |
GX7#,SX70,YX70 |
1 | ||
| 83110-2A120 |
GX7#,MX71,SX70,YX70 |
1 | ||
| 83110-2A430 |
GX7#,SX70..GD,GL,GR,GT,KYO,LG,LS W/TACHOMETER |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-2A121 |
GX7#,SX70,YX70 |
1 | ||
| 83110-2A120 |
GX7#,MX71,SX70,YX70 |
1 | ||
| 83110-2A430 |
GX7#,SX70..GD,GL,GR,GT,KYO,LG,LS W/TACHOMETER |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83128-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22370 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 83132-22260 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/*AS,W/TACHOMETER |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12090 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 86640-22080 |
GX7#,LX7#,MX71,SX70,YX7# W/*AS |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-22780 |
GX71..TWC |
1 | ||
| 83242-22500 |
GX71..TWC |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-22320 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/TACHOMETER |
1 | ||
| 83243-22360 |
GX7#,LX70,SX70..GD,GL,GR,GT,LG,LS W/TACHOMETER |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-22220 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/TACHOMETER |
1 | ||
| 83244-22240 |
GX7#,LX70,SX70..GD,GL,GR,GT,KYO,LG,LS W/TACHOMETER |
1 | ||
| Common parts | ||||
| 83161-20080 | ||||
| 83161-20100 | ||||
| 83161-20180 | ||||
| 83161-20260 | ||||
| 83161-20300 | ||||
| 83161-20720 | ||||
| 93567-55016 | ||||

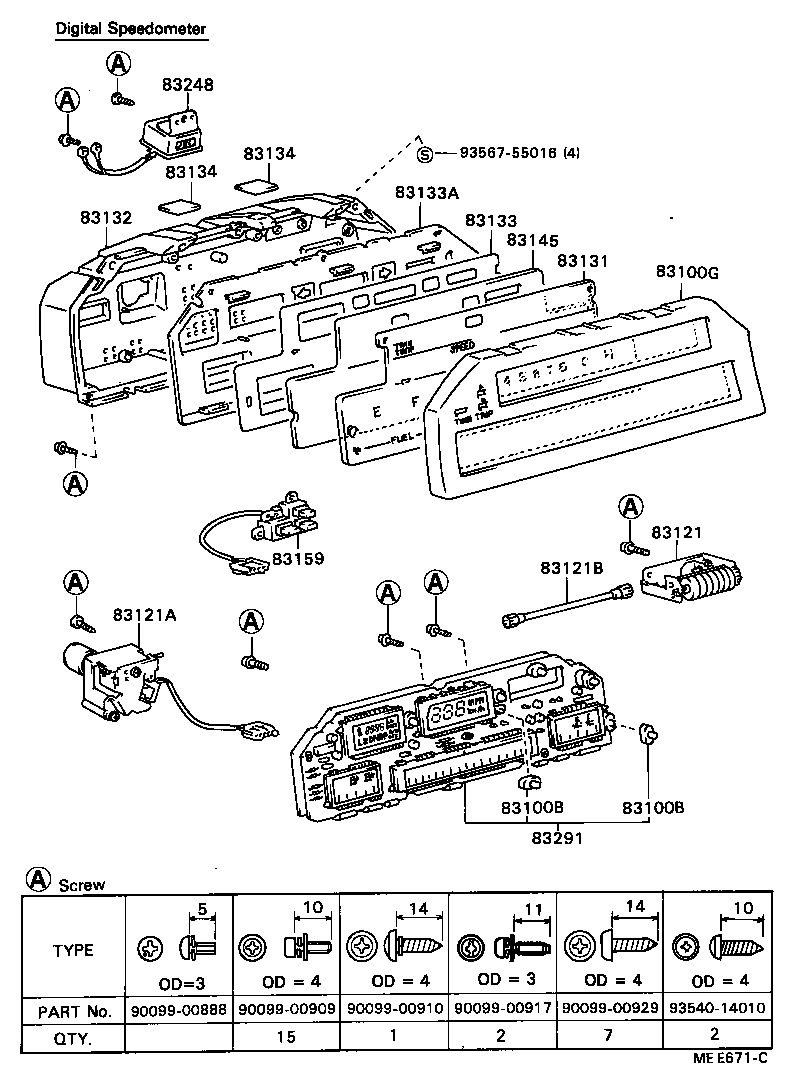

ILLUST NO. 1 OF 3(8408- )GD,GT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 83119-24010 |
GX71,MX71..GD,GT 12V 1.4W ｿｹｯﾄ付き,12V 1.4W,WHITE,W/*DS |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX71..GD,GT 12V 1.4W,ｸﾞﾘｰﾝ,12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83109-24030 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,GREEN |
4 | ||
| 83119-24010 |
GX71,MX71..GD,GT 12V 1.4W ｿｹｯﾄ付き,12V 1.4W,WHITE,W/*DS |
4 | ||
| 99132-12034 |
GX7#,LX7#,MX71,SX70,YX7# 12V 3.4W,12V 3.4W |
4 | ||
| 83119-24050 |
GX71,MX71..GD,GT 12V 1.4W,ｸﾞﾘｰﾝ,12V 1.4W,GREEN,W/*DS |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-22590 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 83134-22920 |
GX7#,MX71,SX70..GD,GL,GR,GT,LG,LS W/*AS |
1 | ||
| 83133-22690 |
GX71..GD,GT W/*DS |
1 | ||
| 83134-2A440 |
GX7#,SX70..GD,GL,GR,GT,LG,LS W/*AS |
1 | ||
| 83121 - COUNTER, TOTAL | ||||
| 83121-22130 |
GX71,MX71..GD,GT |
1 | ||
| 83121A - SENSOR, SPEED | ||||
| 83111-22110 |
GX71,MX71..GD,GT |
1 | ||
| 83121B - CABLE, COUNTER AND SENSOR | ||||
| 83129-22090 |
GX71,MX71..GD,GT |
1 | ||
| 83131 - DIAL, METER, NO.1 | ||||
| 83131-22710 |
GX71..4FC..TWC |
1 | ||
| 83131-22430 |
GX71..4FC..TWC |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-22370 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 83132-22260 |
GX7#,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/*AS,W/TACHOMETER |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-22630 |
GX71,MX71..GD,GT |
1 | ||
| 83133A - PLATE, COMBINATION METER, NO.2 | ||||
| 83133-22530 |
GX71..TWC |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-22010 |
GX71,MX71..GD,GT |
2 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83146-22010 |
GX71,MX71..GD,GT |
2 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-22250 |
GX71..4FC..TWC |
1 | ||
| 83145-22130 |
GX71..4FC..TWC |
1 | ||
| 83159 - SWITCH, METER, NO.1 | ||||
| 83159-22110 |
GX71,MX71..GD,GT |
1 | ||
| 83159-22150 |
GX71..GD,GT |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-12090 |
GX71,MX71..GD,GT W/*DS |
1 | ||
| 86640-22080 |
GX7#,LX7#,MX71,SX70,YX7# W/*AS |
1 | ||
| 83291 - COMPUTER, COMBINATION METER | ||||
| 83291-22021 |
GX71..4FC..TWC |
1 | ||
| 83291-22020 |
GX71..4FC..TWC |
1 | ||
| Common parts | ||||
| 90099-00888 | ||||
| 90099-00909 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93540-14010 | ||||
| 93567-55016 | ||||

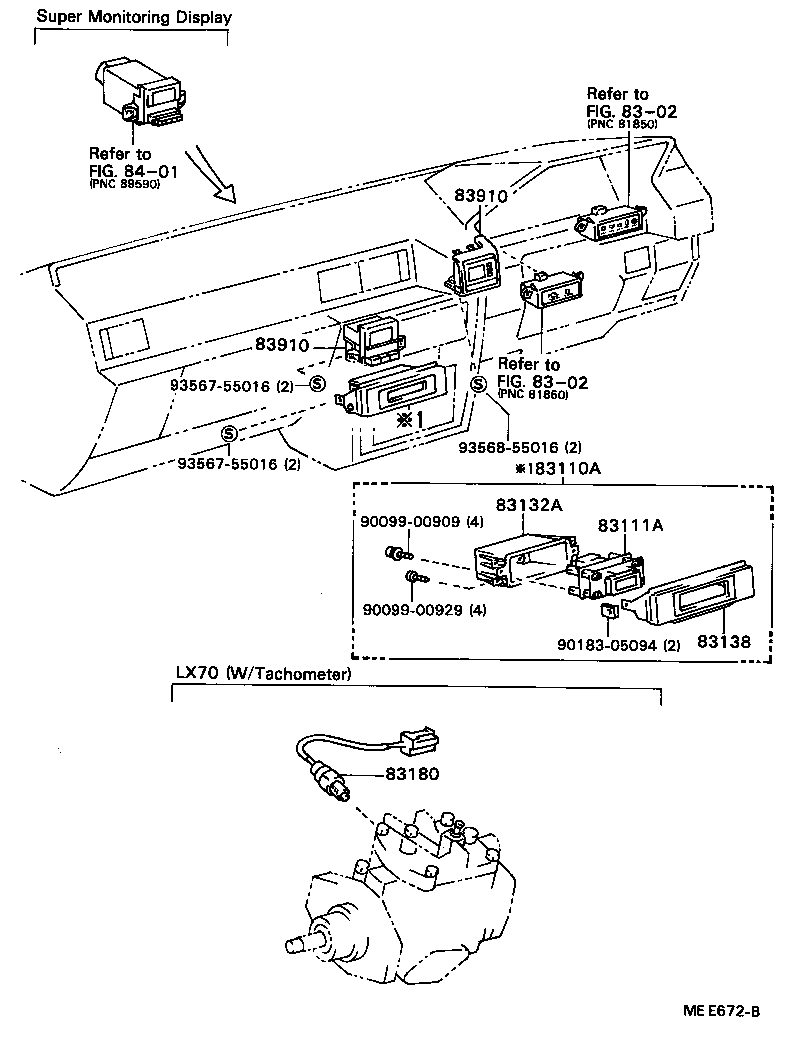

ILLUST NO. 2 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83910 - CLOCK ASSY | ||||
| 83910-22280 |
GX71,MX71..GD,GT |
1 | ||
| 83910-22340 |
GX71..GD,GT |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-22280 |
GX71,MX71..GD,GT |
1 | ||
| 83910-22340 |
GX71..GD,GT |
1 | ||
| Common parts | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90183-05094 | ||||
| 93567-55016 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||

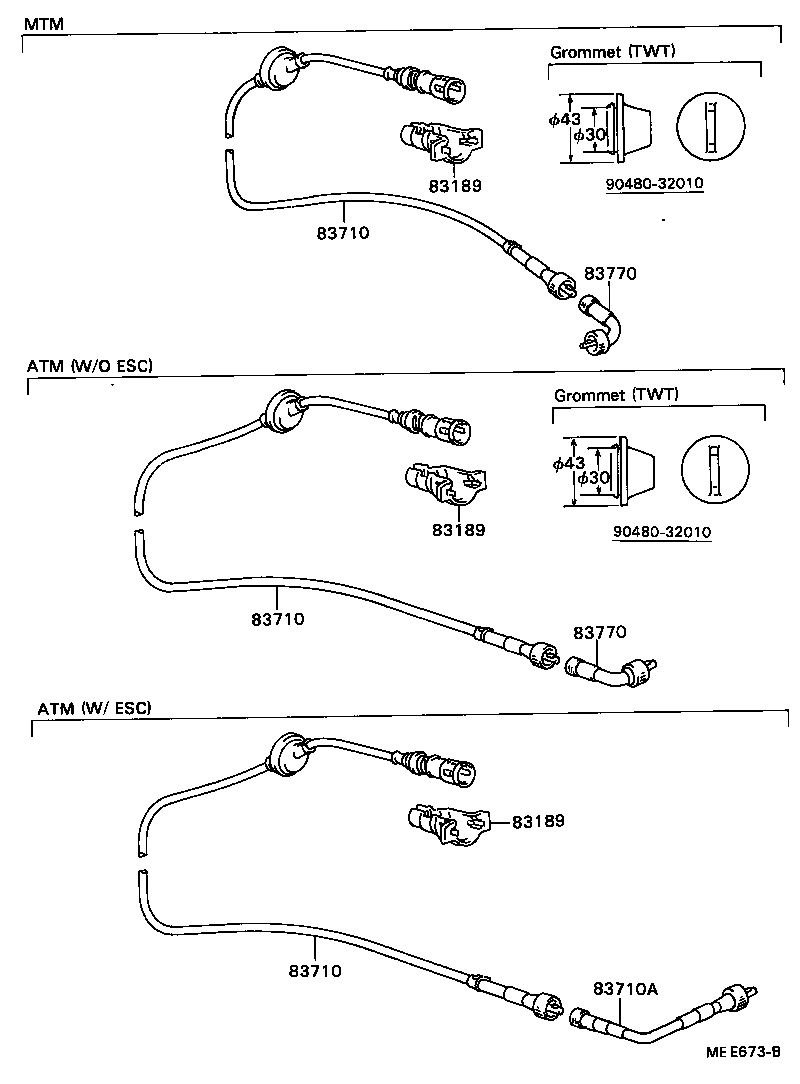

ILLUST NO. 3 OF 3(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A011 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710-22750 |
GX7#,MX71..4FC..(EFI,TBO,TWC) |
1 | ||
| 83710-2A012 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A011 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710-22750 |
GX7#,MX71..4FC..(EFI,TBO,TWC) |
1 | ||
| 83710-2A012 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-2A011 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710-22750 |
GX7#,MX71..4FC..(EFI,TBO,TWC) |
1 | ||
| 83710-2A012 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83710A - CABLE ASSY, SPEEDOMETER DRIVE, NO.2 | ||||
| 83710-2A060 |
GX71..4FC..TWC W/ESC |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
GX7#,LX7#,MX71,SX70 |
1 | ||
| 83770 - ADAPTER ASSY, SPEEDOMETER CABLE | ||||
| 83770-22100 |
GX7#,LX7#,MX71,SX70 |
1 | ||
| Common parts | ||||
| 90480-32010 | ||||
