GX71-XTPGF (1984)
Toyota Mark 2
Production
Aug 1984
-
Aug 1988
Engine
1GGEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 1 OF 2(8408- )HT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67149 - STABILIZER, FRONT DOOR GLASS | ||||
| 68149-14010 |
GX71,MX71,SX70..HT |
4 | ||
| 67149 - STABILIZER, FRONT DOOR GLASS | ||||
| 68149-14010 |
GX71,MX71,SX70..HT |
4 | ||
| 69910 - BRACKET ASSY, FRONT DOOR GLASS, RH | ||||
| 69903-22030 |
GX71,MX71,SX70..HT RR |
1 | ||
| 69901-22070 |
GX71,MX71,SX70..HT FR |
1 | ||
| 69910 - BRACKET ASSY, FRONT DOOR GLASS, RH | ||||
| 69903-22030 |
GX71,MX71,SX70..HT RR |
1 | ||
| 69901-22070 |
GX71,MX71,SX70..HT FR |
1 | ||
| 69920 - BRACKET ASSY, FRONT DOOR GLASS, LH | ||||
| 69904-22010 |
GX71,MX71,SX70..HT RR |
1 | ||
| 69902-22030 |
GX71,MX71,SX70..HT FR |
1 | ||
| 69920 - BRACKET ASSY, FRONT DOOR GLASS, LH | ||||
| 69904-22010 |
GX71,MX71,SX70..HT RR |
1 | ||
| 69902-22030 |
GX71,MX71,SX70..HT FR |
1 | ||
| 69986A - PIECE, FRONT DOOR GLASS GUIDE | ||||
| 69986-24010 |
GX71,MX71,SX70..HT |
2 | ||
| Common parts | ||||
| 90116-06043 | ||||
| 90179-06042 | ||||
| 90209-07001 | ||||
| 90209-09005 | ||||
| 91611-40614 | ||||
| 93311-16014 | ||||

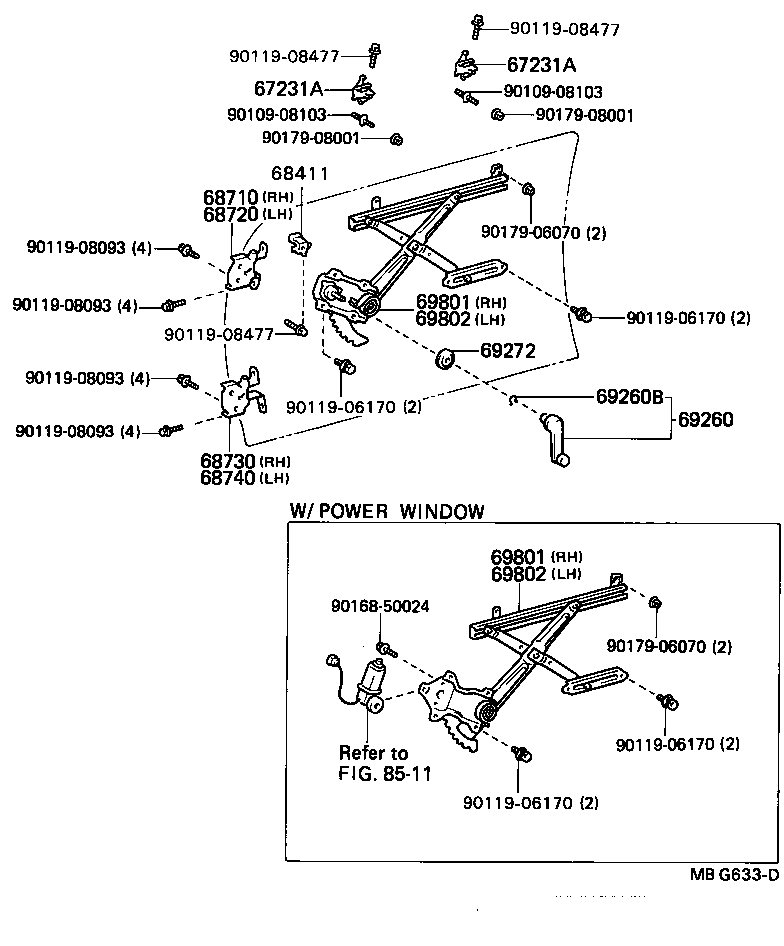

ILLUST NO. 2 OF 2(8408- )HT
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67231A - SUPPORT, FRONT DOOR TRIM | ||||
| 67231-30070 |
GX71,MX71,SX70..HT RH |
2 | ||
| 67232-30050 |
GX71,MX71,SX70..HT LH |
2 | ||
| 67231-20020 |
GX71,SX70..HT RH |
2 | ||
| 67232-20020 |
GX71,SX70..HT LH |
2 | ||
| 67231A - SUPPORT, FRONT DOOR TRIM | ||||
| 67231-30070 |
GX71,MX71,SX70..HT RH |
2 | ||
| 67232-30050 |
GX71,MX71,SX70..HT LH |
2 | ||
| 67231-20020 |
GX71,SX70..HT RH |
2 | ||
| 67232-20020 |
GX71,SX70..HT LH |
2 | ||
| 68411 - STOPPER, DOOR WINDOW GLASS, UPPER FRONT | ||||
| 67211-30040 |
GX71,MX71,SX70..HT |
2 | ||
| 68710 - HINGE ASSY, FRONT DOOR, UPPER RH | ||||
| 68710-20060 |
GX71,MX71,SX70..HT |
1 | ||
| 68720 - HINGE ASSY, FRONT DOOR, UPPER LH | ||||
| 68720-20050 |
GX71,MX71,SX70..HT |
1 | ||
| 68730 - HINGE ASSY, FRONT DOOR, LOWER RH | ||||
| 68730-24010 |
GX71,MX71,SX70..HT |
1 | ||
| 68740 - HINGE ASSY, FRONT DOOR, LOWER LH | ||||
| 68740-24010 |
GX71,MX71,SX70..HT |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-22100 |
GX71,MX71,SX70..HT |
1 | ||
| 69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH | ||||
| 69801-22100 |
GX71,MX71,SX70..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-22100 |
GX71,MX71,SX70..HT |
1 | ||
| 69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH | ||||
| 69802-22100 |
GX71,MX71,SX70..HT |
1 | ||
| Common parts | ||||
| 90109-08103 | ||||
| 90119-06170 | ||||
| 90119-08093 | ||||
| 90119-08477 | ||||
| 90168-50024 | ||||
| 90179-06070 | ||||
| 90179-08001 | ||||
| Linked diagrams | ||||
| 8511 | ||||
