GX71-XTPGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )4FC..TWC

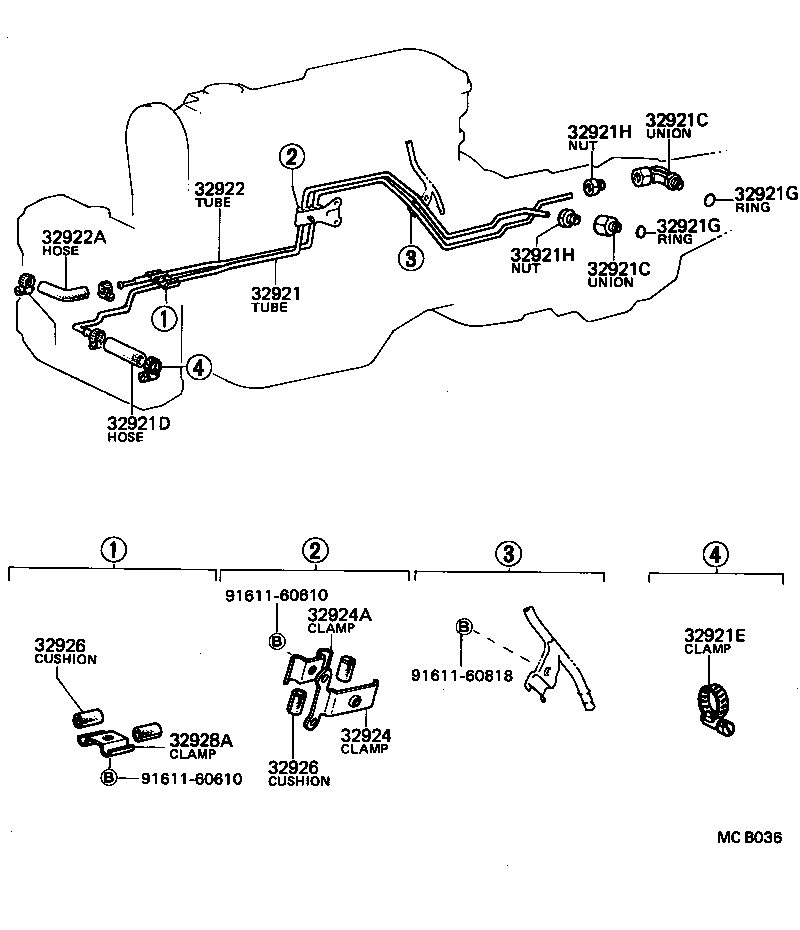

Click highlighted areas on diagram

diagram 32921 32921C 32921C 32921D 32921E 32921G 32921G 32921H 32921H 32922 32922A 32924 32924A 32926 32926 32928A 9161160610 9161160610 9161160818
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22320

GX7#..4FC..(EFI,TWC)

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

RR

 1
90404-14007

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

FR

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-14003

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

RR

 1
90404-14007

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

FR

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-22040

GX7#..4FC..(EFI,TWC)

 1
32941-22110

GX7#..4FC..(EFI,TWC)

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90467-13039

GX7#,LX70,SX70,YX7#..ATM

 6
90460-18002

GX7#,MX71..4FC

 6
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS)

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX7#,LX70,MX71,SX70,YX7#..ATM..(GD,GL,GR,LG,LS)

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

 2
32921H - NUT, FLARE(FOR OIL COOLER TUBE)
90402-14004

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22340

GX7#..4FC..(EFI,TWC)

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-22050

GX7#..4FC

 1
32942-22100

GX7#..4FC..(EFI,TWC)

 1
32942-22050

GX7#..4FC..(EFI,TWC)

L=230

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-22061

GX7#..4FC..(EFI,TWC)

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12085

GX7#..4FC..(EFI,TWC)

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

長さ=35,内径=8

 7
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GX7#,LX70,SX70,YX7#..ATM..(CBR,EFI,LPG,TD,TWC)

長さ=35,内径=8

 7
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12085

GX7#,LX70,SX70..4FC..(CBR,EFI,TD,TWC)

 1
Common parts
91611-60610
91611-60818
