GX71-XTPGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

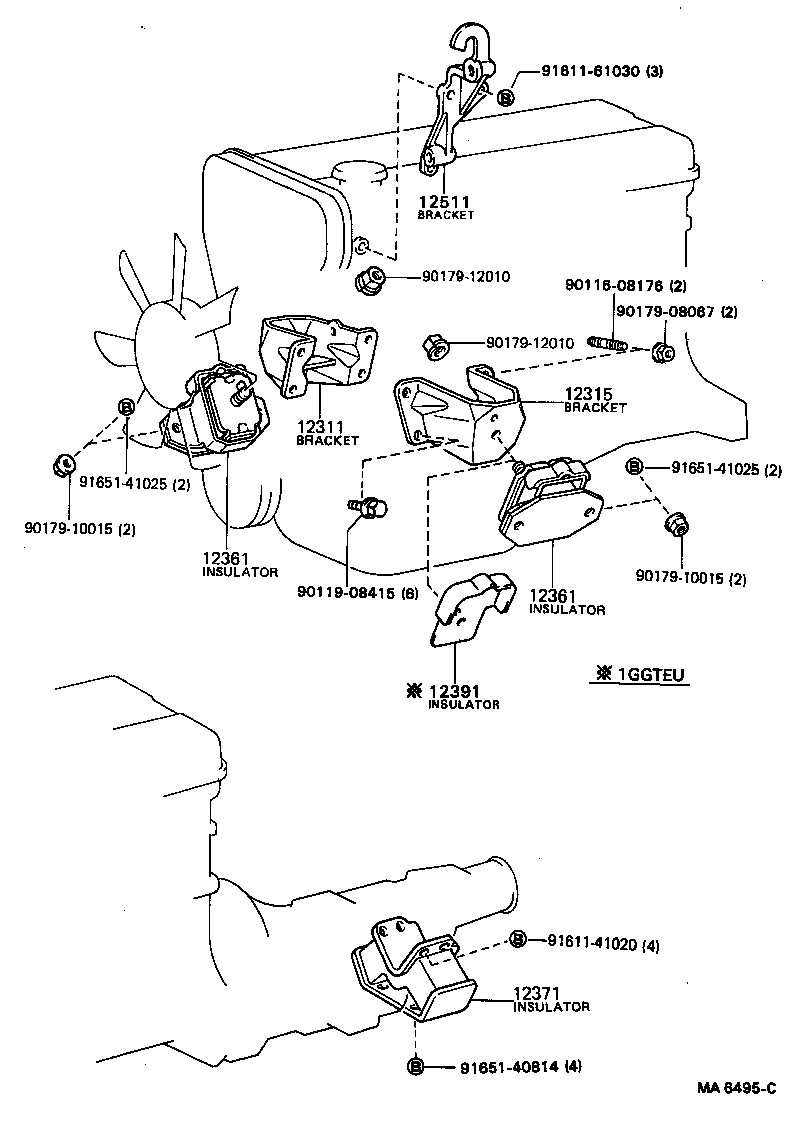

(8408-8608)1GGEU ; (8510- )1GGTEU

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12391 12511 9011608176 9011908415 9017908067 9017910015 9017910015 9017912010 9017912010 9161141020 9161161030 9165140814 9165141025 9165141025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70050

1GEU,1GGEU..GX71

 1
12311-70090

1GGEU..GX71

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70011

1GEU,1GGEU..GX7#

 1
12315-70060

1GGEU..GX71

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70030

1GG#..GX71

 2
12361-70070

1GGEU..GX71

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70030

1GG#..GX71

 2
12361-70070

1GGEU..GX71

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

1GEU,1GG#..GX7#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-88301

1GG#..GX71

 1
Common parts
90116-08176
90119-08415
90179-08067
90179-10015
90179-12010
91611-41020
91611-61030
91651-40814
91651-41025

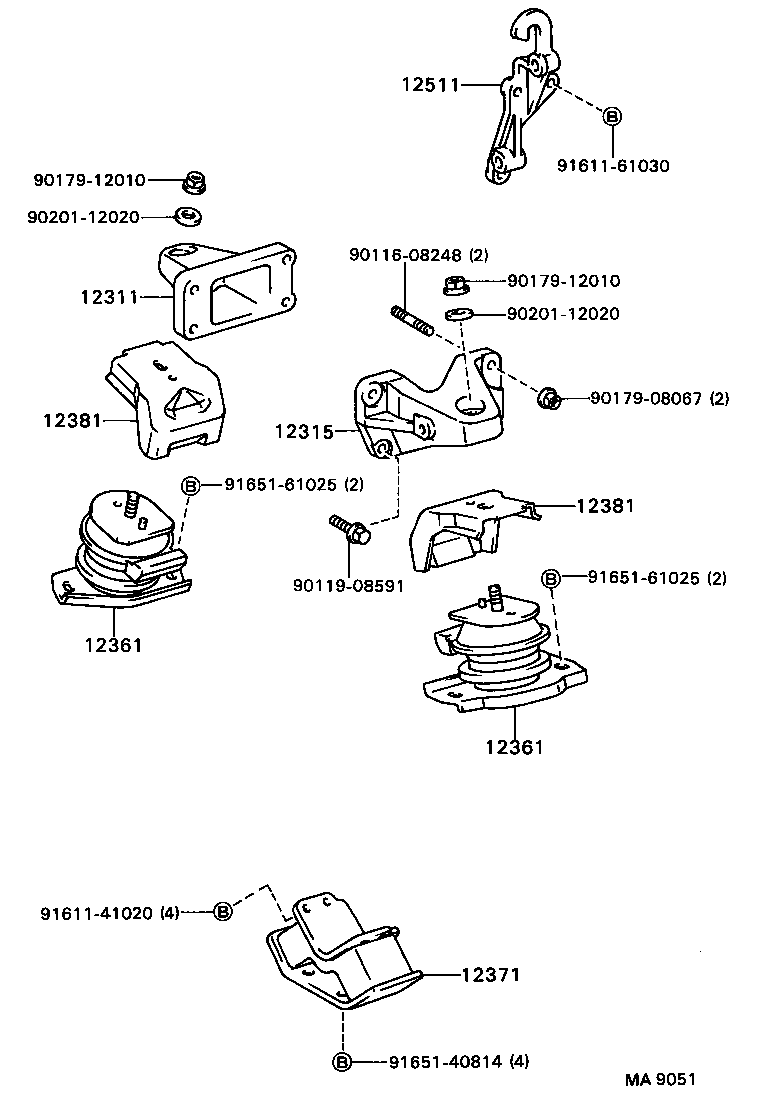

(8608- )1GGEU

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011608248 9011908591 9017908067 9017912010 9017912010 9020112020 9020112020 9161141020 9161161030 9165140814 9165161025 9165161025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70050

1GEU,1GGEU..GX71

 1
12311-70090

1GGEU..GX71

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70011

1GEU,1GGEU..GX7#

 1
12315-70060

1GGEU..GX71

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70030

1GG#..GX71

 2
12361-70070

1GGEU..GX71

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-70030

1GG#..GX71

 2
12361-70070

1GGEU..GX71

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

1GEU,1GG#..GX7#

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-70010

1GGEU..GX71

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-70010

1GGEU..GX71

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-88301

1GG#..GX71

 1
Common parts
90116-08248
90119-08591
90179-08067
90179-12010
90201-12020
91611-41020
91611-61030
91651-40814
91651-61025
