GX71-XTMGF (1984)
Toyota Mark 2

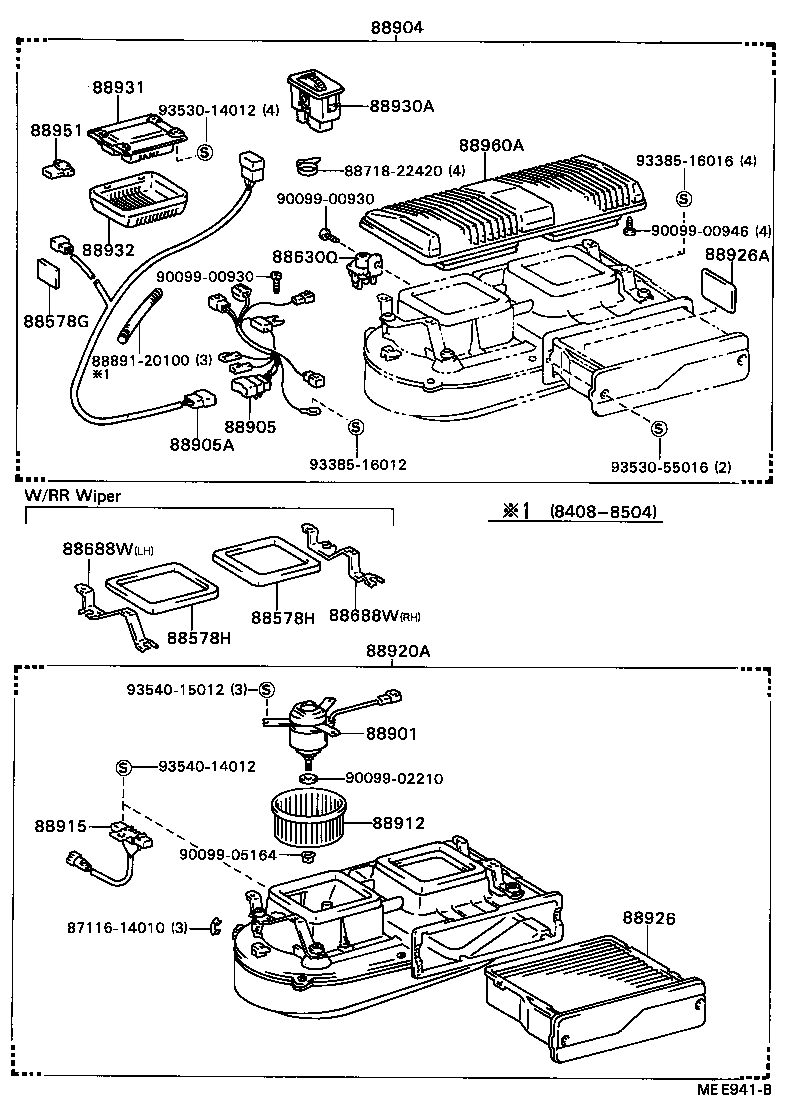

(8408-8608)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22130 |
GX71,MX71..HT..(GD,GT) W/RR WIPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22130 |
GX71,MX71..HT..(GD,GT) W/RR WIPER |
2 | ||
| 88630Q - RELAY ASSY, AIR PURIFIER | ||||
| 88630-60020 |
GX71,MX71..GD,GT |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88901-22030 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88904 - FITTING KIT, AIR PURIFIER | ||||
| 88904-2201002 |
GX71,MX71..GD W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202003 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2201105 |
GX71,MX71..GD,GT W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202002 |
GX71,LX70,MX71,SX70..GD,GR,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201005 |
GX71,MX71..GD W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202005 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2201103 |
GX71,MX71..GD,GT W/SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2201202 |
GX71..GD,GT W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201204 |
GX71..GD,GT W/SMOKE SENSOR,BLUE,BLUE,TRIM8# |
1 | ||
| 88904-2201102 |
GX71,MX71..GD,GT W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201205 |
GX71..GD,GT W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2201003 |
GX71,MX71..GD W/SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2202202 |
GX71,LX70,SX70..GD,GR,GT,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202102 |
GX71,LX70,MX71,SX70..GD,GR,GT,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202103 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2202205 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202105 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202204 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BLUE,BLUE,TRIM8# |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88605-22352 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22360 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88605-22350 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22362 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88605-22421 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905-22011 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22420 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905-22012 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88905-22010 |
GX71,MX71..GD W/SMOKE SENSOR |
1 | ||
| 88905-22042 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88541-95J00 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22020 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88915-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22050 |
GX71,MX71..HT |
1 | ||
| 88920-22042 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88920-22022 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926-22030 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-22040 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926-32020 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22040 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88930-22041 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88930-22030 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88930-22031 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-22010 |
GX71,MX71..GD,GT |
1 | ||
| 88931-22012 |
GX71..GD,GT |
1 | ||
| 88932 - COVER, SMOKE SENSOR | ||||
| 88932-2201003 |
GX71,MX71..GD,GT GRAY,GRAY,TRIM1# |
1 | ||
| 88932-2201204 |
GX71..GD,GT BLUE,BLUE,TRIM8# |
1 | ||
| 88932-2201005 |
GX71,MX71..GD,GT BEIGE,BEIGE,TRIM4# |
1 | ||
| 88932-2201205 |
GX71..GD,GT BEIGE,BEIGE,TRIM4# |
1 | ||
| 88932-2201202 |
GX71..GD,GT MAROON,MAROON,TRIM3# |
1 | ||
| 88951 - WIRE, SMOKE SENSOR | ||||
| 88951-22010 |
GX71,MX71..GD,GT |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-2206005 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 88960-2206003 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS GRAY,GRAY,TRIM1# |
1 | ||
| 88960-2206015 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 88960-2206004 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS BLUE,DARK BLUE,TRIM8# |
1 | ||
| 88960-2206002 |
GX71,LX70,MX71,SX70..GD,GR,GT,LG MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 87116-14010 | ||||
| 88718-22420 | ||||
| 88891-20100 | ||||
| 90099-00930 | ||||
| 90099-00946 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93530-14012 | ||||
| 93530-55016 | ||||
| 93540-14012 | ||||
| 93540-15012 | ||||

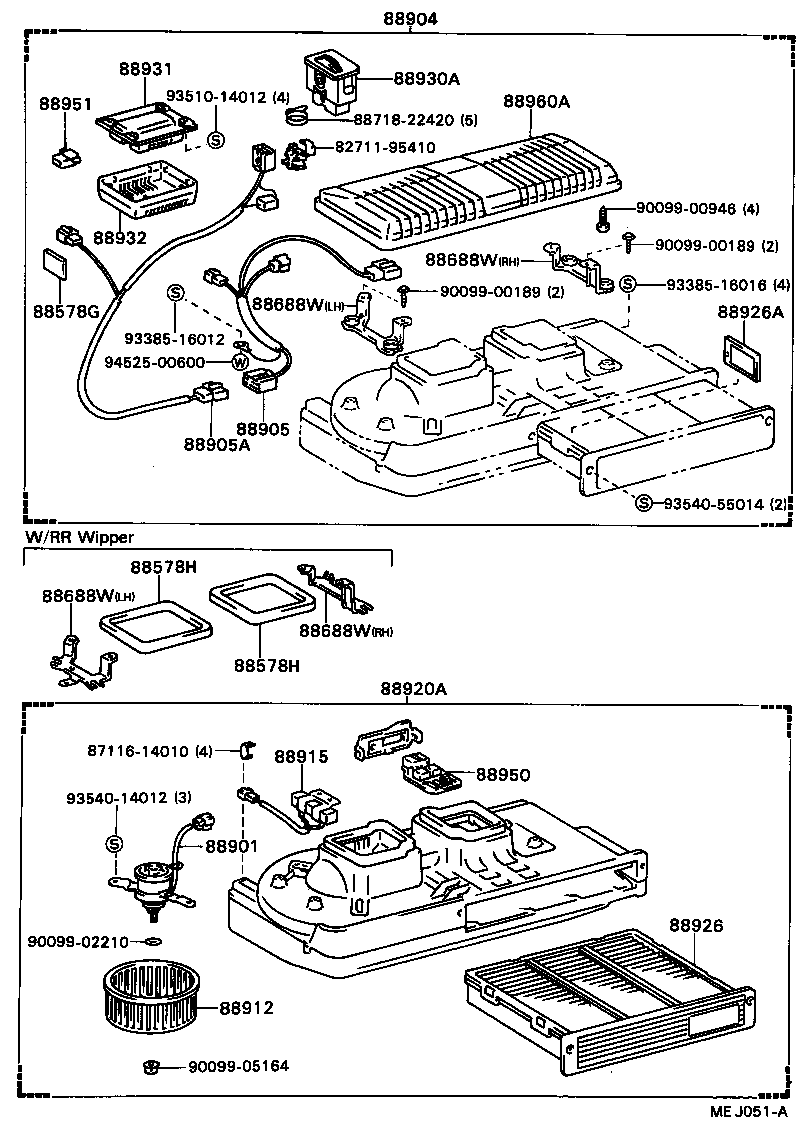

(8608- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88578G - PACKING, AIR PURIFIER, NO.1 | ||||
| 88578-30370 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22130 |
GX71,MX71..HT..(GD,GT) W/RR WIPER |
2 | ||
| 88578H - PACKING, AIR PURIFIER, NO.2 | ||||
| 88578-22130 |
GX71,MX71..HT..(GD,GT) W/RR WIPER |
2 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88688W - BRACKET, AIR PURIFIER, NO.1 | ||||
| 88688-22291 |
GX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22290 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,LH |
1 | ||
| 88688-22281 |
GX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22360 |
GX71..HT..(GD,GT) RH |
1 | ||
| 88688-22280 |
GX71,MX71..HT..(GD,GT) W/RR WIPER,RH |
1 | ||
| 88688-22370 |
GX71..HT..(GD,GT) LH |
1 | ||
| 88901 - MOTOR SUB-ASSY, AIR PURIFIER | ||||
| 88901-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88901-22030 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88904 - FITTING KIT, AIR PURIFIER | ||||
| 88904-2201002 |
GX71,MX71..GD W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202003 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2201105 |
GX71,MX71..GD,GT W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202002 |
GX71,LX70,MX71,SX70..GD,GR,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201005 |
GX71,MX71..GD W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202005 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2201103 |
GX71,MX71..GD,GT W/SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2201202 |
GX71..GD,GT W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201204 |
GX71..GD,GT W/SMOKE SENSOR,BLUE,BLUE,TRIM8# |
1 | ||
| 88904-2201102 |
GX71,MX71..GD,GT W/SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2201205 |
GX71..GD,GT W/SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2201003 |
GX71,MX71..GD W/SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2202202 |
GX71,LX70,SX70..GD,GR,GT,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202102 |
GX71,LX70,MX71,SX70..GD,GR,GT,LG W/O SMOKE SENSOR,MAROON,MAROON,TRIM3# |
1 | ||
| 88904-2202103 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,GRAY,GRAY,TRIM1# |
1 | ||
| 88904-2202205 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202105 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BEIGE,BEIGE,TRIM4# |
1 | ||
| 88904-2202204 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR,BLUE,BLUE,TRIM8# |
1 | ||
| 88905 - WIRE SUB-ASSY, AIR PURIFIER, NO.1 | ||||
| 88605-22352 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22360 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88605-22350 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22362 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905A - WIRE SUB-ASSY, AIR PURIFIER, NO.2 | ||||
| 88605-22421 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905-22011 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88605-22420 |
GX71,LX70,MX71,SX70..GD,GL,GR,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88905-22012 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88905-22010 |
GX71,MX71..GD W/SMOKE SENSOR |
1 | ||
| 88905-22042 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88912 - FAN, AIR PURIFIER | ||||
| 88912-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88541-95J00 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88915 - RESISTOR, AIR PURIFIER | ||||
| 88915-22020 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88915-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88920A - PURIFIER ASSY, AIR | ||||
| 88920-22050 |
GX71,MX71..HT |
1 | ||
| 88920-22042 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88920-22022 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926-22030 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926A - ODOR, CARTRIDGE | ||||
| 88926-22040 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88926-32020 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88930A - SWITCH ASSY, AIR PURIFIER | ||||
| 88930-22040 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88930-22041 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS W/O SMOKE SENSOR |
1 | ||
| 88930-22030 |
GX71,MX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88930-22031 |
GX71..GD,GT W/SMOKE SENSOR |
1 | ||
| 88931 - SENSOR, SMOKE | ||||
| 88931-22010 |
GX71,MX71..GD,GT |
1 | ||
| 88931-22012 |
GX71..GD,GT |
1 | ||
| 88932 - COVER, SMOKE SENSOR | ||||
| 88932-2201003 |
GX71,MX71..GD,GT GRAY,GRAY,TRIM1# |
1 | ||
| 88932-2201204 |
GX71..GD,GT BLUE,BLUE,TRIM8# |
1 | ||
| 88932-2201005 |
GX71,MX71..GD,GT BEIGE,BEIGE,TRIM4# |
1 | ||
| 88932-2201205 |
GX71..GD,GT BEIGE,BEIGE,TRIM4# |
1 | ||
| 88932-2201202 |
GX71..GD,GT MAROON,MAROON,TRIM3# |
1 | ||
| 88950 - AMPLIFIER ASSY, AIR PURIFIER | ||||
| 88950-32010 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS |
1 | ||
| 88951 - WIRE, SMOKE SENSOR | ||||
| 88951-22010 |
GX71,MX71..GD,GT |
1 | ||
| 88960A - GRILLE ASSY, AIR PURIFIER | ||||
| 88960-2206005 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS BEIGE,BEIGE,TRIM4# |
1 | ||
| 88960-2206003 |
GX71,LX70,MX71,SX70..GD,GL,GR,GT,LG,LS GRAY,GRAY,TRIM1# |
1 | ||
| 88960-2206015 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 88960-2206004 |
GX71,LX70,SX70..GD,GL,GR,GT,LG,LS BLUE,DARK BLUE,TRIM8# |
1 | ||
| 88960-2206002 |
GX71,LX70,MX71,SX70..GD,GR,GT,LG MAROON,MAROON,TRIM3# |
1 | ||
| Common parts | ||||
| 82711-95410 | ||||
| 87116-14010 | ||||
| 88718-22420 | ||||
| 90099-00189 | ||||
| 90099-00946 | ||||
| 90099-02210 | ||||
| 90099-05164 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93510-14012 | ||||
| 93540-14012 | ||||
| 93540-55014 | ||||
| 94525-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
