GX71-XTMGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

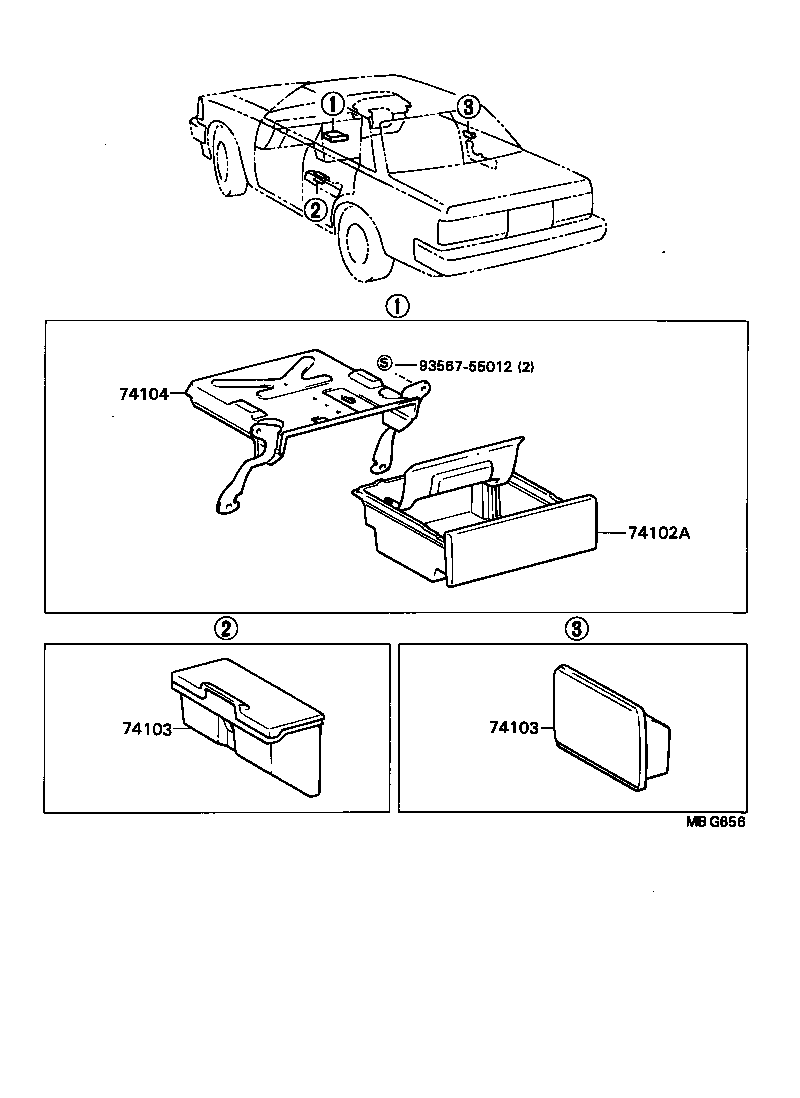

Click highlighted areas on diagram

diagram 74102A 74103 74103 74104 9356755012
Part # Description Qty Price
74102A - RECEPTACLE ASSY, FRONT ASH
74102-22070

GX71,MX71..GD,GT

 1
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-22100

GX71,MX71..GD,GT

ARMREST SIDE

 2
74103 - RECEPTACLE SUB-ASSY, ASH, NO.1
74130-22100

GX71,MX71..GD,GT

ARMREST SIDE

 2
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-22100

GX7#,LX7#,MX71,SX70,YX7#

 1
Common parts
93567-55012
