GX71-XTMGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1GGEU

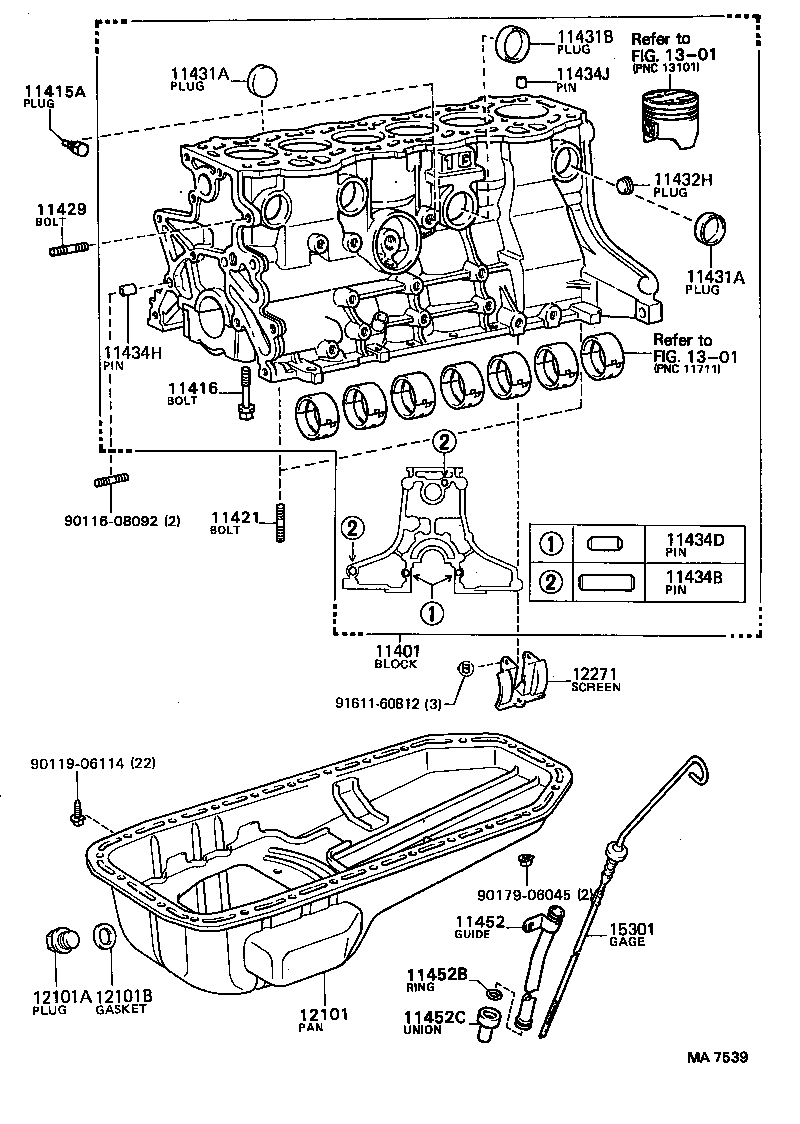

Click highlighted areas on diagram

diagram 11401 11415A 11416 11421 11429 11431A 11431A 11431B 11432H 11434B 11434D 11434H 11434J 11452 11452B 11452C 12101 12101A 12101B 12271 1301 1301 15301 9011608092 9011906114 9017906045 9161160812
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-79126

1GGEU..GX71

*53

 1
11401-79056

1GGEU..GX71

*54

 1
11401-79128

1GGEU..GX71

*53

 1
11401-79266

1GGEU..GX71

*53

 1
11401-79057

1GGEU..GX71

*54

 1
11401-79127

1GGEU..GX71

*53

 1
11401-79059

1GGEU..GX71

*54

 1
11401-79325

1GGEU..GX71

*53

 1
11401-79265

1GGEU..GX71

*53

 1
11401-79325

1GGEU..GX71

 1
11401-79386

1GGEU..GX71

 1
11401-79385

1GGEU..GX71

 1
11401-79058

1GGEU..GX71

*54

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
96431-23814

1G#..GX7#

L=28

 1
96431-23814

1GEU,1GG#..GX7#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90105-10028

1GEU,1GG#..GX7#

*10-1.25PX67-18

 14
11421 - BOLT, STUD(FOR OIL PAN)
90116-06014

1GEU,1GGEU..GX71

L=24.5,S=8.5&8.5

 2
11429 - BOLT, STUD(FOR ALTERNATOR BRACKET)
90116-10051

1G#..GX7#

L=70,S=12&22

 1
90116-10051

1GEU,1GG#..GX71

 1
90116-10118

1G#..GX71

 1
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GEU,1GG#..GX7#

OD=35

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

1GEU,1GG#..GX7#

OD=35

 10
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-44000

1GEU,1GG#..GX7#

OD=40

 1
11432H - PLUG, W/HEAD TAPER SCREW, NO.5
90344-53015

1GEU,1GG#..GX7#

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1GEU,1GG#..GX7#

長さ=22,外径=10,L=22,OD=10

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

1GEU,1GG#..GX7#

長さ=14,外径=6,L=14,OD=6

 2
11434H - PIN, RING (FOR TIMING BELT COVER SET)
90253-11021

1GEU,1GG#..GX7#

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

1GEU,1GG#..GX7#

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-88301

1GGEU..GX71

 1
11452-88302

1GGEU..GX71

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1GG#..GX71

 1
11452C - UNION(FOR OIL LEVEL GAGE GUIDE)
90405-10013

1GG#..GX71

 1
90405-10016

1GG#..GX71

 1
12101 - PAN SUB-ASSY, OIL
12101-70030

1GGEU..GX71

 1
12101-70031

1GGEU..GX71

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-18089

1G#..GX7#

 1
90341-18089

1GEU,1GGEU..GX7#

 1
90341-12012

1GEU,1GGEU..GX7#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-18244

1G#..GX71

 1
90430-12011

1GEU,1GGEU..GX7#

*53

 1
90430-12011

1GEU,1GGEU..GX7#

 1
90430-18244

1G#..GX7#

ID=18

 1
90430-12019

1GEU,1GG#..GX7#

 1
90430-12019

1GG#..GX71

*54

 1
90430-18244

1GEU,1GGEU..GX7#

 1
12271 - SCREEN, OIL SEPARATOR
12271-88300

1GG#..GX71

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-88303

1GGEU..GX71

 1
15301-88306

1GGEU..GX71

 1
15301-88301

1GGEU..GX71

 1
Common parts
90116-08092
90119-06114
90179-06045
91611-60812
Linked diagrams
1301
