GX71-XEPGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,LX70,MX71,SX70,YX70,72

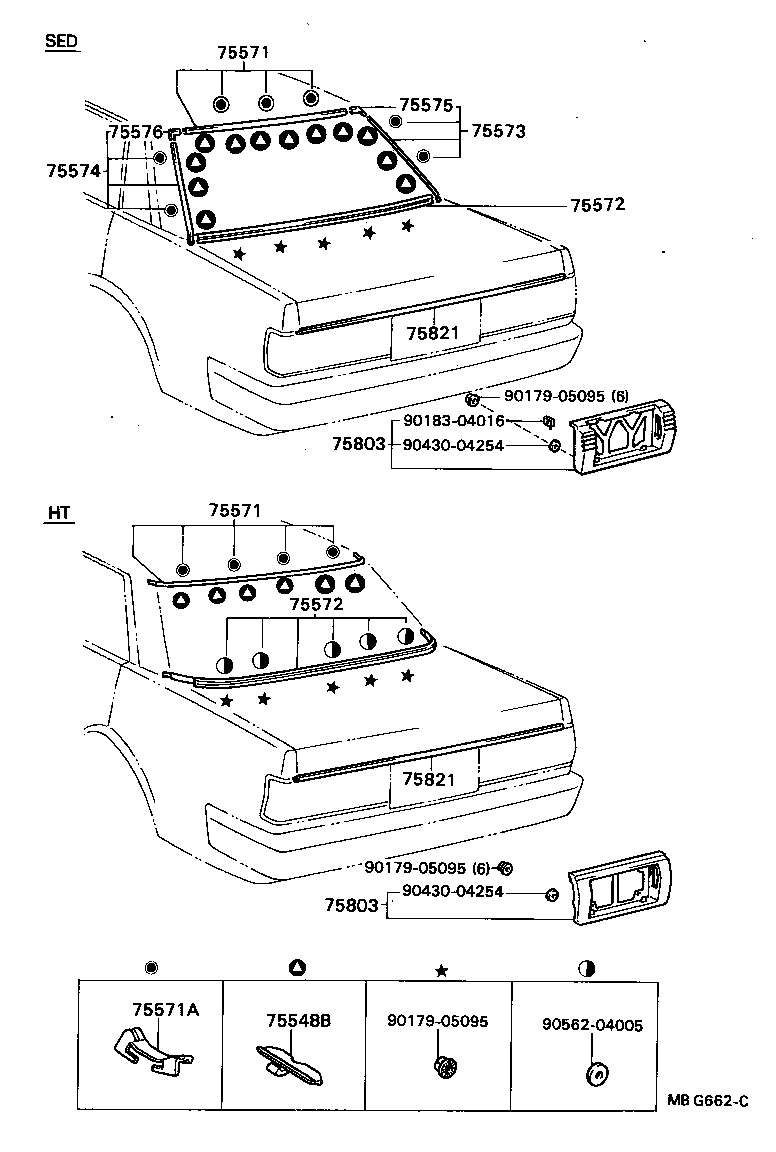

Click highlighted areas on diagram

diagram 75548B 75571 75571 75571A 75572 75572 75573 75574 75575 75576 75803 75803 75821 75821 9017905095 9017905095 9017905095 9018304016 9043004254 9043004254 9056204005
Part # Description Qty Price
75548B - FASTENER, BACK WINDOW OUTSIDE MOULDING
75548-22101

GX71,LX70,SX70,YX72

 12
75548-22100

GX71,LX70,MX71,SX70,YX70,72

 12
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22090

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22090

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75547-22030

GX71,LX70,MX71,SX70,YX70,72

 7
75572 - MOULDING, BACK WINDOW, LOWER
75507-22060

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75572 - MOULDING, BACK WINDOW, LOWER
75507-22060

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22091

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75573-22090

GX71,LX70,MX71,SX70,YX70..SED

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22071

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75574-22070

GX71,LX70,MX71,SX70,YX70..SED

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-22050

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-22050

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-22150

GX71,LX70,SX70,YX72..SED

 1
75803-22120

GX71,LX70,MX71,SX70,YX70..SED

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-22150

GX71,LX70,SX70,YX72..SED

 1
75803-22120

GX71,LX70,MX71,SX70,YX70..SED

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22090

GX71,LX70,MX71,SX70,YX70,72..SED

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22090

GX71,LX70,MX71,SX70,YX70,72..SED

 1
Common parts
90179-05095
90183-04016
90430-04254
90562-04005
