GX71-XEPGF (1984)
Toyota Mark 2

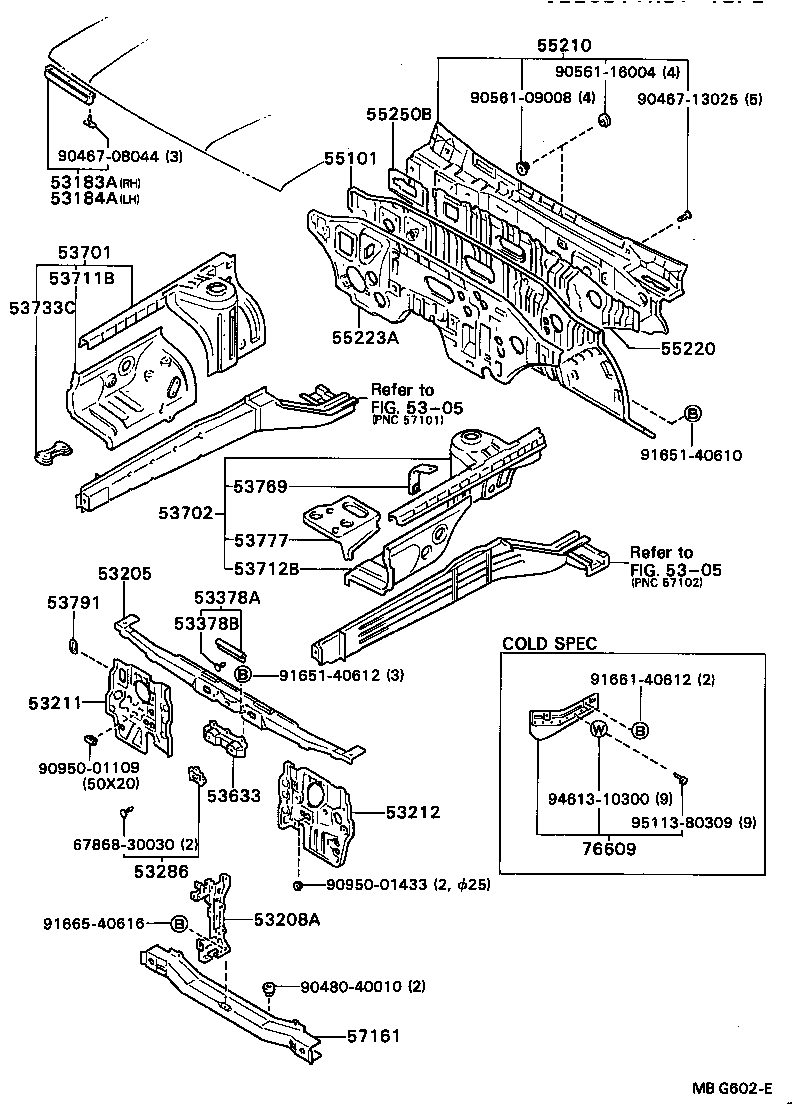

ILLUST NO. 1 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-22050 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 53208A - SUPPORT SUB-ASSY, HOOD LOCK | ||||
| 53215-22010 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 53208-22080 |
GX7#,LX7#,SX70,YX7#..SED,V,WG |
1 | ||
| 53211 - SUPPORT, RADIATOR, RH | ||||
| 53211-22190 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 53211-22191 |
GX7#,LX7#,SX70,YX7#..SED,V,WG |
1 | ||
| 53212 - SUPPORT, RADIATOR, LH | ||||
| 53212-22121 |
GX7#,LX7#,SX70,YX7#..SED,V,WG |
1 | ||
| 53212-22120 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 53286 - COVER, FRONT BUMPER ARM HOLE | ||||
| 53285-22020 |
SX70..KYO;GX71,LX70,MX71,YX70..DSL,LPG,TBO,TD,TWC,TWT RH |
1 | ||
| 53285-22020 |
GX7#,LX7#,SX70,YX7# RH |
1 | ||
| 53286-22010 |
SX70..KYO;GX71,LX70,MX71,YX70..DSL,LPG,TBO,TD,TWC,TWT LH |
1 | ||
| 53633 - SHIELD, HOOD LOCK CONTROL CABLE | ||||
| 53633-22020 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 53633-22030 |
GX7#,LX7#,SX70,YX7# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-22390 |
GX7#,MX71 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-22480 |
GX7#,MX71,SX70..GD,GR,GT,LG,LS |
1 | ||
| 53702-22480 |
GX7#,SX70..GD,GR,LG,LS |
1 | ||
| 53702-22520 |
GX71..TWC COLD SPEC |
1 | ||
| 53711B - APRON, FRONT FENDER, FRONT RH | ||||
| 53711-22320 |
GX7#,LX7#,MX71,SX70 |
1 | ||
| 53712B - APRON, FRONT FENDER, FRONT LH | ||||
| 53712-22290 |
GX7#,MX71,SX70,YX7# |
1 | ||
| 53712-22310 |
GX71..TWC COLD SPEC |
1 | ||
| 53733C - PATCH, FRONT FENDER APRON | ||||
| 53733-22060 |
GX7#,SX70,YX7# |
1 | ||
| 53769 - PLATE, IGNITION COIL MOUNTING, LH | ||||
| 53769-22030 |
GX7#,SX70 |
1 | ||
| 53777 - SUPPORT, BATTERY CARRIER, NO.2 | ||||
| 53777-22030 |
GX71..TWC COLD SPEC |
1 | ||
| 53777-22040 |
GX71..SED..TWC COLD SPEC |
1 | ||
| 55101 - PANEL SUB-ASSY, DASH | ||||
| 55101-22911 |
GX7#,MX71..EFI,TBO,TWC |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-22180 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 55220 - INSULATOR ASSY, DASH PANEL, NO.2 | ||||
| 55220-22010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-22030 |
GX71..GD,GT |
1 | ||
| 55223-22030 |
GX71..TWC |
1 | ||
| 55250B - INSULATOR ASSY, DUSH PANEL, NO.3 | ||||
| 55250-22010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 57161 - CROSSMEMBER, FRONT | ||||
| 57104-22110 |
GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG |
1 | ||
| 76609 - MUDGUARD SUB-ASSY, FRONT SIDE MEMBER | ||||
| 76609-22010 |
GX71,LX70,MX71,SX70,YX7#..ATM |
1 | ||
| Common parts | ||||
| 67868-30030 | ||||
| 90467-08044 | ||||
| 90467-13025 | ||||
| 90480-40010 | ||||
| 90561-09008 | ||||
| 90561-16004 | ||||
| 90950-01109 | ||||
| 90950-01433 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91661-40612 | ||||
| 91665-40616 | ||||
| 94613-10300 | ||||
| 95113-80309 | ||||
| Linked diagrams | ||||
| 5305 | ||||

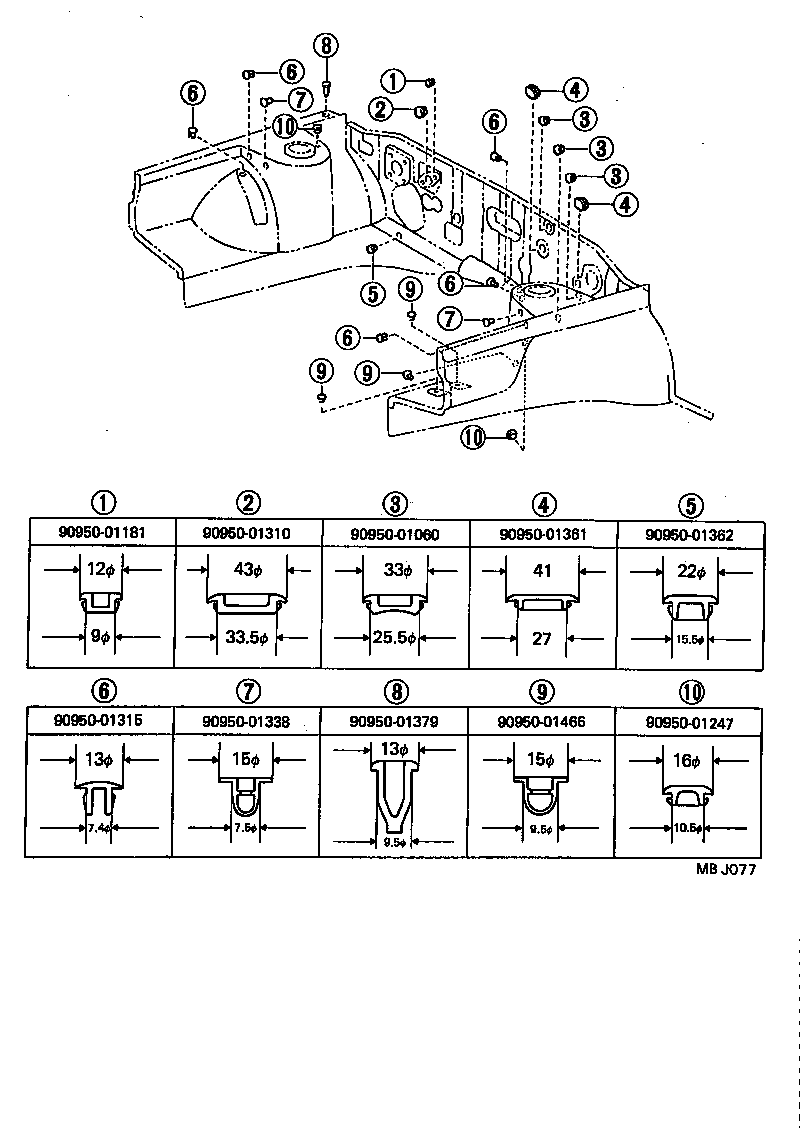

ILLUST NO. 2 OF 2(8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90950-01060 | ||||
| 90950-01181 | ||||
| 90950-01247 | ||||
| 90950-01310 | ||||
| 90950-01315 | ||||
| 90950-01338 | ||||
| 90950-01361 | ||||
| 90950-01362 | ||||
| 90950-01379 | ||||
| 90950-01466 | ||||
