GX71-XEPFE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

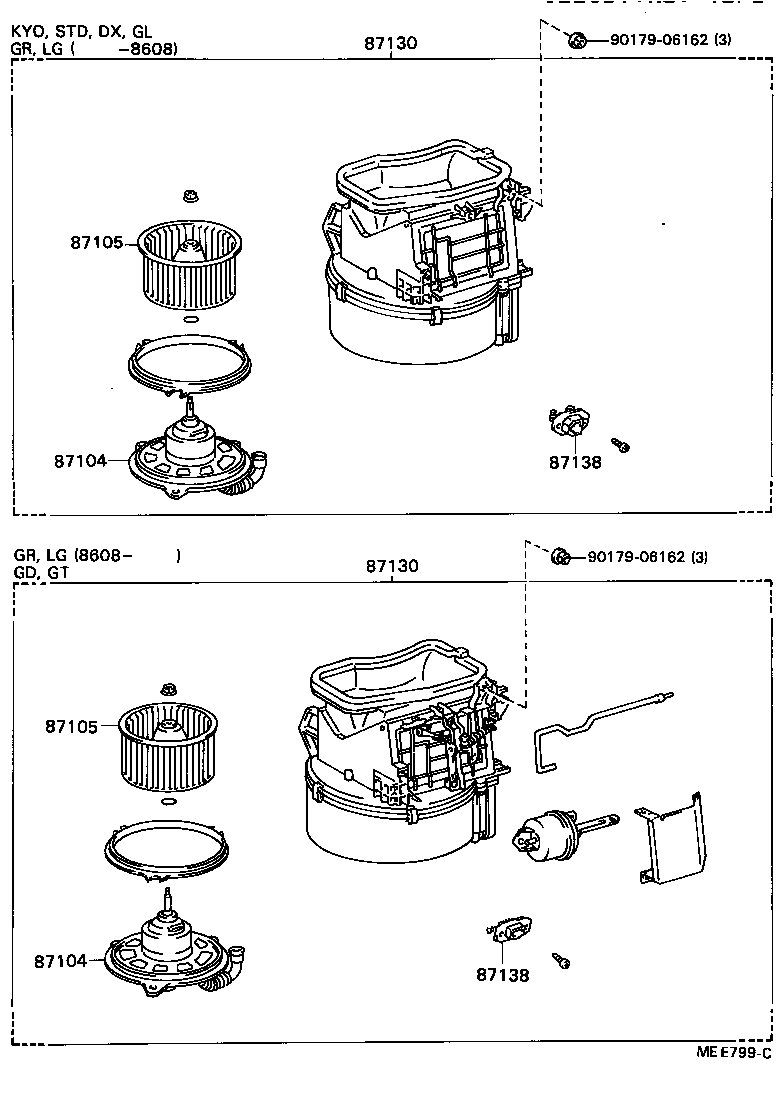

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 87104 87104 87105 87105 87130 87130 87138 87138 9017906162 9017906162
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22140

GX7#,LX7#,MX71,SX70,YX7#

FAN OD=65

 1
87104-22120

GX7#,LX7#,MX71,SX70,YX7#

FAN OD=85

 1
87104-22150

GX7#,LX7#,SX70,YX7#

 1
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-22140

GX7#,LX7#,MX71,SX70,YX7#

FAN OD=65

 1
87104-22120

GX7#,LX7#,MX71,SX70,YX7#

FAN OD=85

 1
87104-22150

GX7#,LX7#,SX70,YX7#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22050

GX7#,LX7#,MX71,SX70,YX7#

OD=85

 1
87105-14030

GX7#,LX7#,MX71,SX70,YX70,76

OD=65

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-22050

GX7#,LX7#,MX71,SX70,YX7#

OD=85

 1
87105-14030

GX7#,LX7#,MX71,SX70,YX70,76

OD=65

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22080

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-22080

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
87138 - RESISTOR, HEATER BLOWER
87138-32010

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
87138-22050

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
87138 - RESISTOR, HEATER BLOWER
87138-32010

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
87138-22050

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

 1
Common parts
90179-06162

ILLUST NO. 2 OF 2(8408- )DX,GL,KYO,LS,STD

Click highlighted areas on diagram

diagram 87107 8712410010 87150 9017906162 9671119016
Part # Description Qty Price
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-22130

GX7#,LX7#,MX71,SX70,YX76..DX,GD,GL,GR,GT,LG,LS,STD

 1
87107-22130

GX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS,STD

 1
87150 - RADIATOR ASSY, HEATER
87150-22281

GX71,LX7#,SX70,YX7#..DX,GL,LS,STD

 1
87150-22280

GX7#,LX7#,SX70,YX76..DX,GL,GR,LG,LS,STD

 1
Common parts
87124-10010
90179-06162
96711-19016
