GX71-XEPFE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )ATM..CBR,EFI,TD

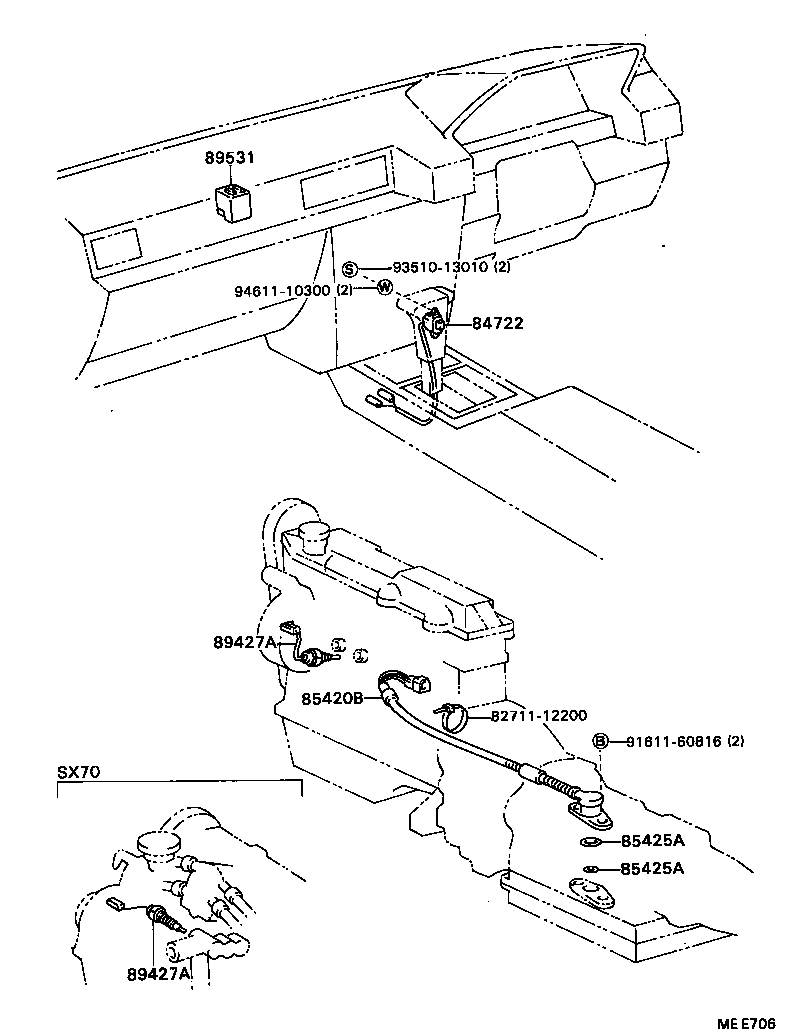

Click highlighted areas on diagram

diagram 8271112200 84722 85420B 85425A 85425A 89427A 89427A 89531 9161160816 9351013010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-1407025

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

BEIGE,DARK BEIGE,TRIM4#

 1
84722-1407015

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

BEIGE,BEIGE,TRIM4#

 1
84722-1407032

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

MAROON,MAROON,TRIM3#

 1
84722-1407003

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

GRAY,GRAY,TRIM1#

 1
84722-1407034

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

BLUE,DARK BLUE,TRIM8#

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-30090

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

ID=23

 1
90301-11001

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

ID=11

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-23001

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

ID=23

 1
90301-11001

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

ID=11

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GX7#..4FC..EFI

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GX7#..4FC..EFI

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-28010

GX7#,LX70,SX70..4FC..(CBR,EFI,TD)

 1
Common parts
82711-12200
91611-60816
93510-13010
94611-10300
