GX71-XEMGF (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,LX70,MX71,SX70,YX70,72

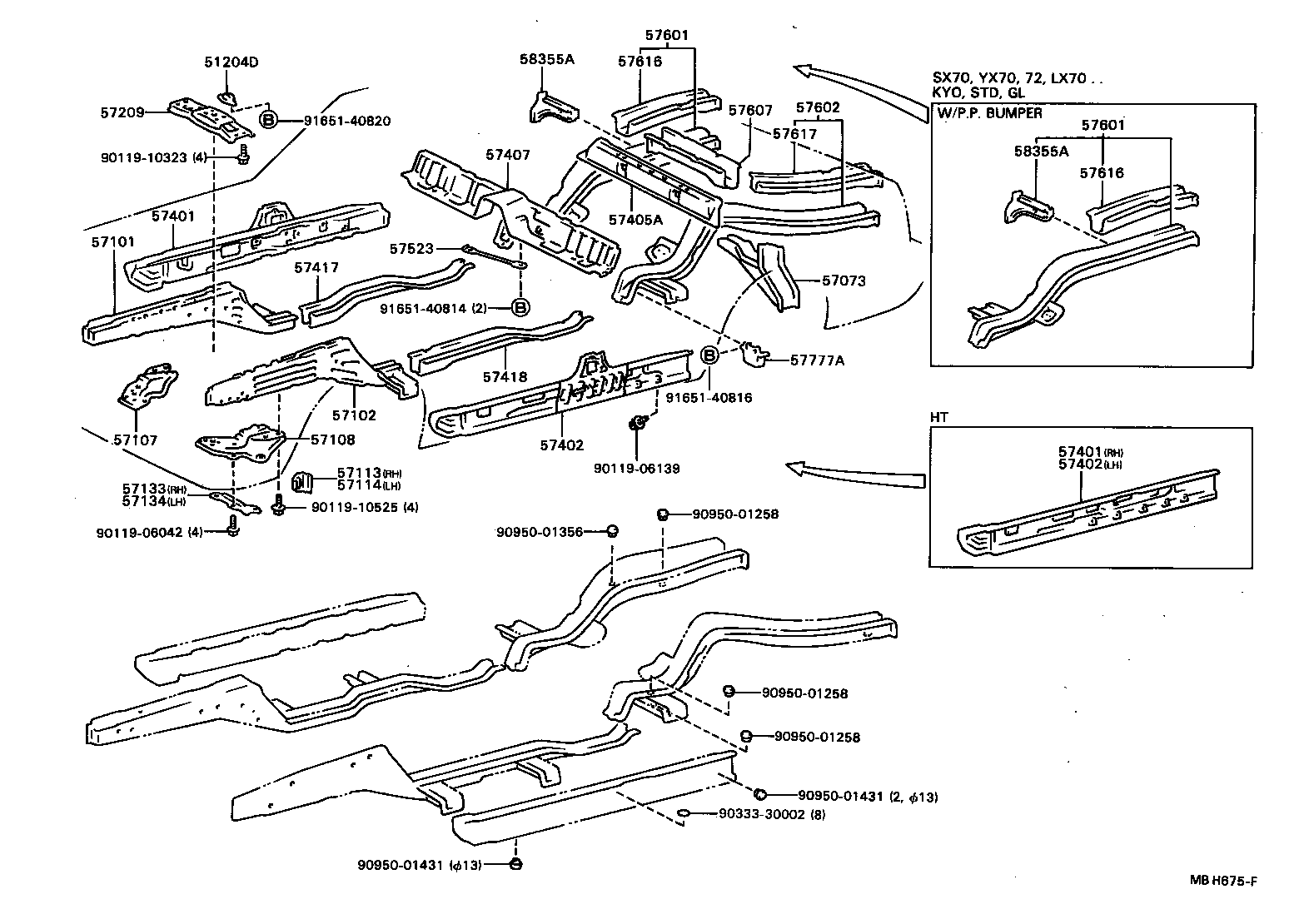

Click highlighted areas on diagram

diagram 51204D 57073 57101 57102 57107 57108 57113 57114 57133 57134 57209 57401 57401 57402 57402 57405A 57407 57417 57418 57523 57601 57601 57602 57607 57616 57616 57617 57777A 58355A 58355A 9011906042 9011906139 9011910323 9011910525 9033330002 9095001258 9095001258 9095001258 9095001356 9095001431 9095001431 9165140814 9165140816 9165140820
Part # Description Qty Price
51204D - DAMPER SUB-ASSY, ENGINE REAR SUPPORT MEMBER
51204-22080

GX71

 1
51204-22080

GX7#

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57101-22240

GX7#,LX7#,MX71,SX70,YX7#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57102-22280

GX7#,LX7#,MX71,SX70,YX7#

 1
57107 - BRACKET SUB-ASSY, STRUT BAR, RH
57107-22070

GX7#,LX7#,MX71,SX70,YX7#

 1
57108 - BRACKET SUB-ASSY, STRUT BAR, LH
57108-22140

GX7#,LX7#,MX71,SX70,YX7#

 1
57113 - EXTENSION, FRONT SIDE MEMBER, RH
57113-22050

GX7#,LX7#,MX71,SX70,YX7#

 1
57113-22060

GX7#,LX7#,MX71,SX70,YX7#

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57114-22050

GX7#,LX7#,MX71,SX70,YX7#

 1
57114-22060

GX7#,LX7#,MX71,SX70,YX7#

 1
57133 - PROTECTOR, STRUT BAR BRACKET, RH
57133-22020

GX7#,LX7#,MX71,SX70,YX7#

COLD SPEC

 1
57134 - PROTECTOR, STRUT BAR BRACKET, LH
57134-22010

GX7#,LX7#,MX71,SX70,YX7#

COLD SPEC

 1
57209 - MEMBER SUB-ASSY, ENGINE REAR SUPPORT
57255-22190

GX7#..5F

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22080

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
57401 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57401-22080

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22080

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
57402 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57402-22080

GX7#,LX7#,MX71,SX70,YX7#..SED,V,WG

 1
57405A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-22010

GX71,LX70,MX71,SX70

 1
57407 - CROSS MEMBER SUB-ASSY, CENTER FLOOR, NO.1
57407-22050

GX71,MX71

 1
57407-22070

GX71

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-22050

GX7#,LX7#,MX71,SX70,YX7#

 1
57417-22040

GX7#,LX7#,MX71,SX70,YX7#

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-22050

GX7#,LX7#,MX71,SX70,YX7#

 1
57418-22040

GX7#,LX7#,MX71,SX70,YX7#

 1
57523 - BRACE, CENTER FLOOR CROSSMEMBER
57523-22010

GX71,MX71

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22911

GX71,MX71

 1
57601 - MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57601-22911

GX71,MX71

 1
57602 - MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57602-22230

GX71,MX71

 1
57607 - CROSSMEMBER SUB-ASSY, REAR FLOOR, NO.1
57605-22060

GX71,MX71

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22900

GX71,MX71

 1
57616 - MEMBER, REAR FLOOR SIDE, REAR RH
57615-22900

GX71,MX71

 1
57617 - MEMBER, REAR FLOOR SIDE, REAR LH
57616-22900

GX71,MX71

 1
58355A - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-22030

GX71,LX70,MX71,SX70,YX70,72

 1
58355A - REINFORCEMENT, FLOOR SIDE PLATE, RH
58355-22030

GX71,LX70,MX71,SX70,YX70,72

 1
Common parts
90119-06042
90119-06139
90119-10323
90119-10525
90333-30002
90950-01258
90950-01356
90950-01431
91651-40814
91651-40816
91651-40820
