GX71-XEMGE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

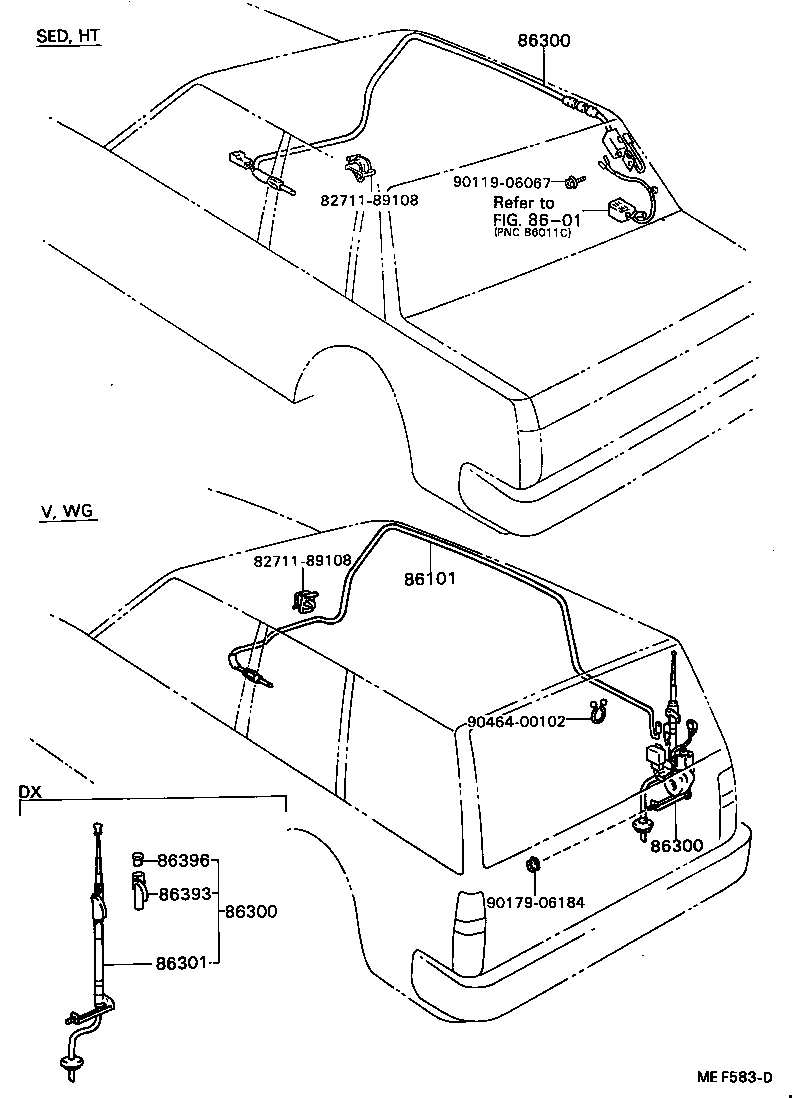

ILLUST NO. 1 OF 2(8408- )

Click highlighted areas on diagram

diagram 8271189108 8271189108 8601 86101 86300 86300 86300 86301 86393 86396 9011906067 9017906184 9046400102
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-22190

GX71,LX70,MX71,SX70,YX70..SED

 1
86300-22290

GX71..SED..GD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22190

GX71,LX70,MX71,SX70,YX70..SED

 1
86300-22290

GX71..SED..GD

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-22190

GX71,LX70,MX71,SX70,YX70..SED

 1
86300-22290

GX71..SED..GD

 1
Common parts
82711-89108
90119-06067
90179-06184
90464-00102
Linked diagrams
8601

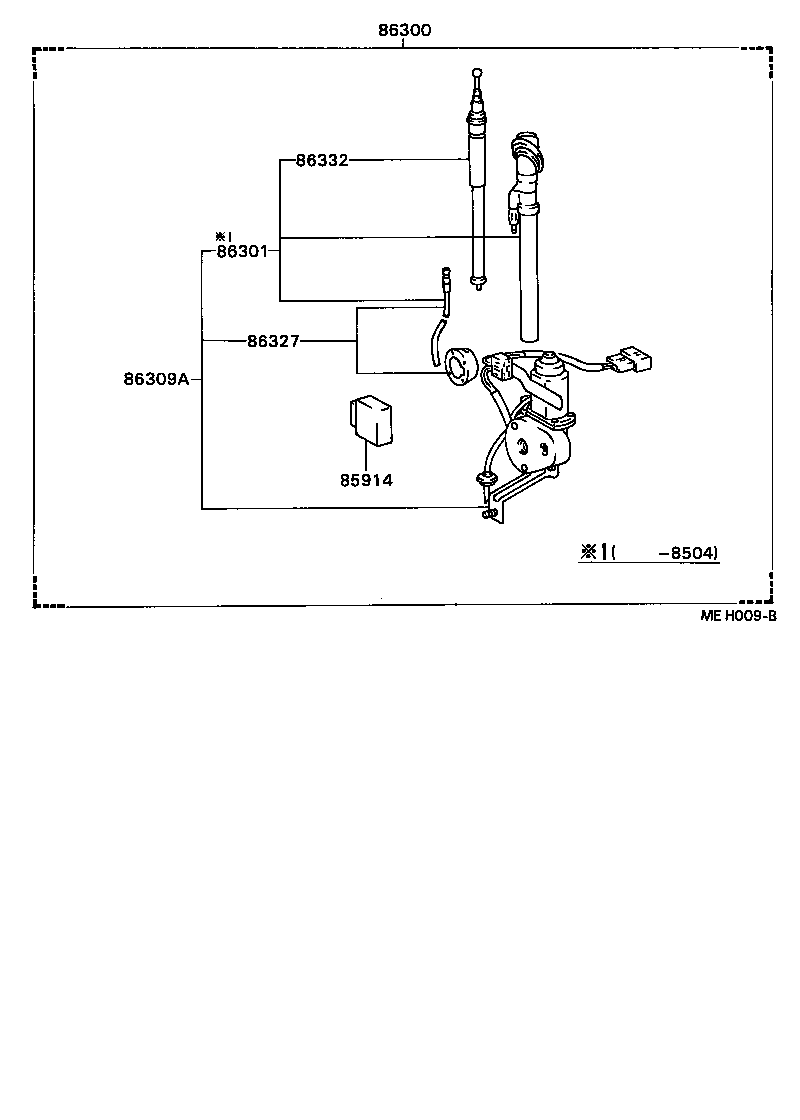

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 85914 86300 86301 86309A 86327 86332
Part # Description Qty Price
86300 - ANTENNA ASSY, W/HOLDER
86300-22190

GX71,LX70,MX71,SX70,YX70..SED

 1
86300-22290

GX71..SED..GD

 1
