GX71-XEMFE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

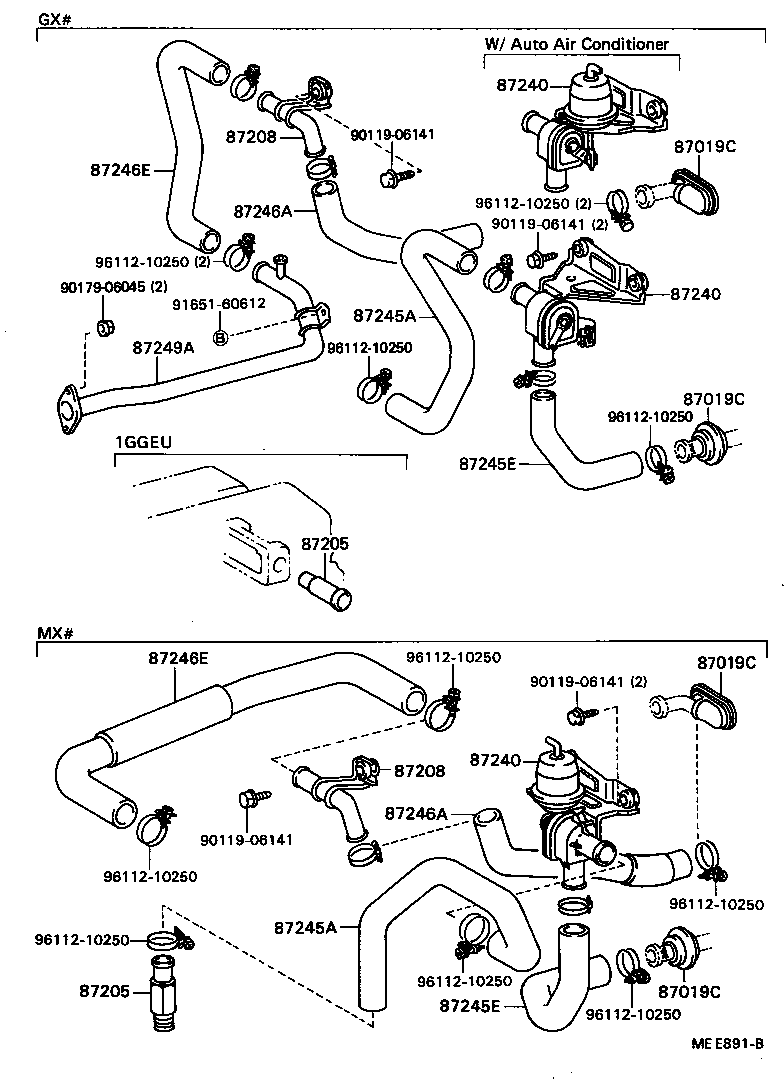

ILLUST NO. 1 OF 2(8408- )EFI,TBO,TWC

Click highlighted areas on diagram

diagram 87019C 87019C 87019C 87019C 87205 87205 87208 87208 87240 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87246E 87246E 87249A 9011906141 9011906141 9011906141 9011906141 9017906045 9165160612 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-36011

GX7#,LX7#,MX71,SX70,YX7#

INLET

 1
90480-01272

GX7#,LX7#,MX71,SX70,YX7#

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-36011

GX7#,LX7#,MX71,SX70,YX7#

INLET

 1
90480-01272

GX7#,LX7#,MX71,SX70,YX7#

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-36011

GX7#,LX7#,MX71,SX70,YX7#

INLET

 1
90480-01272

GX7#,LX7#,MX71,SX70,YX7#

OUTLET

 1
87019C - GROMMET, HEATER HOSE
90480-36011

GX7#,LX7#,MX71,SX70,YX7#

INLET

 1
90480-01272

GX7#,LX7#,MX71,SX70,YX7#

OUTLET

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22100

GX7#..EFI,TWC

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22100

GX7#..EFI,TWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22310

GX7#,LX7#,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22260

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240-22261

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240 - VALVE ASSY, HEATER WATER
87240-22310

GX7#,LX7#,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22260

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240-22261

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240 - VALVE ASSY, HEATER WATER
87240-22310

GX7#,LX7#,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22260

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240-22261

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22660

GX7#..EFI,TWC

 1
87245A - HOSE, HEATER WATER, INLET A
87245-22660

GX7#..EFI,TWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX7#,LX7#,SX70,YX7#..CBR,DSL,EFI,LPG,TD,TWC

 1
87245E - HOSE, HEATER WATER, INLET E
87245-22620

GX7#,LX7#,SX70,YX7#..CBR,DSL,EFI,LPG,TD,TWC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22670

GX7#..EFI,TWC

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-22670

GX7#..EFI,TWC

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-22680

GX7#..EFI,TWC

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-22680

GX7#..EFI,TWC

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-22011

GX7#..EFI,TWC

 1
Common parts
90119-06141
90179-06045
91651-60612
96112-10250

ILLUST NO. 2 OF 2(8408- )

Click highlighted areas on diagram

diagram 8271112170 8271112200 8271112200 8271112200 8271112200 87208 87240 87245X 87245X 87245X 87245X 87248X 87248X 87248Y 87248Y 87250 88549C 9033907001 9033907001 9046014085 9046014085 9046713001 9046713001 9046713001 9046713001 9161160625 9411050600 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22100

GX7#..EFI,TWC

 1
87240 - VALVE ASSY, HEATER WATER
87240-22310

GX7#,LX7#,MX71,SX70,YX7#

PANEL HEATER

 1
87240-22260

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87240-22261

GX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD

HEATER RADIATOR

 1
87245X - HOSE, HEATER WATER
99556-11300

GX7#,LX7#,MX71,SX70,YX7#

長さ=300,NO.1

 2
90445-23006

GX7#,LX7#,MX71,SX70,YX7#

長さ=270,NO.2

 1
87245X - HOSE, HEATER WATER
99556-11300

GX7#,LX7#,MX71,SX70,YX7#

長さ=300,NO.1

 2
90445-23006

GX7#,LX7#,MX71,SX70,YX7#

長さ=270,NO.2

 1
87245X - HOSE, HEATER WATER
99556-11300

GX7#,LX7#,MX71,SX70,YX7#

長さ=300,NO.1

 2
90445-23006

GX7#,LX7#,MX71,SX70,YX7#

長さ=270,NO.2

 1
87245X - HOSE, HEATER WATER
99556-11300

GX7#,LX7#,MX71,SX70,YX7#

長さ=300,NO.1

 2
90445-23006

GX7#,LX7#,MX71,SX70,YX7#

長さ=270,NO.2

 1
87248X - PIPE, HEATER WATER
87248-20300

GX7#,LX7#,MX71,SX70,YX7#

 2
87248X - PIPE, HEATER WATER
87248-20300

GX7#,LX7#,MX71,SX70,YX7#

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-22080

GX7#,LX7#,MX71,SX70,YX7#

 2
87248Y - PIPE, HEATER WATER, NO.2
87248-22080

GX7#,LX7#,MX71,SX70,YX7#

 2
87250 - HOSE AND VALVE ASSY
87250-22120

GX7#,LX7#,MX71,SX70,YX7#

 1
88549C - PLATE, CAUTION
88549-22020

GX7#,LX7#,MX71,SX70,YX7#

 1
Common parts
82711-12170
82711-12200
90339-07001
90460-14085
90467-13001
91611-60625
94110-50600
96112-10250
