GX71-XEMFE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )GX71,LX70,MX71,SX70,YX70,72

Click highlighted areas on diagram

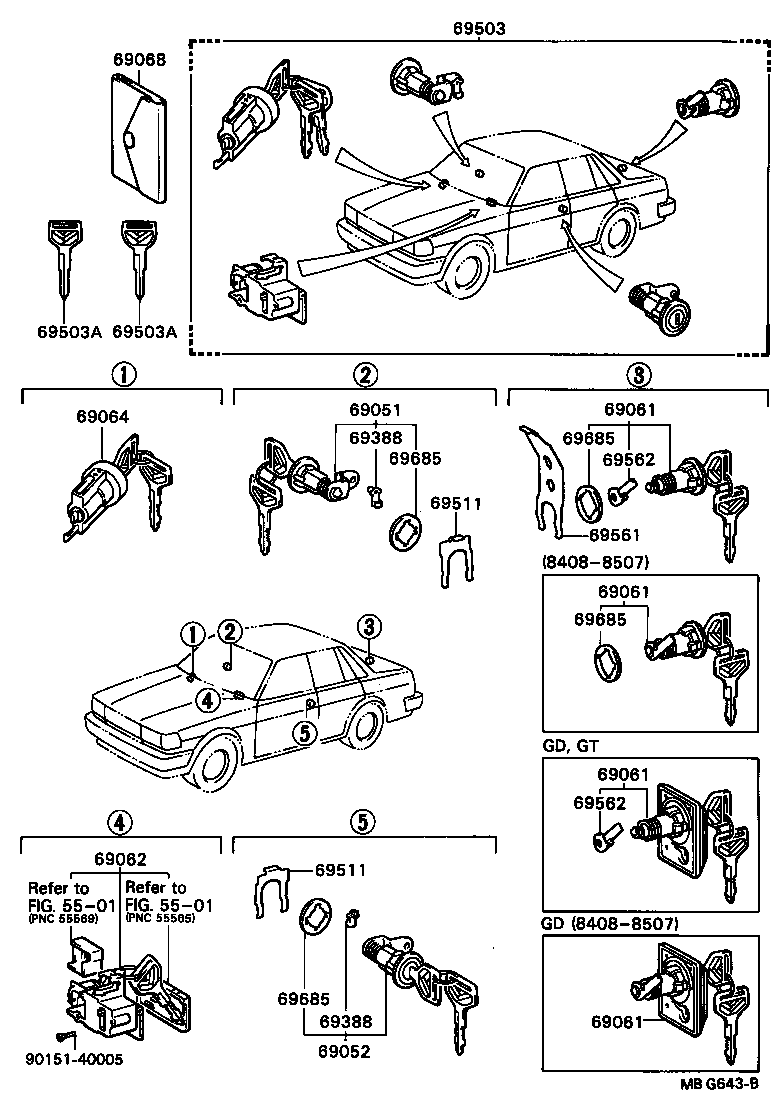

diagram 5501 5501 69051 69052 69061 69061 69061 69061 69062 69064 69068 69388 69388 69503 69503A 69503A 69511 69511 69561 69562 69562 69685 69685 69685 69685 9015140005
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-22120

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69051-22121

GX71,LX70,SX70,YX72..GL,GR,KYO,LG,LS,STD

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-22120

GX71,LX70,MX71,SX70,YX70

 1
69052-22121

GX71,LX70,SX70,YX72

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-22120

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69055-22211

GX71,LX70,SX70,YX72..GL,GR,LG,LS

 1
69055-22210

GX71,LX70,SX70,YX70..GL,GR,LG,LS

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-22120

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69055-22211

GX71,LX70,SX70,YX72..GL,GR,LG,LS

 1
69055-22210

GX71,LX70,SX70,YX70..GL,GR,LG,LS

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-22120

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69055-22211

GX71,LX70,SX70,YX72..GL,GR,LG,LS

 1
69055-22210

GX71,LX70,SX70,YX70..GL,GR,LG,LS

 1
69061 - CYLINDER & KEY SET, LUGGAGE LOCK
69055-22120

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69055-22211

GX71,LX70,SX70,YX72..GL,GR,LG,LS

 1
69055-22210

GX71,LX70,SX70,YX70..GL,GR,LG,LS

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-2202003

GX71,LX70,MX71,SX70,YX70

GRAY,COOL GRAY,TRIM1#

 1
69056-2202005

GX71,LX70,MX71,SX70,YX70..GD,GL,GR,GT,LG,LS

BEIGE,BEIGE,TRIM4#

 1
69056-2202004

GX71,LX70,SX70,YX72..SED

BLUE,DARK BLUE,TRIM8#

 1
69056-2202015

GX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS)

BEIGE,DARK BEIGE,TRIM4#

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-22050

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69057-22110

GX71,LX70,SX70,YX72..GL,GR,KYO,LG,LS,STD

 1
69068 - COVER SUB-ASSY, KEY
69555-20010

GX7#,LX7#,MX71,SX70,YX7#

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX7#,LX7#,MX71,SX70,YX7#

LH,FR DOOR

 1
69759-20080

GX7#,LX7#,MX71,SX70,YX7#

RH,FR DOOR

 1
69388 - SNAP, ROD(FOR DOOR LOCK)
69759-20090

GX7#,LX7#,MX71,SX70,YX7#

LH,FR DOOR

 1
69759-20080

GX7#,LX7#,MX71,SX70,YX7#

RH,FR DOOR

 1
69503 - CYLINDER SET, LOCK
69005-22260

GX71,LX70,SX70,YX70..GL,GR,KYO,LG,LS,STD

 1
69005-22420

GX71,LX70,SX70,YX70..GL,GR,LG,LS

 1
69005-22611

GX71,LX70,SX70,YX72..GL,GR,LG,LS

 1
69503A - KEY, BLANK
90999-00099

GX71,LX70,MX71,SX70,YX70,72

ﾏｽﾀｰｷｰ,MASTER

 1
90999-00118

GX71,LX70,SX70,YX72

ﾏｽﾀｰｷｰ,*68付き,MASTER,W/PROTECTOR

 1
90999-00100

GX71,LX70,MX71,SX70,YX70,72

ｻﾌﾞｷｰ,SUB

 1
69503A - KEY, BLANK
90999-00099

GX71,LX70,MX71,SX70,YX70,72

ﾏｽﾀｰｷｰ,MASTER

 1
90999-00118

GX71,LX70,SX70,YX72

ﾏｽﾀｰｷｰ,*68付き,MASTER,W/PROTECTOR

 1
90999-00100

GX71,LX70,MX71,SX70,YX70,72

ｻﾌﾞｷｰ,SUB

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX7#,LX7#,MX71,SX70,YX7#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-32010

GX7#,LX7#,MX71,SX70,YX7#

 2
69561 - RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDE
69561-22050

GX71,LX70,MX71,SX70,YX70,72

 1
69562 - LEVER, LUGGAGE COMPARTMENT DOOR LOCK
69562-22020

GX71,LX70,SX70,YX70,72..GL,GR,LG,LS

 1
69562 - LEVER, LUGGAGE COMPARTMENT DOOR LOCK
69562-22020

GX71,LX70,SX70,YX70,72..GL,GR,LG,LS

 1
69685 - PAD, LOCK CYLINDER
69563-32010

GX71,LX70,SX70,YX70,72..GL,GR,KYO,LG,LS

LUGGAGE

 1
69513-32010

GX71,LX70,MX71,SX70,YX70,72

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69563-32010

GX71,LX70,SX70,YX70,72..GL,GR,KYO,LG,LS

LUGGAGE

 1
69513-32010

GX71,LX70,MX71,SX70,YX70,72

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69563-32010

GX71,LX70,SX70,YX70,72..GL,GR,KYO,LG,LS

LUGGAGE

 1
69513-32010

GX71,LX70,MX71,SX70,YX70,72

FR DOOR

 2
69685 - PAD, LOCK CYLINDER
69563-32010

GX71,LX70,SX70,YX70,72..GL,GR,KYO,LG,LS

LUGGAGE

 1
69513-32010

GX71,LX70,MX71,SX70,YX70,72

FR DOOR

 2
Common parts
90151-40005
Linked diagrams
5501
