GX71-XEMFE (1984)

Toyota Mark 2

Production Aug 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )1GEU

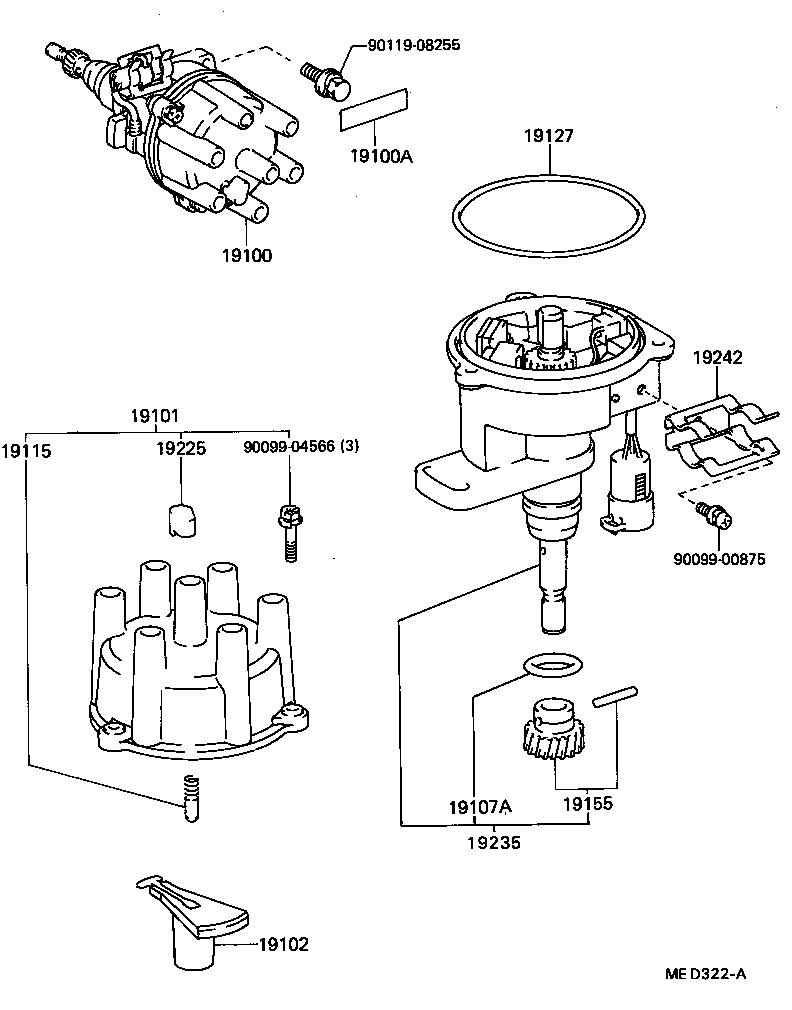

Click highlighted areas on diagram

diagram 19100 19100A 19101 19102 19107A 19115 19127 19155 19225 19235 19242 9009900875 9009904566 9011908255
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-70070

1GEU..GX7#

 1
19100A - TAPE, SEALING
90919-24004

1GEU,1GG#..GX71

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-70011

1GEU,1GGEU..GX7#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-43110

1GEU,1GGEU..GX7#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14018

1GEU,1GGEU..GX7#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-50010

1GEU,1GGEU..GX7#

 1
19127 - PACKING, DUST PROOF
19127-52020

1GEU,1GGEU..GX7#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-70010

1GEU..GX7#

 1
19225 - CAP, RUBBER
19225-41140

1GEU,1GGEU..GX7#

 1
19235 - HOUSING, DISTRIBUTOR
19235-70070

1GEU..GX7#

 1
19242 - CLAMP, CORD
19242-70070

1GEU..GX7#

 1
Common parts
90099-00875
90099-04566
90119-08255
