GX70G-XWPME (1984)
Toyota Mark 2

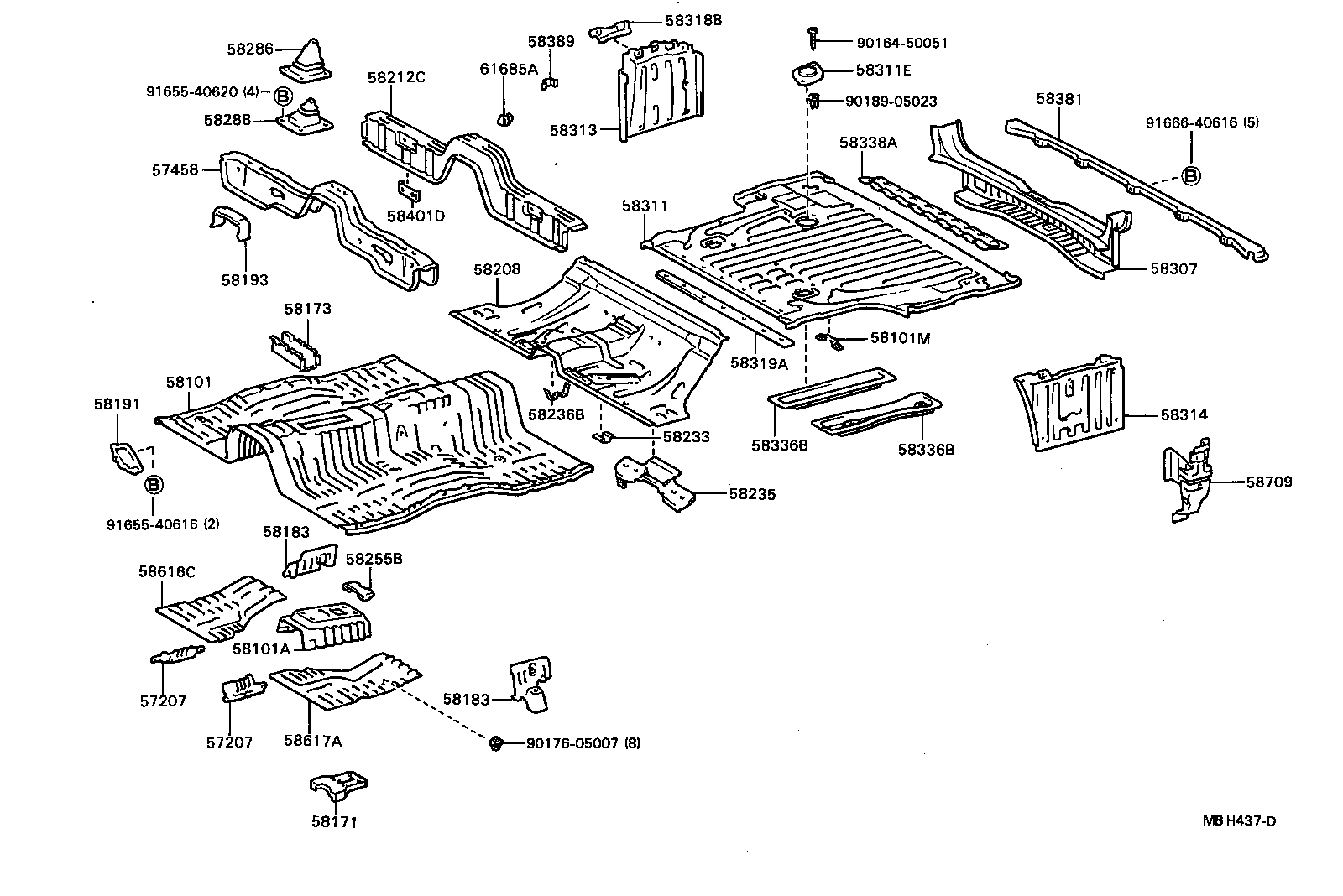

ILLUST NO. 1 OF 2(8411- )GX70,LX76,YX76
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-22030 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 57207-22040 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER | ||||
| 57208-22030 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 57207-22040 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 57458 - MEMBER, FRONT FLOOR CROSS, NO.1 | ||||
| 57408-22030 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 57408-22031 |
GX7#,LX7#,SX70,YX7# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58111-22140 |
GX7#,LX70,MX71,SX70..4FC |
1 | ||
| 58111-22141 |
GX7#,LX70,SX70..4FC |
1 | ||
| 58111-22141 |
GX7#,LX70..4FC |
1 | ||
| 58101A - COVER, TRANSMISSION AUXILIARY | ||||
| 58260-22010 |
GX7#,MX71 |
1 | ||
| 58101M - BRACKET, MOUNTING, FLOOR, NO.7 | ||||
| 58346-20070 |
GX70,LX76,YX76 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58029-22030 |
GX7#,LX70,MX71,SX70..4FC |
1 | ||
| 58173 - DEFLECTOR, FRONT FLOOR STONE | ||||
| 58174-22021 |
GX7#,LX7#,SX70,YX7# LH |
1 | ||
| 58174-22020 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 58173-22041 |
GX7#,LX7#,SX70,YX7# RH |
1 | ||
| 58173-22040 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22010 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 58183-22010 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58184-22010 |
GX7#,LX7#,MX71,SX70,YX7# LH |
1 | ||
| 58183-22010 |
GX7#,LX7#,MX71,SX70,YX7# RH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58191-22020 |
GX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS |
1 | ||
| 58191-22021 |
GX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS |
1 | ||
| 58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING | ||||
| 58193-22030 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 58208 - PAN, CENTER FLOOR | ||||
| 58211-23010 |
GX70,LX76,YX76 |
1 | ||
| 58212C - PAN, CENTER FLOOR, FRONT | ||||
| 58212-22050 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 58233 - BRACKET, EXHAUST PIPE MOUNTING | ||||
| 58233-22020 |
GX7#,LX7#,YX76 |
1 | ||
| 58233-22020 |
GX70,LX7#,SX70,YX7# |
1 | ||
| 58235 - BRACKET, DIFFERENTIAL CARRIER BUMPER MOUNTING | ||||
| 58205-91601 |
GX70,LX76,YX76 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 90461-07015 |
GX70,LX76,YX76 |
1 | ||
| 58255B - BRACKET, PARKING BRAKE CABLE GUIDE, NO.1 | ||||
| 58264-22040 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-23020 |
GX70,LX76,YX76 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-23010 |
GX70,LX76,YX76 |
1 | ||
| 58311E - COVER, REAR FLOOR SERVICE HOLE | ||||
| 77029-91602 |
GX70,LX76,YX76 |
3 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-23020 |
GX70,LX76,YX76 |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-23020 |
GX70,LX76,YX76 |
1 | ||
| 58318B - REINFORCEMENT, WASHER TANK BRACKET | ||||
| 58318-23010 |
GX70,LX76,YX76 |
1 | ||
| 58319A - PLATE, REAR FLOOR PANEL, FRONT | ||||
| 58319-91603 |
GX70,LX76,YX76 |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-23010 |
GX70,LX76,YX76 RH |
1 | ||
| 58337-23010 |
GX70,LX76,YX76 LH |
1 | ||
| 58336B - REINFORCEMENT, REAR FLOOR PAN | ||||
| 58336-23010 |
GX70,LX76,YX76 RH |
1 | ||
| 58337-23010 |
GX70,LX76,YX76 LH |
1 | ||
| 58338A - REINFORCEMENT, REAR FLOOR PAN, NO.2 | ||||
| 58338-23010 |
GX70,LX76,YX76 |
1 | ||
| 58381 - DEFLECTOR, REAR BUMPER STONE | ||||
| 59211-23010 |
GX70,LX76,YX76 |
1 | ||
| 58389 - BRACKET, REAR WASHER TANK MOUNTING, NO.2 | ||||
| 58389-23010 |
GX70,LX76,YX76 |
1 | ||
| 58401D - BRACKET SUB-ASSY, REAR SEAT SUPPORT, NO.1 | ||||
| 58401-91501 |
GX70,LX76,YX76 |
2 | ||
| 58616C - PANEL, FRONT FLOOR SILENCER, NO.1 | ||||
| 58616-22060 |
GX7#,LX7#,MX71,SX70,YX70,76 |
1 | ||
| 58617A - PANEL, FRONT FLOOR SILENCER, NO.2 | ||||
| 58617-22070 |
GX7#,LX7#,MX71,SX70,YX70,76 |
1 | ||
| 58709 - BRACKET SUB-ASSY, JACK CLAMP | ||||
| 58709-91601 |
GX70,LX76,YX76 |
1 | ||
| 58709-23010 |
GX70,LX76,YX76 |
1 | ||
| 61685A - BRACKET, REAR SEAT BACK MOUNTING | ||||
| 61685-91602 |
GX70,LX76,YX76 |
2 | ||
| Common parts | ||||
| 90164-50051 | ||||
| 90176-05007 | ||||
| 90189-05023 | ||||
| 91655-40616 | ||||
| 91655-40620 | ||||
| 91666-40616 | ||||

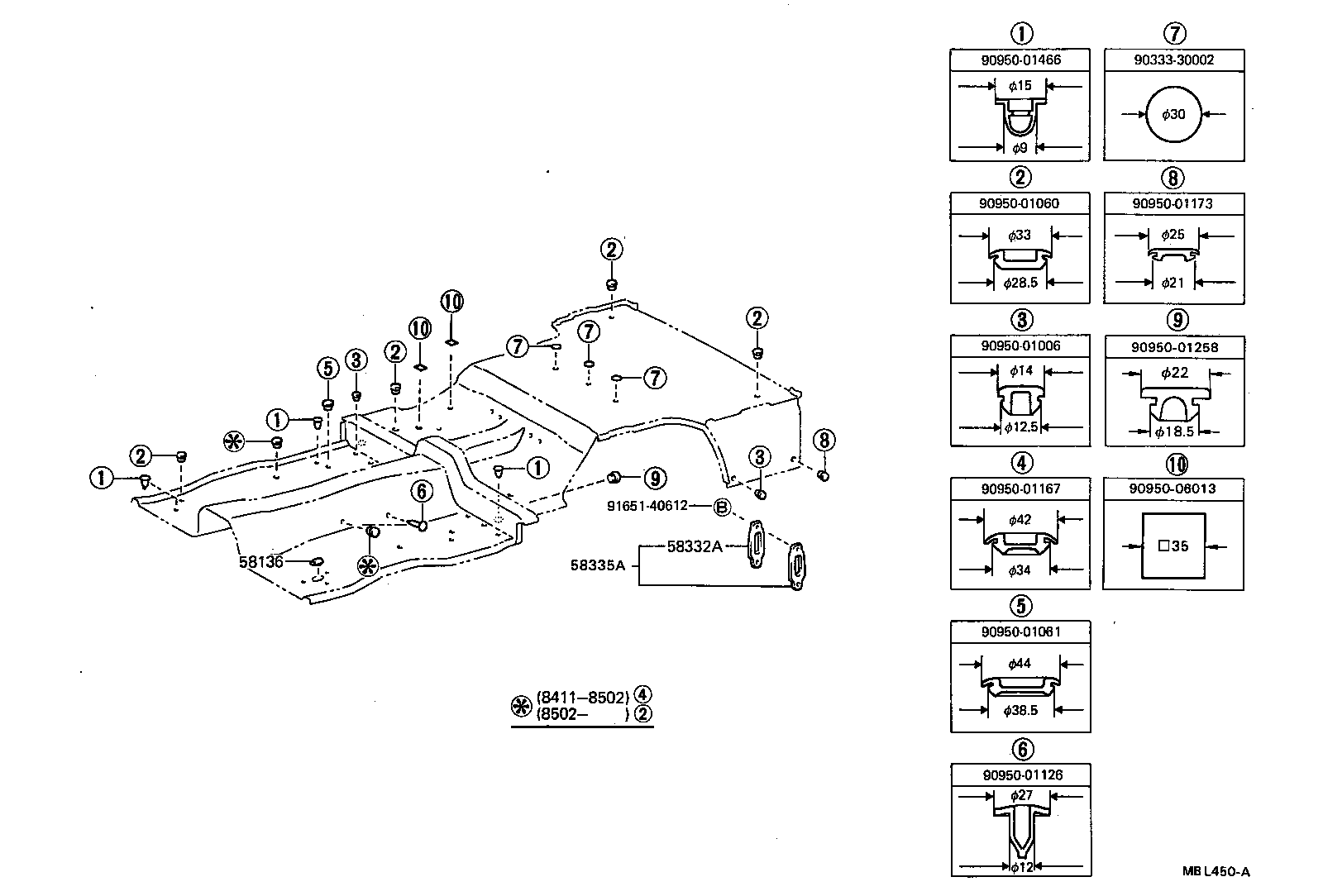

ILLUST NO. 2 OF 2(8411- )GX70,LX76,YX76
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58136 - COVER, FRONT FLOOR HOLE | ||||
| 58136-24010 |
GX7#,LX7#,MX71,SX70,YX7# |
1 | ||
| 58332A - COVER, REAR FLOOR SIDE SERVICE HOLE | ||||
| 58332-91602 |
GX70,LX76,YX76 |
2 | ||
| 58335A - SEAL, REAR FLOOR SIDE SERVICE HOLE COVER | ||||
| 58335-91602 |
GX70,LX76,YX76 |
1 | ||
| Common parts | ||||
| 90333-30002 | ||||
| 90950-01006 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01167 | ||||
| 90950-01173 | ||||
| 90950-01258 | ||||
| 90950-01466 | ||||
| 90950-06013 | ||||
| 91651-40612 | ||||
