GX70G-XWMME (1984)

Toyota Mark 2

Production Nov 1984 - Aug 1988
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )GX70,LX76,YX76

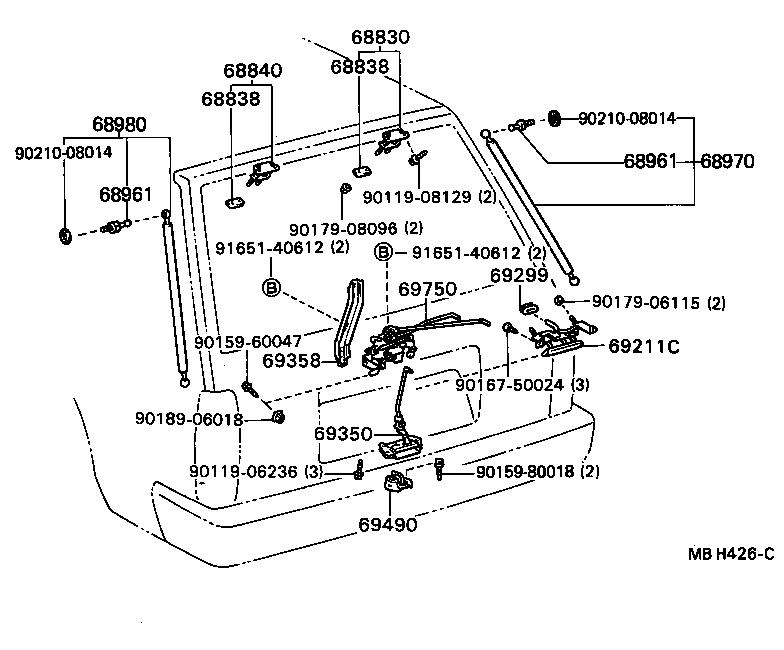

Click highlighted areas on diagram

diagram 68830 68838 68838 68840 68961 68961 68970 68980 69211C 69299 69350 69358 69490 69750 9011906236 9011908129 9015960047 9015980018 9016750024 9017906115 9017908096 9018906018 9021008014 9021008014 9165140612 9165140612
Part # Description Qty Price
68830 - HINGE ASSY, BACK DOOR, RH
68810-91704

GX70,LX76,YX76

 1
68810-23010

GX70,LX76,YX76

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-23010

GX70,LX76,YX76

 2
68838-91701

GX70,LX76,YX76

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-23010

GX70,LX76,YX76

 2
68838-91701

GX70,LX76,YX76

 2
68840 - HINGE ASSY, BACK DOOR, LH
68810-23010

GX70,LX76,YX76

 1
68810-91704

GX70,LX76,YX76

 1
68961 - BOLT, BACK DOOR STAY
68961-12010

GX70,LX76,YX76

 4
68961-23010

GX70,LX76,YX76

 4
68961 - BOLT, BACK DOOR STAY
68961-12010

GX70,LX76,YX76

 4
68961-23010

GX70,LX76,YX76

 4
68970 - STAY ASSY, BACK DOOR, RH
68950-29315

GX70,LX76,YX76

W/RR WIPER

 1
68950-29405

GX70,LX76,YX76

W/RR WIPER

 1
68980 - STAY ASSY, BACK DOOR
68960-29245

GX70,LX76,YX76

W/RR WIPER

 1
68950-29315

GX70,LX76,YX76

W/RR WIPER

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69209-23010

GX70,YX76..GL,LG

 1
69299 - GROMMET, BACK DOOR HANDLE
69299-91701

GX70,LX76,YX76

 1
69350 - LOCK ASSY, BACK DOOR
69350-23010

GX70,LX76,YX76

 1
69358 - PROTECTOR, BACK DOOR LOCK
69358-23010

GX70,LX76,YX76

 1
69490 - STRIKER ASSY, BACK DOOR LOCK
69430-23010

GX70,LX76,YX76

 1
69750 - LINK SUB-ASSY, BACK DOOR REMOTE CONTROL
69790-23020

GX70,YX76..GL,LG

 1
Common parts
90119-06236
90119-08129
90159-60047
90159-80018
90167-50024
90179-06115
90179-08096
90189-06018
90210-08014
91651-40612
