GX60-XTPFE (1980)
Toyota Mark 2

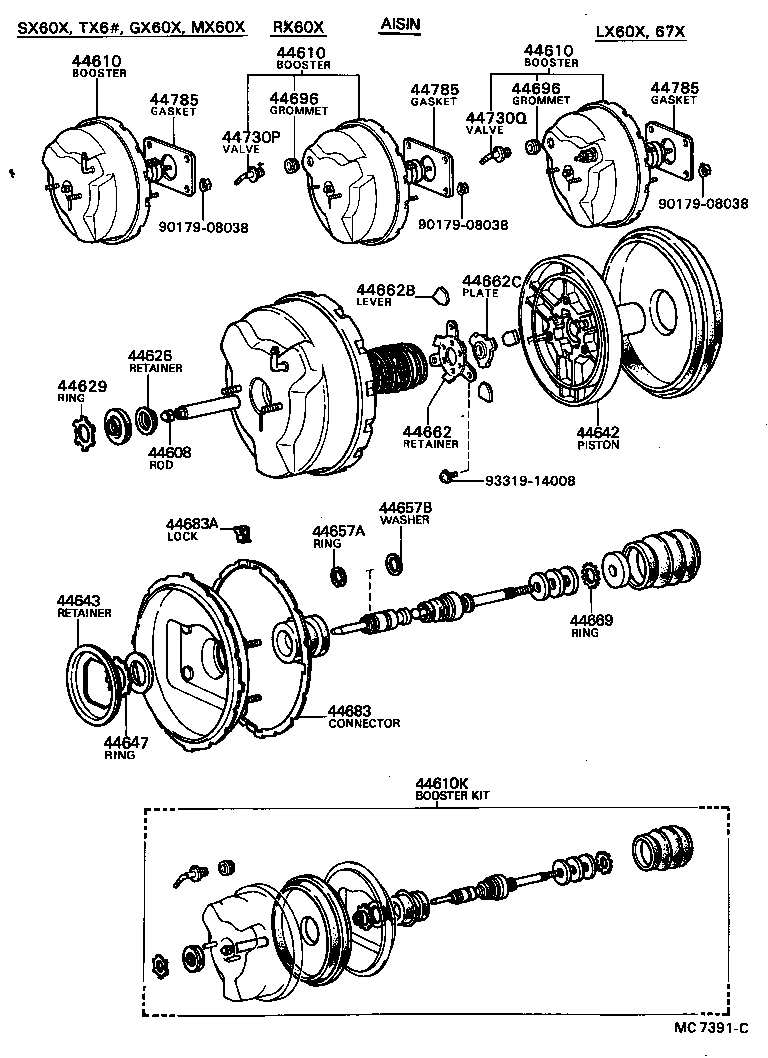

ILLUST NO. 1 OF 2(8009- )GX60,LX60,67,MX60,RX60,SX60,TX6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-35100 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
GX60,MX60,SX60,TX6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
GX60,MX60,SX60,TX6# |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-22330 |
GX60,MX60,SX60,TX6# |
1 | ||
| 44610K - BOOSTER KIT, BRAKE | ||||
| 04443-22230 |
GX60,MX60,TX6# |
1 | ||
| 44626 - RETAINER, BOOSTER ROD CUP | ||||
| 44626-60010 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-60010 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-14170 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44643 - RETAINER, DIAPHRAGM | ||||
| 44643-60010 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44647 - RING, CIRCULAR INTERNAL(FOR BOOSTER BODY SEAL STOPPER) | ||||
| 44629-30090 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44657A - RING, SNAP(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 96150-01600 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44657B - WASHER, PLATE(FOR BOOSTER AIR VALVE STOPPER) | ||||
| 44645-20100 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44662 - RETAINER, REACTION, NO.1 | ||||
| 44662-35100 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44662B - LEVER, REACTION | ||||
| 44661-35100 |
GX60,LX6#,MX60,RX60,TX6# |
3 | ||
| 44662C - PLATE, REACTION, NO.1 | ||||
| 44607-22330 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44669 - RING, CIRCULAR INTERNAL(FOR AIR CLEANER ELEMENT STOPPER | ||||
| 44669-60010 |
GX60,LX6#,MX60,RX60,TX6# |
1 | ||
| 44683 - CONNECTOR, BOOSTER BODY | ||||
| 44682-20150 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44683A - LOCK, CONNECTOR | ||||
| 44683-20100 |
GX60,LX60,67,MX60,RX60,SX60,TX6# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20010 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-30020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 93319-14008 | ||||

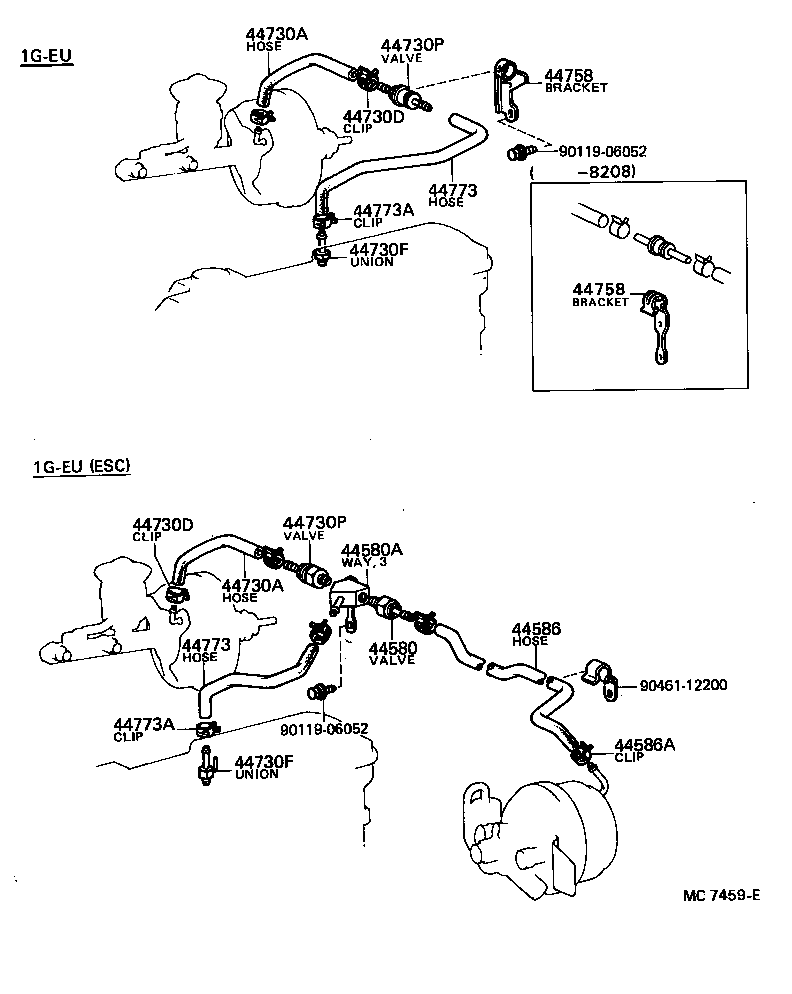

ILLUST NO. 2 OF 2(8009- )GX6#..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44776-22020 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730A - HOSE, VACUUM, NO.1 | ||||
| 44776-22020 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 44730D - CLIP(FOR VACUUM HOSE, NO.1) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51275 |
GX6#..HT,SED W/AUTO AIRCON & AUTO DRIVE |
1 | ||
| 90404-51237 |
GX6#,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51275 |
GX6#..HT,SED W/AUTO AIRCON & AUTO DRIVE |
1 | ||
| 90404-51237 |
GX6#,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20010 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-20010 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22090 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-22090 |
GX6#,MX60,63,RX63,TX6# |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-22220 |
GX6#..EFI |
1 | ||
| 44773 - HOSE, VACUUM, NO.2 | ||||
| 44773-22220 |
GX6#..EFI |
1 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX63,SX60,TX6# |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90467-16002 |
GX6#,LX6#,MX6#,RX63,SX60,TX6# |
2 | ||
| Common parts | ||||
| 90119-06052 | ||||
| 90461-12200 | ||||
