GX60-XTMFE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

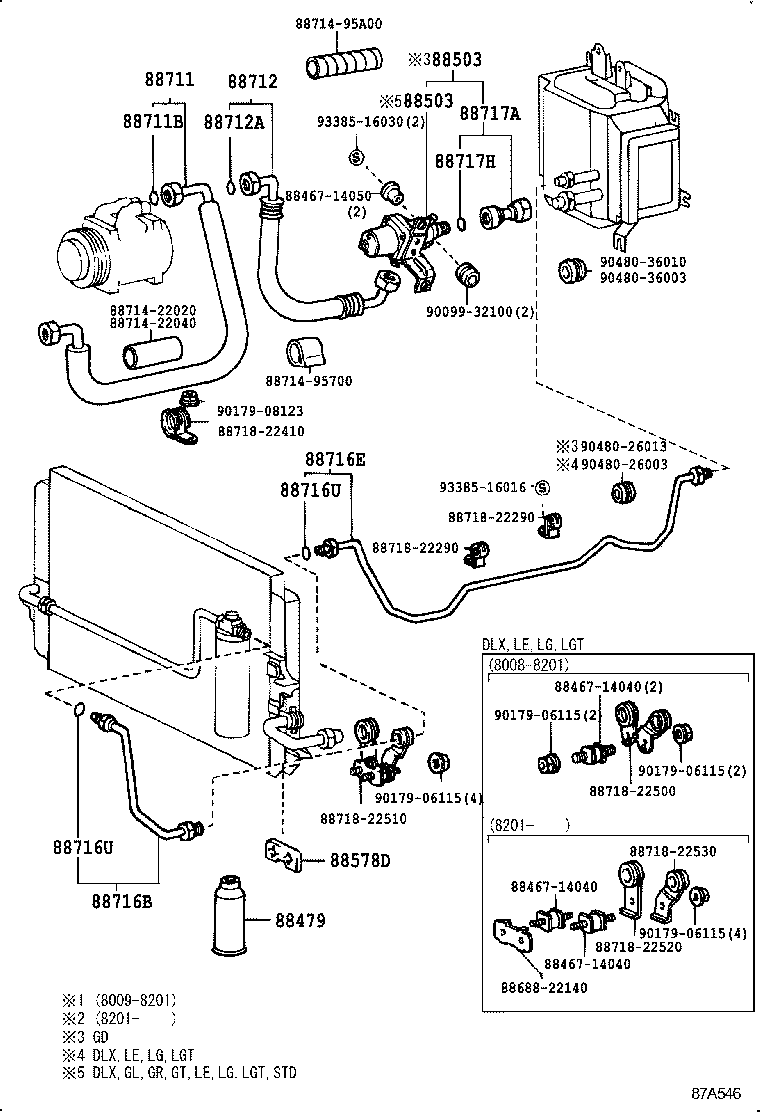

ILLUST NO. 2 OF 2(8009- )GX6#,MX6#

Click highlighted areas on diagram

diagram 8846714040 8846714040 8846714040 8846714050 88479 88503 88503 88578D 8868822140 88711 88711B 88712 88712A 8871422020 8871422040 8871495700 8871495A00 88716B 88716E 88716U 88716U 88717A 88717H 8871822290 8871822290 8871822410 8871822500 8871822510 8871822520 8871822530 9009932100 9017906115 9017906115 9017906115 9017906115 9017908123 9048026003 9048026013 9048036003 9048036010 9338516016 9338516030
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22080

GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD

 1
88503 - REGULATOR ASSY, PRESSURE
88503-22080

GX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22180

GX6#,MX60,61..DLX,LE,LG,LGT

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22220

GX6#

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14045

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22340

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22310

GX6#,MX61,63,RX6#,TX6#

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 5
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22170

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14045

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
Common parts
88467-14040
88467-14050
88688-22140
88714-22020
88714-22040
88714-95700
88714-95A00
88718-22290
88718-22410
88718-22500
88718-22510
88718-22520
88718-22530
90099-32100
90179-06115
90179-08123
90480-26003
90480-26013
90480-36003
90480-36010
93385-16016
93385-16030

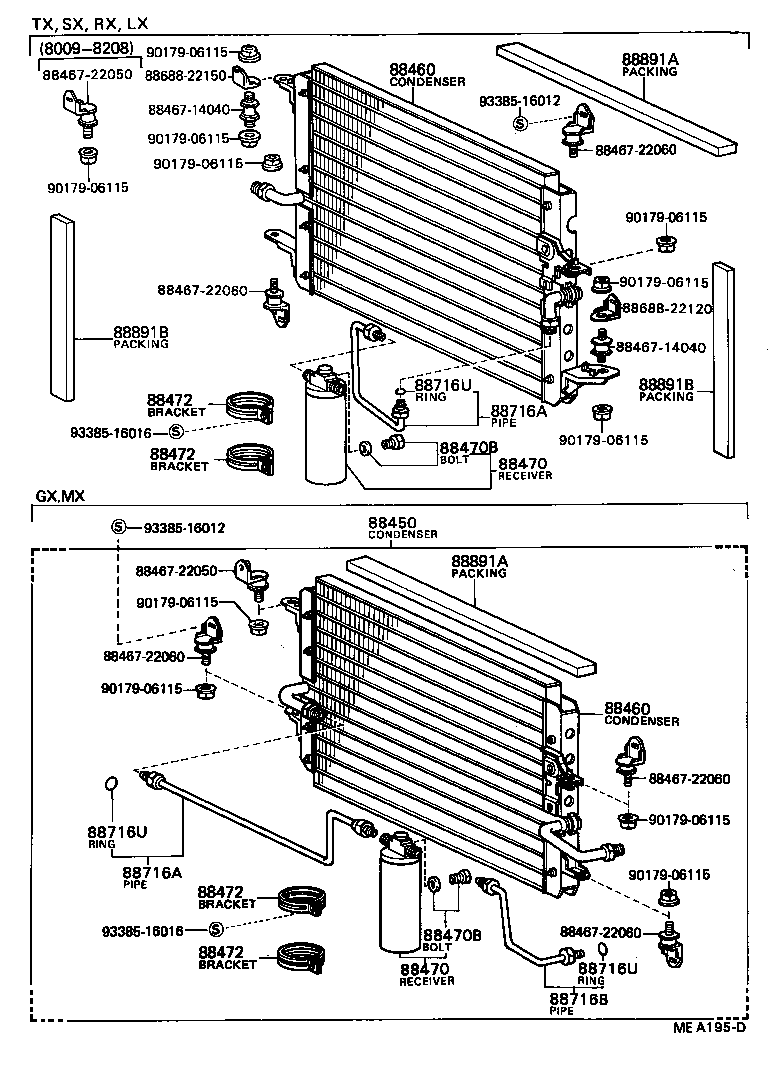

ILLUST NO. 1 OF 2(8009- )

Click highlighted areas on diagram

diagram 88450 88460 88460 8846714040 8846714040 8846722050 8846722050 8846722060 8846722060 8846722060 8846722060 8846722060 88470 88470 88470B 88472 88472 88472 88472 8868822120 8868822150 88716A 88716A 88716B 88716U 88716U 88716U 88891A 88891A 88891B 88891B 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9338516012 9338516012 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-22170

GX6#,MX6#

 1
88460 - CONDENSER ASSY, COOLER
88460-22170

GX6#,MX6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88470B - BOLT, FUSE
90099-04579

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22330

GX6#,MX60,61..DLX,LE,LG,LGT

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22330

GX6#,MX60,61..DLX,LE,LG,LGT

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22340

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX6#,LX6#,MX6#,RX6#,SX60,TX6#

 5
88891A - PACKING A (FOR COOLER)
88578-22100

GX6#,MX6#

 1
88891A - PACKING A (FOR COOLER)
88578-22100

GX6#,MX6#

 1
Common parts
88467-14040
88467-22050
88467-22060
88688-22120
88688-22150
90179-06115
93385-16012
93385-16016
