GX60-XTMFE (1980)
Toyota Mark 2

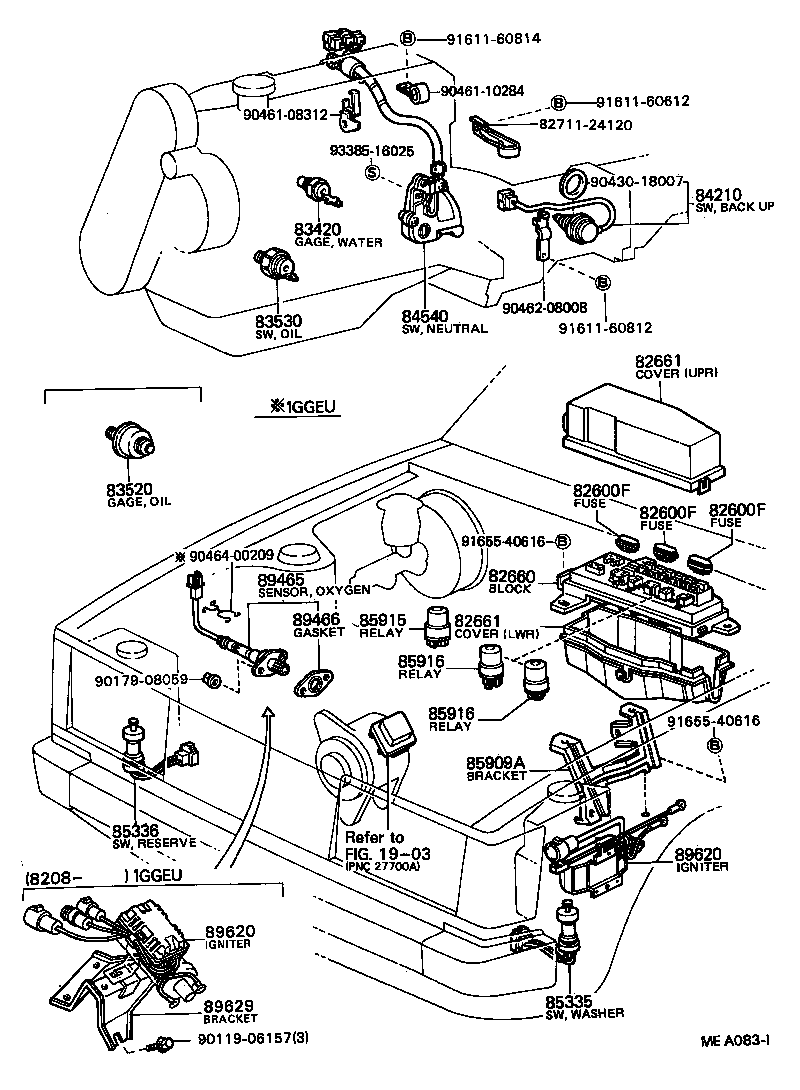

ILLUST NO. 1 OF 7(8009- )GX6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-22100 |
GX6#,LX65,MX61,63,RX63 YAZAKI |
1 | ||
| 82660-22091 |
GX6#,LX65,MX61,63,RX63 SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
GX6#,LX6#,MX6#,RX6#,TX6# UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,YAZAKI |
1 | ||
| 82661-22011 |
GX6#,LX6#,MX6#,RX6#,TX6# UPR,SUMITOMO |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-22040 |
GX6#,LX6#,MX6#,RX6#,TX6# UPR,YAZAKI |
1 | ||
| 82661-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,SUMITOMO |
1 | ||
| 82661-22060 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LWR,YAZAKI |
1 | ||
| 82661-22011 |
GX6#,LX6#,MX6#,RX6#,TX6# UPR,SUMITOMO |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# DENSO |
1 | ||
| 83420-20020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# YAZAKI |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30042 |
GX60,MX60..DLX,LE |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60010 |
GX6#,LX60,67,MX60,RX6#,SX60,TX6#..MTM |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 85909-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02004 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29026 |
GX6# |
1 | ||
| 89465-29025 |
GX6# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
GX6#,MX6#,RX6# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-22150 |
GX6# |
1 | ||
| 89620-22151 |
GX6# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-22150 |
GX6# |
1 | ||
| 89620-22151 |
GX6# |
1 | ||
| Common parts | ||||
| 82711-24120 | ||||
| 90119-06157 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-10284 | ||||
| 90462-08008 | ||||
| 90464-00209 | ||||
| 91611-60612 | ||||
| 91611-60812 | ||||
| 91611-60814 | ||||
| 91655-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 1903 | ||||
ILLUST NO. 2 OF 7(8009- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69025 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-22020 |
GX6#,MX61,63,RX6#..HT..(GD,GR,GT,LE,LG,LGT) |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-22031 |
GX6#,MX63,RX6#..GD,GR,GT,LE,LG,LGT |
1 | ||
| 84119-22032 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT |
1 | ||
| 84119A - BOLT OR NUT, RHEOSTAT CONTROL SET | ||||
| 90170-09167 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-29075 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60120 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/*TIS |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39095 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22140 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-22140 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-22080 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/TILT STEERING |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69025 |
GX6#,LX6#,MX6#,RX6#..3FC,4F,4FC,5F W/*TIS |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-22030 |
GX6#,MX61,63,RX6#,TX60..HT |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-14020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 14V 1.4W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22040 |
GX6#,MX61,63..HT W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 84732-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT) |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-22040 |
GX6#,MX61,63..HT W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 84732-22030 |
GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT) |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-22041 |
GX6#,MX61,63,RX6#,TX60..HT |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11024 |
GX6#,LX6#,MX6#,RX6#,TX6# 12V 1.4W,12V 1.4W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22020 |
GX6#,LX60,MX61,63,RX6#,TX6#..GD,GL,GR,GT,LE,LG,LGT |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-22090 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 99132-11034 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 12V 3.4W,12V 3.4W |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| Common parts | ||||
| 82711-14530 | ||||
| 82711-14550 | ||||
| 90164-50048 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 90463-15402 | ||||
| 90981-11014 | ||||
| 93315-14010 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| 93540-54012 | ||||
| 93566-55512 | ||||

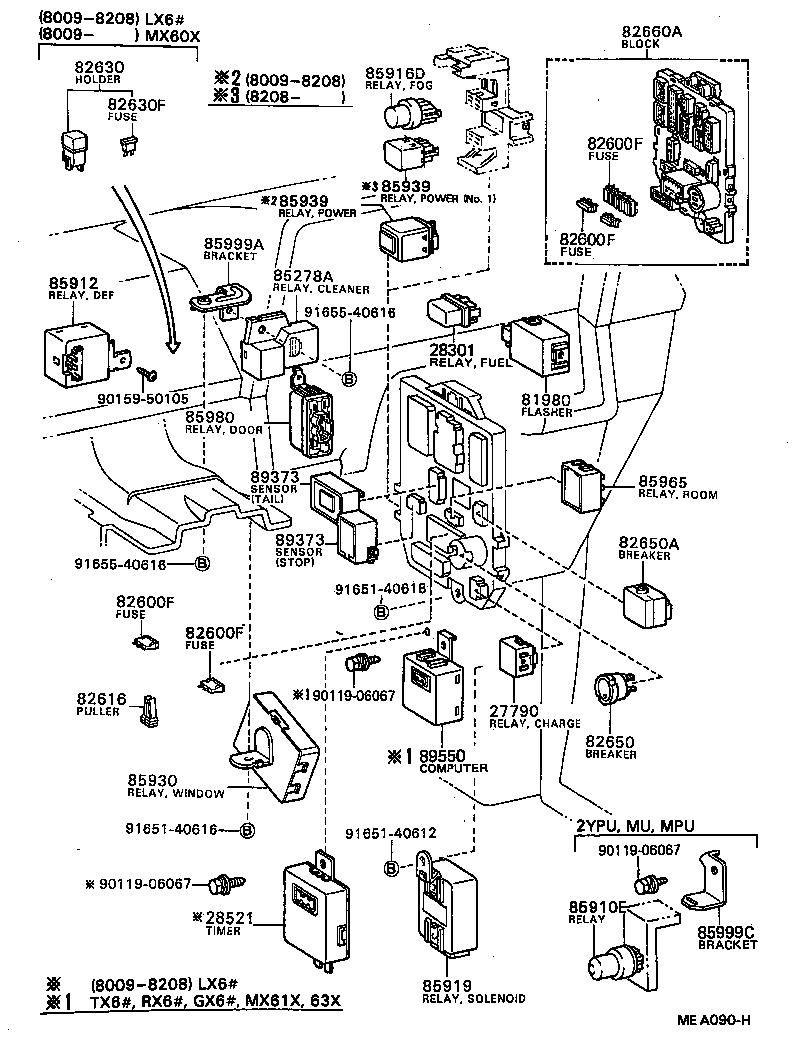

ILLUST NO. 3 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-45040 |
18RGEU,1GEU,5MEU,MTEU..GX6#,MX61,63,RX63 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22060 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20A,黄,20A |
2 | ||
| 90982-09005 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 7.5A,7.5A |
6 | ||
| 90982-09003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 15A,15A |
11 | ||
| 90982-09001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 5A,5A |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20010 |
GX6#,LX6#,MX6#,RX6#,TX6# DEFOGGER |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-22050 |
GX6#,LX6#,MX6#,RX63 |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-22021 |
GX6#,MX61,63,RX6#..GD,GR,GT,LE,LG,LGT |
1 | ||
| 85965-22020 |
GX6#,MX63,RX6#..GD,GR,GT,LE,LG,LGT |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22020 |
GX6#,LX60,MX6#,RX6#,TX60..HT,SED TAIL LAMP |
1 | ||
| 89373-22010 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED STOP LAMP |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-22020 |
GX6#,LX60,MX6#,RX6#,TX60..HT,SED TAIL LAMP |
1 | ||
| 89373-22010 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED STOP LAMP |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22260 |
GX6#,MX61,63 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-50105 | ||||
| 91651-40612 | ||||
| 91651-40616 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||

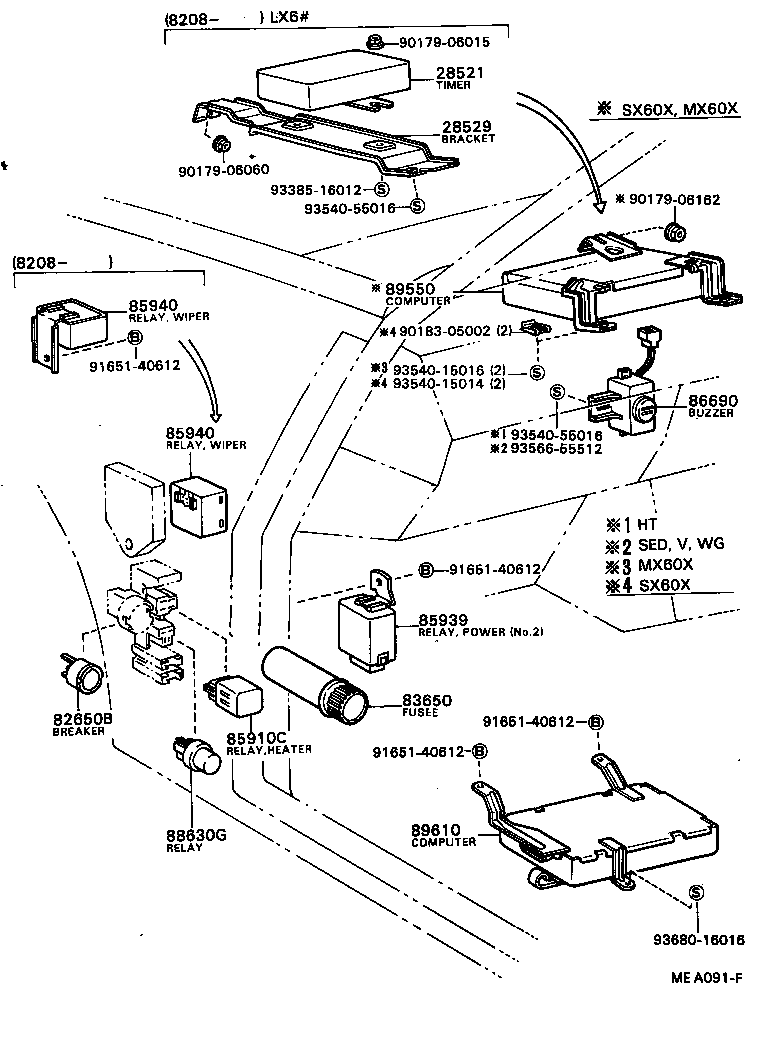

ILLUST NO. 4 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82650B - BREAKER ASSY, WIRING CIRCUIT, NO.3 | ||||
| 82650-20010 |
GX6#,LX6#,MX6#,RX6#,TX6# *HEA OR COOLER |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-22060 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 86690 - BUZZER ASSY, SPEED INDICATOR | ||||
| 86650-22080 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX6# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-22260 |
GX6#,MX61,63 |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06060 | ||||
| 90179-06162 | ||||
| 90183-05002 | ||||
| 91651-40612 | ||||
| 93385-16012 | ||||
| 93540-15014 | ||||
| 93540-15016 | ||||
| 93540-55016 | ||||
| 93566-55512 | ||||
| 93680-16016 | ||||

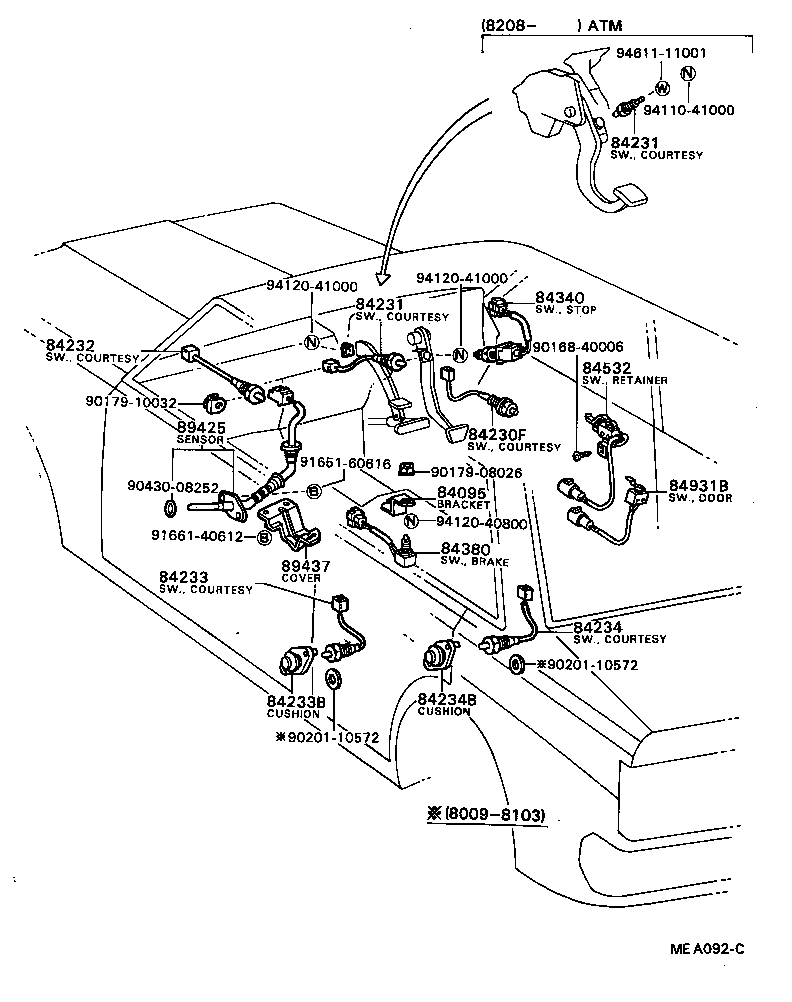

ILLUST NO. 5 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84095 - BRACKET SUB-ASSY, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-22030 |
GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F |
1 | ||
| 84232 - SWITCH ASSY, COURTESY LAMP (FOR GLOVE BOX) | ||||
| 84242-24010 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 84242-20010 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22050 |
GX6#,LX6#,MX6#,RX6#,TX6# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22050 |
GX6#,LX6#,MX6#,RX6#,TX6# |
2 | ||
| 84234B - CUSHION, COURTESY SWITCH (FOR REAR DOOR) | ||||
| 84234-22010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22071 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 84340-22060 |
GX6#,LX6#,MX6#,RX6#,TX6# MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-29145 |
GX6#,MX60,63 |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-22051 |
GX6#..EFI |
1 | ||
| Common parts | ||||
| 90168-40006 | ||||
| 90179-08026 | ||||
| 90179-10032 | ||||
| 90201-10572 | ||||
| 90430-08252 | ||||
| 91651-60616 | ||||
| 91661-40612 | ||||
| 94110-41000 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
| 94611-11001 | ||||

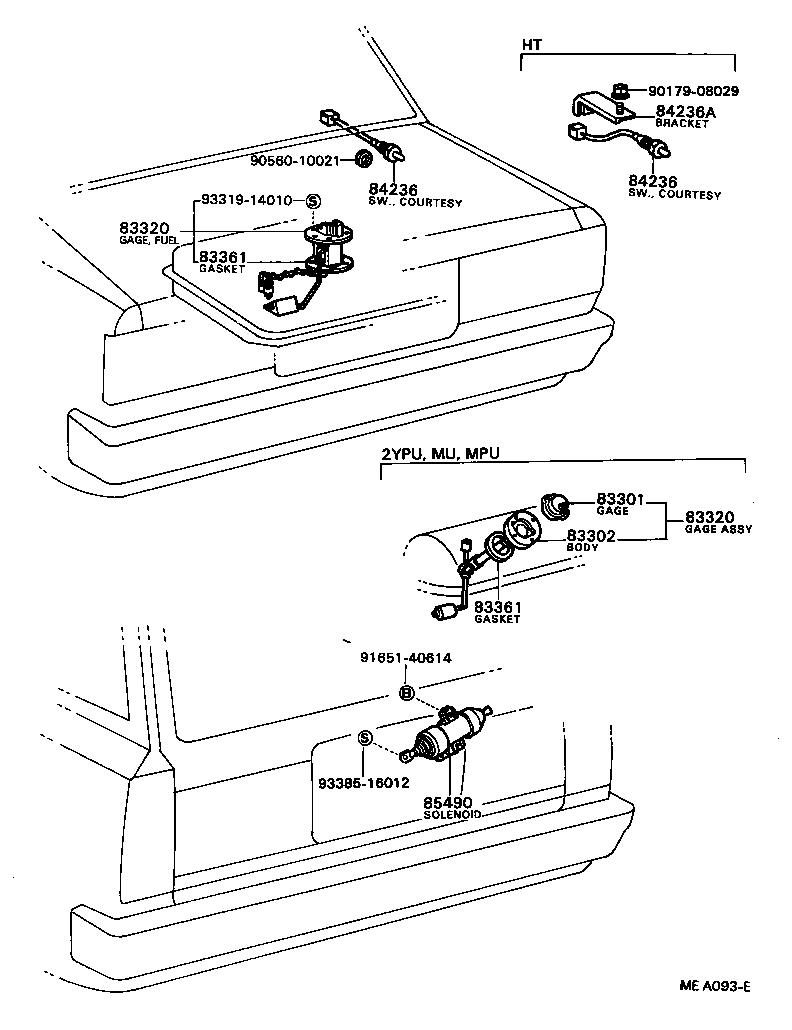

ILLUST NO. 7 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29425 |
GX6#,LX60,MX63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83320-29427 |
GX6#,MX61,63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83320-29425 |
GX6#,MX63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-29425 |
GX6#,LX60,MX63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83320-29427 |
GX6#,MX61,63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83320-29425 |
GX6#,MX63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GX6#,LX6#,MX61,63,RX6#,TX6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
GX6#,LX6#,MX61,63,RX6#,TX6# |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
GX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 84236 - SWITCH ASSY, COURTESY LAMP(FOR LUGGAGE COMPARTMENT ROOM | ||||
| 84230-22040 |
GX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 84236A - BRACKET, COURTESY SWITCH(FOR LUGGAGE COMPARTMENT ROOM) | ||||
| 84233-95800 |
GX6#,MX61,63,RX6#,TX60..HT |
1 | ||
| Common parts | ||||
| 90179-08029 | ||||
| 90560-10021 | ||||
| 91651-40614 | ||||
| 93319-14010 | ||||
| 93385-16012 | ||||

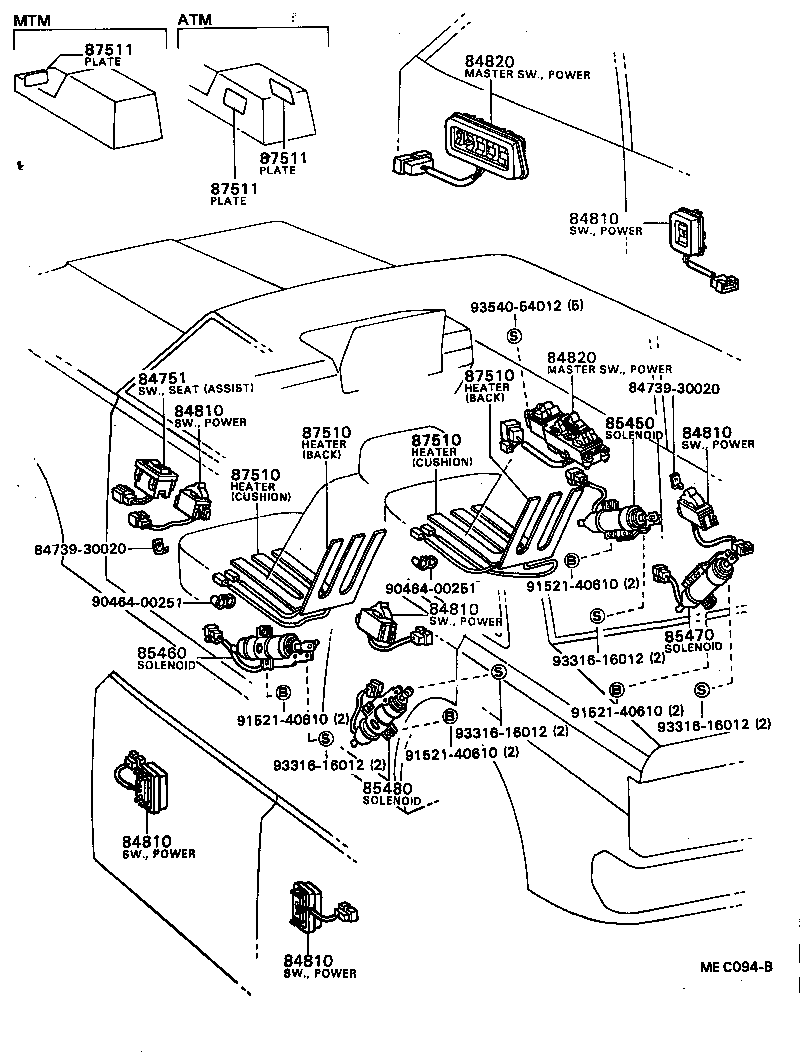

ILLUST NO. 6 OF 7(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 84739-30020 | ||||
| 90464-00251 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93540-54012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
