GX60-XTMFE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

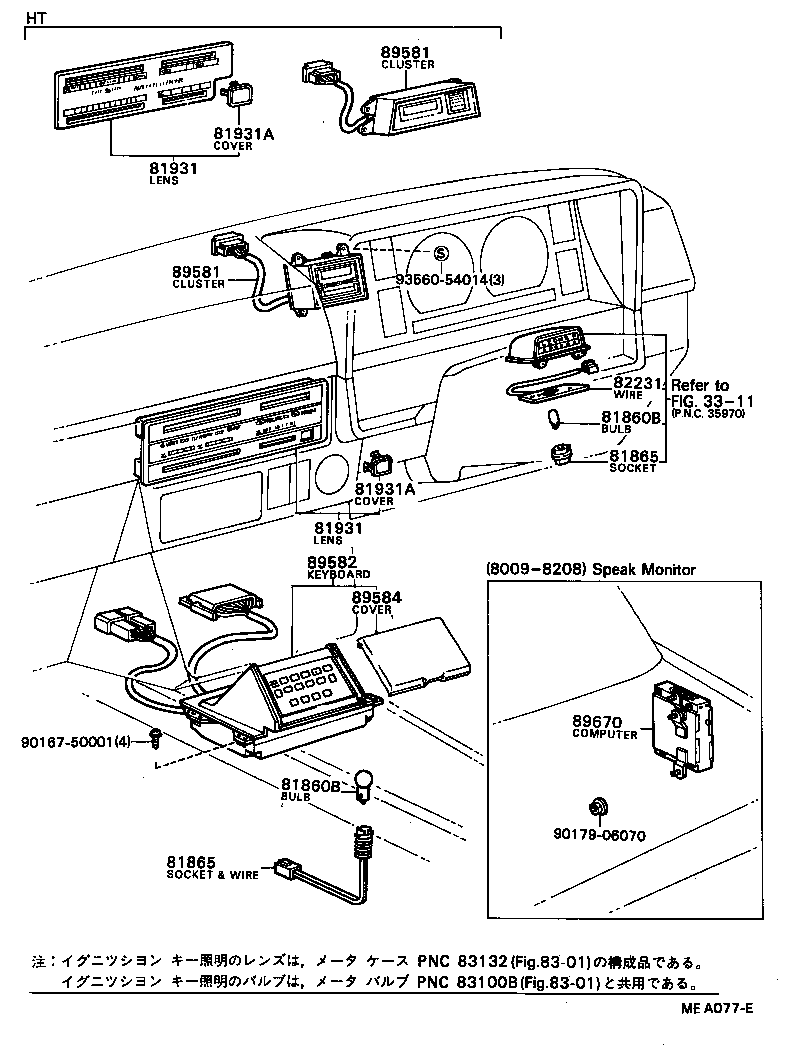

Click highlighted areas on diagram

diagram 3311 81860B 81860B 81865 81865 81931 81931 81931A 81931A 82231 89581 89581 89582 89584 89670 9016750001 9017906070 9356054014
Part # Description Qty Price
81931 - LENS, HEATER CONTROL INDICATOR
81940-22010

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
81940-22020

GX6#,MX61,63..HT

W/AUTOMATIC AIR CONDITIONER

 1
81931 - LENS, HEATER CONTROL INDICATOR
81940-22010

GX6#,MX61,RX6#,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
81940-22020

GX6#,MX61,63..HT

W/AUTOMATIC AIR CONDITIONER

 1
81931A - COVER, COOLER SWITCH HOLE
55538-22020

GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
81931A - COVER, COOLER SWITCH HOLE
55538-22020

GX6#,MX61,RX6#,SX60,TX60..HT..(GL,GR,GT,LE,LG,LGT)

 1
Common parts
90167-50001
90179-06070
93560-54014
Linked diagrams
3311
