GX60-XTMFE (1980)
Toyota Mark 2
ILLUST NO. 1 OF 2(8009- )GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE | ||||
| 77023-30010 |
GX6#,MX61,63,RX63 |
1 | ||
| 77031 - CAP ASSY, FUEL TANK | ||||
| 77310-12090 |
GX6#,LX6#,MX63,RX6#,TX6# |
1 | ||
| 77310-12100 |
GX6#,LX6#,MX61,63,RX6#,TX6# |
1 | ||
| 77031B - GASKET (FOR FUEL TANK CAP) | ||||
| 77316-12050 |
GX6#,LX6#,MX61,63,RX6#,SX60,TX6# |
1 | ||
| 77033 - LOCK SUB-ASSY, FUEL TANK CAP | ||||
| 77037-12010 |
GX6#,LX6#,MX61,63,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-29015 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-24036 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77100D - HOSE, FUEL, NO.1(FOR FUEL TANK) | ||||
| 90445-22003 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22100 |
GX6#,LX60,MX61,63,RX6#,TX60..HT,SED |
1 | ||
| 77206 - TUBE SUB-ASSY, FUEL TANK SUCTION | ||||
| 77017-22070 |
GX6#,MX63..HT,SED |
1 | ||
| 77206G - GASKET (FOR FUEL TANK SUCTION TUBE) | ||||
| 77169-14020 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77213 - HOSE, FUEL TANK SUB INLET | ||||
| 77213-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77231 - PROTECTOR, INLET TUBE | ||||
| 77277-22020 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77292-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED UPR |
1 | ||
| 77291-22010 |
GX6#,LX60,MX61,63,RX6#,TX60..HT,SED LWR |
1 | ||
| 77295 - SHIELD, FUEL FILLER PIPE | ||||
| 77292-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED UPR |
1 | ||
| 77291-22010 |
GX6#,LX60,MX61,63,RX6#,TX60..HT,SED LWR |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77051-2201005 |
GX6#,MX61,63,RX6#,TX60..HT GREIGE,BEIGE,TRIM4# |
1 | ||
| 77051-2201001 |
GX6#,LX6#,MX61,63,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT BLACK,BLACK,TRIM2# |
1 | ||
| 77051-2201004 |
GX6#,LX6#,MX61,63,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT BLUE,BLUE,TRIM8# |
1 | ||
| 77308 - COVER SUB-ASSY, FUEL INLET BOX | ||||
| 77350-22030 |
GX6#,LX60,MX61,63,RX6#,TX60..HT,SED |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 90541-08003 |
GX6#,LX6#,MX6#,RX6#,TX6# OD=12 |
2 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-12010 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 77387 - RING, FUEL INLET BOX | ||||
| 77391-16010 |
GX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77641-22030 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED FR,RH |
1 | ||
| 77603-22030 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED RR |
2 | ||
| 77602-22030 |
GX60,LX60,MX60,RX60,SX60,TX60..HT,SED FR,LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED FR,RH |
1 | ||
| 77603-22030 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED RR |
2 | ||
| 77602-22030 |
GX60,LX60,MX60,RX60,SX60,TX60..HT,SED FR,LH |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-22050 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED FR,RH |
1 | ||
| 77603-22030 |
GX6#,LX60,65,MX61,63,RX6#,SX60,TX60..HT,SED RR |
2 | ||
| 77602-22030 |
GX60,LX60,MX60,RX60,SX60,TX60..HT,SED FR,LH |
1 | ||
| Common parts | ||||
| 90119-10086 | ||||
| 90159-50021 | ||||
| 90179-06085 | ||||
| 90179-10033 | ||||
| 90179-10037 | ||||
| 90183-05103 | ||||
| 90201-10038 | ||||
| 90460-24002 | ||||
| 90460-63001 | ||||
| 91661-40616 | ||||
| 91661-60818 | ||||
| 93319-14010 | ||||
| 93385-16010 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

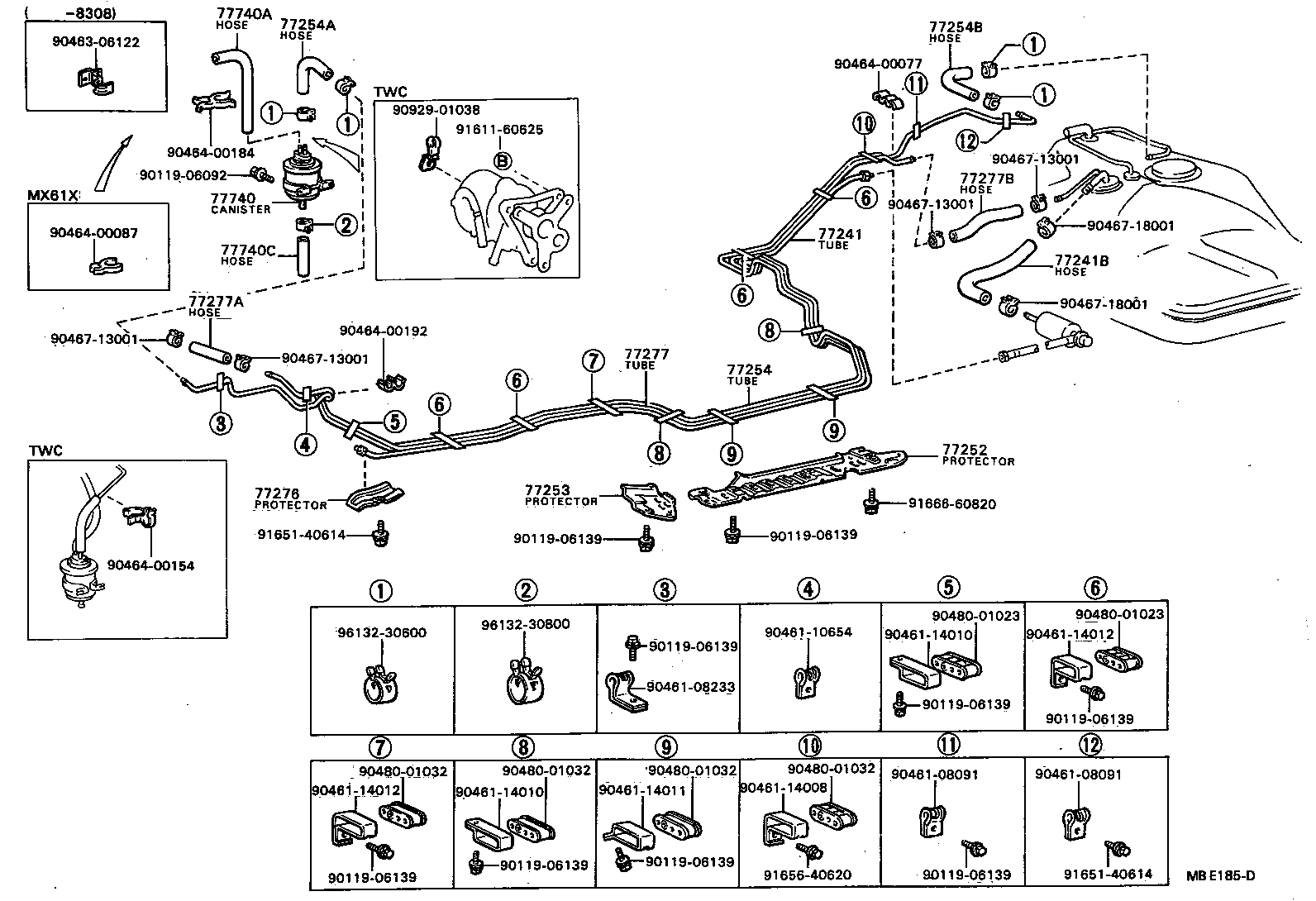

ILLUST NO. 2 OF 2(8009- )GX6#,MX61,63..HT,SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77241 - TUBE, FUEL MAIN, NO.1 | ||||
| 77251-22210 |
GX6#,MX61,63..HT,SED |
1 | ||
| 77241B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.1) | ||||
| 77259-22030 |
GX6#,MX61,63,RX63..HT,SED |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 77266-22020 |
GX6#,LX6#,MX6#,SX60 |
1 | ||
| 77253 - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-22010 |
GX6#,LX6#,MX6#,SX60 |
1 | ||
| 77254 - TUBE, FUEL EMISSION, NO.1 | ||||
| 77261-22050 |
GX6#,MX61,63..HT,SED |
1 | ||
| 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06030 |
GX6#,MX61,63,RX6#,TX60 *H,L=240 |
1 | ||
| 77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1) | ||||
| 95332-06020 |
GX6#,LX60,65,MX61,63,SX60..HT,SED *H,L=170 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-22010 |
GX6#,MX61,63 |
1 | ||
| 77277 - TUBE, FUEL RETURN, NO.1 | ||||
| 77255-22110 |
GX6#,MX61,63..HT,SED |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 95335-08030 |
GX6# ι·γ=300 |
1 | ||
| 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) | ||||
| 95335-08022 |
GX6#,MX61,63..HT,SED L=220 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-22170 |
GX6#,MX61,63,RX6#,TX6# |
1 | ||
| 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) | ||||
| 90445-08201 |
GX6#..EFI L=1000 |
1 | ||
| 77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER) | ||||
| 95332-08020 |
GX6#,MX61,63,RX6#,TX6# *H,L=130,ε εΎ=7.6 |
1 | ||
| Common parts | ||||
| 90119-06092 | ||||
| 90119-06139 | ||||
| 90461-08091 | ||||
| 90461-08233 | ||||
| 90461-10654 | ||||
| 90461-14008 | ||||
| 90461-14010 | ||||
| 90461-14011 | ||||
| 90461-14012 | ||||
| 90463-06122 | ||||
| 90464-00077 | ||||
| 90464-00087 | ||||
| 90464-00154 | ||||
| 90464-00184 | ||||
| 90464-00192 | ||||
| 90467-13001 | ||||
| 90467-18001 | ||||
| 90480-01023 | ||||
| 90480-01032 | ||||
| 90929-01038 | ||||
| 91611-60625 | ||||
| 91651-40614 | ||||
| 91656-40620 | ||||
| 91666-60820 | ||||
| 96132-30600 | ||||
| 96132-30800 | ||||
