GX60-XTMFE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208) ; (8208- )MTM

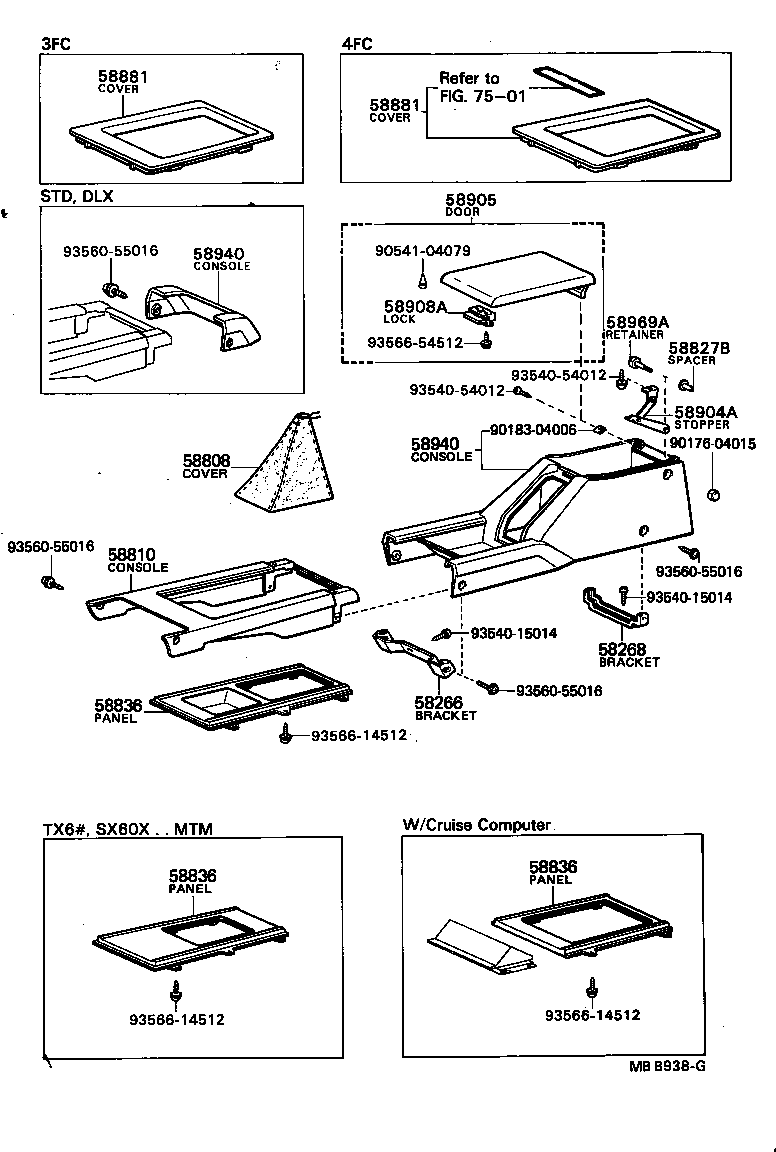

Click highlighted areas on diagram

diagram 58266 58268 58808 58810 58827B 58836 58836 58836 58881 58881 58904A 58905 58908A 58940 58940 58969A 7501 9017604015 9018304006 9054104079 9354015014 9354015014 9354054012 9354054012 9356055016 9356055016 9356055016 9356055016 9356614512 9356614512 9356614512 9356654512
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58996-22010

GX6#,LX6#,MX6#,RX6#,SX60,TX6#..3FC,4F,4FC,5F

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58853-22020

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-2206004

GX6#,LX6#,MX60,RX6#,TX6#..MTM..(DLX,GD,GL,GR,GT,LE,LG,LGT)

BLUE,BLUE,TRIM8#

 1
58808-2206001

GX6#,LX6#,MX60,RX6#,TX6#..MTM

BLACK,BLACK,TRIM2#

 1
58808-2206006

GX6#,LX60,67,MX60,RX60,SX60,TX6#..MTM..(DLX,GD,GL,GR,LE,LG,LGT)

D-BROWN,BROWN,TRIM4#

 1
58810 - CONSOLE ASSY
58811-2212001

GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F

BLACK,BLACK,TRIM2#

 1
58811-2212005

GX6#,MX61,63,RX6#,TX60..HT

GREIGE,BEIGE,TRIM4#

 1
58811-2212004

GX6#,LX6#,MX6#,RX6#,TX6#..(3FC,4F,4FC,5F)..(DLX,GD,GL,GR,GT,LE,LG,LGT)

BLUE,BLUE,TRIM8#

 1
58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER
58967-22010

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

 1
58836 - PANEL, CONSOLE, UPPER FRONT
58821-22010

GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F

 1
58836 - PANEL, CONSOLE, UPPER FRONT
58821-22010

GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F

 1
58836 - PANEL, CONSOLE, UPPER FRONT
58821-22010

GX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F

 1
58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR
58904-22020

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-2202004

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLUE,BLUE,TRIM8#

 1
58905-2202001

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLACK,BLACK,TRIM2#

 1
58905-2202005

GX6#,MX61,63,RX6#,TX60..HT

GREIGE,BEIGE,TRIM4#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-22010

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

 1
58940 - CONSOLE ASSY, REAR
58901-2202005

GX6#,MX61,63,RX6#,TX60..HT

GREIGE,BEIGE,TRIM4#

 1
58901-2202004

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLUE,BLUE,TRIM8#

 1
58901-2202001

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLACK,BLACK,TRIM2#

 1
58940 - CONSOLE ASSY, REAR
58901-2202005

GX6#,MX61,63,RX6#,TX60..HT

GREIGE,BEIGE,TRIM4#

 1
58901-2202004

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLUE,BLUE,TRIM8#

 1
58901-2202001

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

BLACK,BLACK,TRIM2#

 1
58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER
58969-20010

GX6#,LX60,MX61,63,RX6#,TX6#..(3FC,4F,4FC,5F)..(GD,GL,GR,GT,LE,LG,LGT)

 1
Common parts
90176-04015
90183-04006
90541-04079
93540-15014
93540-54012
93560-55016
93566-14512
93566-54512
Linked diagrams
7501
