Toyota Mark 2 GX60 STARTER - JDM Part Detective

GX60-XESME (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982

Engine 1GEU

Transmission 4HC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(8009- )1G#

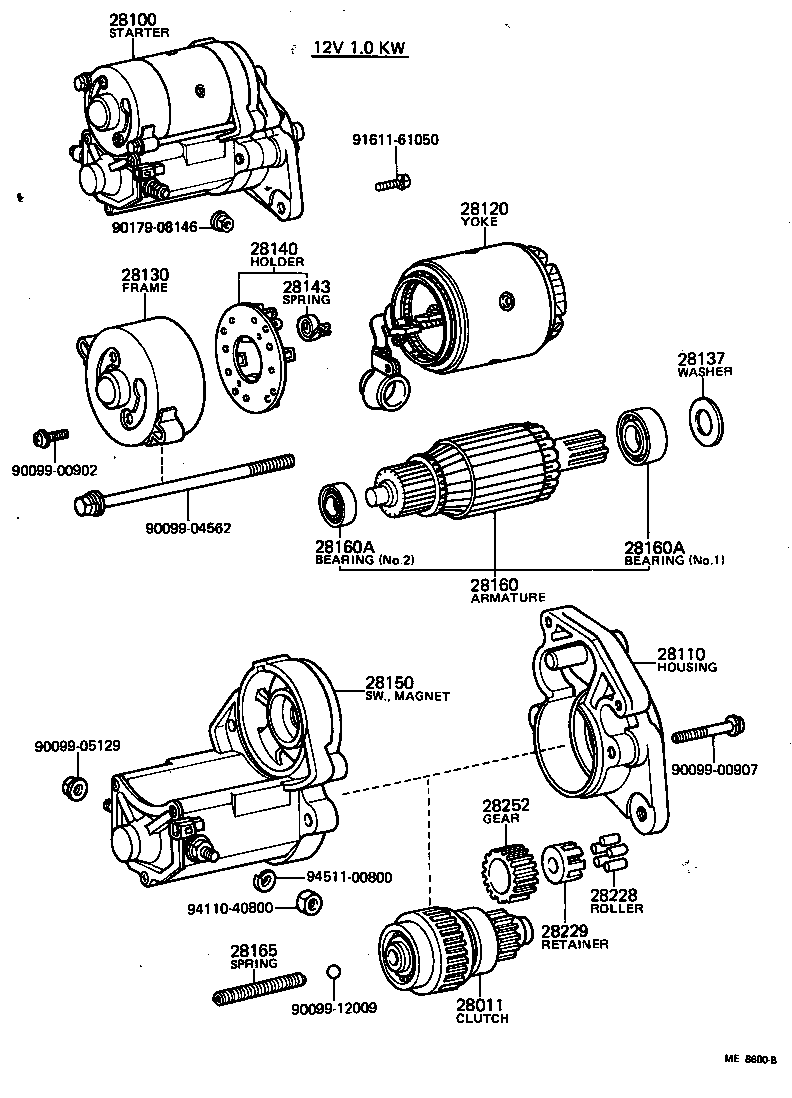

Click highlighted areas on diagram

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28100 - STARTER ASSY
28100-15040	1G#..GX6# 12V 1.0KW,12V 1.0KW	09/1980 - 07/1984	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-15040	1G#..GX6# 12V 1.0KW	09/1980 - 07/1984	1
28120 - YOKE ASSY, STARTER
28120-26070	13T#,1GEU..GX6#,TX6# 12V 1.0KW	09/1980 - 03/1982	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-15040	1G#..GX6# 12V 1.0KW	09/1980 - 07/1984	1
28137 - WASHER, FELT, STARTER
90099-02323	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28143 - SPRING, STARTER BRUSH
90099-17112	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	4
28150 - SWITCH ASSY, MAGNET STARTER
28150-15040	1GEU..GX6# 12V 1.0KW	09/1980 - 10/1981	1
28160 - ARMATURE ASSY, STARTER
28160-26070	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28160A - BEARING, STARTER ARMATURE
28253-45020	13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2	09/1980 - 08/1983	1
90099-10113	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW,NO.1	09/1980 - 07/1984	1
28160A - BEARING, STARTER ARMATURE
28253-45020	13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2	09/1980 - 08/1983	1
90099-10113	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW,NO.1	09/1980 - 07/1984	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	1
28252 - GEAR, STARTER IDLE
28254-45020	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90179-08146
91611-61050
94110-40800
94511-00800

(8009- )L,2LTE

Click highlighted areas on diagram

Part #	Description	Period	Qty
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28100 - STARTER ASSY
28100-15040	1G#..GX6# 12V 1.0KW,12V 1.0KW	09/1980 - 07/1984	1
28110 - HOUSING ASSY, STARTER DRIVE
28110-15040	1G#..GX6# 12V 1.0KW	09/1980 - 07/1984	1
28120 - YOKE ASSY, STARTER
28120-26070	13T#,1GEU..GX6#,TX6# 12V 1.0KW	09/1980 - 03/1982	1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-15040	1G#..GX6# 12V 1.0KW	09/1980 - 07/1984	1
28137 - WASHER, FELT, STARTER
90099-02323	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28140 - HOLDER ASSY, STARTER BRUSH
28140-26070	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28150 - SWITCH ASSY, MAGNET STARTER
28150-15040	1GEU..GX6# 12V 1.0KW	09/1980 - 10/1981	1
28160 - ARMATURE ASSY, STARTER
28160-26070	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
28160A - BEARING, STARTER ARMATURE
28253-45020	13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2	09/1980 - 08/1983	1
90099-10113	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW,NO.1	09/1980 - 07/1984	1
28160A - BEARING, STARTER ARMATURE
28253-45020	13T#,1G#,5MEU,1SU,MTEU,MU..GX6#,MX6#,SX60,TX6# 12V 1.0KW,1.4KW NO.2	09/1980 - 08/1983	1
90099-10113	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW,NO.1	09/1980 - 07/1984	1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040	L..LX60..5F;L,13T#,1G#,1SU..GX6#,LX67,SX60,TX6# 12V 1.0KW,2.0KW	09/1980 - 07/1984	1
28252 - GEAR, STARTER IDLE
28254-45020	13T#,1G#,1SU..GX6#,SX60,TX6# 12V 1.0KW	09/1980 - 07/1984	1
Common parts
90092-21001
90099-00138
90099-01436
90099-02325
90099-04297
90099-12009
90119-12018
90179-08026
93219-15008
93319-15008
94115-51200
94511-00500
94511-00600
94511-01000
94612-10800
