GX60-XEPME (1980)
Toyota Mark 2
(8009- )

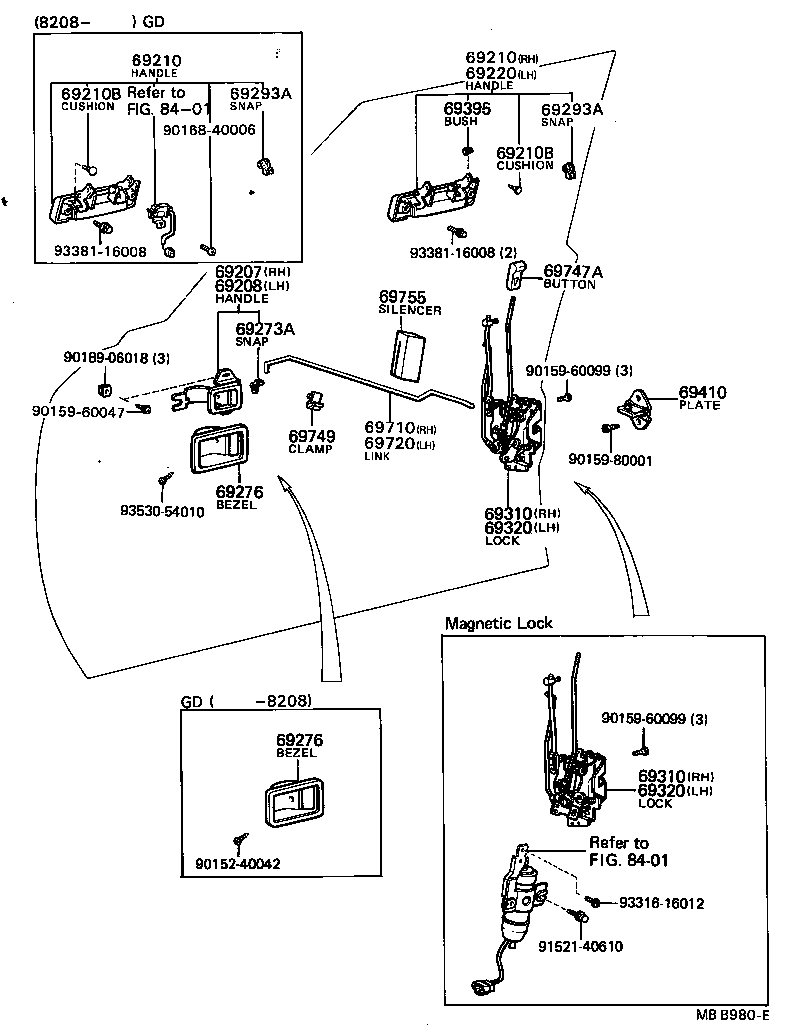

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-30010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-30010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22050 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 69210-22040 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-22050 |
GX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG |
1 | ||
| 69210-22040 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
4 | ||
| 69210B - CUSHION(FOR FRONT DOOR OUTSIDE HANDLE) | ||||
| 90541-03021 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
4 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69220-22040 |
GX6#,LX6#,MX6#,RX6#,TX6# |
1 | ||
| 69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR) | ||||
| 69279-12020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# RH |
2 | ||
| 69288-12010 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# LH |
2 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-1604001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD BLACK,BLACK,TRIM2# |
2 | ||
| 69277-1604006 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
2 | ||
| 69277-1604004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT BLUE,BLUE,TRIM8# |
2 | ||
| 69276 - BEZEL, FRONT DOOR INSIDE HANDLE | ||||
| 69277-1604001 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD BLACK,BLACK,TRIM2# |
2 | ||
| 69277-1604006 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
2 | ||
| 69277-1604004 |
GX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT BLUE,BLUE,TRIM8# |
2 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-22110 |
GX6#,MX61,63..SED..(GD,LG) MAGNET LOCK |
1 | ||
| 69310 - LOCK ASSY, FRONT DOOR, RH | ||||
| 69310-22110 |
GX6#,MX61,63..SED..(GD,LG) MAGNET LOCK |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-22100 |
GX6#,MX61,63..SED..(GD,LG) MAGNET LOCK |
1 | ||
| 69320 - LOCK ASSY, FRONT DOOR, LH | ||||
| 69320-22100 |
GX6#,MX61,63..SED..(GD,LG) MAGNET LOCK |
1 | ||
| 69395 - BUSH(FOR DOOR OUTSIDE HANDLE) | ||||
| 69395-20020 |
GX6#,LX6#,MX6#,RX6#,TX6# |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# |
2 | ||
| 69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH | ||||
| 69711-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH | ||||
| 69712-22030 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG |
1 | ||
| 69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR) | ||||
| 69741-3002004 |
GX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT BLUE,BLUE,TRIM8# |
2 | ||
| 69741-3002001 |
GX6#,LX6#,MX6#,RX6#,TX6# BLACK,BLACK,TRIM2# |
2 | ||
| 69741-3002006 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT D-BROWN,BROWN,TRIM4# |
2 | ||
| 69749 - CLAMP, FRONT DOOR LOCK LINK | ||||
| 69749-12010 |
GX6#,LX60,67,MX6#,RX6#,TX6# |
2 | ||
| Common parts | ||||
| 90152-40042 | ||||
| 90159-60047 | ||||
| 90159-60099 | ||||
| 90159-80001 | ||||
| 90168-40006 | ||||
| 90189-06018 | ||||
| 91521-40610 | ||||
| 93316-16012 | ||||
| 93381-16008 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 8401 | ||||
