GX60-XEPME (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)L

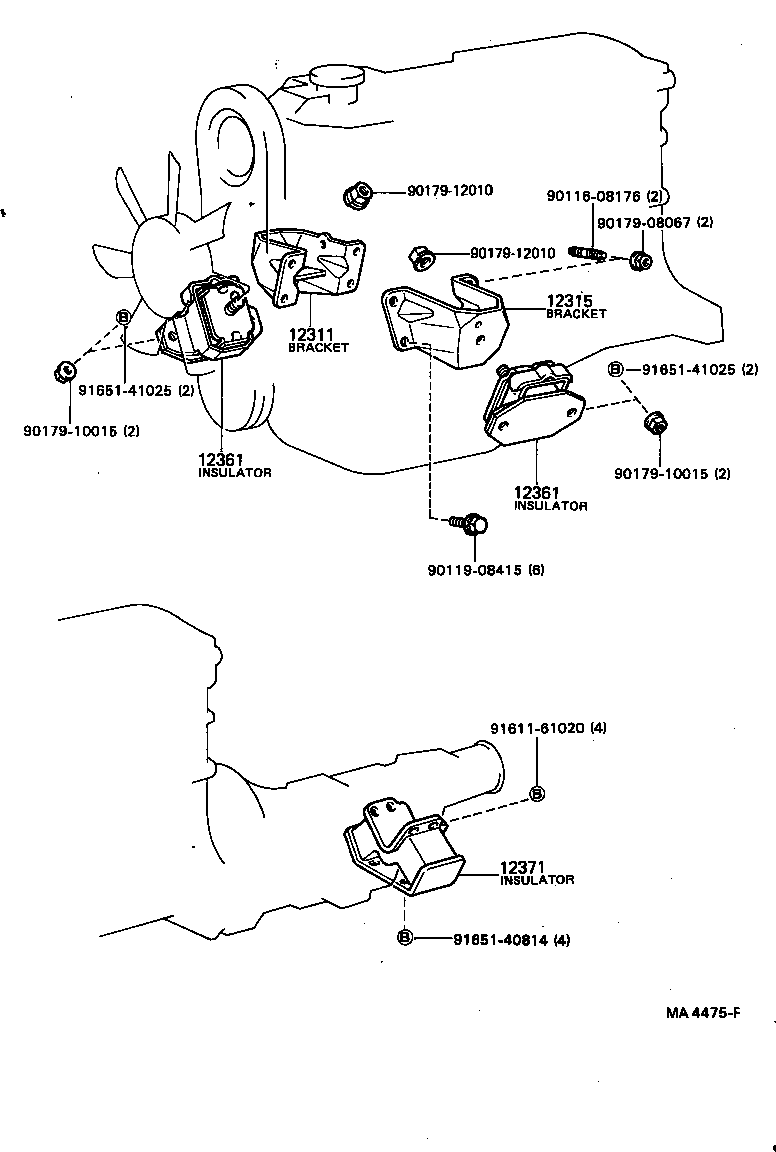

Click highlighted areas on diagram

diagram 12311 12312 12315 12361 12361 12371 12371 12381 12381 12385 12385A 12385A 12385C 12385C 9017908011 9017908011 9017910015 9161141020 9161141020 9161161022 9161161025 9165141025 9165161022 9166140814 9166140814 9411541200 9451201200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70010

1G#..GX6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70010

1GEU..GX6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41080

1G#..GX6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41080

1G#..GX6#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

1G#..GX6#

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

1G#..GX6#

 1
Common parts
90179-08011
90179-10015
91611-41020
91611-61022
91611-61025
91651-41025
91651-61022
91661-40814
94115-41200
94512-01200

(8009- )1GEU

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 9011608176 9011908415 9017908067 9017910015 9017910015 9017912010 9017912010 9161161020 9165140814 9165141025 9165141025
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-70010

1G#..GX6#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-70010

1GEU..GX6#

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41080

1G#..GX6#

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-41080

1G#..GX6#

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34020

1G#..GX6#

 1
Common parts
90116-08176
90119-08415
90179-08067
90179-10015
90179-12010
91611-61020
91651-40814
91651-41025
