Toyota Mark 2 GX60 HEATING & AIR CONDITIONING - VACUUM PIPING

Manufacturers Home
Toyota
JP
MARK 2
GX60-XEPFE (1980)
8717 - HEATING & AIR CONDITIONING - VACUUM PIPING

GX60-XEPFE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982

Engine 1GEU

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

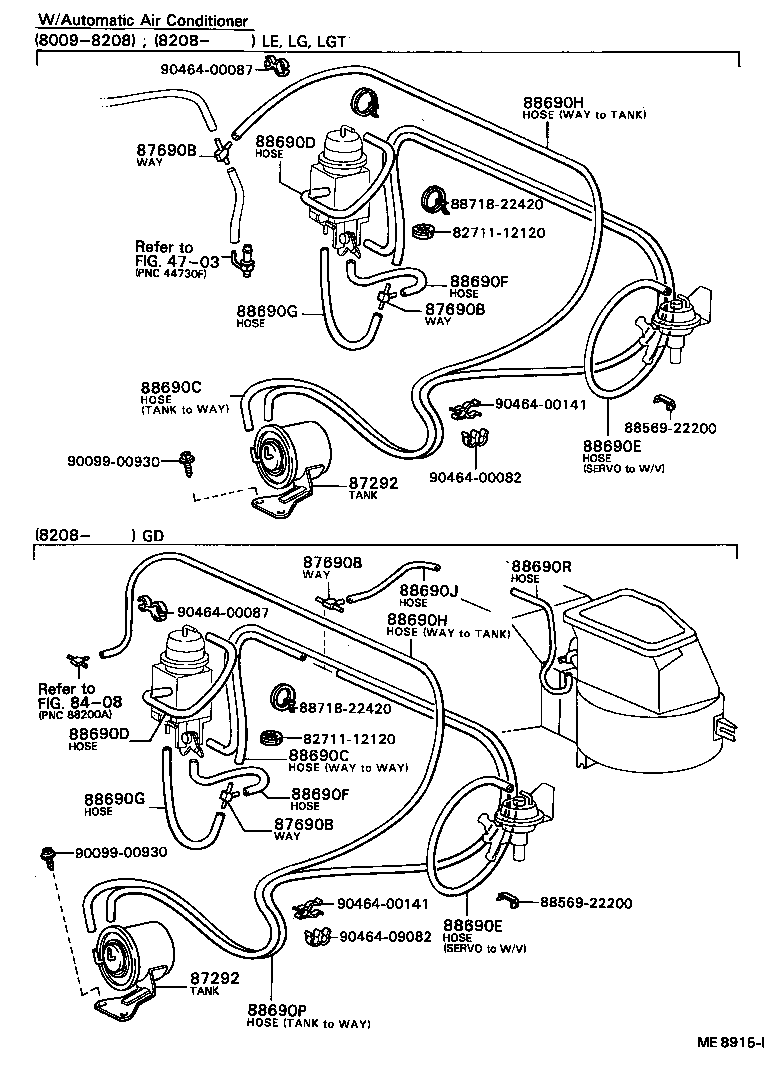

ILLUST NO. 2 OF 2(8009- )GX6#,LX65,MX61,63

Click highlighted areas on diagram

Part #	Description	Period	Qty
87292 - TANK, VACUUM
87292-22010	GX6#,LX65,MX61,63	09/1980 - 07/1984	1
87292 - TANK, VACUUM
87292-22010	GX6#,LX65,MX61,63	09/1980 - 07/1984	1
87690B - WAY, 3
90413-03001	GX6#,MX61,63 W/*AAC	09/1980 - 08/1982	1
87690B - WAY, 3
90413-03001	GX6#,MX61,63 W/*AAC	09/1980 - 08/1982	1
87690B - WAY, 3
90413-03001	GX6#,MX61,63 W/*AAC	09/1980 - 08/1982	1
87690B - WAY, 3
90413-03001	GX6#,MX61,63 W/*AAC	09/1980 - 08/1982	1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
90445-06028	GX6#..LE,LG,LGT L=1250,MARK=#2	09/1980 - 02/1981	1
88690C - HOSE, VACUUM, NO.1 (FOR HEATER OR AIR CONDITIONER)
90445-06028	GX6#..LE,LG,LGT L=1250,MARK=#2	09/1980 - 02/1981	1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
90445-06054	GX6#,LX65,MX61,63 L=240,MARK=#4	09/1980 - 07/1984	1
88690D - HOSE, VACUUM, NO.2 (FOR HEATER OR AIR CONDITIONER)
90445-06054	GX6#,LX65,MX61,63 L=240,MARK=#4	09/1980 - 07/1984	1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
90445-06027	GX6#..LE,LG,LGT L=1150,MARK=#3	09/1980 - 02/1981	1
88690E - HOSE, VACUUM, NO.3 (FOR HEATER OR AIR CONDITIONER)
90445-06027	GX6#..LE,LG,LGT L=1150,MARK=#3	09/1980 - 02/1981	1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
90445-06021	GX6#,MX63 L=160,MARK=#2	09/1980 - 02/1981	1
88690F - HOSE, VACUUM, NO.4 (FOR HEATER OR AIR CONDITIONER)
90445-06021	GX6#,MX63 L=160,MARK=#2	09/1980 - 02/1981	1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
90445-06052	GX6#,LX65,MX61,63 L=100,MARK=#2	09/1980 - 07/1984	1
88690G - HOSE, VACUUM, NO.5 (FOR HEATER OR AIR CONDITIONER)
90445-06052	GX6#,LX65,MX61,63 L=100,MARK=#2	09/1980 - 07/1984	1
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
90445-08210	GX6#..EFI *H,L=1100	09/1980 - 10/1982	1
88690H - HOSE, VACUUM, NO.6 (FOR HEATER OR AIR CONDITIONER)
90445-08210	GX6#..EFI *H,L=1100	09/1980 - 10/1982	1
Common parts
82711-12120
88569-22200
88718-22420
90099-00930
90464-00082
90464-00087
90464-00141
90464-09082
Linked diagrams
4703
8408

ILLUST NO. 1 OF 2(8009- )GX6#,MX61..EFI,TBO

Click highlighted areas on diagram

Part #	Description	Period	Qty

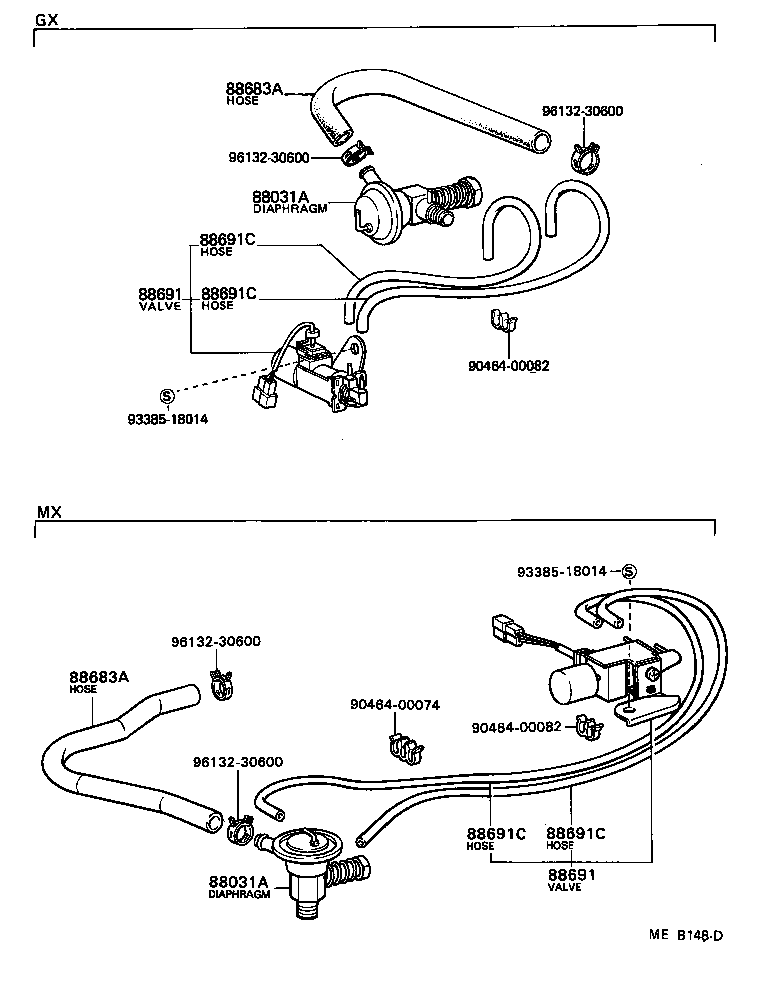

88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22030	GX6#..EFI	09/1980 - 07/1984	1
88031A - DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22030	GX6#..EFI	09/1980 - 07/1984	1
88683A - HOSE (ENGINE TO MAGNET VALVE)
88689-22030	GX6#..EFI	09/1980 - 07/1984	1
88683A - HOSE (ENGINE TO MAGNET VALVE)
88689-22030	GX6#..EFI	09/1980 - 07/1984	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22170	GX6#..EFI	09/1980 - 07/1984	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88690-22170	GX6#..EFI	09/1980 - 07/1984	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	GX6#..EFI *H,L=180,ﾏｰｸ=#0	09/1980 - 07/1984	1
95411-19930	GX6#,RX63..EFI H,L=160,ﾏｰｸ=#	09/1980 - 07/1984	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	GX6#..EFI *H,L=180,ﾏｰｸ=#0	09/1980 - 07/1984	1
95411-19930	GX6#,RX63..EFI H,L=160,ﾏｰｸ=#	09/1980 - 07/1984	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	GX6#..EFI *H,L=180,ﾏｰｸ=#0	09/1980 - 07/1984	1
95411-19930	GX6#,RX63..EFI H,L=160,ﾏｰｸ=#	09/1980 - 07/1984	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030	GX6#..EFI *H,L=180,ﾏｰｸ=#0	09/1980 - 07/1984	1
95411-19930	GX6#,RX63..EFI H,L=160,ﾏｰｸ=#	09/1980 - 07/1984	1
Common parts
90464-00074
90464-00082
93385-18014
96132-30600

GX60-XEPFE (1980)

ILLUST NO. 2 OF 2(8009- )GX6#,LX65,MX61,63

ILLUST NO. 1 OF 2(8009- )GX6#,MX61..EFI,TBO

Part Price Details
