GX60-XEKFE (1980)

Toyota Mark 2

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX6#..EFI

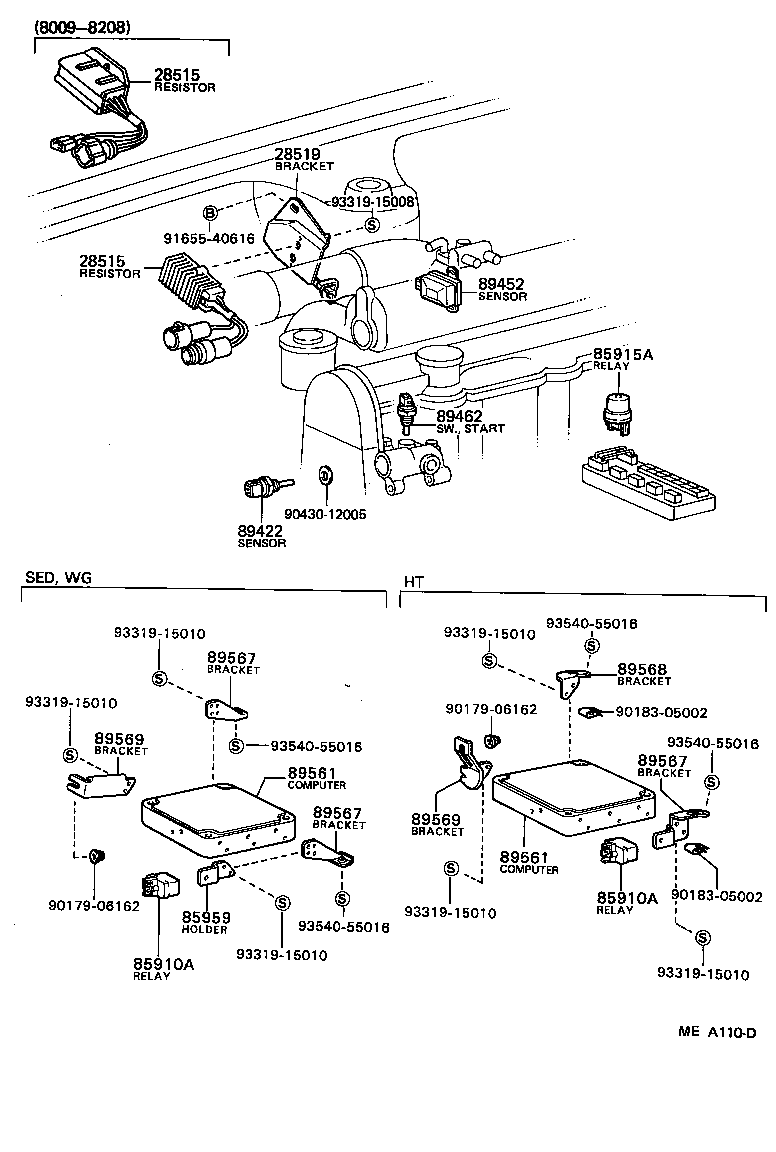

Click highlighted areas on diagram

diagram 28515 28515 28519 85910A 85910A 85915A 85959 89422 89452 89462 89561 89561 89567 89567 89567 89568 89569 89569 9017906162 9017906162 9018305002 9018305002 9043012005 9165540616 9331915008 9331915010 9331915010 9331915010 9331915010 9331915010 9331915010 9354055016 9354055016 9354055016 9354055016
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-41010

1GEU..GX6#

 1
28515 - RESISTOR, SOLENOID
28515-41010

1GEU..GX6#

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-70010

18RGEU,1GEU..GX6#,RX63

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GX6#,MX61,63,RX63..EFI,TBO

 1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GX6#,MX61,63,RX63..EFI,TBO

 1
85915A - RELAY, MAIN
90987-02004

GX6#,MX61,63,RX63

 1
85959 - HOLDER, RELAY
85959-22010

GX6#,MX61,RX63..SED,WG

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30020

GX6#,MX61,63,RX63

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-22010

GX6#,MX61..EFI,TBO

 1
89462 - SWITCH, START INJECTOR TIME
89462-40010

GX6#

 1
89561 - COMPUTER, FUEL INJECTION
89561-22030

GX6#

 1
89561 - COMPUTER, FUEL INJECTION
89561-22030

GX6#

 1
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-22080

GX6#,MX61,RX63..(SED,WG)..(EFI,TBO)

 2
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-22080

GX6#,MX61,RX63..(SED,WG)..(EFI,TBO)

 2
89567 - BRACKET, FUEL INJECTION COMPUTER
89567-22080

GX6#,MX61,RX63..(SED,WG)..(EFI,TBO)

 2
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-22080

GX6#,MX61,RX63..(SED,WG)..(EFI,TBO)

 1
89569 - BRACKET, FUEL INJECTION COMPUTER
89569-22080

GX6#,MX61,RX63..(SED,WG)..(EFI,TBO)

 1
Common parts
90179-06162
90183-05002
90430-12005
91655-40616
93319-15008
93319-15010
93540-55016
