GX60-XEKFE (1980)
Toyota Mark 2

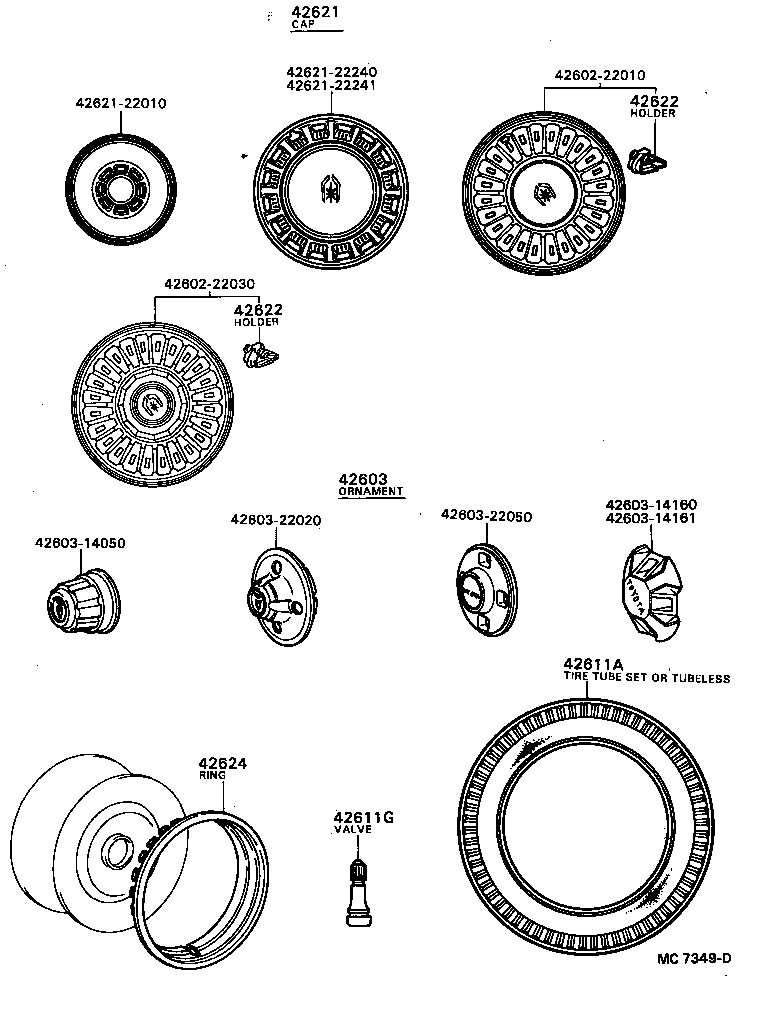

ILLUST NO. 1 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-22020 |
GX60..LE PRIVATE EDITION |
4 | ||
| 42611A - TIRE TUBE SET OR TUBELESS TIRE | ||||
| 42652-22240 |
GX60,LX60,MX60,RX60,TX60 175SR14,TUBELESS |
5 | ||
| 42652-22290 |
GX60,LX60,MX60,RX60,TX60 175SR14,TUBELESS |
5 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GX6#,LX6#,MX6#,RX6#,SX60,TX60 |
5 | ||
| 42621 - CAP, WHEEL | ||||
| 42621-22241 |
GX60,LX60,RX60,TX6#..GL,GR,LE,LG |
4 | ||
| 42621-22240 |
GX60,LX60,RX60,TX6#..GL,GR,LE,LG |
4 | ||
| Common parts | ||||
| 42602-22010 | ||||
| 42602-22030 | ||||
| 42603-14050 | ||||
| 42603-14160 | ||||
| 42603-14161 | ||||
| 42603-22020 | ||||
| 42603-22050 | ||||
| 42621-22010 | ||||
| 42621-22240 | ||||
| 42621-22241 | ||||

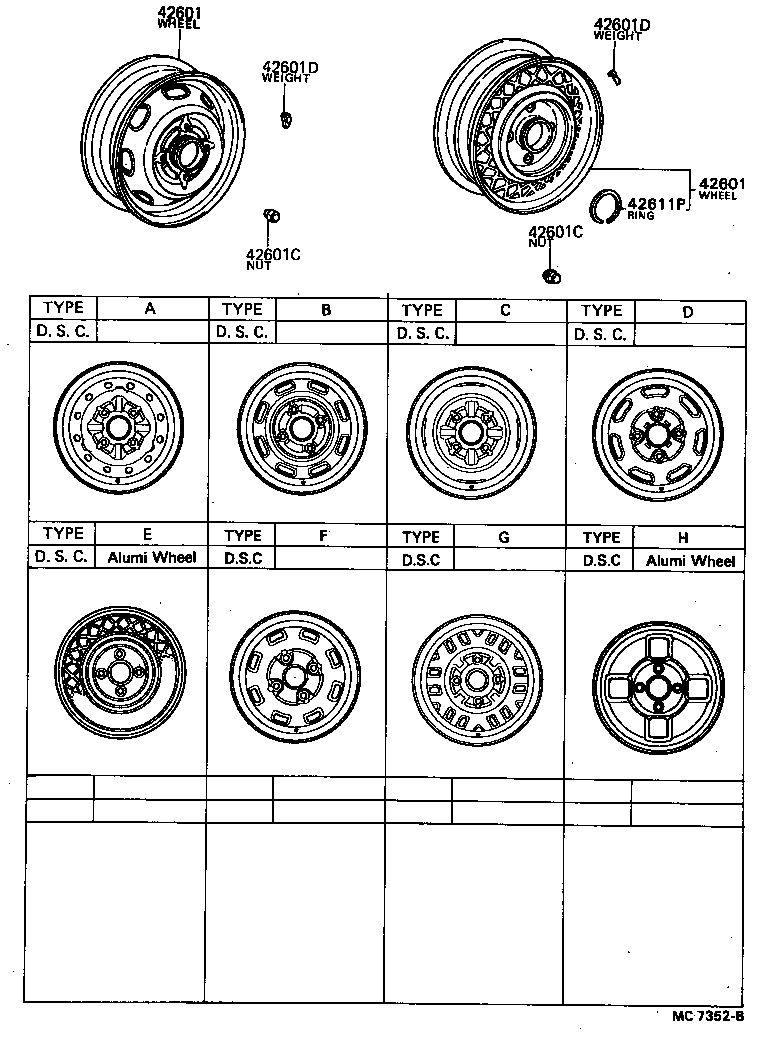

ILLUST NO. 2 OF 2(8009- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-20070 |
GX60,LX60,RX60,TX60..GL,GR,LE,LG 5J-14,TYPE C |
5 | ||
| 42611-22200 |
GX60..LE PRIVATE EDITION,5J-14,TYPE F |
5 | ||
| 42611-20071 |
GX60,LX60,RX60,TX60..GL,GR,LE,LG 5J-14,TYPE C |
5 | ||
| 42601 - WHEEL, DISC | ||||
| 42611-20070 |
GX60,LX60,RX60,TX60..GL,GR,LE,LG 5J-14,TYPE C |
5 | ||
| 42611-22200 |
GX60..LE PRIVATE EDITION,5J-14,TYPE F |
5 | ||
| 42611-20071 |
GX60,LX60,RX60,TX60..GL,GR,LE,LG 5J-14,TYPE C |
5 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
GX60..LE PRIVATE EDITION |
16 | ||
| 90942-01007 |
LX67,TX67;GX6#,LX60,MX61,63,RX60,TX60..GD,GL,GR,LE,LG |
16 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01021 |
GX60..LE PRIVATE EDITION |
16 | ||
| 90942-01007 |
LX67,TX67;GX6#,LX60,MX61,63,RX60,TX60..GD,GL,GR,LE,LG |
16 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 30G,厚さ=10,30G |
1 | ||
| 90942-03017 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20G,厚さ=8,20G |
1 | ||
| 90942-03041 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 10G,厚さ=7.5,10G |
1 | ||
| 90942-03027 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03022 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03029 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03025 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 50G,厚さ=9.5,50G |
1 | ||
| 42601D - WEIGHT, BALANCE (FOR DISC WHEEL) | ||||
| 90942-03020 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 30G,厚さ=10,30G |
1 | ||
| 90942-03017 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 20G,厚さ=8,20G |
1 | ||
| 90942-03041 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 10G,厚さ=7.5,10G |
1 | ||
| 90942-03027 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 60G,厚さ=9.5,60G |
1 | ||
| 90942-03031 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 80G,厚さ=9.5,80G |
1 | ||
| 90942-03022 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 40G,厚さ=9.5,40G |
1 | ||
| 90942-03029 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 70G,厚さ=9.5,70G |
1 | ||
| 90942-03025 |
GX6#,LX6#,MX6#,RX6#,SX60,TX6# 50G,厚さ=9.5,50G |
1 | ||
