GX105-ATPQK (1998)

Toyota Mark 2

Production Aug 1998 - Oct 2000
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )1GFE

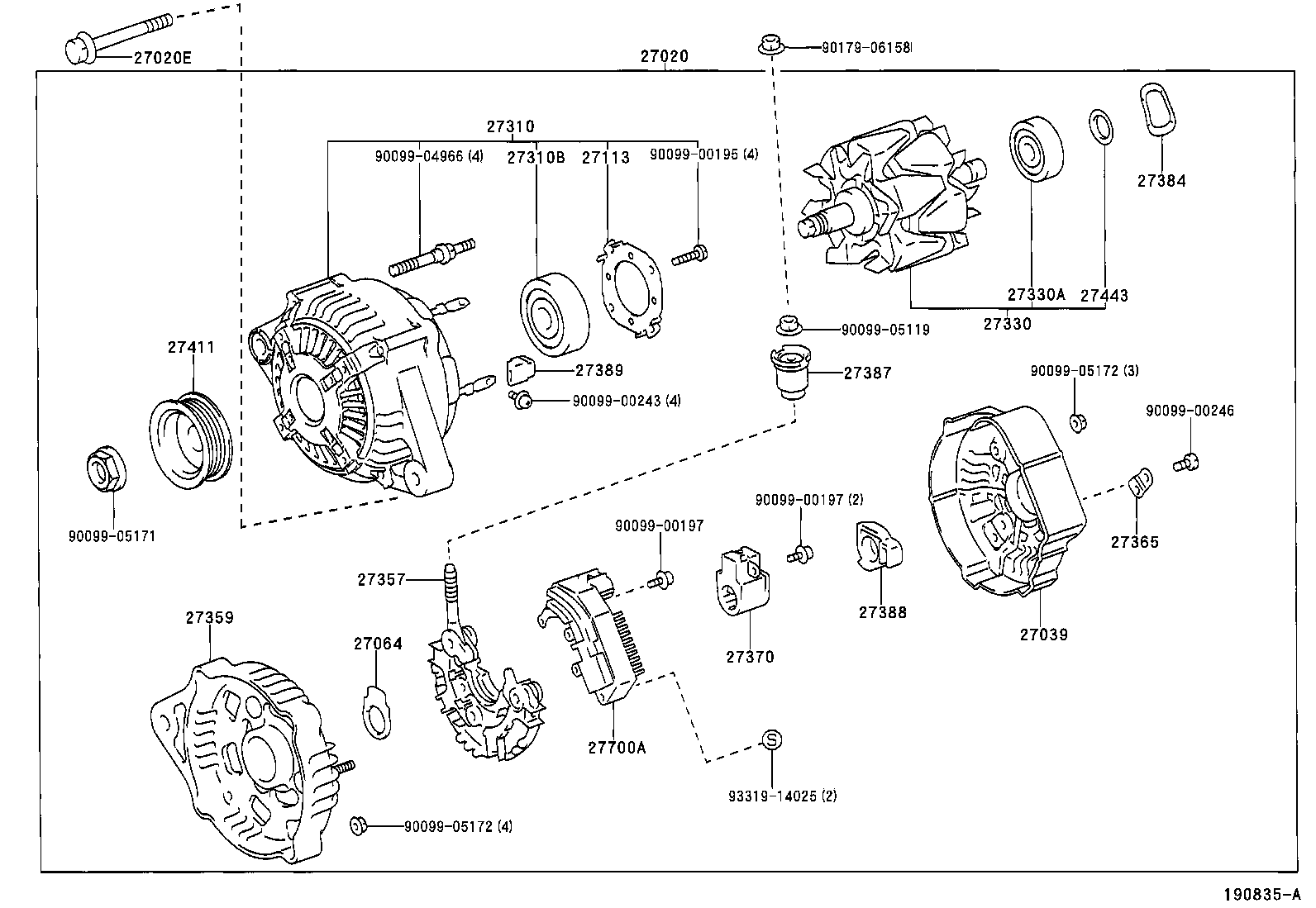

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27113 27310 27310B 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27411 27443 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905171 9009905172 9009905172 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-70480

1GFE..GX10#..4FC

12V 80A

 1
27020E - BOLT(FOR ALTERNATOR)
90105-10458

1GFE..GX10#

 1
90105-10499

1GFE..GX10#

 1
27039 - COVER, ALTERNATOR REAR END
27039-55080

1GFE,2LTE..GX10#,LX100

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-42010

1GFE,1JZ#,2JZGE..GX10#,JZX10#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70440

1GFE..GX10#..4FC

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192

1GFE,1JZ#,2JZGE..GX10#,JZX10#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-72280

1GFE..GX10#..4FC

 1
27330-74550

1GFE..GX10#..4FC

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1GFE,2LTE..GX10#,LX100

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

1GFE,2LTE..GX10#,LX100

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70440

1GFE..GX10#

 1
27365 - PLATE, TERMINAL
27365-55080

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27384 - WASHER
27384-50030

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27389 - INSULATOR, TERMINAL
27389-42010

1JZGTE..JZX100..4FC;1GFE,1JZGE,2LTE..GX100,JZX100,105,LX100

 4
27389-42010

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 4
27411 - PULLEY, ALTERNATOR
27411-70330

1GFE..GX10#

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

1GFE,1JZ#,2JZGE,2LTE..GX10#,JZX10#,LX100

 1
27700A - REGULATOR ASSY, GENERATOR
27700-70050

1GFE..GX10#..4FC

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90179-06158
93319-14025
