GX100-ATPSK (1996)
Toyota Mark 2
Production
Sep 1996
-
Oct 2000
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609- )GX10#

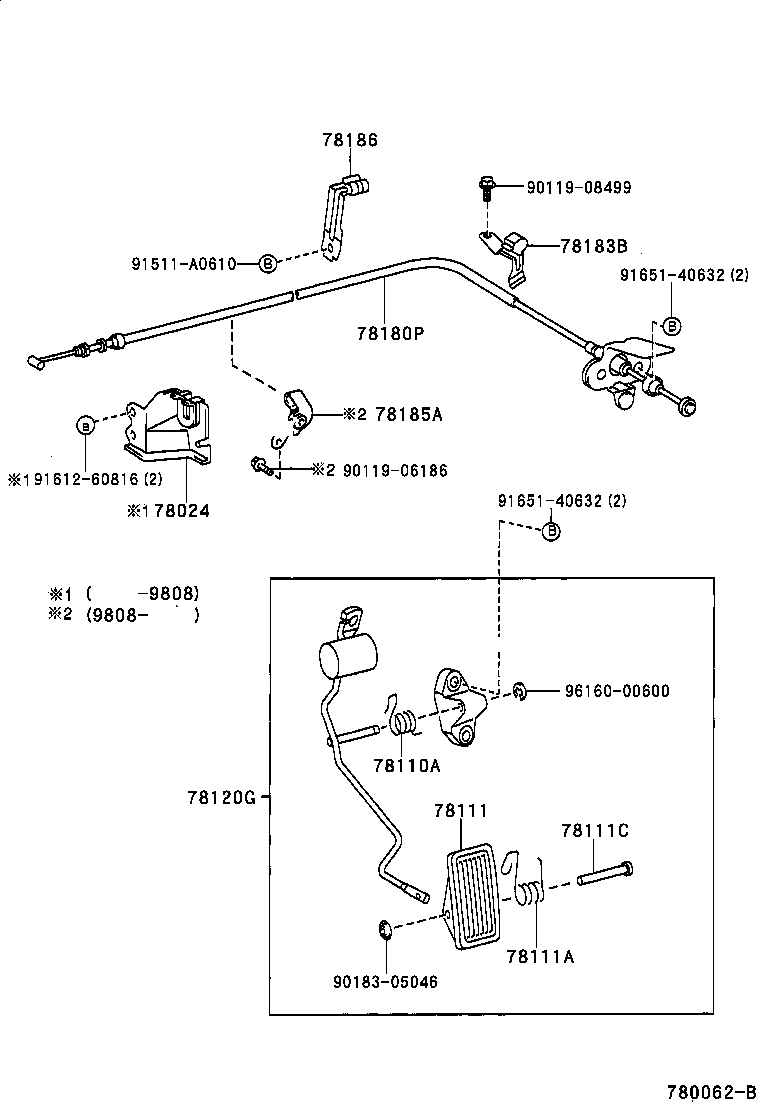

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-30101 |
GX100 |
1 | ||
| 78024-30100 |
GX100 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18060 |
GX100,LX100..4FC |
1 | ||
| 90959-03102 |
GX100..4FC |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-22020 |
GX10#,JZX10#,LX100 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23108 |
GX10#,JZX10#,LX100 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90241-05022 |
GX10#,JZX10#,LX100 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22360 |
GX100,LX100..4FC |
1 | ||
| 78120-22380 |
GX100..4FC |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2A640 |
GX10# |
1 | ||
| 78180-2A610 |
GX100 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-30130 |
GX10#,JZX10#,LX100 |
1 | ||
| 78185A - CLAMP, ACCELERATOR CONTROL CABLE, NO.2 | ||||
| 78185-22100 |
GX10# |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-22140 |
GX10# |
1 | ||
| 78186-22100 |
GX100;JZX100..TOUV |
1 | ||
| Common parts | ||||
| 90119-06186 | ||||
| 90119-08499 | ||||
| 90183-05046 | ||||
| 91511-A0610 | ||||
| 91612-60816 | ||||
| 91651-40632 | ||||
| 96160-00600 | ||||
