GX100-ATPSK (1996)
Toyota Mark 2
Production
Sep 1996
-
Oct 2000
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9609-9808)GX100 ; (9808- )GX100..4FC

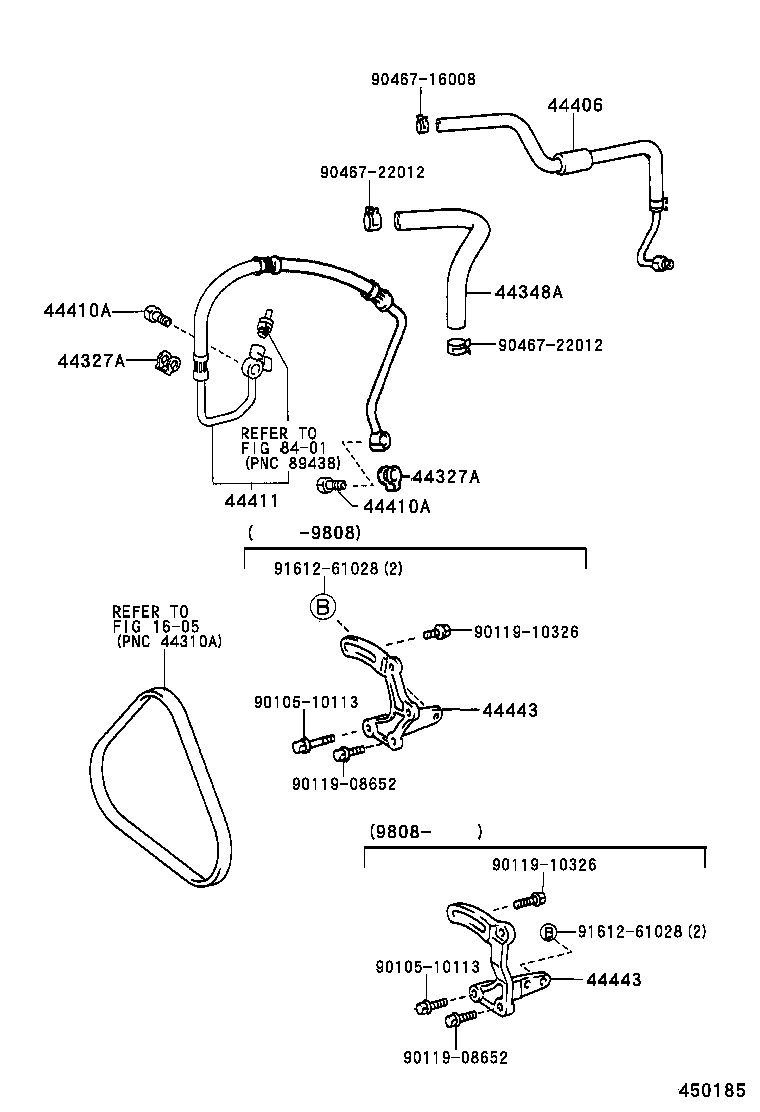

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GX100,JZX10#,LX100 |
1 | ||
| 44327-30030 |
GX10# |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-30030 |
GX100,JZX10#,LX100 |
1 | ||
| 44327-30030 |
GX10# |
2 | ||
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-22300 |
GX100 |
1 | ||
| 44348-22320 |
GX10# |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-22250 |
GX100 |
1 | ||
| 44406-22300 |
GX100..4FC |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
GX100,LX100 |
1 | ||
| 96341-41603 |
GX10# |
2 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 96341-41603 |
GX100,LX100 |
1 | ||
| 96341-41603 |
GX10# |
2 | ||
| 44411 - HOSE, PRESSURE FEED | ||||
| 44411-22680 |
GX100 |
1 | ||
| 44411-22710 |
GX100 |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-22100 |
GX100 |
1 | ||
| 44443-22150 |
GX10# |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-22100 |
GX100 |
1 | ||
| 44443-22150 |
GX10# |
1 | ||
| Common parts | ||||
| 90105-10113 | ||||
| 90119-08652 | ||||
| 90119-10326 | ||||
| 90467-16008 | ||||
| 90467-22012 | ||||
| 91612-61028 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
