JZX115W-AWPSF (2002)
Toyota Mark 2/Mark 2 Blit

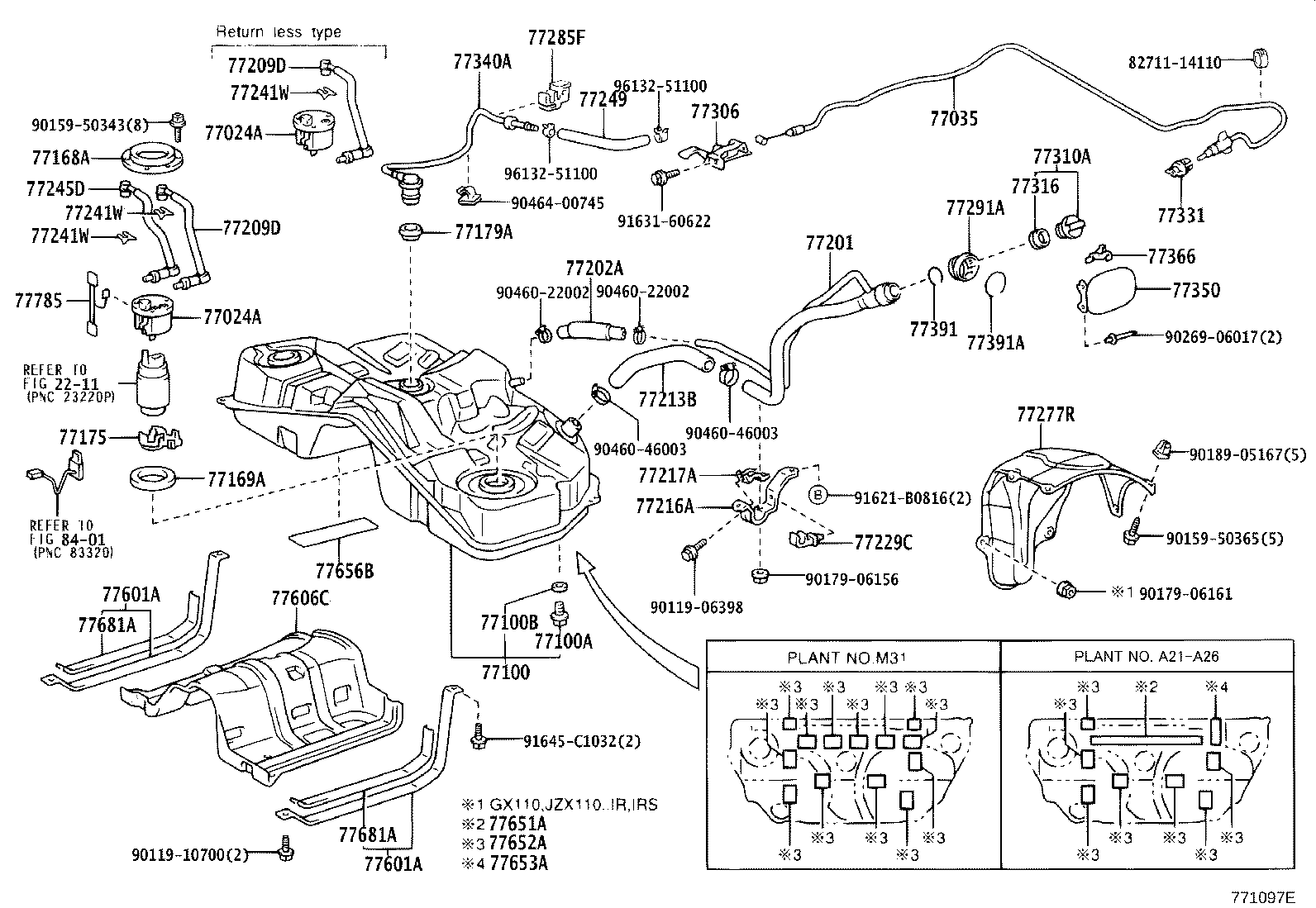

ILLUST NO. 1 OF 2(0201- )WG
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30030 |
JZX115 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-30030 |
JZX115 |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-22250 |
GX11#,JZX11#..WG |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-30531 |
GX11#,JZX115..WG |
1 | ||
| 77001-30530 |
GX11#,JZX115 |
1 | ||
| 77001-30532 |
GX11#,JZX115 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
GX11#,JZX11# |
1 | ||
| 90105-12116 |
GX11#,JZX11#..WG |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-12245 |
GX11#,JZX11# |
1 | ||
| 90430-12245 |
GX11#,JZX11#..WG |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-33050 |
GX11#,JZX11#..WG |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-33020 |
GX11#,JZX11#..WG |
1 | ||
| 77175 - SUPPORT, FUEL SUCTION, NO.2 | ||||
| 77175-30060 |
JZX115 |
1 | ||
| 77179A - GASKET, FUEL TANK BREATHER TUBE | ||||
| 77179-33010 |
GX11#,JZX11#..WG |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-22360 |
GX11#,JZX11#..WG 製造工場NO.M31 |
1 | ||
| 77201-30400 |
GX11#,JZX11#..WG 製造工場NO.A21−A26 |
1 | ||
| 77202A - HOSE, FUEL, NO.1 (FOR BREATHER TUBE) | ||||
| 77019-51010 |
GX11#,JZX11#..WG 長さ=200 |
2 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-30080 |
GX11#,JZX115..WG;JZX110..GD,GDG,IRS |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-30080 |
GX11#,JZX115..WG;JZX110..GD,GDG,IRS |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.M31 |
1 | ||
| 77213-30170 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.A21−A26 |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZX11#..WG |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZX11#..WG |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
JZX11#..WG |
2 | ||
| 77245D - TUBE, FUEL TANK RETURN VENT | ||||
| 77245-30150 |
JZX11#..IRS |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-30030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-30020 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-30150 |
GX11#,JZX11#..WG |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-30070 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-53010 |
GX11#,JZX11#..WG |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77331 - BRACKET, FUEL LID LOCK CONTROL | ||||
| 77377-12050 |
GX11#,JZX11#..WG |
1 | ||
| 77340A - VALVE ASSY, FUEL CUT OFF W/TUBE | ||||
| 77340-51010 |
GX11#,JZX11#..WG |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-22200 |
GX11#,JZX11#..WG |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-30070 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-53010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.M31 |
2 | ||
| 77601-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.A21−A26 |
2 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-53010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.M31 |
2 | ||
| 77601-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.A21−A26 |
2 | ||
| 77606C - PROTECTOR, FUEL TANK, NO.2 | ||||
| 77606-51010 |
GX11#,JZX11#..WG |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-30100 |
GX115,JZX11#..WG 製造工場NO.A21−A26 |
1 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-12100 |
GX115,JZX110;GX110,JZX115..GD,GDG,IRS 製造工場NO.A21−A26 |
7 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77653-51010 |
GX115,JZX11#..WG |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-32060 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-52020 |
GX11#,JZX11#..WG |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06398 | ||||
| 90119-10700 | ||||
| 90159-50343 | ||||
| 90159-50365 | ||||
| 90179-06156 | ||||
| 90179-06161 | ||||
| 90189-05167 | ||||
| 90269-06017 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90464-00745 | ||||
| 91621-B0816 | ||||
| 91631-60622 | ||||
| 91645-C1032 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 2211 | ||||
| 8401 | ||||
