JZX115-AEPZF (2000)
Toyota Mark 2/Mark 2 Blit
(0010- )SED

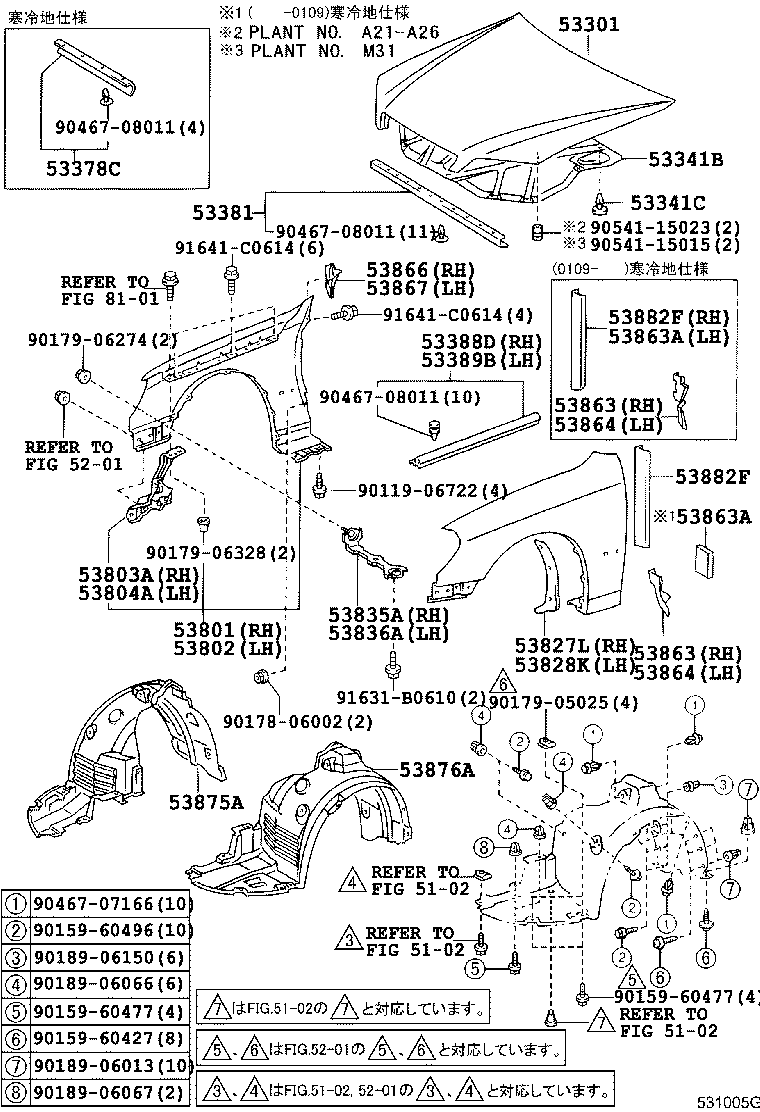

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-22380 |
GX11#,JZX11#..SED |
1 | ||
| 53301-22380 |
GX11#,JZX11#..SED |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-22150 |
GX11#,JZX11#..SED |
1 | ||
| 53341-22150 |
GX11#,JZX11#..SED |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS 製造工場NO.A21−A26 |
12 | ||
| 90467-08124 |
GX11#,JZX11#..SED 製造工場NO.M31 |
12 | ||
| 90467-08124 |
GX11#,JZX11#..SED 製造工場NO.M31 |
12 | ||
| 90467-09050 |
GX11#,JZX11#..SED 製造工場NO.A21−A26 |
12 | ||
| 53378C - SEAL, HOOD AIR INTAKE DUCT | ||||
| 53378-22050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53378-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-22160 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-22150 |
GX11#,JZX11#..SED |
1 | ||
| 53381-22160 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-22150 |
GX11#,JZX11#..SED |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53388-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-22040 |
GX11#,JZX11#..SED |
1 | ||
| 53389-22040 |
GX11#,JZX11#..SED |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-2A490 |
GX11#,JZX11#..SED |
1 | ||
| 53801-2A490 |
GX11#,JZX11#..SED |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-2A470 |
GX11#,JZX11#..SED |
1 | ||
| 53802-2A470 |
GX11#,JZX11#..SED |
1 | ||
| 53803A - BRACKET SUB-ASSY, FRONT SIDE PANEL, RH | ||||
| 53803-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53803-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53804A - BRACKET SUB-ASSY, FRONT SIDE PANEL, LH | ||||
| 53804-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53804-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53827L - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53827-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53828K - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53828-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53835A - BRACE, FRONT FENDER TO APRON, RH | ||||
| 53835-22080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53835-22080 |
GX11#,JZX11#..SED |
1 | ||
| 53836A - BRACE, FRONT FENDER TO APRON, LH | ||||
| 53835-22080 |
GX11#,JZX11#..SED |
1 | ||
| 53835-22080 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53863 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH | ||||
| 53863-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53863-22030 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53863-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53863-22030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53863 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER RH | ||||
| 53863-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53863-22030 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53863-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53863-22030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53863A - SEAL, FR FENDER TO DOOR HINGE, LWR | ||||
| 53883-22040 |
GX11#,JZX11# |
2 | ||
| 53883-22050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53883-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53863A - SEAL, FR FENDER TO DOOR HINGE, LWR | ||||
| 53883-22040 |
GX11#,JZX11# |
2 | ||
| 53883-22050 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53883-22050 |
GX11#,JZX11#..SED |
1 | ||
| 53864 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH | ||||
| 53864-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53864-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53864-22030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53864-22030 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53864 - SEAL, FRONT FENDER TO DOOR HINGE, LOWER LH | ||||
| 53864-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53864-22010 |
GX11#,JZX11#..SED |
1 | ||
| 53864-22030 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53864-22030 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-22100 |
GX11#,JZX11#..SED |
1 | ||
| 53866-22100 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-22100 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53867-22100 |
GX11#,JZX11#..SED |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-22110 |
JZX110..GD,GDG,GDS,IRS;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53875-22110 |
GX11#,JZX11#..GD,GDG,GDS |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-22090 |
GX11#,JZX11#..SED |
1 | ||
| 53876-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 53882-22090 |
GX11#,JZX11#..SED |
2 | ||
| 53882-22120 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-22120 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882F - SEAL, FRONT FENDER | ||||
| 53882-22090 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 53882-22090 |
GX11#,JZX11#..SED |
2 | ||
| 53882-22120 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53882-22120 |
GX11#,JZX11#..SED ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-06722 | ||||
| 90159-60427 | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90178-06002 | ||||
| 90179-05025 | ||||
| 90179-06274 | ||||
| 90179-06328 | ||||
| 90189-06013 | ||||
| 90189-06066 | ||||
| 90189-06067 | ||||
| 90189-06150 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90541-15015 | ||||
| 90541-15023 | ||||
| 91631-B0610 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5201 | ||||
| 8101 | ||||
