JZX110W-AWPVZ (2002)

Toyota Mark 2/Mark 2 Blit

Production Jan 2002 - Apr 2006
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )WG

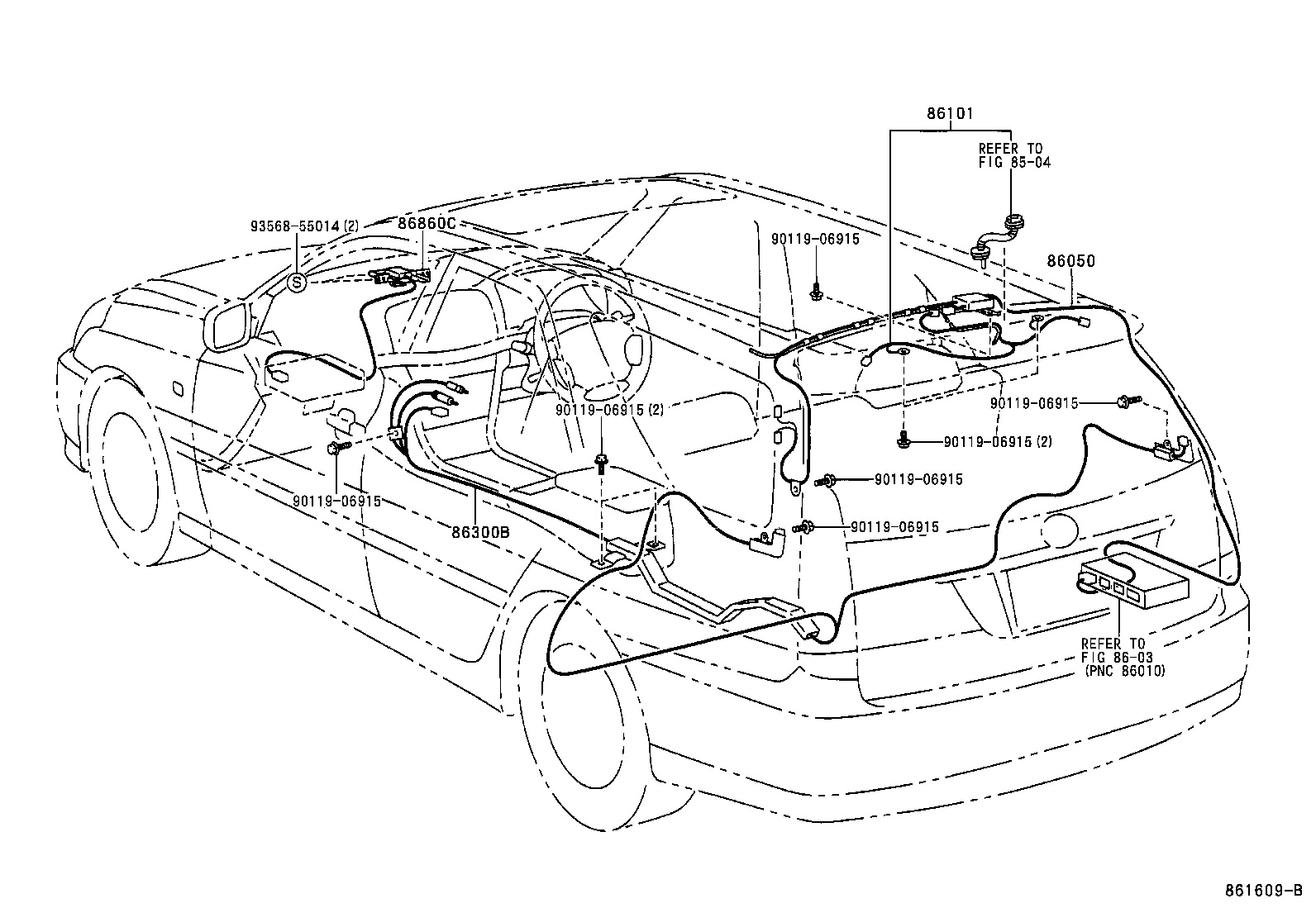

Click highlighted areas on diagram

diagram 8504 8603 86050 86101 86300B 86860C 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 9011906915 9356855014
Part # Description Qty Price
86050 - ANTENNA ASSY, TELEVISION
86050-22270

GX11#,JZX11#..WG

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-22340

GX11#,JZX11#..WG

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-22610

GX11#,JZX11#..WG

 1
86300-22650

GX11#,JZX11#..WG

ｱﾘ(ETC)

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-22051

GX11#,JZX11#..WG

 1
86860-22040

GX11#,JZX11#..WG

 1
Common parts
90119-06915
93568-55014
Linked diagrams
8504
8603
