JZX110W-AWPVZ (2002)
Toyota Mark 2/Mark 2 Blit
Production
Jan 2002
-
Apr 2006
Engine
1JZGTE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0201- )WG

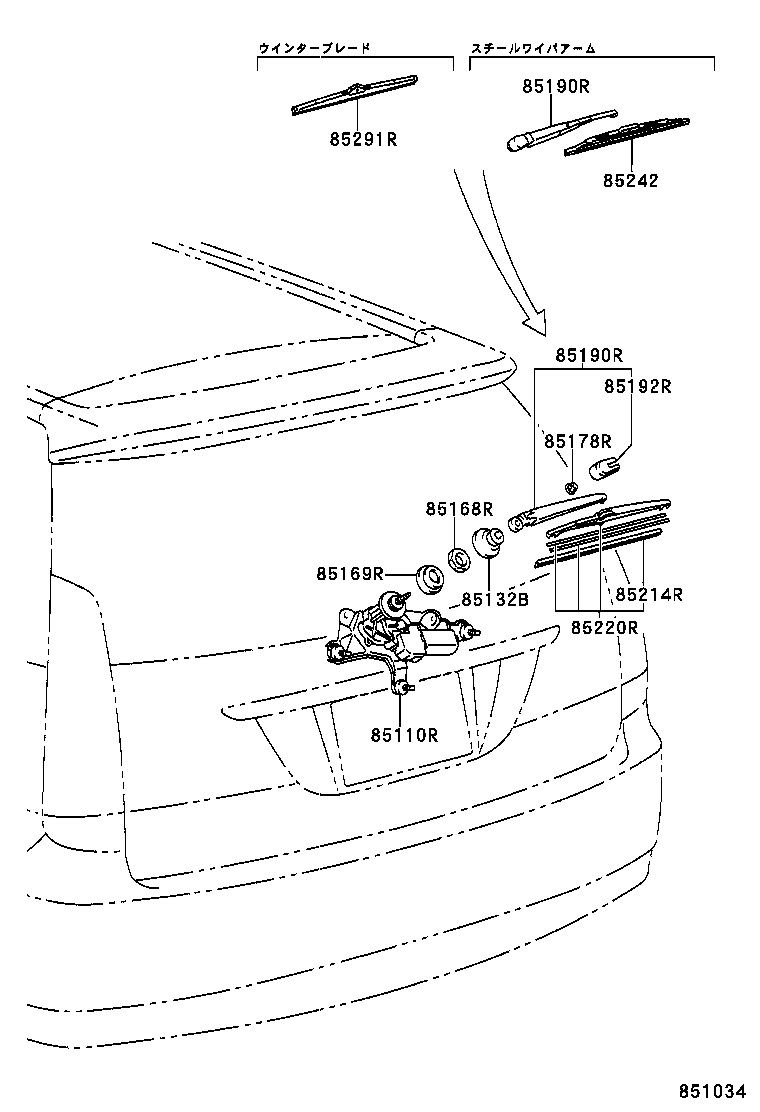

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110R - MOTOR ASSY, REAR WIPER | ||||
| 85130-22590 |
GX11#,JZX11#..WG |
1 | ||
| 85132B - CAP, REAR WIPER SHAFT | ||||
| 85132-22540 |
GX11#,JZX11#..WG |
1 | ||
| 85168R - NUT, REAR WIPER LINK PIVOT, NO.1 | ||||
| 90099-05157 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 85169R - WASHER, REAR WIPER LINK PIVOT, NO.1 | ||||
| 85134-53010 |
GX11#,JZX11#..WG |
1 | ||
| 85178R - NUT (FOR REAR WIPER ARM SETTING) | ||||
| 90179-06158 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-42040 |
GX11#,JZX11#..WG |
1 | ||
| 85241-42050 |
GX11#,JZX11#..WG ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ |
1 | ||
| 85190R - ARM ASSY, REAR WIPER | ||||
| 85241-42040 |
GX11#,JZX11#..WG |
1 | ||
| 85241-42050 |
GX11#,JZX11#..WG ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ |
1 | ||
| 85192R - COVER, REAR WIPER ARM | ||||
| 85292-28030 |
GX11#,JZX11#..WG |
1 | ||
| 85214R - RUBBER, REAR WIPER | ||||
| 85214-42040 |
GX11#,JZX11#..WG |
1 | ||
| 85214-31010 |
GX11#,JZX11#..WG ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 85220R - BLADE ASSY, REAR WIPER | ||||
| 85242-42020 |
GX11#,JZX11#..WG |
1 | ||
| 85242 - BLADE, RR WIPER | ||||
| 85242-31011 |
GX11#,JZX11#..WG ｱﾘ(ｽﾁ-ﾙ ﾜｲﾊﾟ ｱ-ﾑ) |
1 | ||
| 85291R - BLADE,REAR WIPER, WINTER | ||||
| 85291-33020 |
GX11#,JZX11#..WG ｱﾘ(ｽﾁｰﾙﾜｲﾊﾟｱｰﾑ) |
1 | ||
| 85291-42020 |
GX11#,JZX11#..WG |
1 | ||
