JZX110W-AWPVZ (2002)

Toyota Mark 2/Mark 2 Blit

Production Jan 2002 - Apr 2006
Engine 1JZGTE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0201- )WG

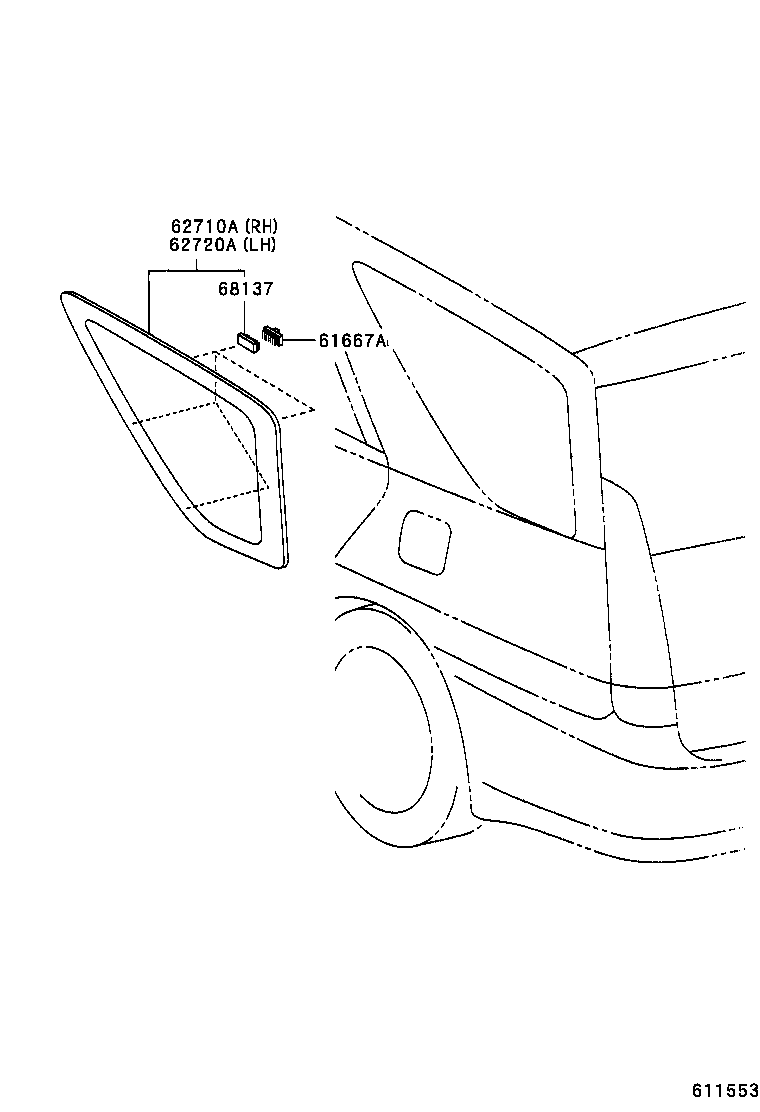

Click highlighted areas on diagram

diagram 61667A 62710A 62720A 68137
Part # Description Qty Price
61667A - SPACER QUARTER PANEL, NO.1
61667-21010

GX11#,JZX11#..WG

 8
62710A - WINDOW ASSY, QUARTER, RH
62710-22100

GX11#,JZX11#..WG

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ

 1
62710-22090

GX11#,JZX110..IR,IRS

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62720A - WINDOW ASSY, QUARTER, LH
62720-22100

GX11#,JZX110..IR,IRS

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ)

 1
62720-22110

GX11#,JZX11#..WG

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ

 1
62720-22090

GX11#,JZX110..IR,IRS

*UVCTT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62720-22120

GX11#,JZX11#..WG

*TT,厚さ=3.5,ﾀﾞｰｸｸﾞﾚｰ,ｱﾘ(ﾅﾋﾞｹﾞ-ｼﾖﾝ ｼｽﾃﾑ)

 1
68137 - SPACER, QUARTER WINDOW NO.2 GLASS
68137-22040

GX11#,JZX11#..WG

 8
