JZX110W-AWASH (2002)
Toyota Mark 2/Mark 2 Blit

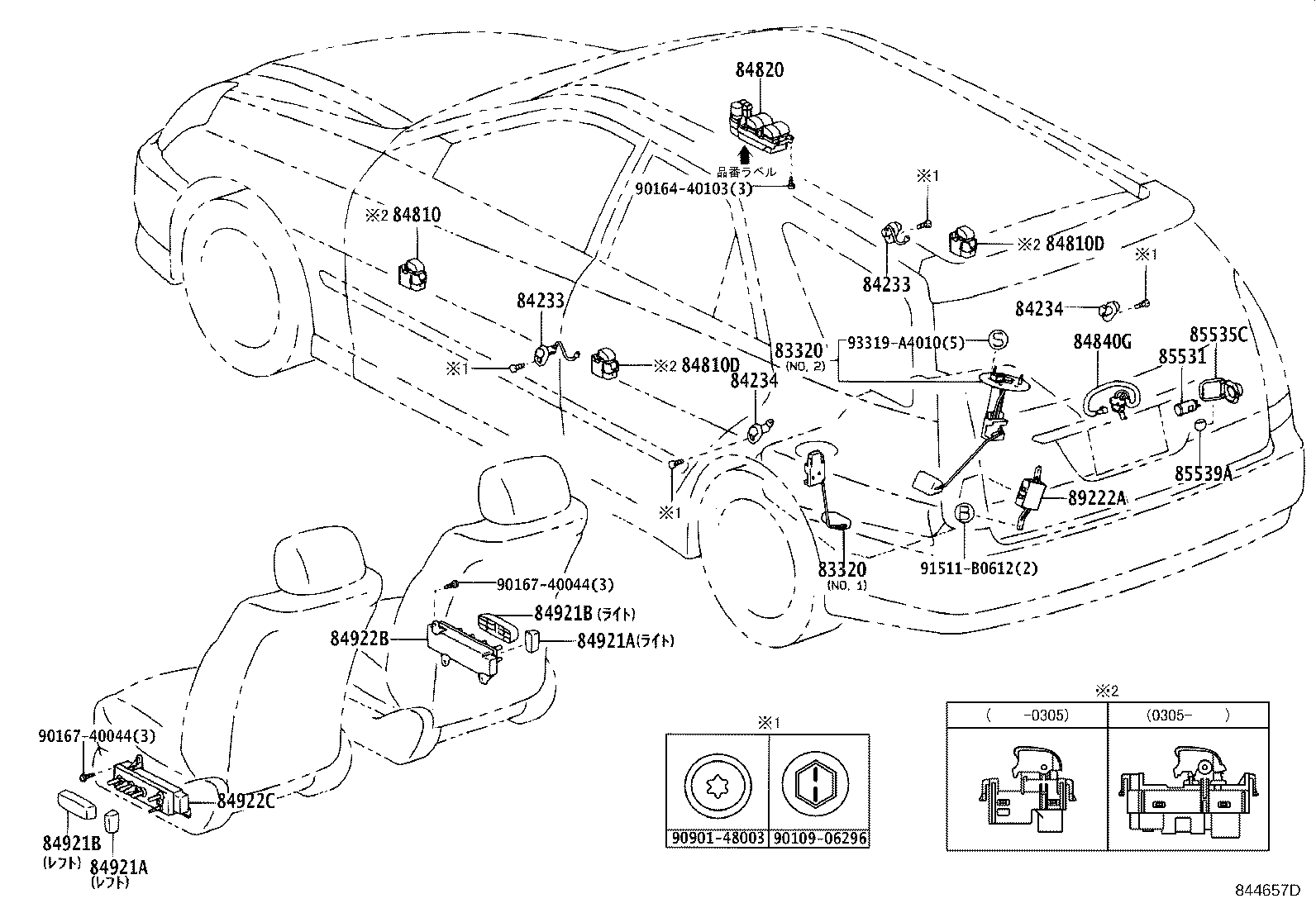

ILLUST NO. 6 OF 6(0201- )WG
ﾄﾞｱ,ﾙ-ﾌ,ﾌﾛｱ,ｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.1 |
1 | ||
| 83320-59095 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-51010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.1 |
1 | ||
| 83320-59095 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS NO.2 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22130 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-22130 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84030-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
1 | ||
| 84030-22050 |
GX11#,JZX11#..WG |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-22050 |
GX11#,JZX11#..WG |
2 | ||
| 84030-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84030-22050 |
GX11#,JZX11#..WG |
2 | ||
| 84030-22010 |
JZX110;GX11#,JZX115..GD,GDG,IR,IRS |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84040-22060 |
GX11#,JZX11#..WG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84040-22060 |
1 | ||
| 84040-22100 |
GX11#,JZX11#..WG ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=84040-22100 |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-22020 |
GX11#,JZX11#..WG |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30120C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
1 | ||
| 84921-30130C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
1 | ||
| 84921-30120B0 |
GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921-30130B0 |
JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING) | ||||
| 84921-30120C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
1 | ||
| 84921-30130C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
1 | ||
| 84921-30120B0 |
GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921-30130B0 |
JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24030B3 |
GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921-24040B3 |
JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 84921-24040C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
1 | ||
| 84921-24030C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
1 | ||
| 84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) | ||||
| 84921-24030B3 |
GX11#,JZX11#..GD,GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,右側 |
1 | ||
| 84921-24040B3 |
JZX11#..GDG,GDGT,IRS,IRV MD.CHARCOAL,TRIM1#,左側 |
1 | ||
| 84921-24040C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,左側 |
1 | ||
| 84921-24030C0 |
JZX11#..GDS,GDV,IRS,IRV BLACK,TRIM2#,右側 |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-30210 |
JZX110;GX11#,JZX115..GD,GDG,IRS |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84922-30290 |
JZX11#..GDG,GDGT,GDS,GDV,IRS,IRV |
1 | ||
| 85531 - SOCKET, POWER OUTLET | ||||
| 85531-48010 |
GX11#,JZX11#..WG |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-31010B1 |
GX11#,JZX11#..WG MD.CHARCOAL,TRIM1# |
1 | ||
| 85535-31010C0 |
GX11#,JZX11#..WG BLACK,TRIM2# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60010 |
GX11#,JZX11#..WG |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 85980-22220 |
GX11#,JZX110..IR,IRS ﾅｼ(ｲ-ｼﾞ- ｸﾛ-ｻﾞ) |
1 | ||
| 89222-22010 |
GX11#,JZX11#..WG |
1 | ||
| Common parts | ||||
| 90109-06296 | ||||
| 90164-40103 | ||||
| 90167-40044 | ||||
| 90901-48003 | ||||
| 91511-B0612 | ||||
| 93319-A4010 | ||||
